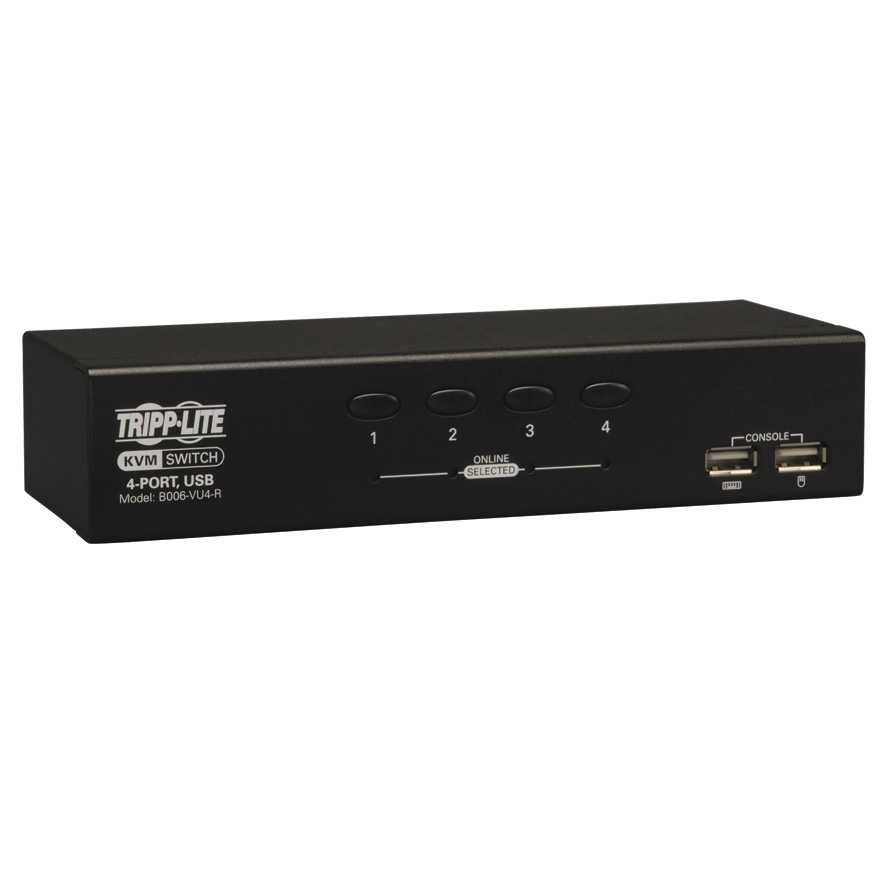

Tripp Lite B006-VU4-R 4-Port Desktop KVM Switch (USB)

B006-VU4-R - Overview

• Features:

  • Control up to 4 USB computers from a single VGA monitor and USB keyboard/mouse
  • Order P758 Cables separately
  • Port LEDs illuminate Light Orange to indicate a computer is connected, and Bright Orange to indicate it is the selected port
  • Supports video resolutions up to 2048 x 1536, DDC2B
  • No software or complicated set-up procedures required
  • Manually switch between connected computers via front panel pushbuttons or hotkey commands
  • Automatically monitor connected computers via Auto Scan Mode
  • Compatible with all major operating systems
  • Compatibile with most mice; including scroll mice
  • Constructed of heavy-duty steel housing


• Specifications:

  • Product Group: KVM SWITCHES
  • TAA Compliant: No
  • Users: 1
  • Console: No
  • Port Control: Push Buttons, Hotkeys
  • Max CPU: 4
  • PC/Server Connections: USB
  • Cat5 KVM Switch: No
  • IP Remote Access: No
  • Style: Desktop
  • KVM Switch Type: Desktop
  • Shipping Dimensions (hwd / in.): 3.5 x 9.8 x 8.7
  • Shipping Dimensions (hwd / cm): 8.89 x 24.89 x 22.10
  • Shipping Weight (lbs.): 2.2
  • Shipping Weight (kg): 1
  • Unit Dimensions (hwd / in.): 1.7 x 7.9 x 2.9
  • Unit Dimensions (hwd / cm): 4.32 x 20.07 x 7.37
  • Unit Weight (lbs.): 1.5
  • Unit Weight (kg): 0.68
  • LCD Monitor (in.): N/A
  • LCD Monitor (cm): Not Applicable
  • Ports: 4
  • Other Ports: None

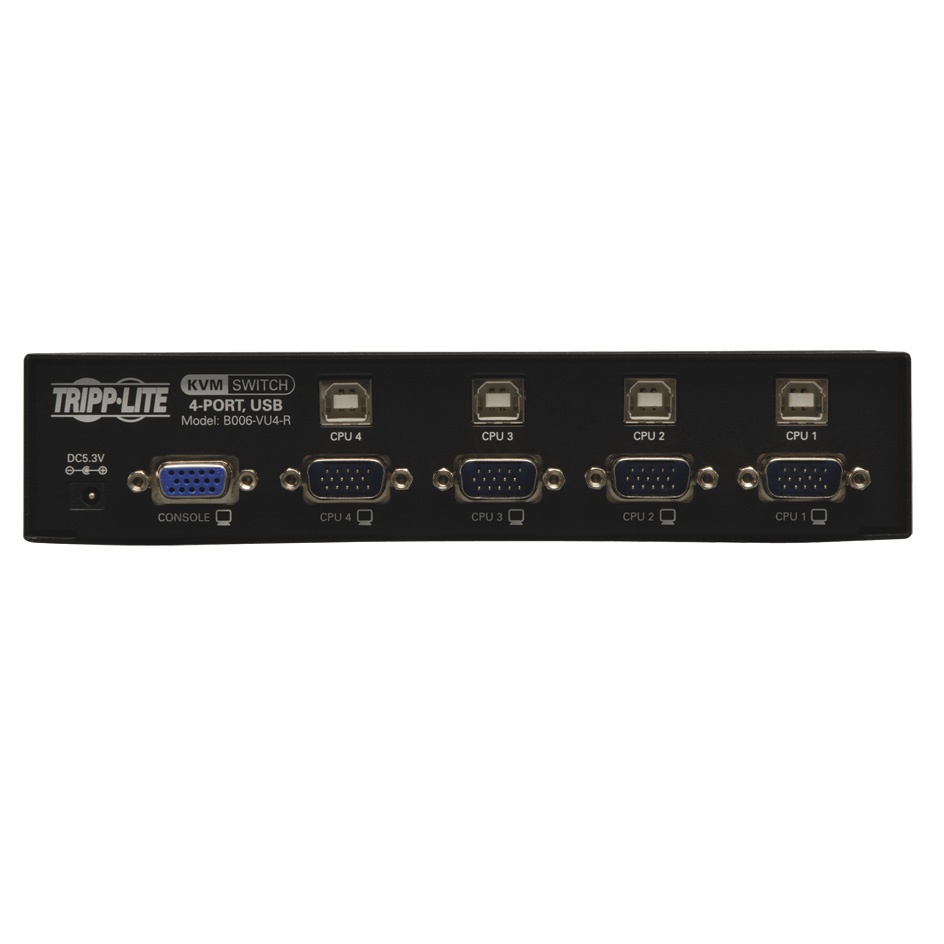

  • Computer/Server Ports - Port 1: (x4) HD15 Male
  • Computer/Server Ports - Port 2: (x4) USB B Female
  • Local Console Ports - Port 1: HD15 Female
  • Local Console Ports - Port 2: (x2) USB A Female
  • Product Warranty Period (Worldwide): 1-year limited warranty
  • Selector Type: KVM SWITCHES


• Item Includes:

  • B006-VU4-R 4-port USB KVM Switch
  • External Power Supply (Input: 100-230V, 50/60Hz, 0.5A / Output: 5.3V, 190mA)
  • Owner's manual


• GTIN:

  0037332152947
