Tripp Lite B020-U16-19-K NetDirector 19in Console KVM with 8 USB/PS2 Combo Cable Kits - 8Port

ITEM #: TRL-B020-U1619K MFG #: B020-U16-19-K

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

List Price:

$2,880.00

Our Price:

$1,794.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


    B020-U16-19-K - Overview

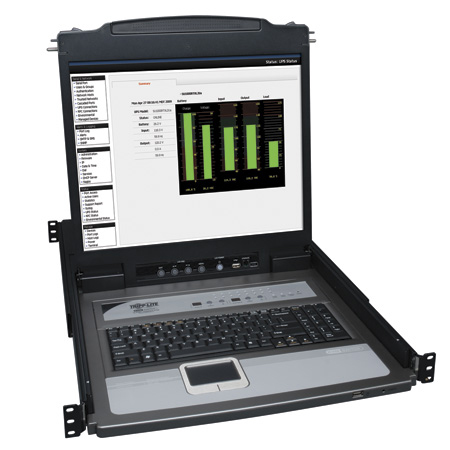

    Tripp Lite's 16-port Console KVM Switch with 19" LCD is the optimal solution for controlling multiple computers from one keyboard, mouse and monitor. This single unit combines a 16-Port KVM switch, keyboard, 19" LCD monitor and touchpad; all in a mere 1U of rack space. Stores neatly in the rack, pulls out when needed. Control up to 512 computers from this single console by daisy-chaining additional 16 port KVM switches (model B022-U16). Easily switch ports using the On-Console push buttons, On Screen Display (OSD) or keyboard hot key commands. Includes eight, six foot Combo cable kits, which allow connection to either PS/2 or USB servers...no adapters needed. Includes a console cable kit that plugs into the port on the back of the unit, providing an extra HD15, (2) USB and (2) PS/2 ports that can be used to connect a Tripp Lite B051-000 IP Remote Access Unit or an external console. Two USB ports are provided on the front of the unit: One for attachment of a separate USB mouse, and the other for attachment of USB peripherals, such as a flash drive, external hard drive, etc. to be shared between connected servers. Compatible with all major operating systems. Constructed of heavy-duty steel housing.

    • Features:

      • 1U rackmount console with built-in 16-Port KVM switch, 19" LCD screen, keyboard, and touchpad
      • Includes (x8) P778-Series USB/PS2 Combo KVM Cable Kits
      • Additional ports are provided for the connection of an external console (PS/2 or USB) or IP remote access unit (model B051-000)
      • Features a USB 1.1 port on the LCD panel for the sharing of USB peripherals such as Flash Drives and Card Readers amongst the connected computers
      • Features a USB 1.1 port on the keyboard panel for the convenient connection of an external mouse
      • USB/PS2 combo KVM cable kits allow you to connect to a USB or PS/2 computer without having to purchase separate cables or adapters
      • OSD available in English, Spanish, French, German, and Japanese
      • Switch ports via on-console pushbuttons, hotkey keyboard commands, or the OSD
      • Auto scan feature allows for continuous scanning of connected computers
      • Two level password security (up to four Users and one Administrator)
      • Supports video resolutions up to 1280 x 1024
      • Firmware upgradeable
      • Input Power: 100-240VAC, 50/60Hz, 1A
      • Power Consumption: 120V, 28.5W / 230V, 29.1W\
      • Compatible with all major operating systems
      • Constructed of heavy-duty steel housing
      • DDC emulation allows the video settings of each computerto be automatically adjusted for optimal output to the built-in LCD display

    • Specifications:

      • Product Group: KVM SWITCHES
      • TAA Compliant: No
      • Users: 1
      • Console: Yes
      • Port Control: Push Buttons, Hotkeys, OSD
      • Max CPU: 16
      • PC/Server Connections: PS/2
      • IP Remote Access: No
      • Style: 1U Rackmount Console
      • KVM Switch Type: Rack LCD Console
      • Unit Dimensions (hwd / in.): 1.75 x 17 x 27
      • Unit Dimensions (hwd / cm): 4.45 x 43.18 x 68.58
      • Unit Weight (lbs.): 31.3
      • Unit Weight (kg): 14.2
      • Included Mounting Accessories: Yes
      • Color: Black
      • LCD Monitor (in.): 19
      • LCD Monitor (cm): 48.26
      • Storage Temperature Range: -4 Degrees F to 140 degrees F (-20 to +60 C)
      • Relative Humidity: 0 to 80% RH, Non-condensing
      • Operating Temperature: 32 Degrees F to 120 Degrees F (0 to 50 C)
      • Ports: 16

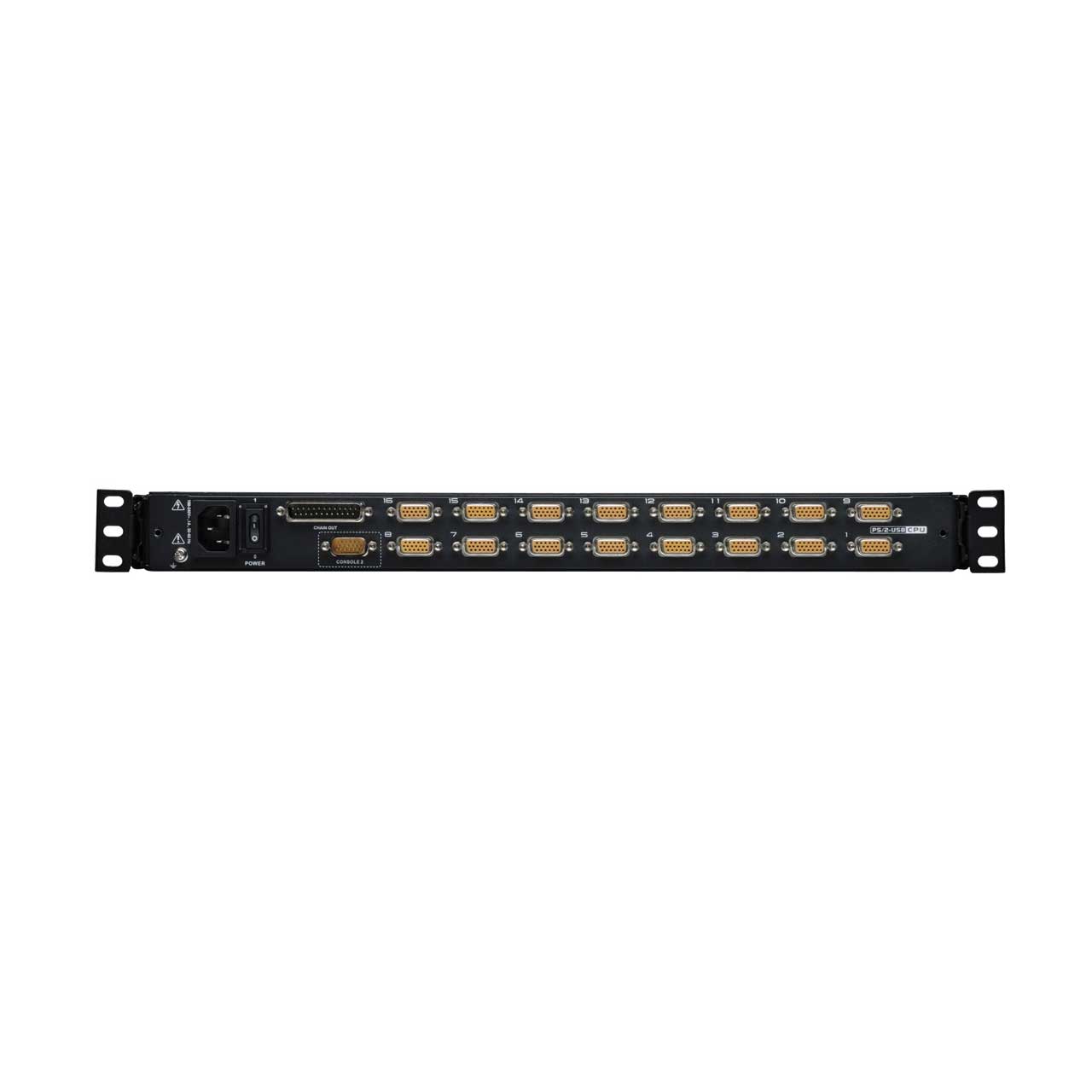

      • Computer/Server Ports: (x16) HD18 (Female)
      • Firmware Upgrade Port: RJ45
      • Included Cable (Side A) - Connector 1: HD18 Male
      • Included Cable (Side B) - Connector 1: HD15 Male
      • Included Cable (Side B) - Connector 2: PS/2 male
      • Included Cable (Side B) - Connector 3: PS/2 male
      • Included Cable (Side B) - Connector 4: USB A Male
      • Other Ports - Port 1: USB A for Optional USB Mouse connection
      • Other Ports - Port 2: USB A for Optional Flash Drive connection
      • Remote Console Port: HD18 Female + Dongle Cable Kit w/VGA, PS2, & USB Females
      • Autoscan (Y,N): Y
      • Approvals: UL, cUL, CE, FCC, RoHS
      • Product Warranty Period (Worldwide): 1-year limited warranty

    • Item Includes:

      • B020-U16-19-K 1U rackmount console with built-in 16-Port KVM switch, 19" LCD, keyboard, and touchpad
      • (x8) P778-006 6 ft. USB/PS2 combo KVM cable kits
      • USB/PS2 combo console cable kit
      • RJ11 to DB9 firmware upgrade cable
      • C13 to 5-15P power cord
      • CD with owner's manual
      • Quick start guide
      • Grounding wire
      • Rackmount hardware

    • GTIN:

      0037332150769
