Tripp Lite B070-008-19 8-Port Rack VGA Console Cat5 KVM Switch

ITEM #: TRL-B070-008-19 MFG #: B070-008-19

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:

$1,991.00

Our Price:

$1,231.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


B070-008-19 - Overview

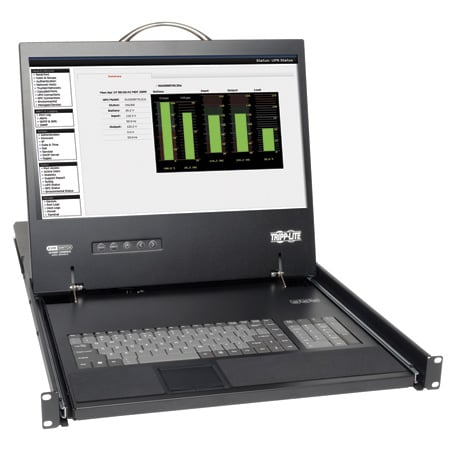

Tripp Lite's B070-008-19 NetCommander Rackmount Console KVM switch is a cost effective and highly flexible system for controlling up to 128 computers from a single 19" display console. This console can be cascaded with Tripp Lites stand-alone B072 NetCommander series KVM switches. Switching between attached servers can be accomplished via the On Screen Display (OSD) menu or Hotkey commands.Utilizing Tripp Lite's B078-101-Series server interface units, KVM cabling is kept to a minimum via inexpensive Cat5/5e/6 patch cables. Servers can be located up to 100 ft. away from the switch.Add Remote access over IP by connecting Tripp Lite B051-000 Remote IP Access Unit.Password feature provides additional security to prevent unauthorized access to attached computers. All rackmount hardware is included, and is designed for easy, one person installation. Fits into any rack from 27" to 42" deep. 2-post rackmounting available using Tripp Lite's B019-000. Compatible with all major operating systems. Constructed of heavy-duty steel housing.

  • Features:

    • 8-port Cat5 KVM Switch with built-in 19" Monitor, Keyboard, and Mouse
    • Supports resolutions up to 1280 x 1024 (60Hz)
    • Connect and control up to 128 computers locally or remotely
    • Standard EIA 19" rackmounting
    • Use in racks from 27" to 42" deep
    • OSD menu for intuitive operation and easy control
    • USB and PS/2 mouse/keyboard support
    • Password protection and auto-logout features
    • Firmware upgradeable
    • Hot-swappable: disconnect and reconnect USB computers w/o reboot
    • Easy port selection via On Screen Display (OSD) or Hotkey commands
    • Rugged ball bearing slides offer long life usage
    • Uses readily availabe Cat5/5e/6 patch cables to locate computers up to 100 ft. from the KVM
    • IP upgradeable using Tripp Lite B051-000 IP Remote Unit
    • Compatible with all major operating systems
    • Constructed of heavy-duty steel housing
    • Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases

  • Specifications:

    • Product Group: KVM SWITCHES
    • TAA Compliant: Yes
    • Users: 1
    • Console: Yes
    • Port Control: Hotkeys, OSD
    • Max CPU: 128
    • PC/Server Connections: PS/2
    • Cat5 KVM Switch: Yes
    • IP Remote Access: No
    • Style: 1U Rackmount Console
    • KVM Switch Type: Rack LCD Console
    • Electrical Consumption: (Line Mode) 30W / (Standby Mode) 5W
    • Nominal Input Voltage Description: Internal Switching 100-240 VAC 50/60Hz
    • Unit Dimensions (hwd / in.): 1.7" x 19" x 26.8"
    • Unit Dimensions (hwd / cm): 4.32 x 48.26 x 68.07
    • Unit Weight (lbs.): 36
    • Unit Weight (kg): 16.33
    • Color: Black
    • LCD Monitor (in.): 19
    • LCD Monitor (cm): 48.26
    • Storage Temperature Range: -40F to 158F
    • Relative Humidity: 80% Non-condensing Relative Humidity
    • Operating Temperature: 32F to 104F
    • BTUs: (Line Mode) 102 BTU/Hr / (Standby Mode) 17.06 BTU/Hr
    • Ports: 8

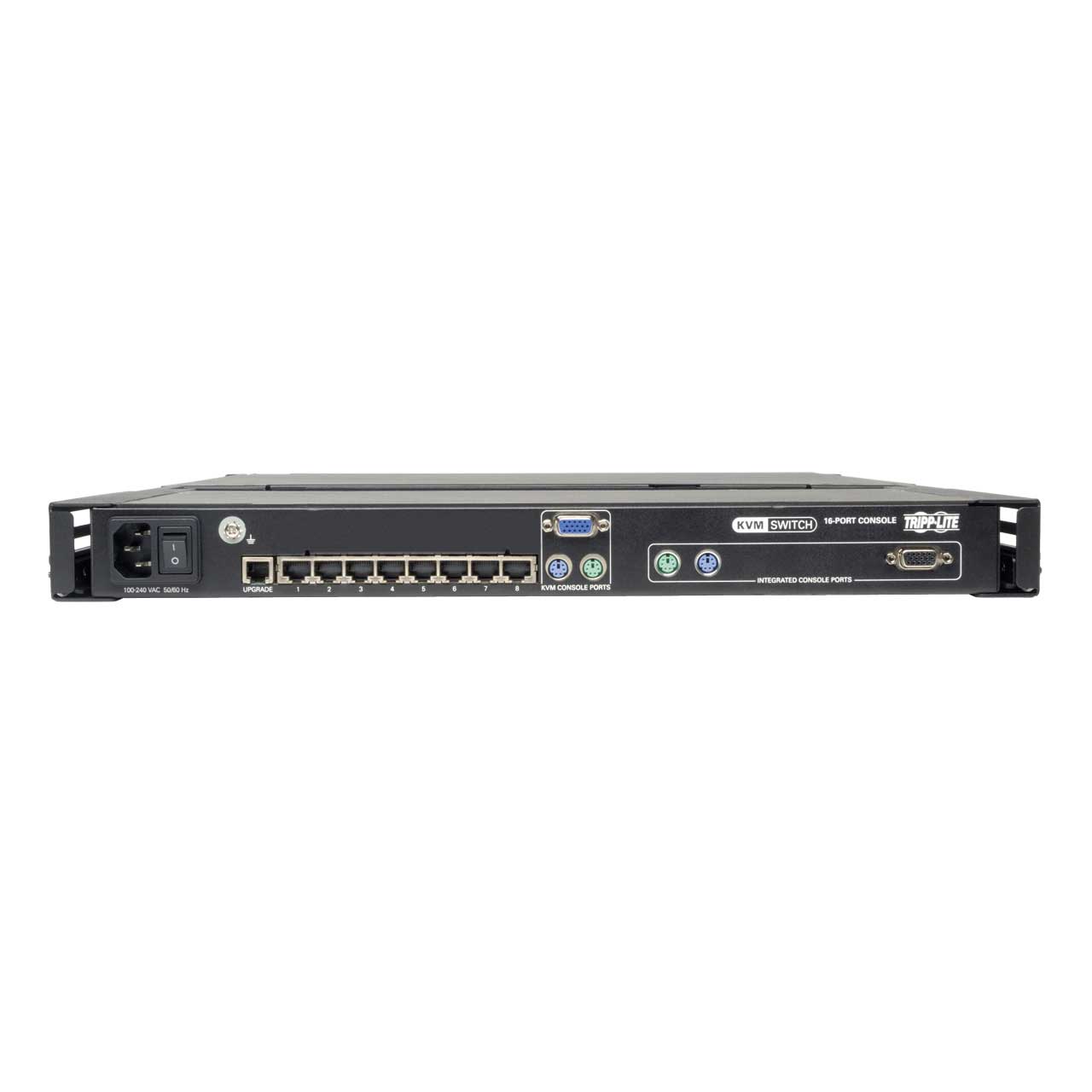

    • Computer/Server Ports: 8 x RJ45
    • Firmware Upgrade Port: RJ45
    • Autoscan (Y,N): Y
    • Autoscan Duration: Variable
    • Product Warranty Period (Worldwide): 1-year limited warranty
    • Selector Type: KVM SWITCHES

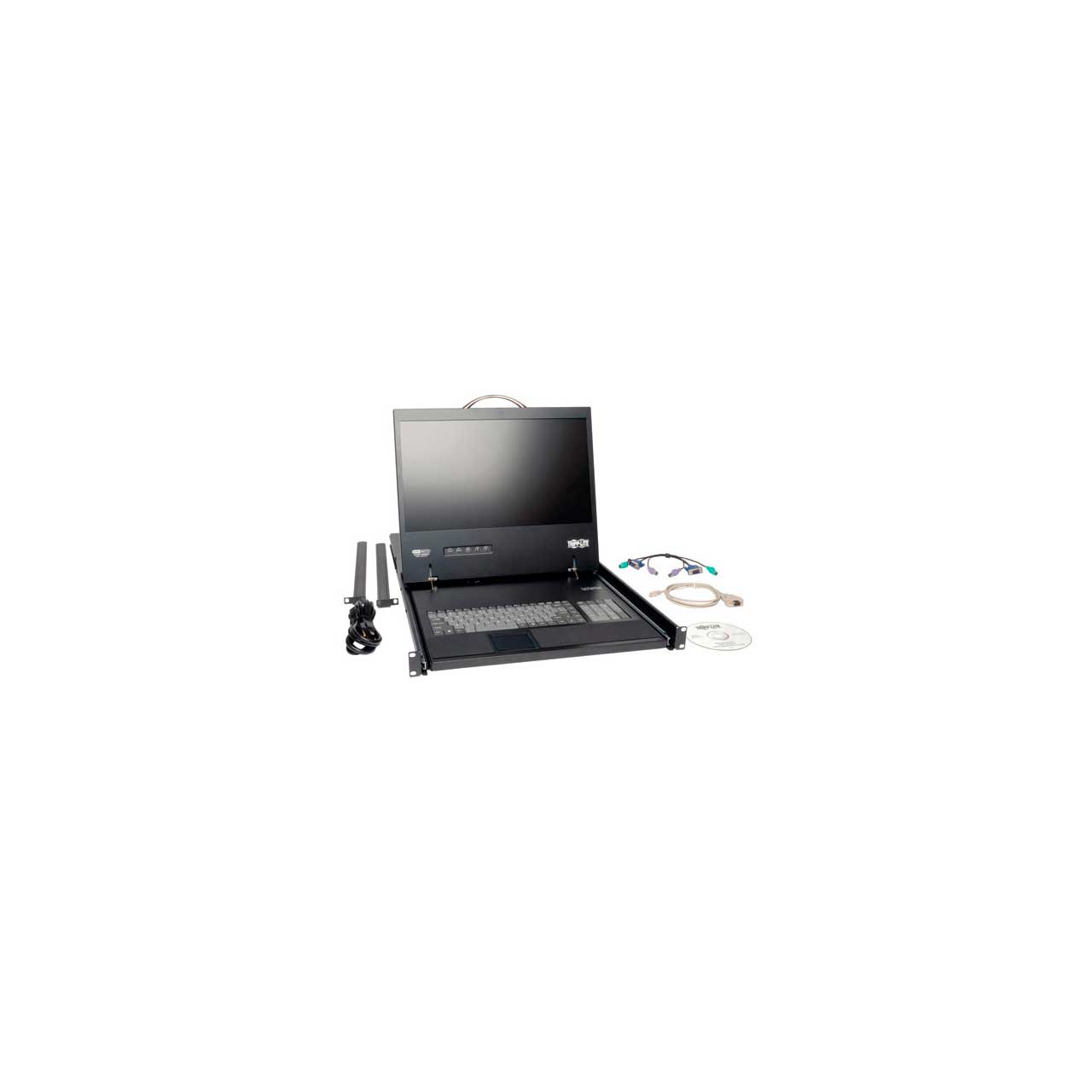

  • Item Includes:

    • B070-008-19, 8-port Cat5 KVM 19" Console
    • Power Cord
    • Serial Firmware Upgrade Cable
    • KVM/Console Jumper cable
    • Owners manual CD

  • GTIN:

    0037332154927
