Tripp Lite B127A-111-BDTD DisplayPort Over Cat6 Extender Kit / Transmitter and Receiver w/ Repeater - 4K / 230ft / TAA

B127A-111-BDTD - Overview

• Features:

  • Supports UHD resolutions up to 4K @ 30 Hz (4:4:4) for crystal-clear video
  • Power over Cable (PoC) technology provides power to either unit via Cat6 cable
  • Can be daisy-chained up to 4 times (920 ft. total) via additional B127A-110-BD receivers
  • Plug-and-play operation with no software required for easy, immediate installation


• Specifications:

  • Video
  • Video Input: DisplayPort (Female)
  • video Output: DisplayPort (Female); HDMI (Female)
  • Number of Monitors Supported: 1
  • Video Ports: DisplayPort (Female); HDMI (Female)
  • Video Ports Details: HDCP 1.4; HDCP 2.2; DisplayPort 1.2a
  • Resolutions Supported: DisplayPort Output and Local HDMI Output: 3840 x 2160 (4K) @ 30 Hz
  • Max. Distance (Between any 2 Units): 230 ft.
  • Mas Distance with Booster: 400
  • Max Number of Ports (Entire Chain): 4
  • Transmitter Video Input: DisplayPort
  • Transmitter - Number of Video Outputs: 2
  • Transmitter - Local Display Output: HDMI
  • Receiver/Transceiver Video Output: DisplayPort
  • Receiver - Number of Video Outputs: 1
  • Extended Mode: Yes
  • Extended Mode Details: 1x DisplayPort Output (4K/30 Hz) - Can be daisy-chained up to four lengths with each additional B127A-110-BD transceiver unit featuring 1x 4K/30 Hz DisplayPort output
  • Max Supported Color Depth: 36-bit Deep Color
  • HDR Support: No
  • 3D Video Supported: Yes
  • Chroma Sub Sampling: 4:4:4

    Audio
  • Audio Input: Displayport
  • Audio Output: Displayport
  • Audio Specification: Pass-through of Audio format includes LPCM2.0/5.1/7.1

    Input
  • AC Power Adapter Plug(s): AS/NZS 3112 Australia; BS 1363 UK; CEE 7/16 Schuko; NEMA 1-15P North America
  • AC Power Adapter Input Specs (V / Hz / A): 100-240V / 50/60hz / 0.6A
  • AC Power Adapter Output Specs (V / A): 24V / 1A
  • AC Power Adapter Cord Length: 4.53ft
  • Voltage Compatibility (VAC): 100; 110; 120; 125; 127; 200; 208; 220; 230; 240

    Power
  • Power Source Type: AC Adapter
  • Power Over Cable (PoC) Support: Yes

    Features and Specifications
  • All-in-One Kit: Yes
  • Integrated/Removable Cable: No
  • MST Support: No
  • Mounting Accessory Included: Yes
  • Multi-Resolution Support: No
  • Built-In Equalizer: Yes
  • Displayport Specification: 1.2a
  • HDCP Specification: 1.4; 2.2
  • Driver Required: No
  • Recommended Category Cable: 24AWG Cat6

    Physical
  • Color: Black
  • Material of Construction: Metal
  • Number of Displays: 1
  • Rackmountable: Yes
  • Receiver Unit Dimensions(HxWxD): 1.06" x 4.52" x 2.45" (2.7 cm x 11.5 cm x 6.24 cm)
  • Receiver Unit Weight: 1lb
  • Transmitter Unit Dimensions (HxWxD): 1.06" x 4.52" x 2.45"
  • Transmitter Unit Weight: 1lb

    Environmental
  • Operating Temperature Range: 32°F to 104°F (0°C to 40°C)
  • Storage Temperature Range: 5°F to 122°F (-15°C to 50°C)
  • Relative Humidity: 0 to 85% RH, Non Condensing

    Standards and Compliance
  • External Power Supply Certifications: CCC; CE; GS; TUV; UL; cUL
  • Product Compliance: RoHS; CE (Europe); REACH; FCC (USA); Trade Agreements Act (TAA); UKCA

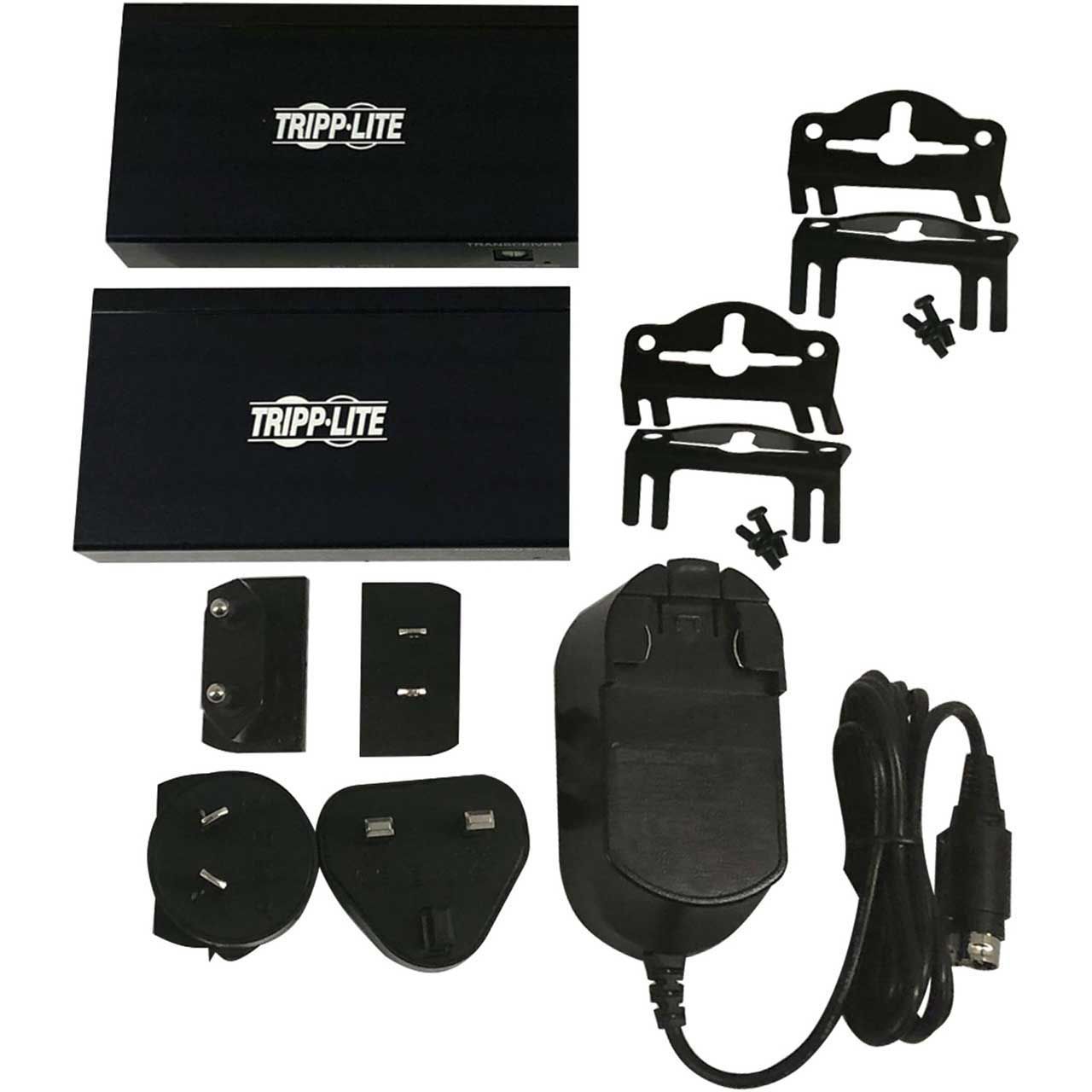

• Item Includes:

  • 1x Transmitter
  • 1x Transceiver
  • 1x External power supply (Input: 100-240V, 50/60 Hz, 0.6A; Output: 24V 1A)
  • 4x International plug adapters (North America, Europe, U.K. and Australia)
  • 1x Mounting Hardware


• Warranty:

  • 1-Year Limited Warranty


• GTIN:

  0037332263964
