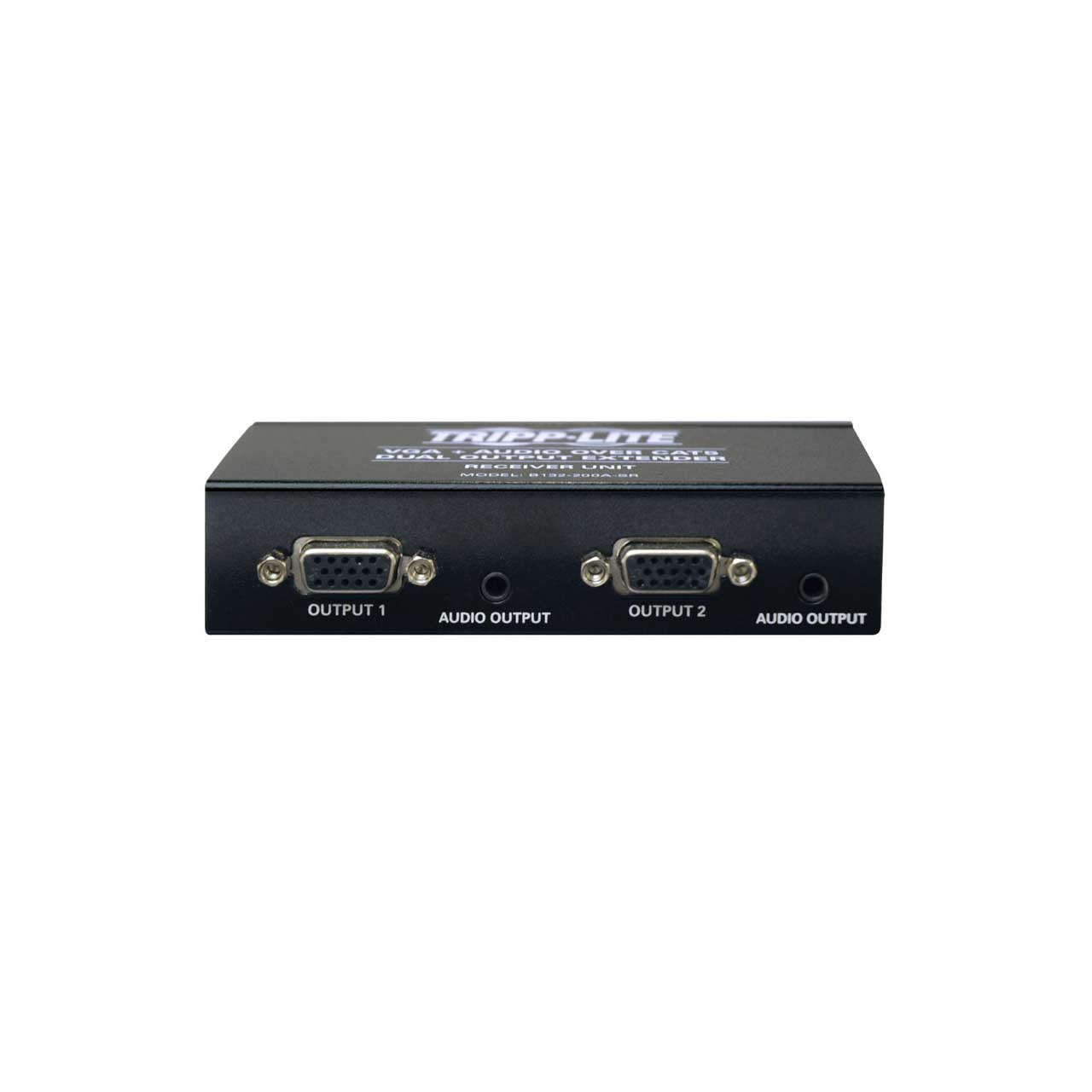

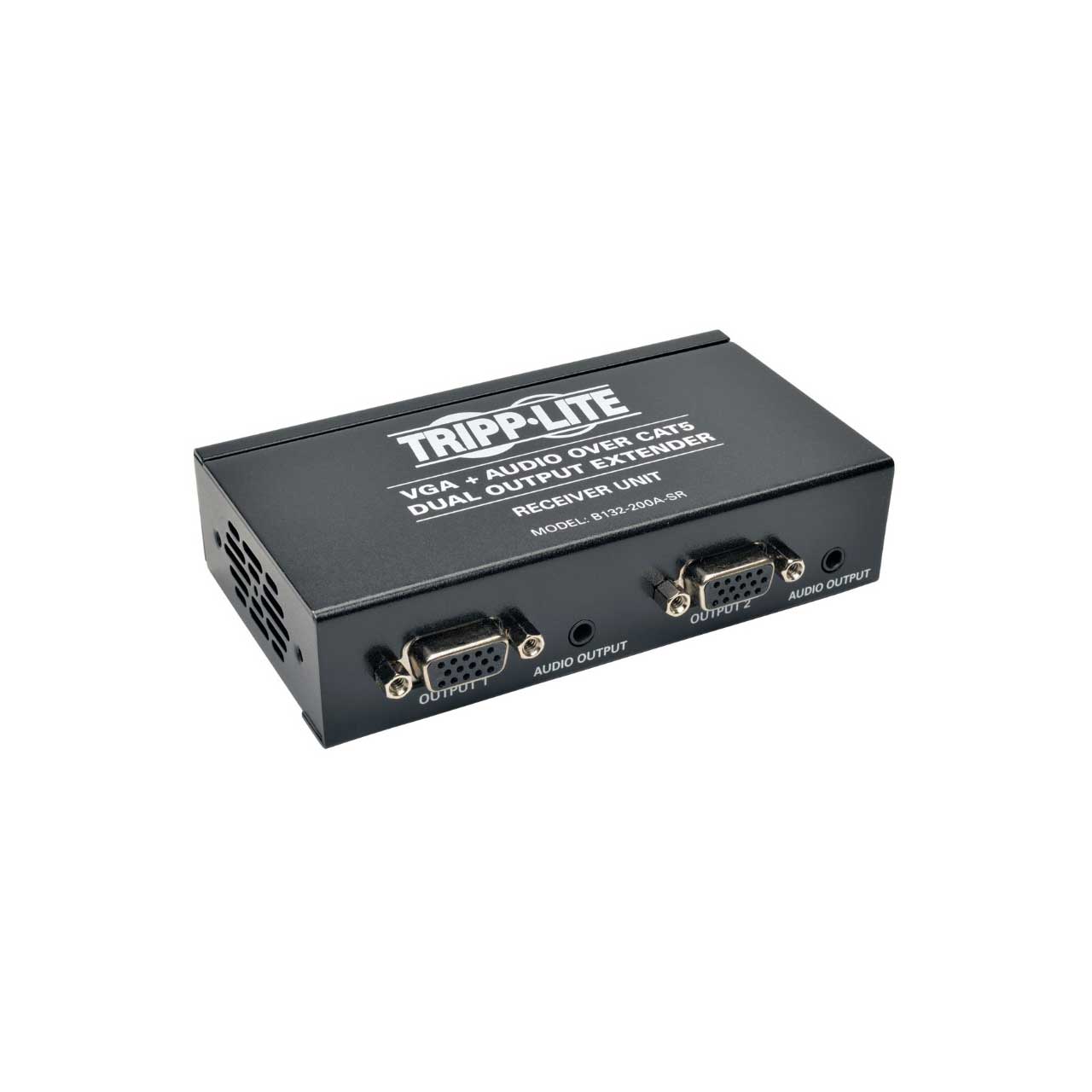

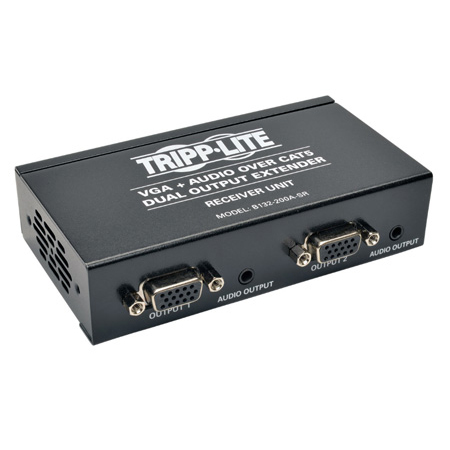

Tripp Lite B132-200A-SR Dual VGA with Audio over Cat5/Cat6 Extender Box-Style Receiver 1440x900 at 60Hz Up to 300 Feet

B132-200A-SR - Overview

• Features:

  • Features dual VGA and audio ports for the connection of two sets of monitors and speakers
  • Works with a B13 or B13 Transmitter Unit to extend a VGA video and audio signal up to 300-ft. from the source
  • Extends a 1440 x 900 video and audio signal up to 150-ft, or a 1024 x 768 video and audio signal up to 300-ft.
  • 24 AWG, Solid Wire Cat5e/6 cable (such as Tripp Lite's N20 Cat6 cables) is required to achieve maximum distance and resolution
  • Features a built-in equalization control to adjust the video image
  • All operating systems supported
  • Plug and play; no software or drivers required
  • HDCP and EDID compliant
  • Ideal for digital signage installations for retail, schools, churches, etc.
  • Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases


• Specifications:

  • AC Adapter: Input: 100-240V, 50/60Hz, 0.5A; Output: 5V, 2A, 4.5 ft.
  • Shipping Weight (lbs.): 1
  • Shipping Weight (kg): 0.45
  • Unit Dimensions (hwd / in.): 1.1 x 4.5 x 2.5
  • Unit Dimensions (hwd / cm): 2.7 x 11.5 x 6.24
  • Unit Weight (lbs.): 0.5
  • Unit Weight (kg): 0.23
  • Color: Black
  • Max 1024 x 768 Range (ft): 300
  • Max 480P Range (ft): 300
  • Max 1440 x 900 Range (ft): 150
  • Max 480i Range (ft): 300
  • Max 640 x 480 Range (ft): 300
  • Max 800 x 600 Range (ft): 300
  • Max 720P Range (ft): 150
  • Ports: 2
  • Side A - Connector 1: RJ45 (FEMALE)
  • Side B - Connector 1: (2) HD15 (FEMALE)
  • Side B - Connector 2: (2) 3.5MM (FEMALE)
  • Approvals: CE, FCC, RoHS, REACH
  • Product Warranty Period (Worldwide): 1-year limited warranty

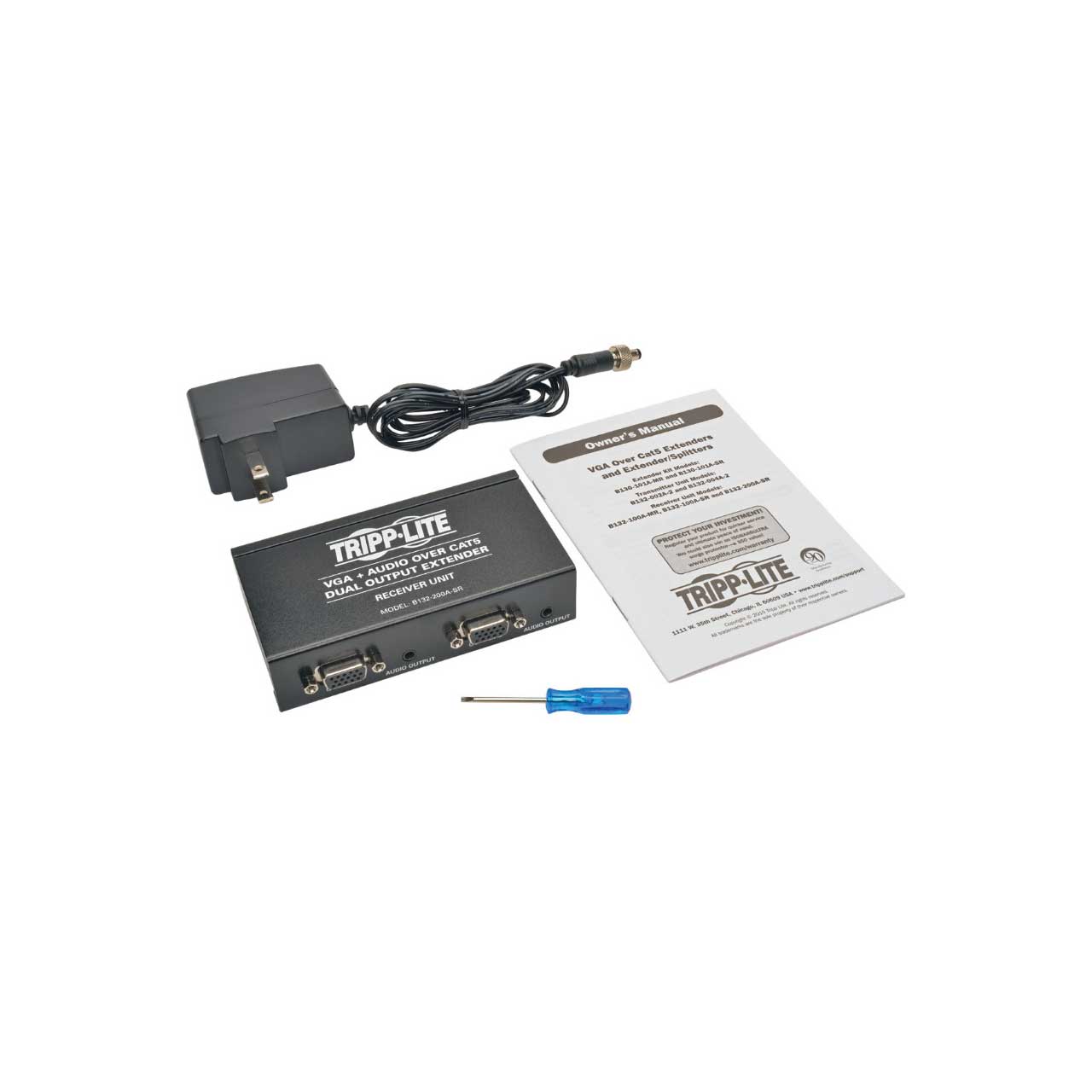

• Item Includes:

  • B132-200A-SR
  • External Power Supply with NEMA 1-15P Plug (Input: 100-240V, 50/60Hz, 0.5A; Output: 5V, 2A, 4.5 ft.)
  • Screwdriver for EQ adjustment
  • Owner's Manual


• Warranty:

  • 1 Year


• GTIN:

  0037332185570
