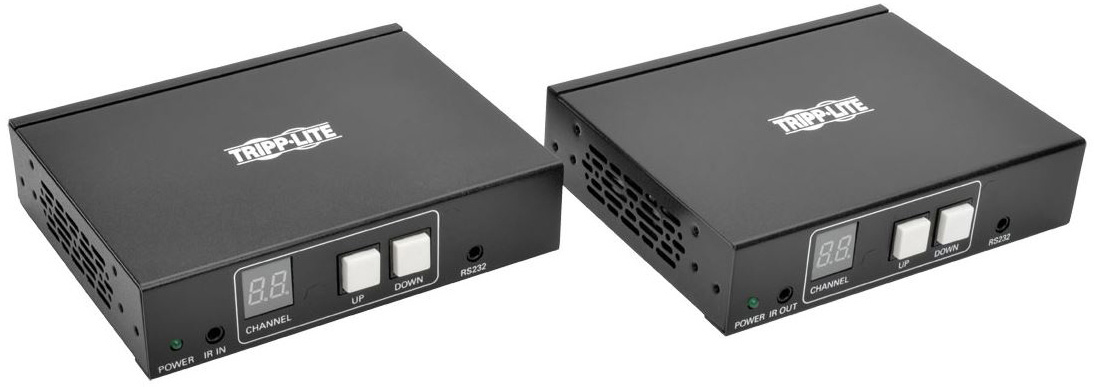

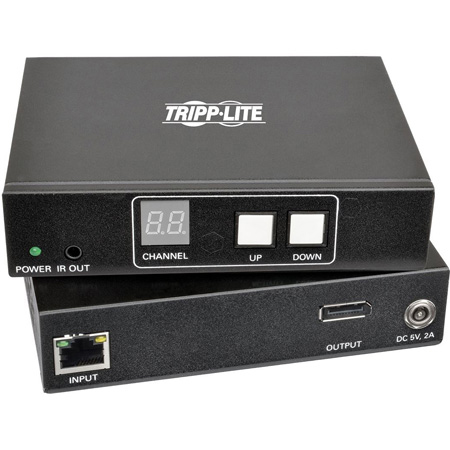

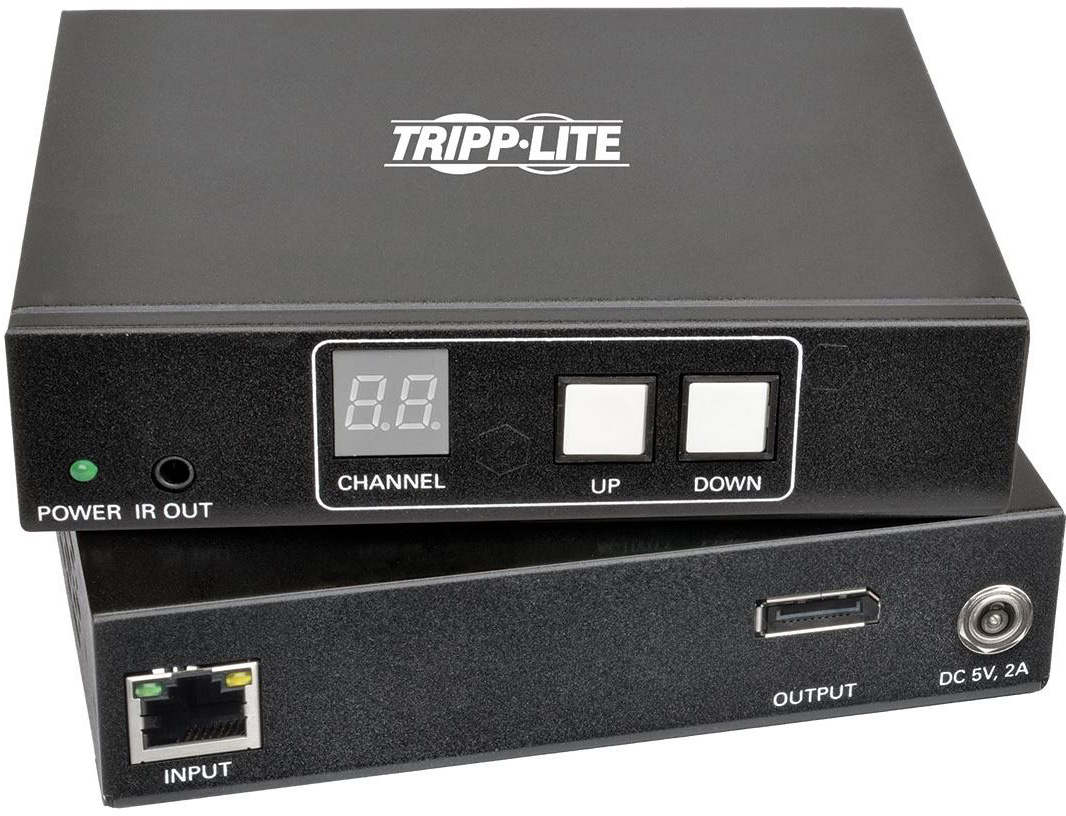

Tripp Lite B160-101-DPSI DisplayPort over IP Transmitter/Receiver/Extender Kit RS-232 Serial & IR Control - 328 Feet TAA

ITEM #: TRL-B160-101DPSI MFG #: B160-101-DPSI

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the TRL-B160-101DPSI

B160-101-DPSI - Overview

The B160-101-DPSI DisplayPort over IP Transmitter/Receiver/Extender Kit extends and distributes DisplayPort audio/video, RS-232 serial and IR (infrared) remote signals from the source to the display located up to 328 feet (100 meters) away, which is more than 200 feet farther than a traditional Cat5e/6 solution. By adding a chain of low-cost unmanaged network switches, such as Tripp Lite’s NG5, you can continue extending the distance between source and display up to 328 feet per switch.

Create a multi-in, multi-out installation with up to 64 transmitters and 255 receivers by including dedicated managed Ethernet network switches with Internet Group Management Protocol (IGMP), such as Tripp Lite’s NSS-G16D2. You can send the DisplayPort video source to any analog or digital display, including VGA and HDMI, allowing you to mix and match technologies and use existing monitors. The IGMP-enabled switch will let you manage all connections for centralized control over which sources show on which displays.

The B160-101-DPSI supports video resolutions up to 1920 x 1080 (1080p) at 60 Hz in a point-to-multipoint switch installation. It extends IR control signals that control a source, such as a Blu-ray player, to a remote display, as well as RS-232 signals at serial baud rates up to 57600 Bps. The transmitter and receiver units mount to a wall, rack or pole using the including hardware.

  • Features:

    • Extends and Distributes DisplayPort A/V, Serial and IR Control Signals over Cat5e/6 Cabling
    • Converts audio/video to an IP-based signal that is transmitted point-to-point to a display 328 ft. away
    • Add low-cost network switches between transmitter and receiver to continue extending distance up to 328 ft. per switch

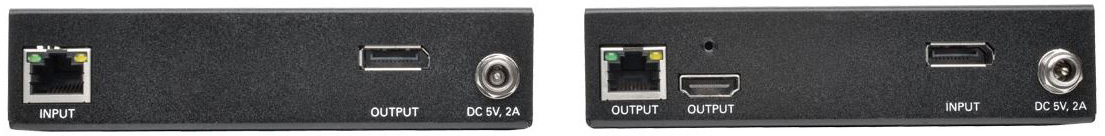

    • HDMI output on transmitter for connecting a local display

      Create a Multi-In, Multi-Out Installation Using B160-Series Transmitters and Receivers
    • Connect up to 64 transmitters and 255 receivers through multiple dedicated managed network switches
    • IGMP-enabled switches allow centralized control over which sources show on which displays
    • Video source can be sent to any analog or digital display, so you can mix and match technologies and use existing monitors

      Enhanced Technical Features
    • Supports video resolutions up to 1920 x 1080 (1080p) @ 60 Hz
    • Uses H.264 video compression standard
    • Transmits on 20-60 kHz IR frequency
    • Extends IR control signals that control a source from a remote display
    • Supports RS-232 serial baud rates up to 57600 Bps
    • HDCP and 3D compatible

      Plug-and-Play Functionality
    • No software or drivers required
    • Hardware included for mounting on wall, rack or pole

      TAA-Compliant
    • Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
    • Units connect point-to-point without a switch up to 328 ft.
    • Supports video resolutions up to 1920 x 1080 (1080p) @ 60 Hz
    • HDMI output on transmitter for connecting local display

  • Specifications:

    • Max 1024 x 768 Range (ft): 328
    • Max 480P Range (ft): 328
    • Max 1440 x 900 Range (ft): 328
    • Max 1080i Range (ft): 328
    • Max 1080P Range (ft): 328
    • Max 1920 x 1440 Range (ft): 328
    • Max 480i Range (ft): 328
    • Max 640 x 480 Range (ft): 328
    • Max 800 x 600 Range (ft): 328
    • Max 1600 x 1200 Range (ft): 328
    • Max 1920 x 1200 Range (ft): 328
    • Max 720P Range (ft): 328
    • Connection Ports: 1
    • Product Warranty Period (Worldwide): 1-year limited warranty

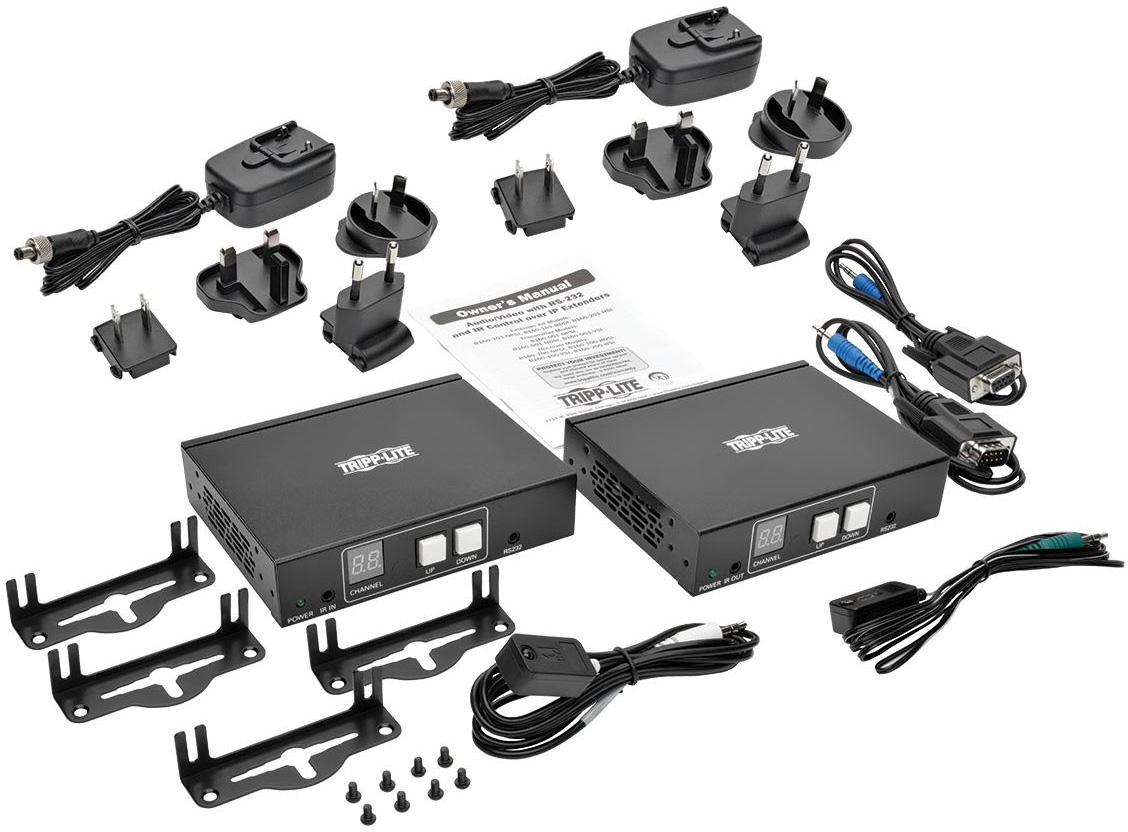

  • Item Includes:

    • Transmitter unit
    • Receiver unit
    • (2) External power supplies (Input: 100-240V, 50/60 Hz, 0.5A; Output: 5V 2A)
    • Plug adapters for U.S., U.K., Europe and Australia
    • IR-In cable
    • IR-Out cable
    • 3.5 mm to DB9 adapter cable (M/F)
    • 3.5 mm to DB9 adapter cable (M/M)
    • Mounting hardware
    • Owner’s manual

  • Warranty:

    • 1 Year
