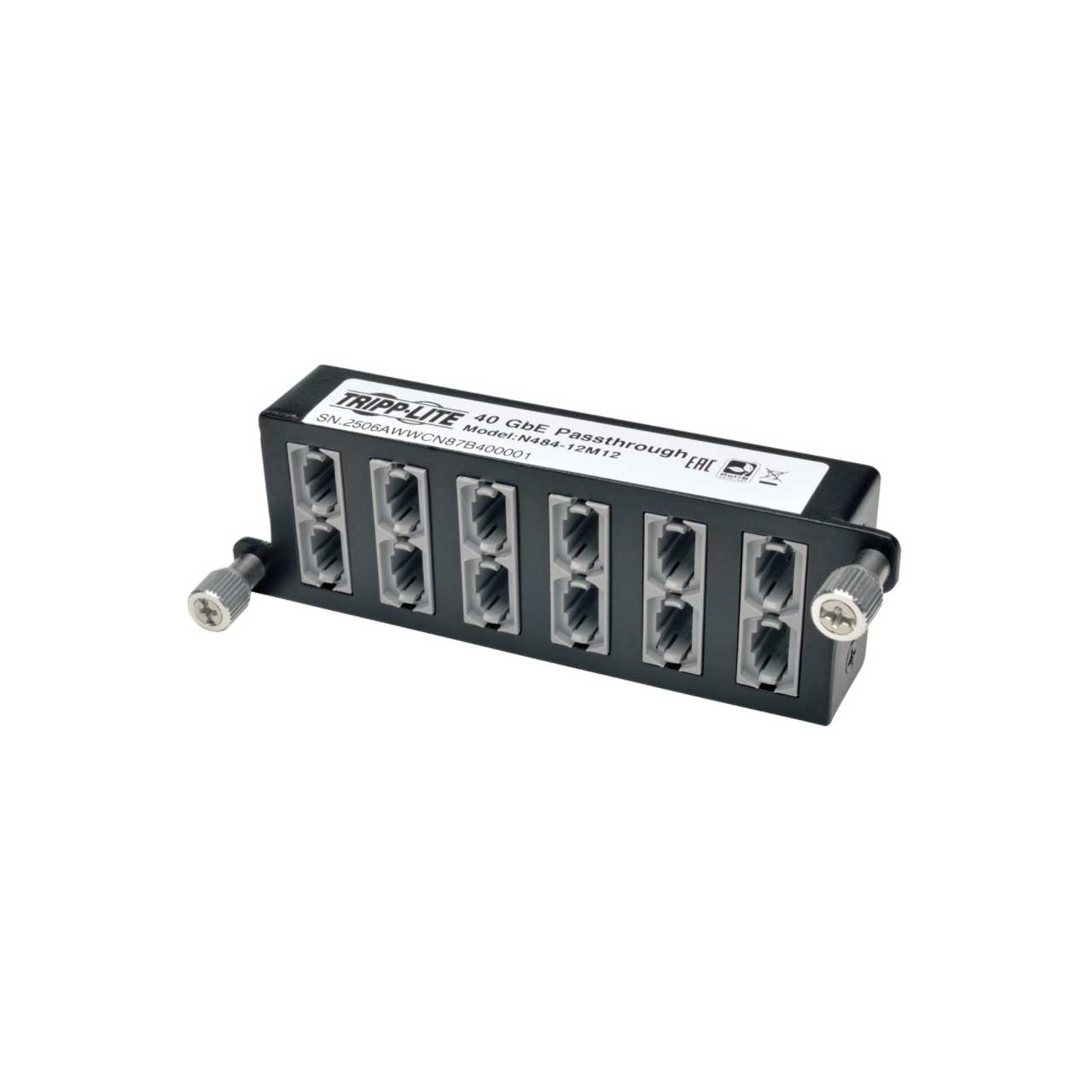

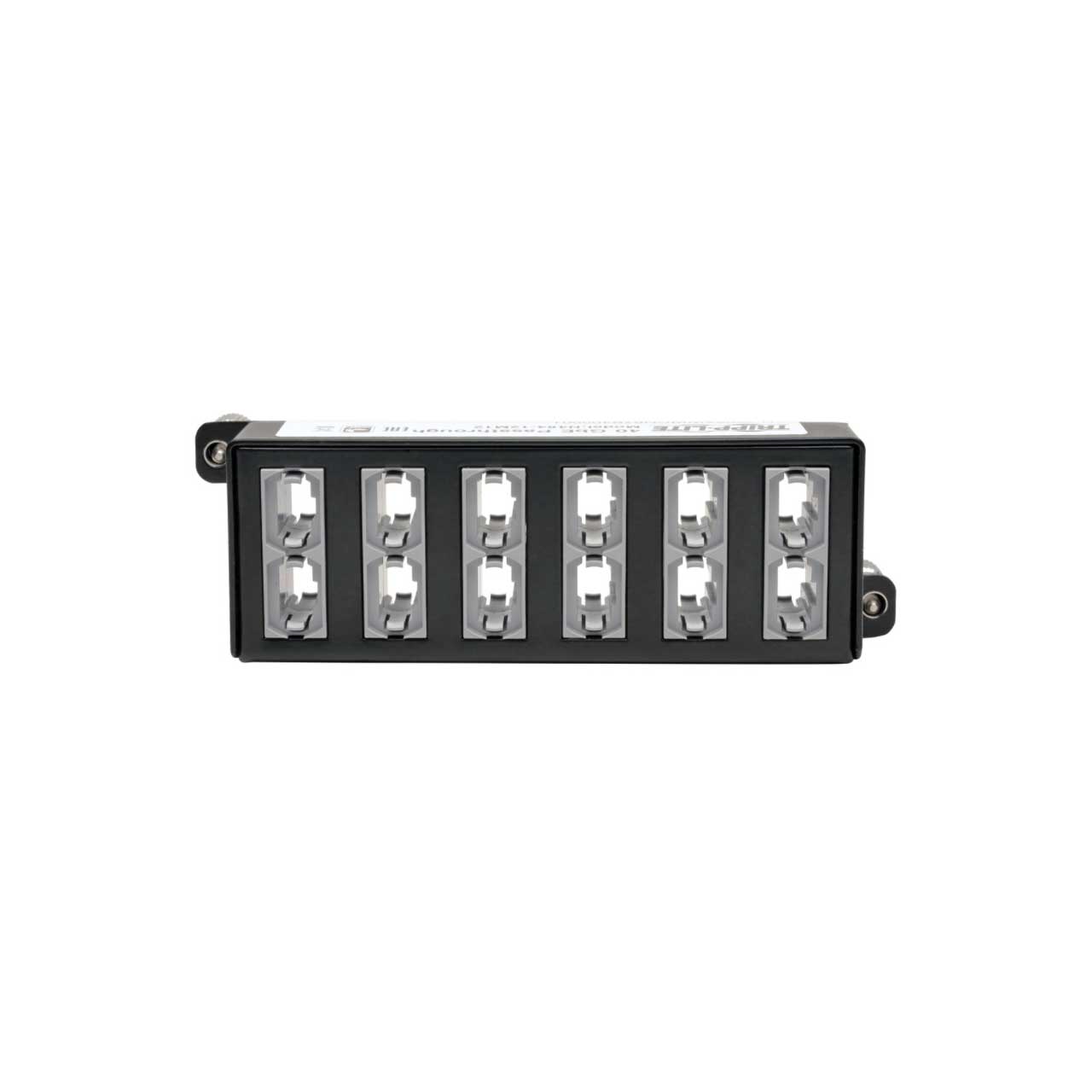

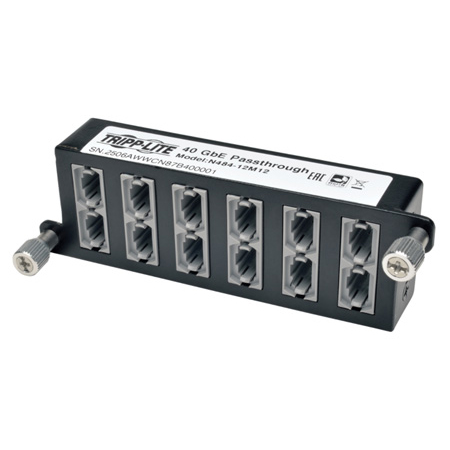

Tripp Lite N484-12M12 40Gb Pass-Through Cassette - (x12) 12-Fiber MTP/MPO

N484-12M12 - Overview

• Features:

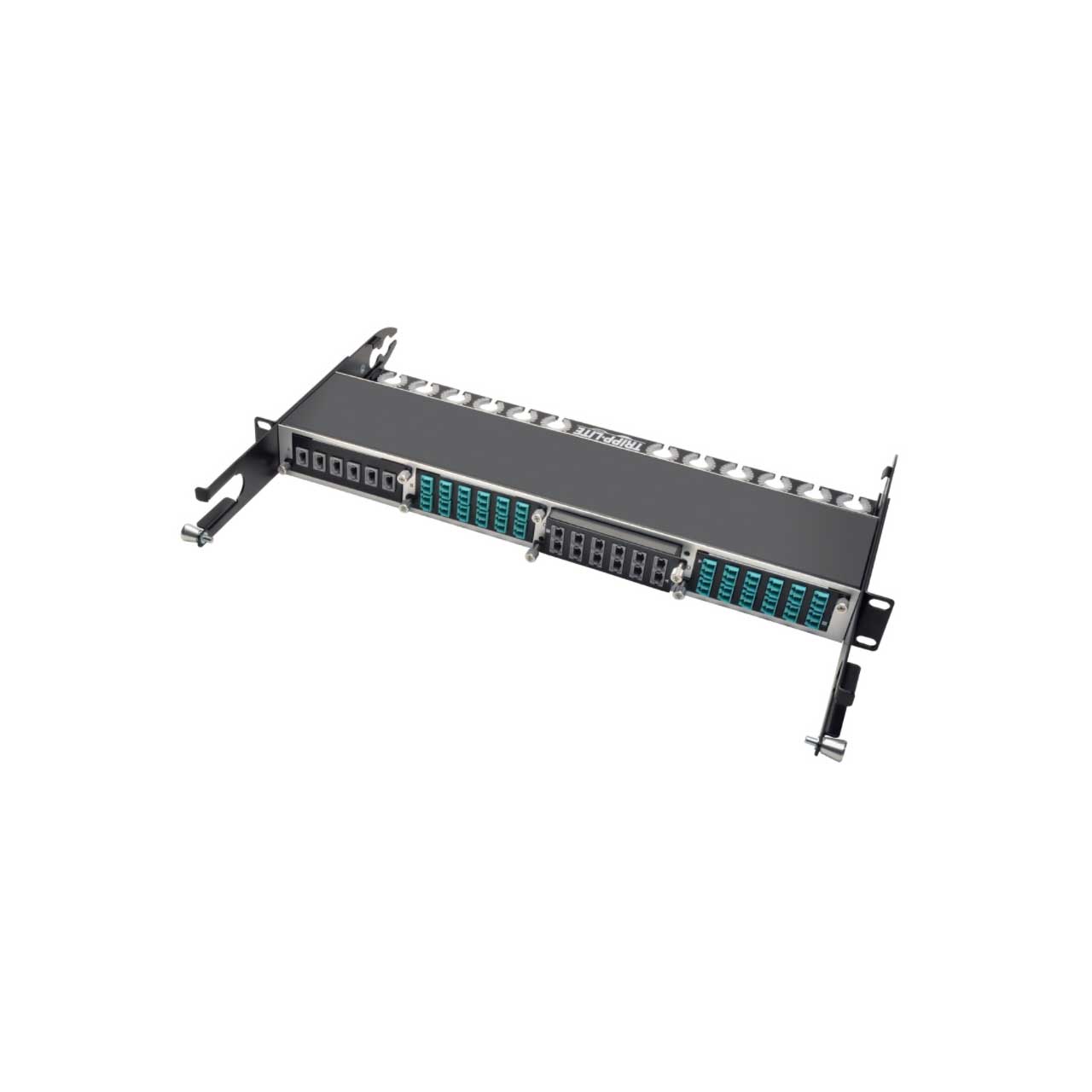

  • High Density Fiber Cassette for use with Tripp Lite's N484-00U and N484-01U chassis'
  • 40Gb Pass-through Cassette, with (x12) 12-Fiber MTP/MPO connections
  • Max insertion loss of 0.35dB falls well under the IEEE 802.3ae maximum channel loss spec of <25dB
  • Type B adapters ( Key up to Key up )
  • Installation is simple, with the cassette being easily installed or removed using screw tabs to lock or unlock it from the panel; no tools required
  • Factory terminated connectors reduce the time and labor required of field connector terminations
  • Housing made of heavy duty, 1.0mm Cold Rolled Steel
  • Includes dust caps for unused ports


• Specifications:

  • Unit Dimensions (hwd / in.): 1.4 x 4.4 x 0.8
  • Unit Weight (lbs.): 0.3
  • Unit Weight (kg): 0.14
  • Color: Black
  • Operating Temperature Range: -4 to 122 F (-20 to 50 C)
  • Ports: 12
  • Side A - Connector 1: (12) 12-STRAND MTP (FEMALE)
  • Side B - Connector 1: (12) 12-STRAND MTP (FEMALE)
  • Approvals: RoHS, REACH
  • Product Warranty Period (Worldwide): Lifetime limited warranty


• Item Includes:

  • N484-12M12 40GbE Pass-Through Cassette - (x12) 12-Fiber MTP/MPO
  • Quick Start Guide


• Warranty:

  • Lifetime


• GTIN:

  0037332187215
