Tripp Lite PDU1415 PDU Basic 120V 15A 5-15R 14 Outlet 5-15P Vertical 0URM

ITEM #: TRL-PDU1415 MFG #: PDU1415

Primary Image
Free Shipping with $49 Minimum Order

List Price:

$340.00

Our Price:

$237.79

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


PDU1415 - Overview

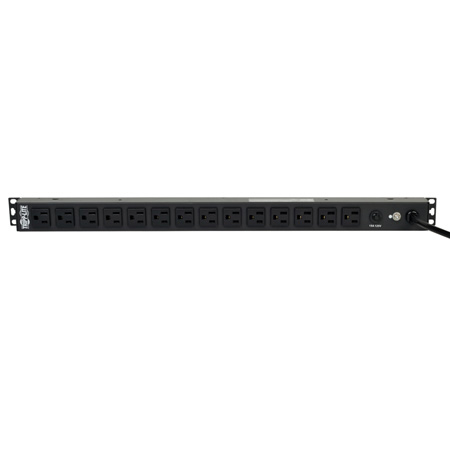

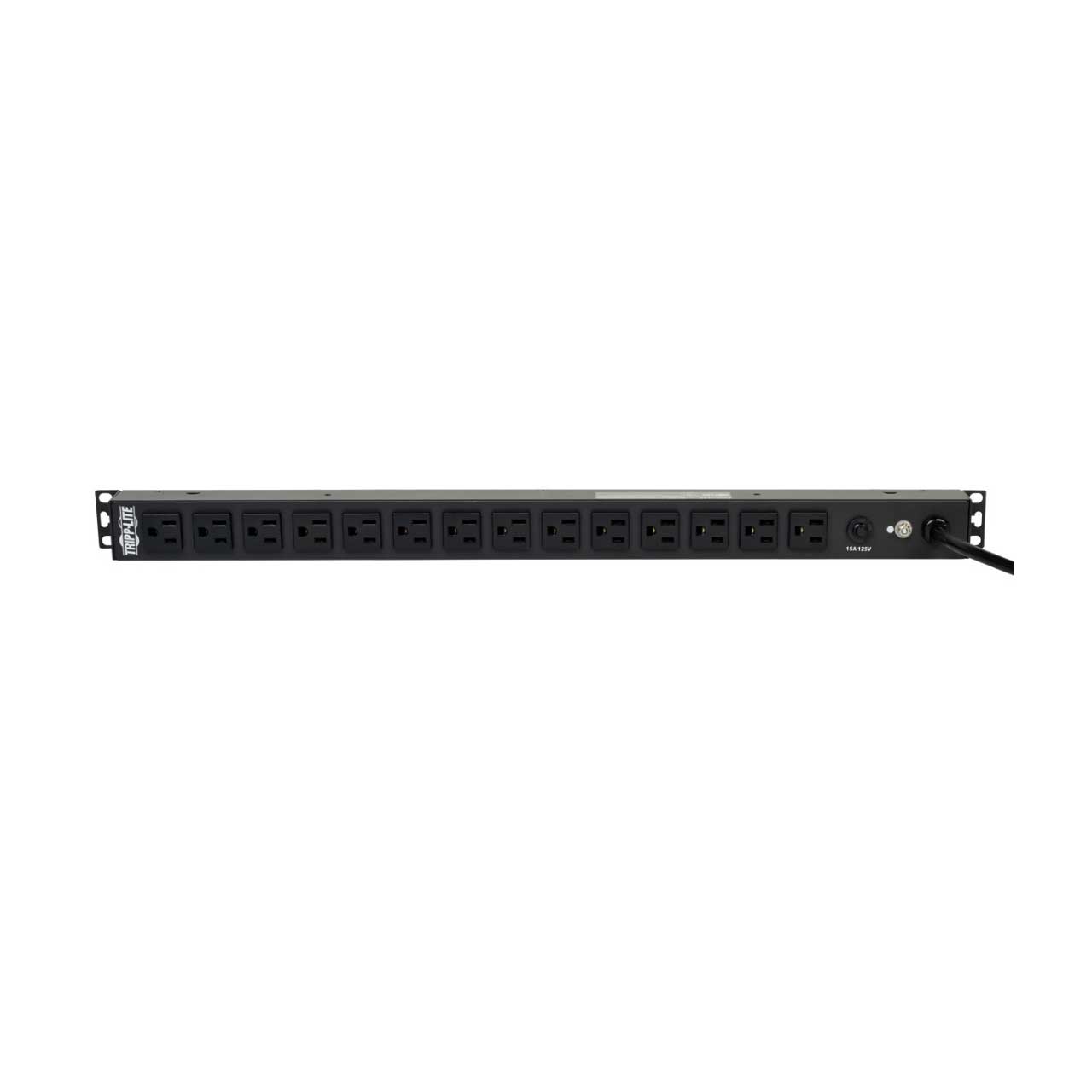

The Tripp Lite PDU1415 1.8kW Single-Phase 120V Basic PDU is the perfect no-frills unit for networking, telecom, security, audio/video and sound reinforcement applications. Perfectly suited for high-density IT environments, the PDU1415 features a single breakered load bank with 14 NEMA 5-15R outlets. The NEMA 5-15P input plug with long 15-foot (4.5 m) cord connects to your facility's compatible AC power source, generator or protected UPS to distribute power to connected equipment.

The switchless design prevents an accidental shutdown, which could lead to costly downtime. A 15A circuit breaker protects connected equipment from dangerous overloads. The 24-inch all-metal housing supports toolless 0U vertical mounting in EIA-standard 19-inch racks, as well as on a wall or workbench or under a counter with user-supplied hardware.

  • Features:

    • NEMA 5-15P input with 15 ft. (4.5 m) cord
    • 14 NEMA 5-15R outlets
    • Switchless design prevents accidental shutdown
    • 24 in. all-metal housing
    • Supports toolless 0U vertical button-mounting
    • 5-year limited warranty

  • Specifications:

    • Input
    • PDU Input Voltage: 100; 120; 127
    • Recommended Electrical Service: 15A 120V
    • Maximum Input Amps: 15
    • PDU Plug Type: NEMA 5-15P
    • Input Phase: Single-Phase
    • Input Cord Length (ft.): 15

      Output
    • Output Capacity Details: 1.9kW (127V), 1.8kW (120V), 1.5kW (100V) / 15A total capacity; 12A max per 5-15R outlet
    • Frequency Compatibility: 50 / 60 Hz
    • Output Receptacles: (14) 5-15R
    • Output Nominal Voltage: 100; 120; 127
    • Overload Protection: 15A breaker

      User Interface, Alerts & Controls
    • Switches: No power switch

      Physical
    • Form Factors Supported: 0U vertical rackmount, wall-mount
    • Material of Construction: Metal
    • PDU Form Factor: Vertical (0U)
    • Shipping Dimensions (hwd / in.): 2.40 x 5.60 x 28.30
    • Shipping Weight (lbs.): 5.30
    • Unit Dimensions (hwd / in.): 1.75 x 24 x 1.71
    • Unit Weight (lbs.): 4.6

      Environmental
    • Storage Temperature Range: -30°C to +50°C (-22°F to +122°F)
    • Relative Humidity: 5 to 95% non-condensing
    • Operating Elevation (ft.): 0-10,000
    • Operating Elevation (m): 0-3000

  • Item Includes:

    • PDU1415 1.8kW Single-Phase 120V Basic PDU
    • Mounting hardware
    • Owner's manual

  • Warranty:

    • 5-year limited warranty

  • GTIN:

    0037332122247
