Tripp Lite SMART3000RMXL2U 3000VA 2880W UPS Smart Rackmount AVR 120V USB DB9 SNMP 2URM

ITEM #: TRL-ST3000RMXL2U MFG #: SMART3000RMXL2U

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:

$2,388.68

Our Price:

$1,422.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


SMART3000RMXL2U - Overview

Tripp Lite SmartPro Line Interactive UPS with enhanced LCD interface offers network-grade power protection for critical server, network and telecommunications equipment. Line Interactive Uninterruptible Power Supply (UPS) with built-in Auto-Voltage Regulation (AVR) actively corrects brownouts and overvoltages back to usable levels while maintaining a full battery charge in case of power failure. Tripp Lite's unique configuration excels in exceptionally poor-power environments with two separate levels of voltage boost to correct both slight undervoltages and severe brownout conditions. Interactive LCD interface reports UPS operating mode, detailed UPS and site-power data, plus enables a variety of UPS setup and configuration options. Super-fast switchover from line to battery power occurs within milliseconds to maintain operation of connected equipment without interruption or reboot. 96% line-mode efficiency offers reduced heat emissions and operating costs. Network management interfaces support communications via USB, RS-232 and optional SNMPWEBCARD network interface. HID-compliant USB interface enables integration with built-in power management and auto shutdown features of Windows and Mac OS X. Network communications ports enable detailed monitoring of equipment load levels, self-test data and utility power conditions. Includes PowerAlert monitoring software and complete cabling. Switched output load banks enable scheduled and real-time remote reboot and load shedding of select outlets. Emergency Power Off (EPO) interface. LCD display panel easily rotates for viewing in rackmount or tower configurations. Audible alarm with push-button momentary alarm-cancel and silent-mode configuration options. Programmable self-test. Field-replaceable, hot-swappable battery modules.

  • Features:

    • Tripp Lite SMART3000RMXL2U line interactive 2U rack/tower UPS with 3000VA / 3kVA capacity and extended runtime options
    • Line interactive UPS with Automatic Voltage Regulation (AVR) corrects brownouts and overvoltages from 83 to 145V

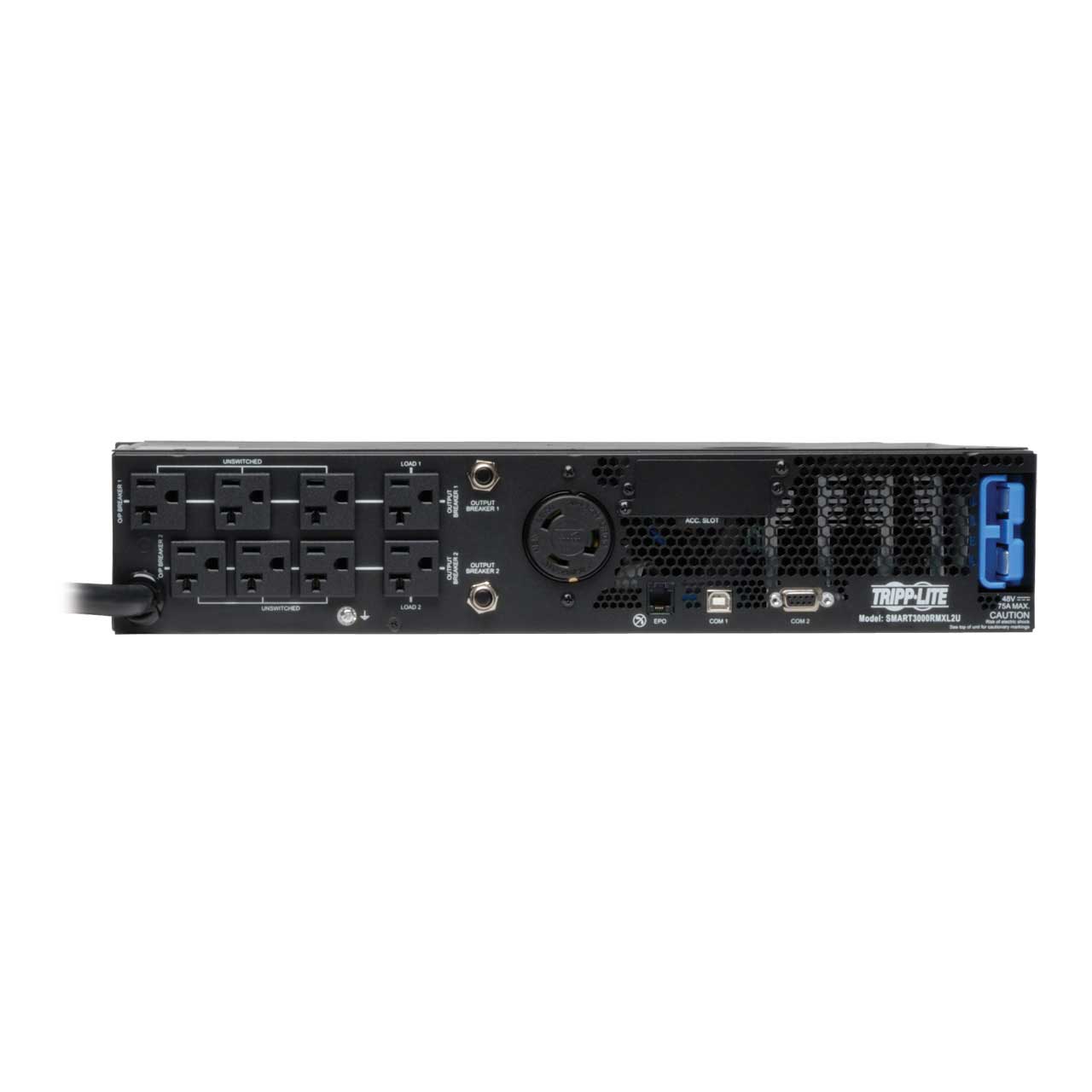

    • NEMA L5-30P input plug; 8 NEMA 5-15/20R and 1 L5-30R output receptacles, Two independently switchable output load banks
    • Maintains uninterrupted operation of connected networking equipment during blackouts, surges, brownouts and overvoltages
    • High 96% efficiency rating in line-power mode offers reduced power consumption and BTU emisssions
    • Internal batteries offer 10 minutes at 50% load (1440W) and 3 minutes at 100% load (2880W)
    • Extended runtime is available with optional BP48V24-2U (limit 1), BP48V60RT-3U (multi-pack compatible) and BP48V27-2US (multi-pack compatible) external battery packs
    • External battery configurations require the use of Tripp Lite's External Battery Configuration Software (see manual)
    • Hot-swappable, user-replaceable internal batteries and external battery packs can be replaced with no disruption to connected equipment
    • Front panel LCD monitoring screen with MODE and ENTER buttons reports operating mode with 5-bar battery charge graphic, plus 7 selectable screens of detailed UPS and site power information
    • LCD interface also supports a number of advanced user setup and operating preferences
    • Ships with 4 post rackmount installation hardware; Optional 2POSTRMKITWM enables 2 post rackmount/wallmount installation; Optional 2-9USTAND enables tower placement
    • Built-in USB, RS-232 and optional SNMPWEBCARD accessory monitoring options
    • HID-compliant USB port enables integration with built-in power management and auto shutdown features of Windows and Mac OS X
    • Included PowerAlert UPS monitoring software; Built-in Emergency Power Off (EPO) interface with cable

  • Specifications:

    • Output Volt Amp Capacity (VA): 3000
    • Output kVA Capacity (kVA): 3
    • Output Watt Capacity (Watts): 2880
    • Output kW Capacity (kW): 2.88
    • Power Factor: 0.96
    • Nominal Output Voltage(s) Supported: 120V
    • Frequency Compatibility: 60 Hz
    • Output Voltage Regulation (Line Mode): +6%, -14%
    • Output Voltage Regulation (Battery Mode): +/-5%
    • Output Receptacles: (8) 5-15/20R; (1) L5-30R
    • Load Management Receptacles: Two switchable single outlet 5-15/20R load banks
    • Output Circuit Breakers: Two 20A output breakers protect 4 5-15/20R outlets each
    • Output AC Waveform (AC Mode): Pure Sine wave
    • Output AC Waveform (Battery Mode): Pure Sine wave
    • Rated input current (Maximum Load): 24A
    • Nominal Input Voltage(s) Supported: 120V AC
    • UPS Input Connection Type: L5-30P
    • UPS Input Cord Length (ft.): 10
    • Recommended Electrical Service: 30A 120V
    • Input Phase: Single-Phase
    • Full Load Runtime (min.): 3 min. (2880w)
    • Half Load Runtime (min.): 10 min. (1440w)
    • Expandable Battery Runtime: Extended runtime supported via optional external battery packs
    • External Battery Pack Compatibility: BP48V24-2U (limit 1); BP48V60RT-3U (multi-pack compatible); BP48V27-2US (multi-pack compatible)
    • DC System Voltage (VDC): 48
    • Battery Recharge Rate (Included Batteries): Less than 5 hours from 10 to 90% (typical, full load discharge)
    • Internal UPS Replacement Battery Cartridge: RBC58-2U
    • Battery Replacement Description: Hot-swappable, replaceable batteries
    • Overvoltage Correction: Input voltages between 127 and 145 are reduced by 12%
    • Undervoltage Correction: Input voltages between 108 and 96 are boosted by 12%
    • Severe Undervoltage Correction: Input voltages between 83 and 95 are boosted by 24%
    • Audible Alarm: Audible alarm indicates UPS startup, power-failure, low-battery, overload, UPS fault and remote shutdown conditions
    • Alarm Cancel Operation: Power-fail alarm can be temporarily silenced using alarm-cancel switch; silent mode alarm configuration option available
    • UPS AC Suppression Joule Rating: 570
    • Included Mounting Accessory Description: 4 post rackmount installation accessories included
    • Rack Height (U Spaces): 2U

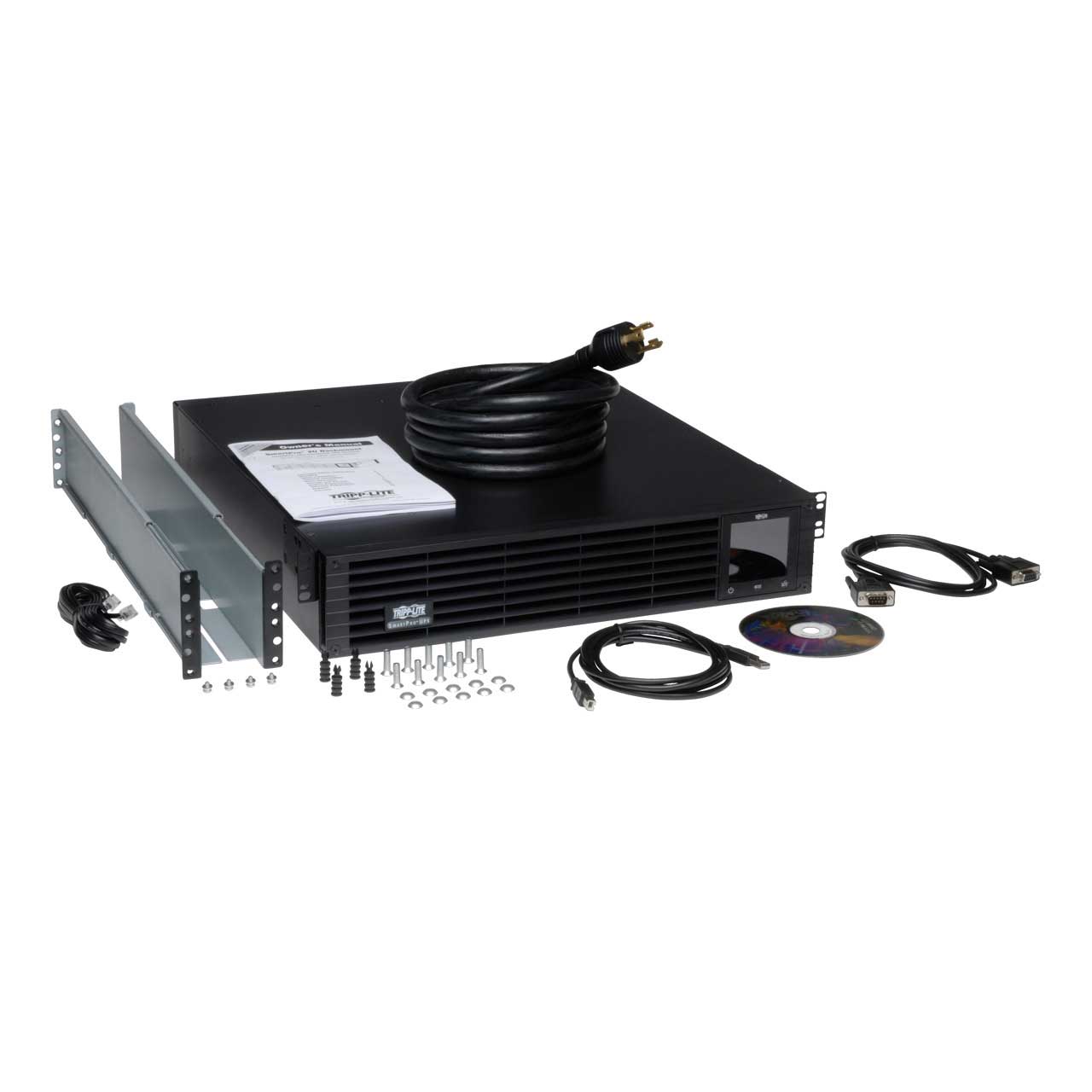

  • Item Includes:

    • SMART3000RMXL2U UPS system
    • PowerAlert Software with USB, Serial & EPO cabling
    • 4 post rackmount installation kit
    • Instruction manual

  • GTIN:

    0037332144324
