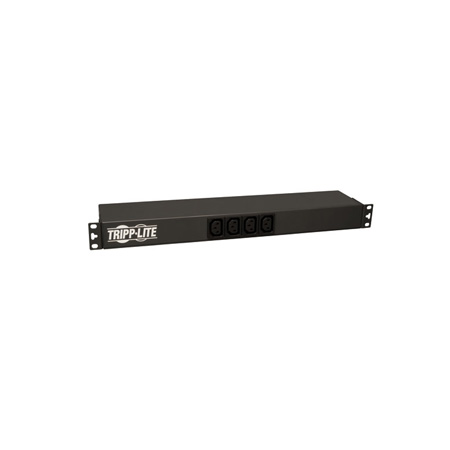

Tripp Lite PDUH20DV 1.6-3.8kW Single-Phase Basic PDU 100-240V 20A C20 & L6-20P Adapter 12 Foot Cord Rackmount

ITEM #: TRL-PDUH20DV MFG #: PDUH20DV

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Tripp Lite
Free Shipping with $49 Minimum Order

List Price:

$252.72

Our Price:

$177.00

Add to Wish ListLeasing Options
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

PDUH20DV - Overview

Tripp Lite Basic Power Distribution Units / PDU systems offer reliable rackmount power distribution for critical IT equipment in wiring closets, server rooms and equipment racks. Supplies continuous power from any protected UPS, generator or mains input power source. High quality design includes rugged all-metal housing and secure rackmount installation with included mounting accessories.

  • Features:

    • 16/20A single phase 100-240V Basic Power Distribution Unit / PDU (Agency de-rated to 16A continuous)

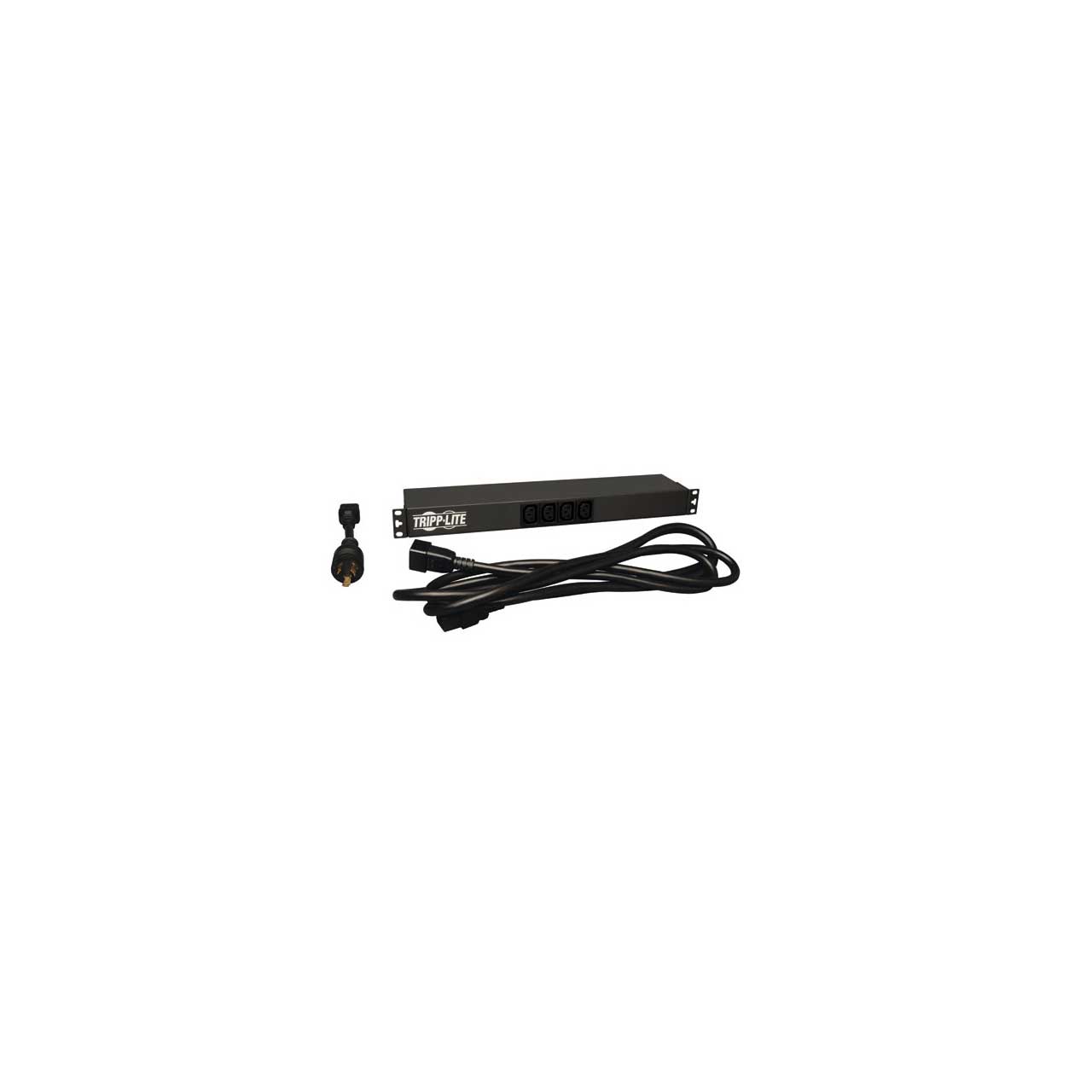

    • C20 inlet with included C19 to C20 input cable, includes L6-20P adapter14 outlets (2 C19, 12 C13)
    • 12 ft. / 3.7m line cord

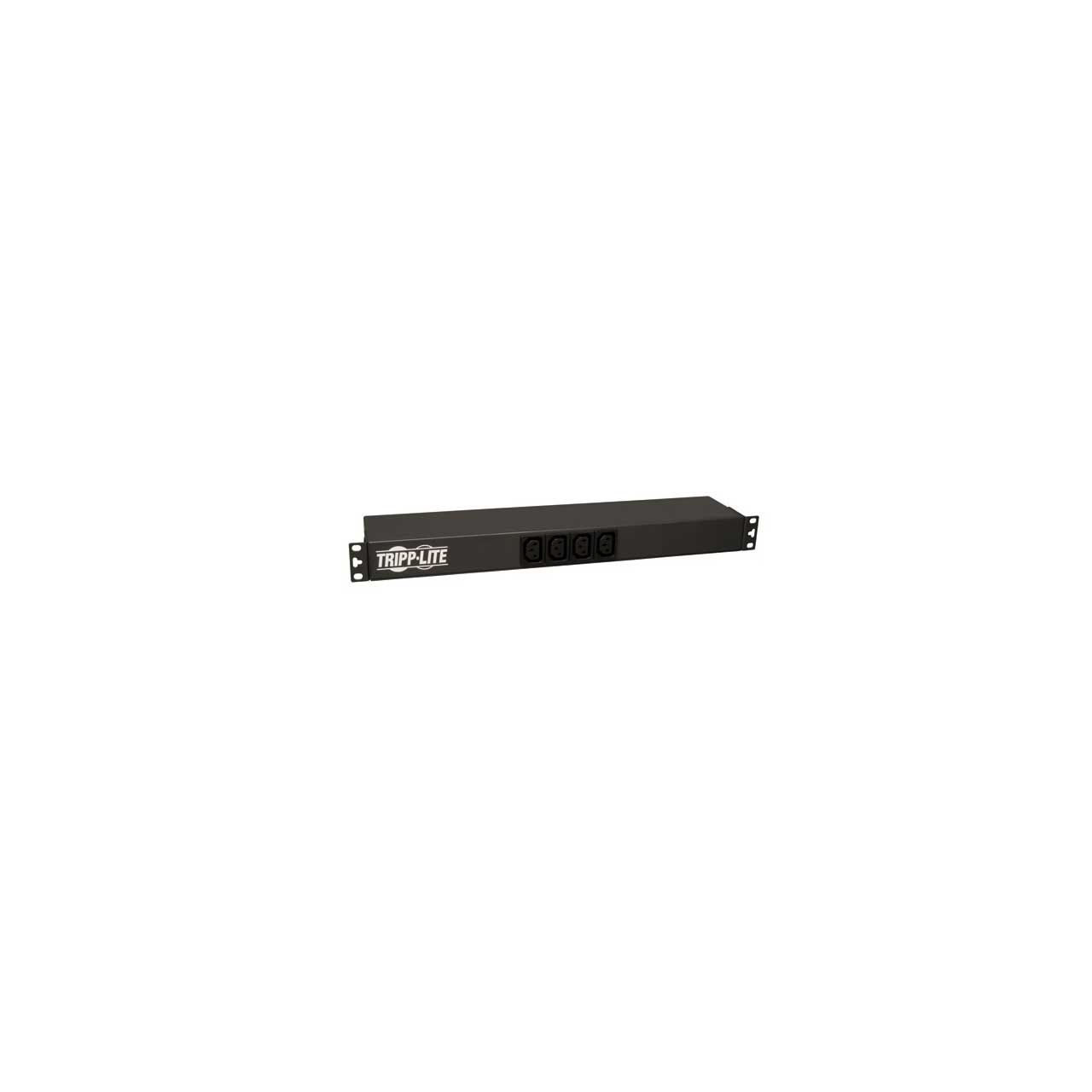

    • 1U horizontal rackmount format installs in one rack space
    • Mounting flanges support installation in 2 and 4 post racks, with additional support for wall-mount and under-counter installation formats
    • Mounting ears are reversible for front or rear facing rackmount installation
    • Back panel grounding lug


  • Specifications:

    • PDU Type: Basic
    • Output Capacity Details: 3.84kW (240V), 3.68kW (230V), 3.52kW (220V), 3.33kW (208V), 3.2kW (200V), 2.03kW (127V), 1.92kW (120V), 1.6kW (100V) / 16A total capacity; 16A max per C19 outlet; 12A (10A CE) max per C13 outlet
    • Frequency Compatibility: 50 / 60 Hz

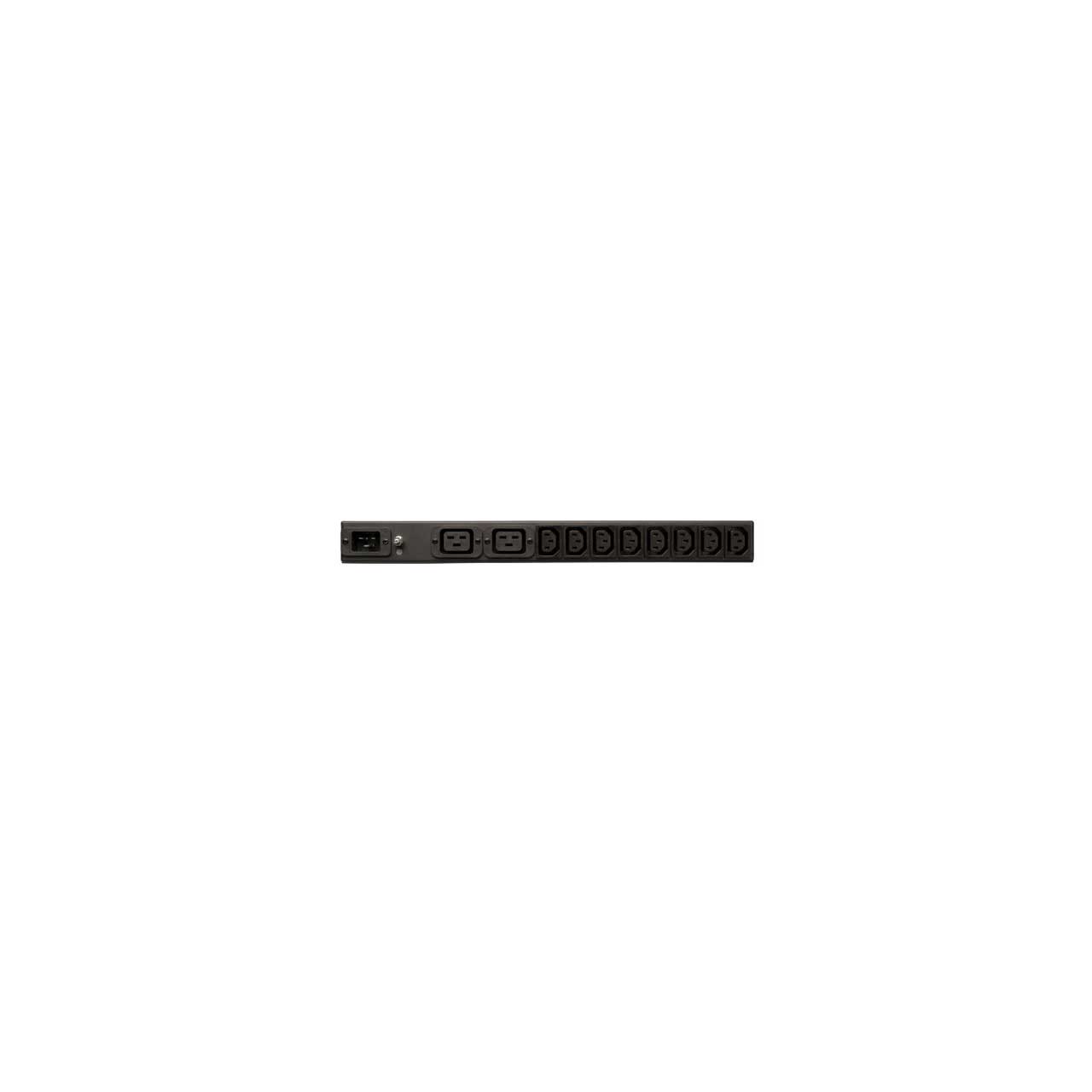

    • Output Receptacles: (12) C13; (2) C19
    • Output Nominal Voltage: 100; 120; 127; 200; 208; 220; 230; 240
    • PDU Input Voltage: 100; 120; 127; 200; 208; 220; 230; 240
    • Recommended Electrical Service: 20A 120V; 20A 208/240V; 16A 230V
    • Maximum Input Amps: 20
    • Maximum Input Amps Details: Agency de-rated to 16A continuous
    • PDU Plug Type: NEMA L6-20P; IEC-320 C20
    • Input Cord Details: Input cable is detachable PDU C20 inlet
    • Input Cord Length (ft.): 12
    • Input Cord Length (m): 3.66
    • Input Phase: Single-Phase
    • Minimum Required Rack Depth (inches): 6.8
    • Shipping Dimensions (hwd / in.): 2.25 x 20.5 x 9.5
    • Shipping Weight (lbs.): 5.7
    • Unit Dimensions (hwd / in.): 1.75 x 17.25 x 3.75
    • Unit Weight (lbs.): 3.75
    • Material of Construction: Metal
    • Form Factors Supported: 1U rackmount, 0U vertical rackmount, wall-mount, and under-counter installation
    • PDU Form Factor: Horizontal (1U, 2U, etc)
    • Outlets Measurement (Center to Center): Distance between front (C13) outlets = 28.75mm; Distance between rear (C19) outlets = 55mm; Distance between rear (C13) outlets = 28.75mm
    • Minimum Required Rack Depth (mm): 173
    • Storage Temperature Range: 5 to 122°F
    • Relative Humidity: 5 to 95% non-condensing
    • Operating Elevation (ft.): 0-10,000
    • TVSS Grounding: Rear panel grounding lug
    • Certifications: Tested to UL 60950 (USA), CSA (Canada), CE (EU), RoHS Compliant
    • Product Warranty Period (Worldwide): 5-year limited warranty


  • Item Includes:

    • PDUH20DV PDU rackmount PDU
    • Owner's manual


  • Warranty:

    • 5 Year


  • GTIN:

    0037332158963
