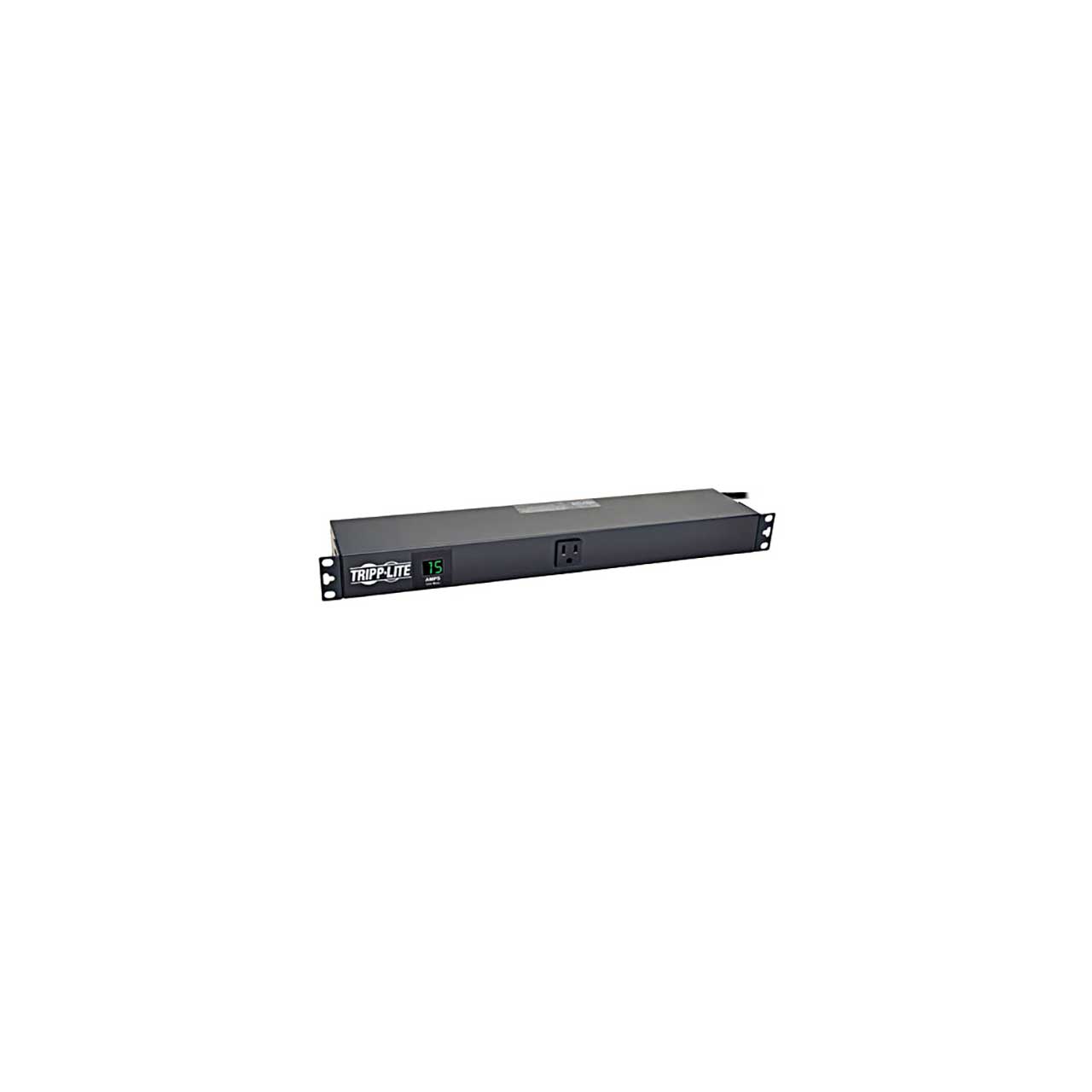

Tripp Lite PDUMH15-RA 1.4kW Single-Phase Metered PDU 120V Outlets (13 5-15R) 5-15P 100-127V input 15 Foot Cord Rackmount

PDUMH15-RA - Overview

• Features:

  • Reversible housing 4.5 in / 11.4cm depth
  • 15A single phase 120V Metered Power Distribution Unit / PDU (Agency de-rated to 12A continuous)

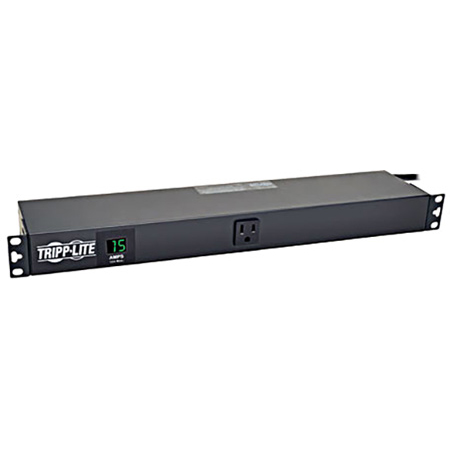

  • Built-in 2 digit visual meter continuously reports PDU load level in amps

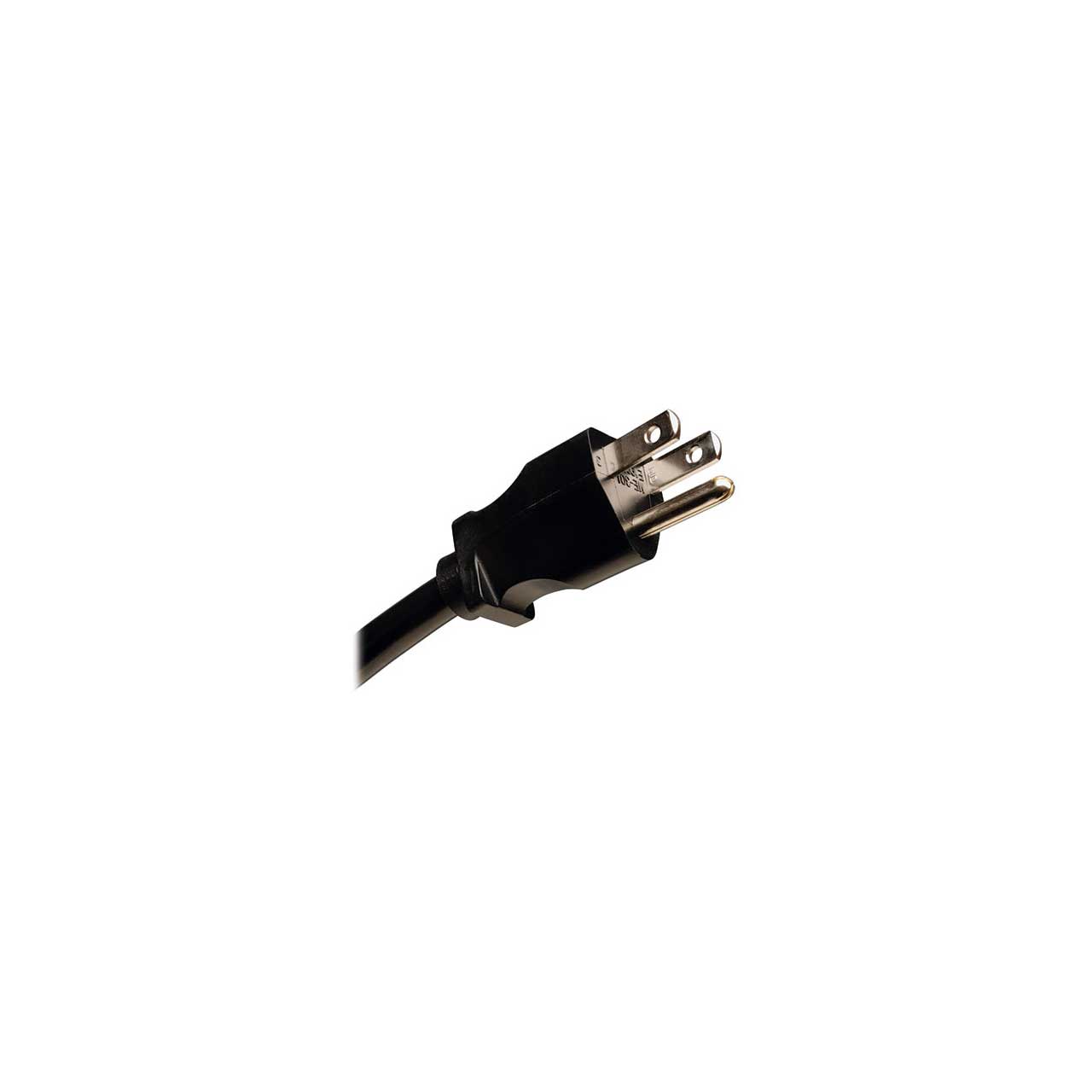

  • Attached NEMA 5-15P 15A 120V input plug with 15 ft. / 4.5m line cord
  • 1U horizontal rackmount format installs in one rack space

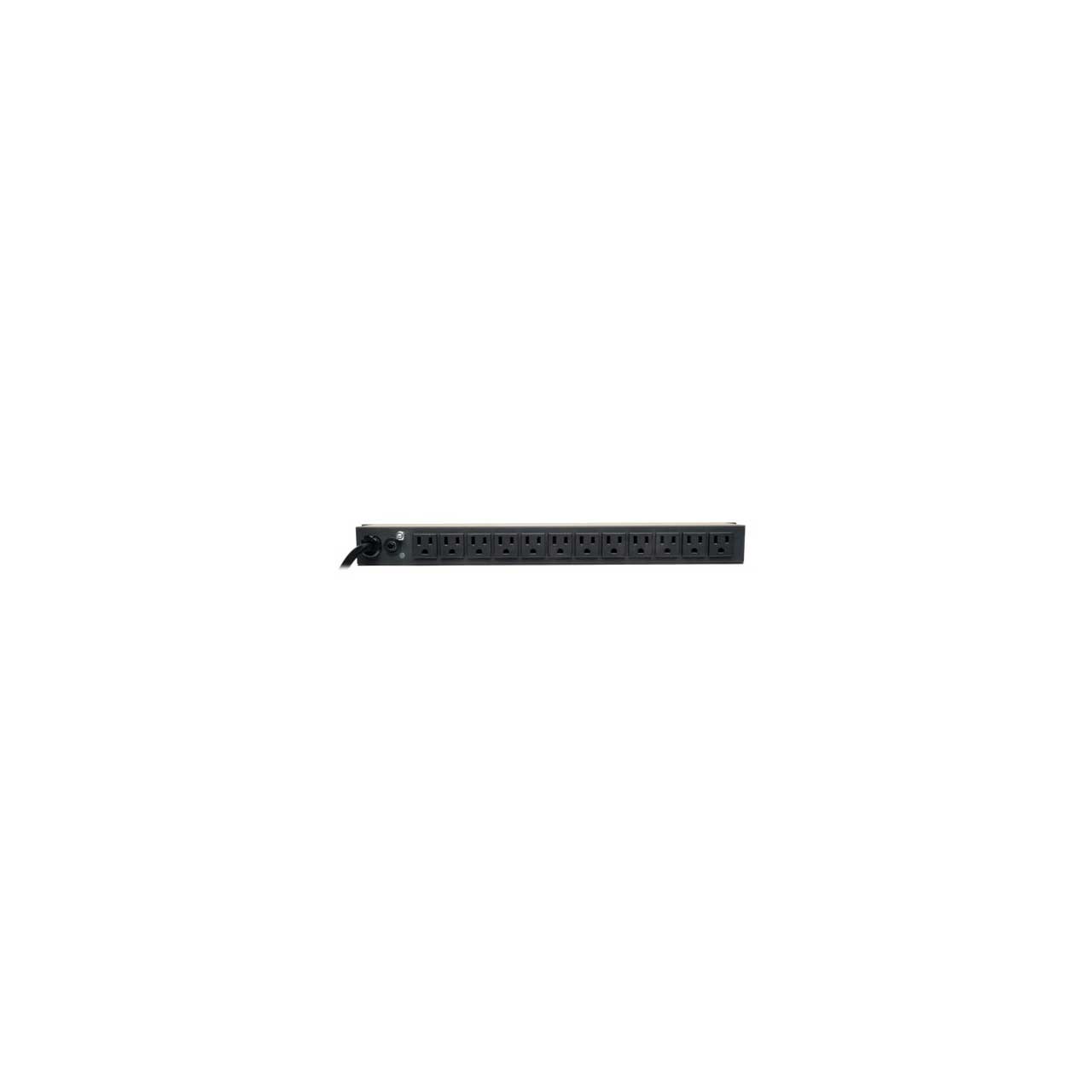

  • 13 NEMA 5-15R outlets oriented with the ground pin on the bottom (1 front facing / 12 rear)

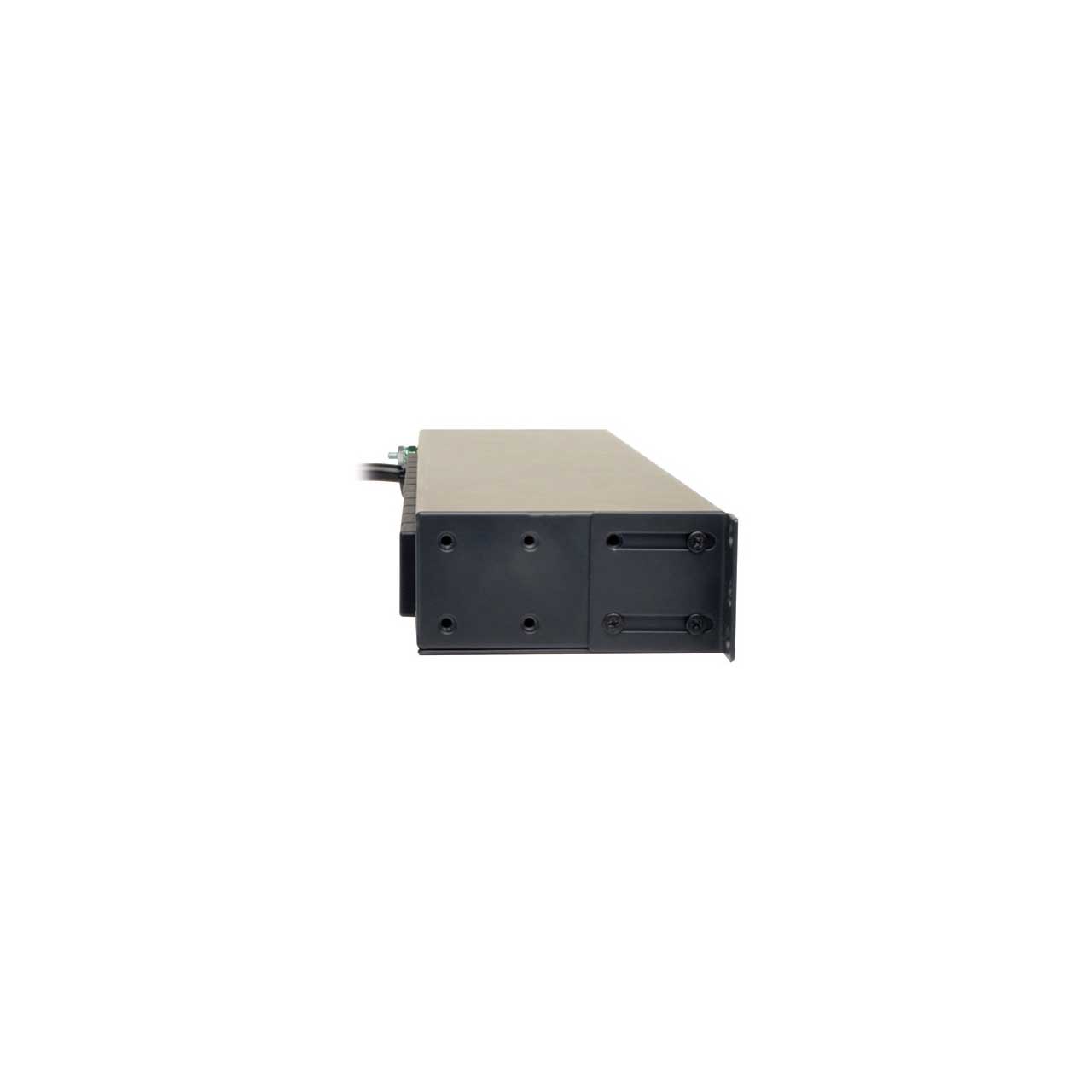

  • Mounting flanges support installation in 2 and 4 post racks, with additional support for wall-mount and under-counter installation formats
  • Optional PDUSIDEBRKT enables 0U vertical rackmount in compatible racks
  • Back panel grounding lug


• Specifications:

  • PDU Type: Metered
  • Output Capacity Details: 1.52kW (127V), 1.44kW (120V), 1.2kW (100V) / 15A total capacity (Agency de-rated to 12A); 12A max per outlet
  • Frequency Compatibility: 50 / 60 Hz
  • Output Receptacles: (13) 5-15R
  • Output Nominal Voltage: 100; 120; 127
  • Overload Protection: 15A circuit breaker
  • PDU Input Voltage: 100; 120; 127
  • Recommended Electrical Service: 15A 120V
  • Maximum Input Amps: 15
  • Maximum Input Amps Details: Agency de-rated to 12A continuous
  • PDU Plug Type: NEMA 5-15P
  • Input Cord Length (ft.): 15
  • Input Cord Length (m): 4.57
  • Input Phase: Single-Phase
  • Front Panel LCD Display: Digital display reports total PDU output current in amps
  • Minimum Required Rack Depth (inches): 6.8
  • Shipping Dimensions (hwd / in.): 2.25 x 20.5 x 10
  • Shipping Weight (lbs.): 5.2
  • Unit Dimensions (hwd / in.): 1.75 x 17.5 x 3.75
  • Unit Weight (lbs.): 4.6
  • Material of Construction: Metal
  • Form Factors Supported: 1U rackmount, 0U vertical rackmount, wall-mount, and under-counter installation
  • PDU Form Factor: Horizontal (1U, 2U, etc)
  • Storage Temperature Range: 5 to 122°F
  • Relative Humidity: 5 to 95% non-condensing
  • Operating Elevation (ft.): 0-10,000
  • TVSS Grounding: Rear grounding lug
  • Certifications: Tested to UL60950-1 (USA) and CAN/CSA C22.2 No. 60950-1-03 (Canada), RoHS Compliant
  • Product Warranty Period (Worldwide): 2-year limited warranty


• Item Includes:

  • PDUMH15-RA Metered rackmount PDU
  • Owner's manual with warranty information


• Warranty:

  • 2 Year


• GTIN:

  0037332183231
