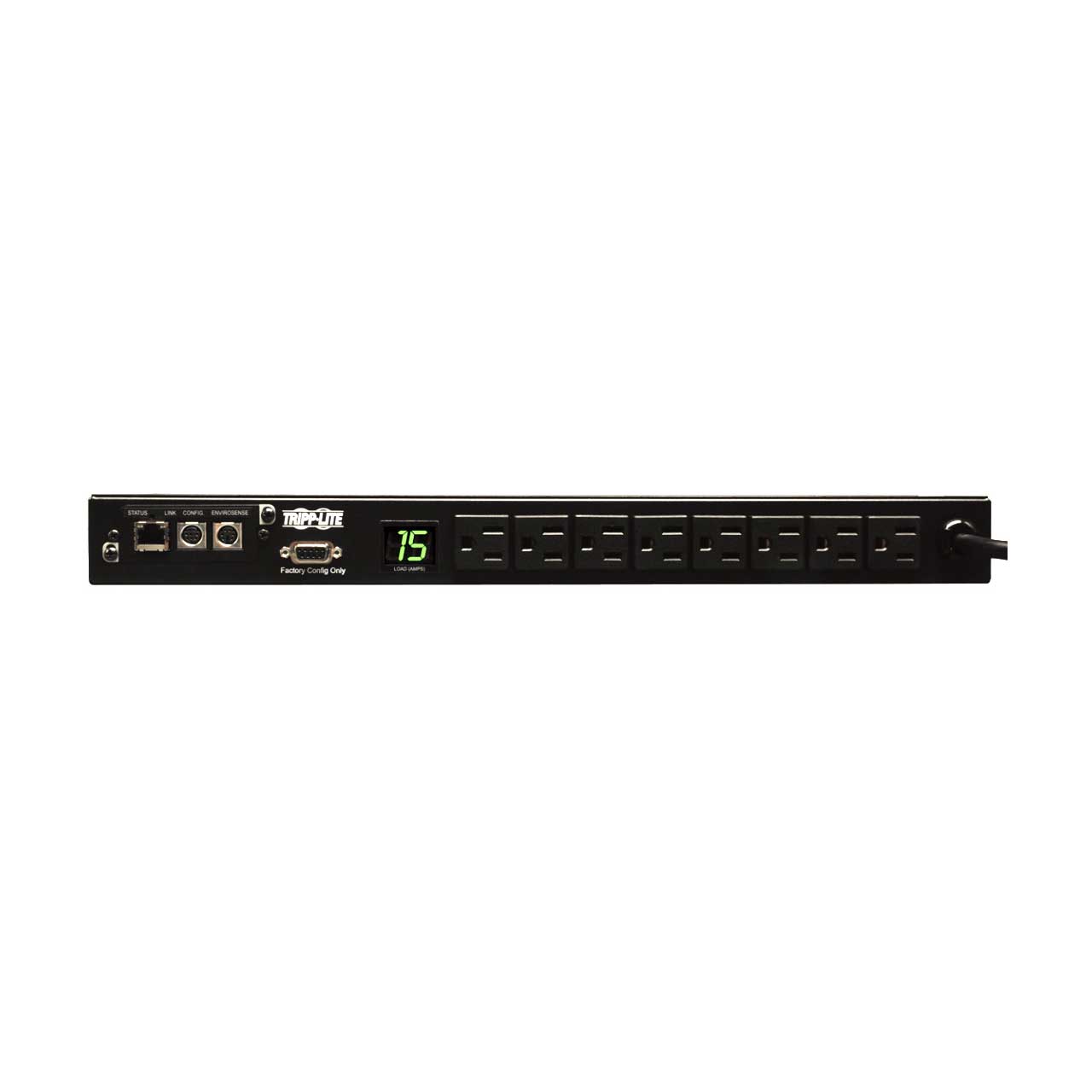

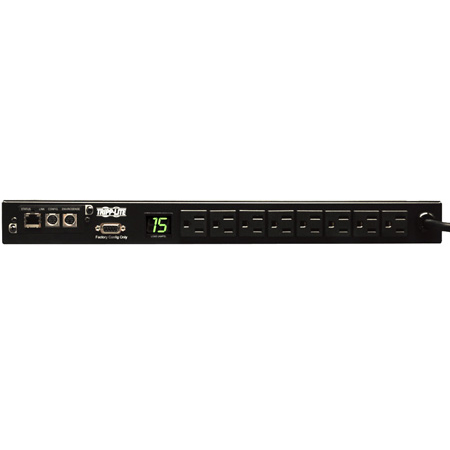

Tripp Lite PDUMNH15 PDU Monitored 120V 15A 5-15R 8 Outlet 5-15P Horizontal 1URM

Name: Tripp Lite PDUMNH15 PDU Monitored 120V 15A 5-15R 8 Outlet 5-15P Horizontal 1URM
Brand: Tripp Lite
SKU: TRL-PDUMNH15
Price: 407.00 USD
Availability: PreSale

ITEM #: TRL-PDUMNH15 MFG #: PDUMNH15

Tripp Lite

List Price:

$621.50

Our Price:

$407.00

Add to Wish List Leasing Options

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

PDUMNH15 - Overview

Tripp Lite single phase Monitored PDU / Power Distribution Unit offers real-time remote monitoring of voltage, frequency and load levels via built-in network connection. PowerAlert interface supports custom notification of user-specified remote conditions via email, secure web, SNMP, Telnet or SSH interface. PDU lighted digital display enables visual monitoring of PDU output current to prevent circuit overloads as additional equipment is added. Offers reliable rackmount multi-outlet power distribution from any protected UPS, generator or mains input power source. High quality design includes rugged all-metal housing and secure rackmount installation with included mounting accessories.

Features:
- 15A single phase 120V Monitored Power Distribution Unit / PDU (agency derated to 12A continuous)
- Attached NEMA 5-15P input plug with 12ft / 3.6m line cord
- 1U horizontal rackmount installation format supports installation in 2 or 4 post equipment racks
- 8 NEMA 5-15R outlets
- Lighted display reports output power consumption in amps
Specifications:
- Style 1U rackmount
- PDU Type Monitored
- Output Capacity Details 1.44kW (120V), 1.52kW (127V), 1.2kW (100V); 15A maximum (Agency de-rated to 12A continuous)
- Frequency Compatibility 50 / 60 Hz
- Output Receptacles (8) 5-15R
- Output Nominal Voltage 100-127V nominal, single phase
- Overload Protection n/a
- Outlet Type NEMA 5-15R
- Customized Load Management Receptacles NULL
- PDU Input Voltage 100; 120; 127
- Maximum Input Amps 15
- PDU Plug Type NEMA 5-15P
- Input Cord Length (ft.) 12
- Input Cord Length (m) 3.6
- Input Phase Single-Phase
- Front Panel LCD Display Digital meter reports PDU output current in amps
- Front Panel LEDs n/a
- Switches n/a
- Shipping Dimensions (hwd / in.) 2.09 x 11 x 20.5
- Shipping Dimensions (hwd / cm) 5.3 x 27.9 x 52.1
- Shipping Weight (lbs.) 7
- Shipping Weight (kg) 3.2
- Unit Dimensions (hwd / in.) 1.7 x 17.3 x 6.2
- Unit Dimensions (hwd / cm) 4.3 x 43.9 x 15.7
- Unit Weight (lbs.) 6.5
- Unit Weight (kg) 3.2
- Material of Construction Metal
- Form Factors Supported 1U horizontal rackmount in 2 or 4 post racks
- PDU Form Factor Horizontal (1U, 2U, etc)
- Storage Temperature Range 5 to 122F (-15 to 50C)
- Relative Humidity 5 to 95% non-condensing
- Operating Elevation (ft.) 0-10,000
- Operating Elevation (m) 0-3000
- SNMP Compatibility Pre-installed SNMPWEBCARD provides remote monitoring via web, telnet, and SNMP management systems
- TAA Compliant Option TAA Compliant Version Available - Order Tripp Lite PDUMNH15TAA
- Certifications Tested to UL 60950 (USA, Canada), Class A (Emissions), NOM (Mexico), RoHS compliant
- Product Warranty Period (Worldwide) 2-year limited warranty
GTIN:
0037332152022
