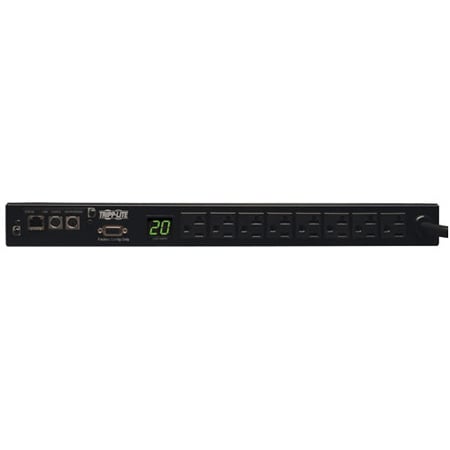

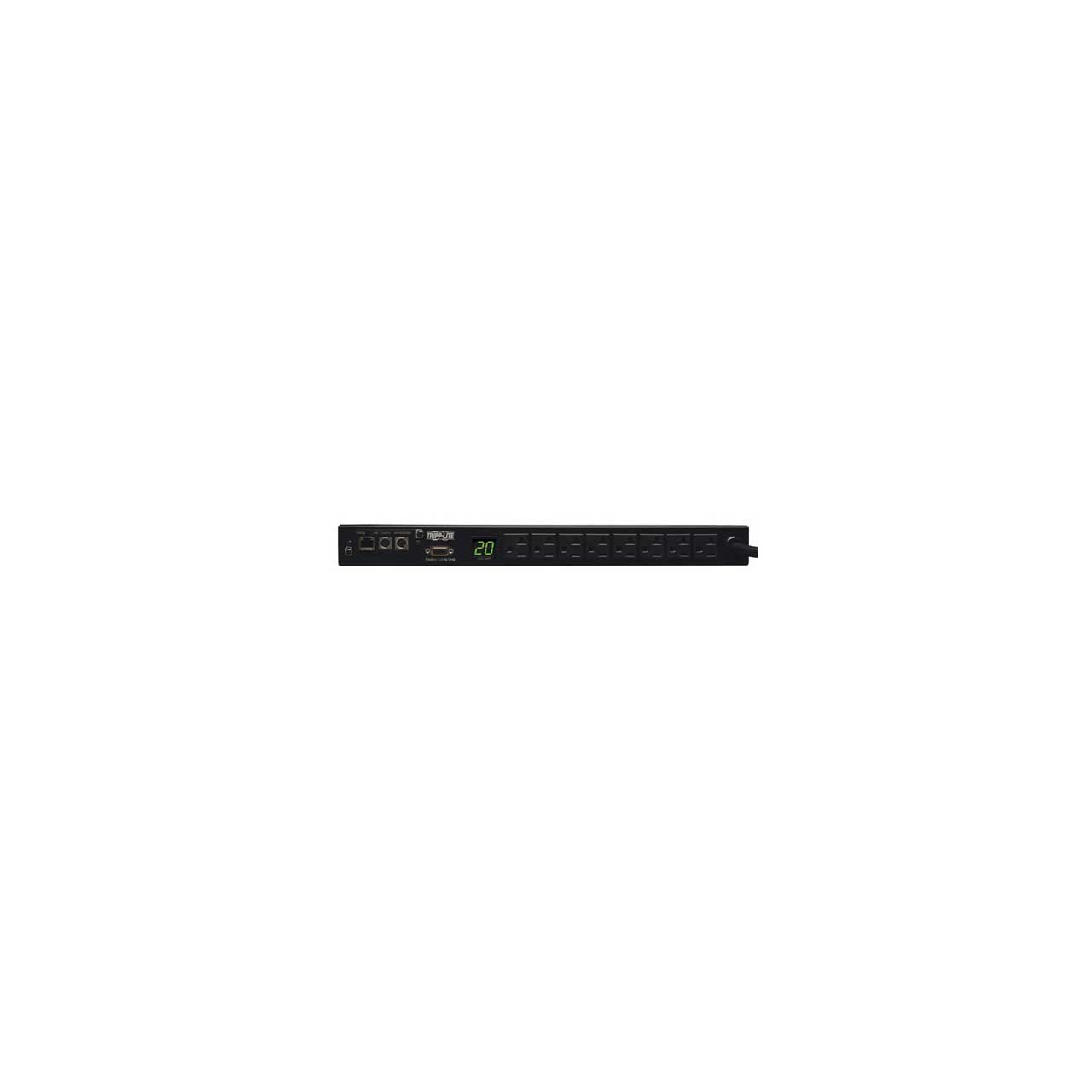

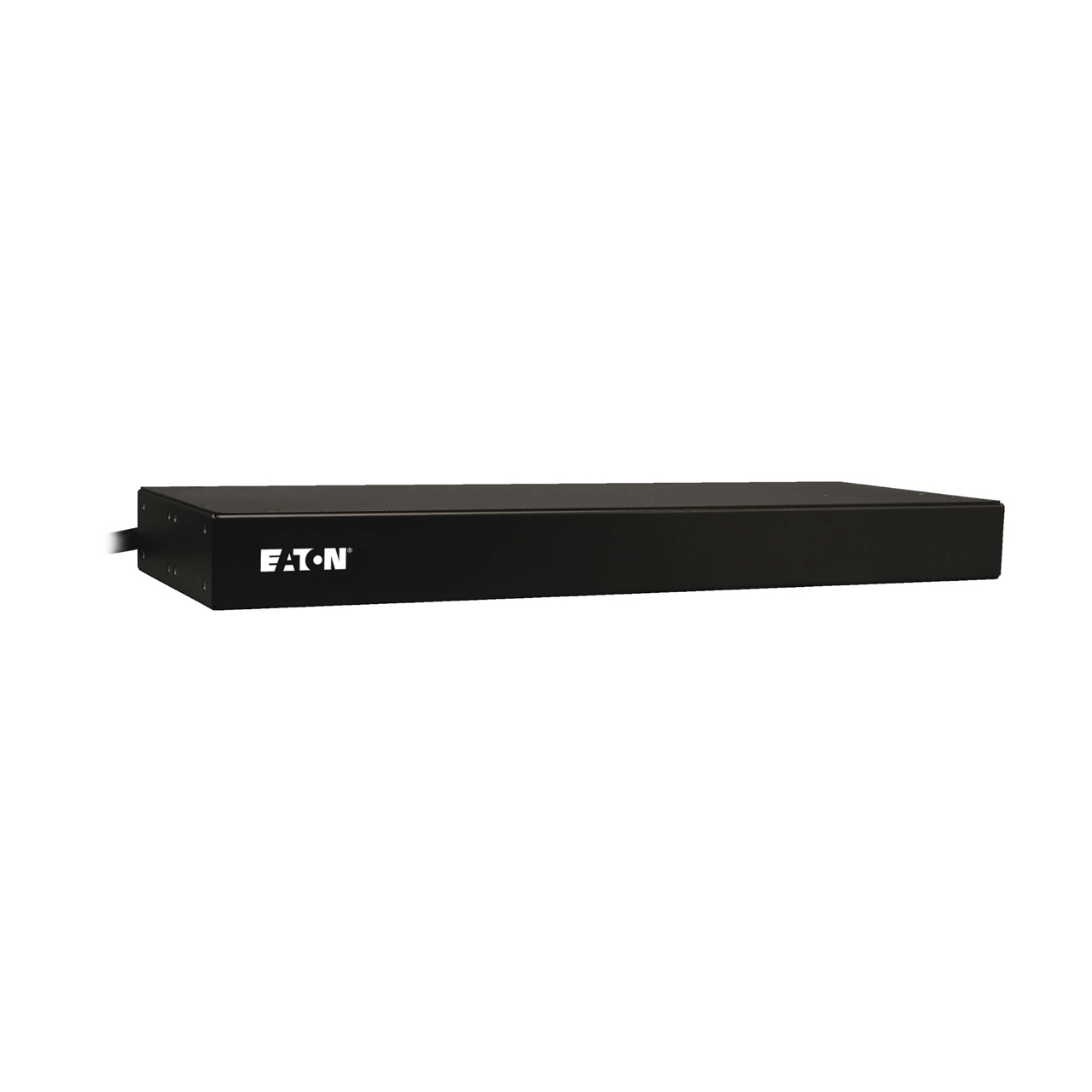

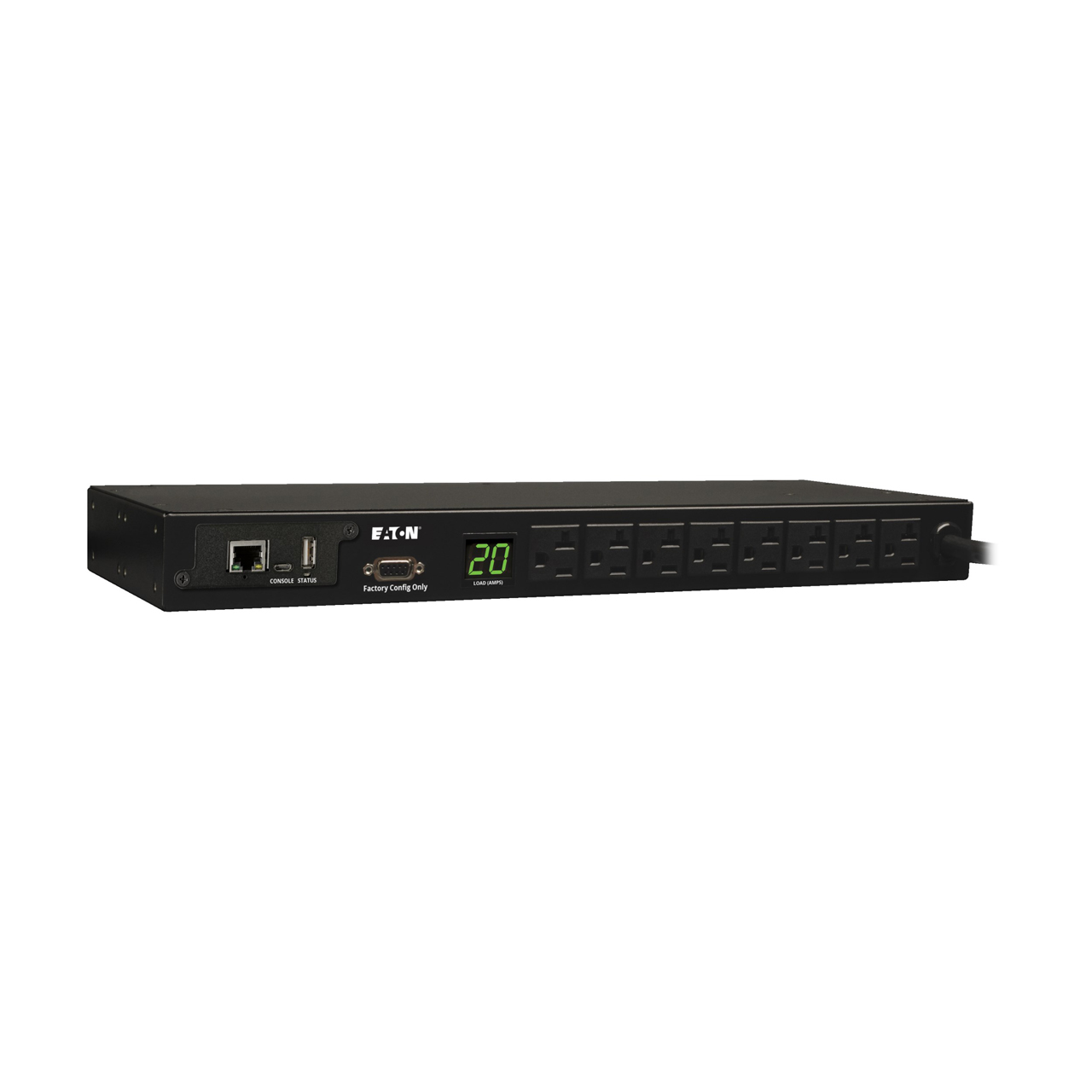

Tripp Lite PDUMNH20 Single-Phase Monitored PDU

ITEM #: TRL-PDUMNH20 MFG #: PDUMNH20

Primary Image
Tripp Lite
Free Shipping with $49 Minimum Order

List Price:

$715.10

Our Price:

$468.00

Add to Wish ListLeasing Options
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

PDUMNH20 - Overview

Monitored PDU systems support real-time remote monitoring via secure web, SNMP or Telnet interface and custom notification of user-specified remote conditions via email and SNMP trap. PDU power consumption in amps is displayed locally via front panel lighted digital display and can be monitored remotely to warn of potential overloads before critical IT mains breakers become overloaded. Advanced configurations support in-rack environmental monitoring with optional ENVIROSENSE temperature / humidity probe and rack access notification for up to 4 SRSWITCH or user supplied contact-closure sensors. Supports real-time monitoring of all reported functions with support for user-specified alarm and notification thresholds. Fully compatible with PowerAlert Network Management System Software, available via FREE download from www.tripplite.com

PDUMNH20 Monitored 1U Rackmount PDU supports 20A peak capacity at 120V (agency de-rated to 16 amps continuous). Includes attached L5-20P input cordset with 5-20P adapter and 8 5-15/20R outlets. Visual and remote current monitoring tracks real time output current level. Supports 0U vertical rackmount installation with included mounting brackets. Toolless button-mount installation supported in compatible racks. Included cord retention brackets keep vital network equipment plugged in and continuously powered.

  • Features:

    • 120V 20A peak capacity (agency de-rated to 16 amps continuous) Monitored Power Distribution Unit (PDU) with built-in web/network interface in 0U vertical rack form factor
    • Includes attached L5-20P input plug with 5-20P adapter and 8 5-15/20R outlets
    • Supports local current metering and remote network monitoring of current, voltage and frequency via built-in web/network monitoring card
    • Remote interface provides data regarding input power conditions and PDU load level via secure network or web browser interface
    • Supports notification and logging of all major power events and user specified alarm thresholds
    • Optional ENVIROSENSE temperature and humidity probe enables remote monitoring of environmental conditions and the ability to report conditions from up to four SRSWITCH or user supplied contact closure sensors
    • DHCP/Manual configuration support provides the ability to have network settings automatically assigned to the card, or manually assigned via permanent IP addresses
    • 10/100 Mbps auto-sensing allows optimal communication compatibility with your current 10/100 Base-T network
    • Real-time clock backup maintains the time of day and date even if the PDU is shut down and unpowered
    • Tiered access priviledges allow an administrator and a guest to log into the web browser for monitoring all PDUs
    • Alert notifications via email or SNMP traps give users the added advantage of having an immediate event notification
    • Protocols supported include HTTP, HTTPS, PowerAlert Network Management System, SMTP, SNMPv1, SNMPv2, Telnet, FTP, DHCP, BOOTP, NTP
    • Front panel ammeter displays total PDU power consumption
    • Included cord retention brackets keep vital network equipment plugged in and continuously powered
    • 1U rackmount installation supported with included mounting brackets
    • Circuit breaker-free format prevents power interruptions due to tripped breakers while still providing mains panel protection from overloads and short circuit fault conditions
    • Optional PDUROTATEBRKT enables installation with rear-facing outlets for improved rack cooling and equipment access in button-mount equipped racks


  • Item Includes:

    • Rackmount PDU
    • Plug retention plates
    • Rack mounting brackets
    • Owner's manual
    • L5-20R to 5-20P adapter


  • GTIN:

    0037332152015
