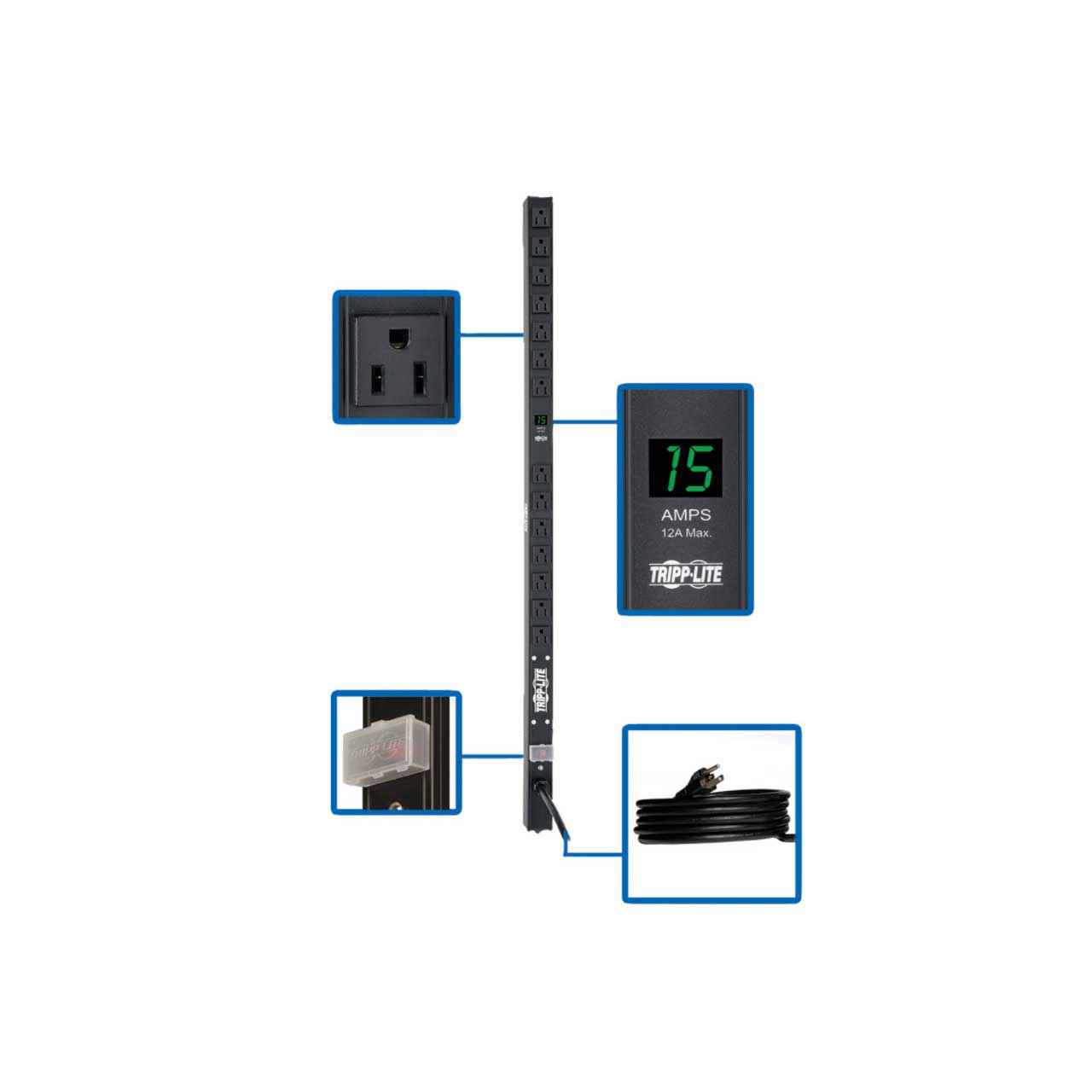

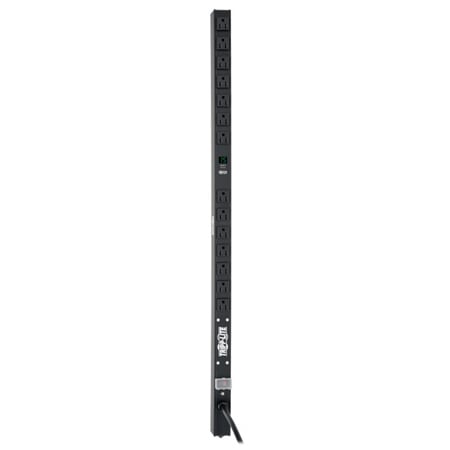

Tripp Lite PDUMV15-36 1.4kW Single-Phase Metered PDU 120V Outlets (14 5-15R) 5-15P 15ft Cord 0U Vertical 36 in.

PDUMV15-36 - Overview

• Features:

  • 15A single phase 120V Metered Power Distribution Unit / PDU (Agency de-rated to 12A continuous)
  • Two-digit lighted meter reports combined total output current in amps
  • Attached NEMA 5-15P 15A 120V input plug with 15ft / 4.5m line cord
  • 0U 36in / 91cm vertical rackmount format installs using no rack spaces
  • 14 NEMA 5-15R outlets

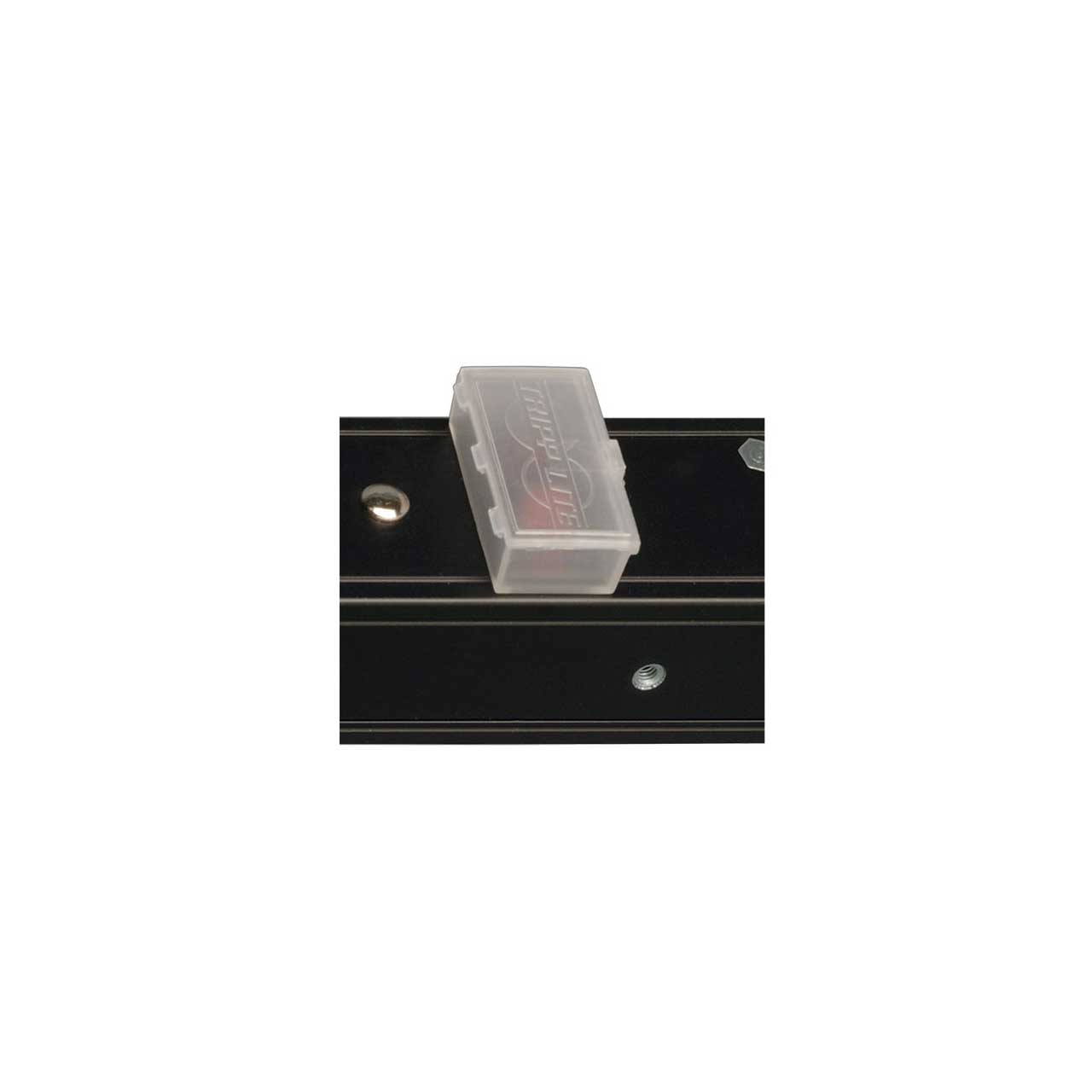

  • Includes 15A circuit breaker and lighted power switch inside a transparent protective cover
  • Toolless installation supported in button-mount compatible equipment racks
  • Bolt-down installation brackets support installation in other racks and additional surfaces


• Specifications:

  • PDU Type: Metered
  • Output Capacity Details: 1.52kW (127V), 1.44kW (120V), 1.2kW (100V) / 15A total capacity (Agency de-rated to 12A); 12A max per outlet
  • Frequency Compatibility: 50 / 60 Hz
  • Output Receptacles: (14) 5-15R
  • Output (VA): 1800
  • Output Nominal Voltage: 100; 120; 127
  • Overload Protection: 15A circuit breaker
  • PDU Input Voltage: 100; 120; 127
  • Recommended Electrical Service: 15A 120V
  • Maximum Input Amps: 15
  • Maximum Input Amps Details: Agency de-rated to 12A continuous
  • PDU Plug Type: NEMA 5-15P
  • Input Cord Length (ft.): 15
  • Input Cord Length (m): 4.6
  • Input Phase: Single-Phase
  • Front Panel LCD Display: Digital meter reports PDU output current in amps
  • Switches: Lighted on/off switch with integrated safety cover
  • Shipping Dimensions (hwd / in.): 2.21 x 38.93 x 5.56
  • Shipping Weight (lbs.): 3.79
  • Unit Dimensions (hwd / in.): 36 x 1.75 x 1.25
  • Unit Weight (lbs.): 3.2
  • Material of Construction: Aluminum
  • Form Factors Supported: Vertical (0U) mounting in rack enclosures, horziontal mount in raceways and a variety of other applications
  • PDU Form Factor: Vertical (0U)
  • Relative Humidity: 5-95% non-condensing
  • Operating Elevation (ft.): 0 to 10,000 Ft.
  • Certifications: Tested to UL60950-1 (USA) and CSA60950-1 (Canada), NOM (Mexico), Class A (Emissions), RoHS Compliant
  • Product Warranty Period (Worldwide): 2-year limited warranty


• Item Includes:

  • Metered Vertical PDU

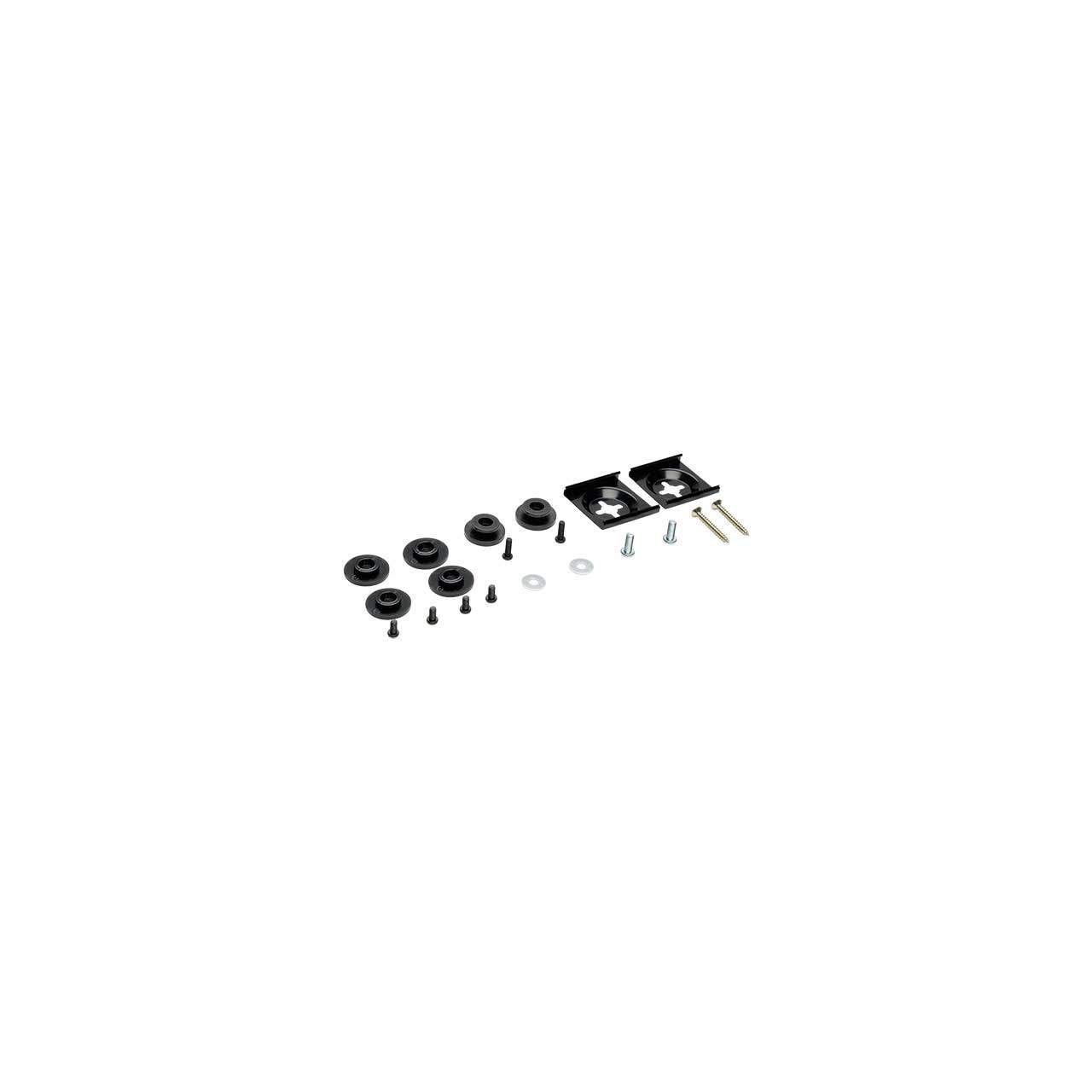

  • Mounting hardware and spare mounting buttons
  • Owner's manual with warranty information


• Warranty:

  • 2 Year


• GTIN:

  0037332182869
