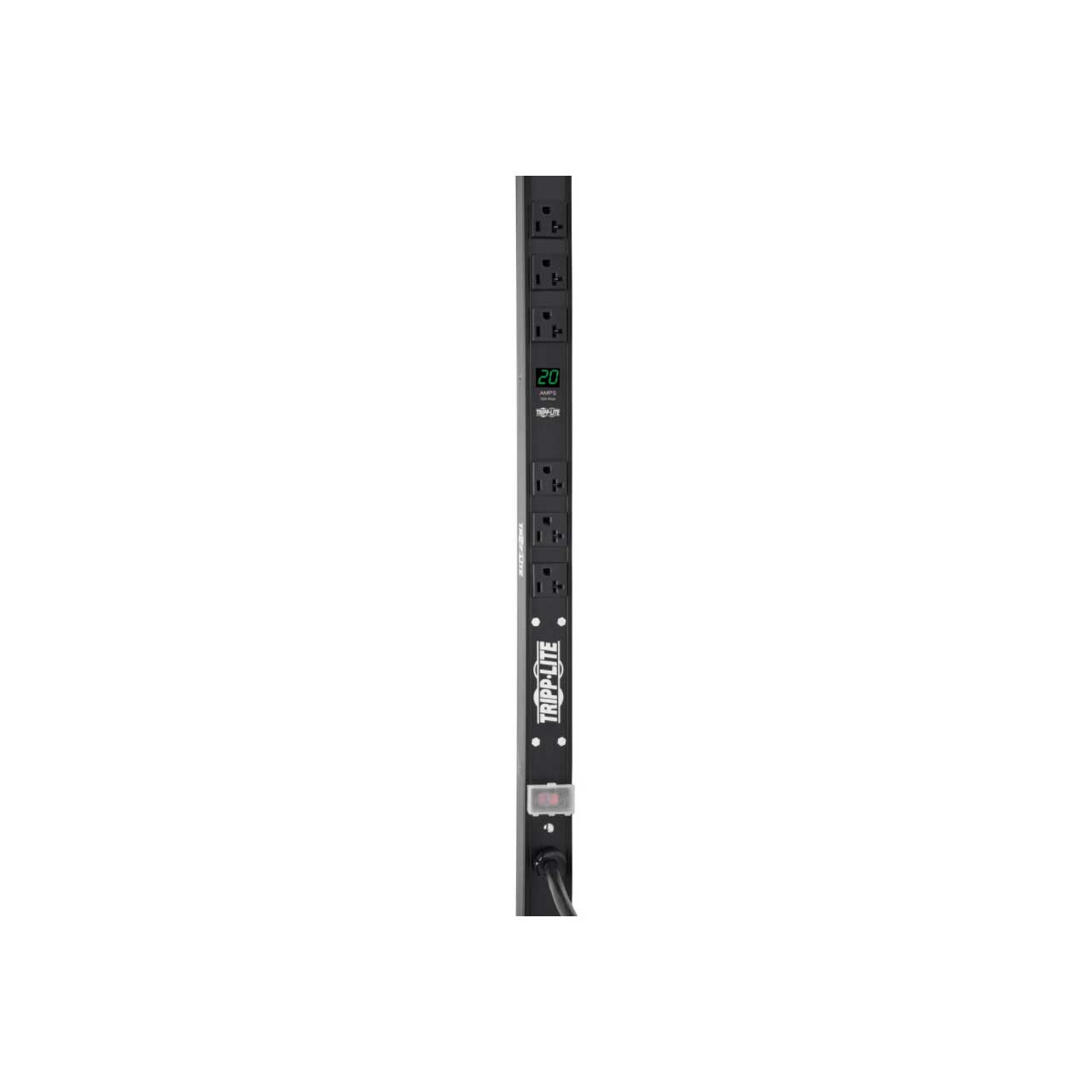

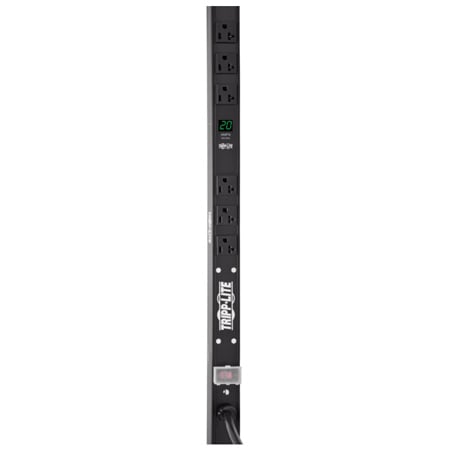

Tripp Lite PDUMV20-24 1.9kW Single-Phase Metered PDU 120V Outlets (6 5-15/20R) L5-20P/5-20P adapter 0U Vertical 24-Inch

PDUMV20-24 - Overview

• Features:

  • 20A single phase 120V Metered Power Distribution Unit / PDU (Agency de-rated to 16A continuous)
  • Two-digit lighted meter reports combined total output current in amps
  • Attached NEMA L5-20P input plug with 15ft / 4.6m line cord and 5-20P adapter
  • 0U 24-in. / 61cm vertical rackmount format installs using no rack spaces
  • 6 NEMA 5-15/20R outlets

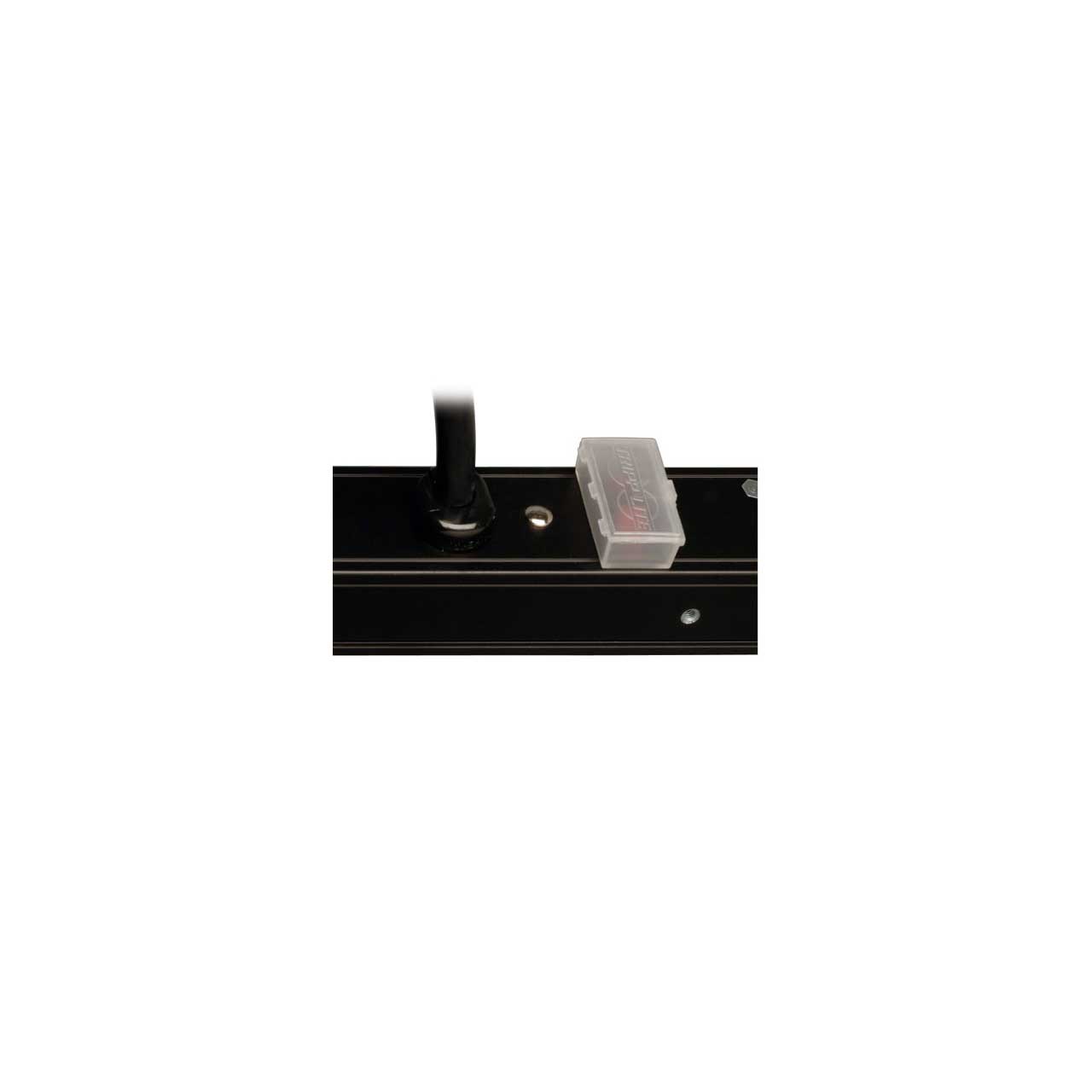

  • Includes 20A circuit breaker and lighted power switch inside a transparent protective cover
  • Toolless installation supported in button-mount compatible equipment racks
  • Bolt-down installation brackets support installation in other racks and additional surfaces


• Specifications:

  • PDU Type: Metered
  • Output Capacity Details: 2.03kW (127V), 1.92kW (120V), 1.6kW (100V) / 20A total capacity (Agency de-rated to 16A); 16A max per outlet
  • Frequency Compatibility: 50 / 60 Hz
  • Output Receptacles: (6) 5-15/20R
  • Output Nominal Voltage: 100; 120; 127
  • Overload Protection: 20A circuit breaker
  • PDU Input Voltage: 100; 120; 127
  • Recommended Electrical Service: 20A 120V
  • Maximum Input Amps: 20
  • Maximum Input Amps Details: Agency de-rated to 16A continuous
  • PDU Plug Type: NEMA 5-20P; NEMA L5-20P
  • Input Cord Length (ft.): 15
  • Input Cord Length (m): 4.6
  • Input Phase: Single-Phase
  • Front Panel LCD Display: Digital meter reports PDU output current in amps
  • Switches: Lighted on/off switch with integrated transparent saftey cover
  • Shipping Dimensions (hwd / in.): 2.6 x 26.91 x 6.78
  • Shipping Weight (lbs.): 2.65
  • Unit Dimensions (hwd / in.): 24 x 1.75 x 1.25
  • Unit Weight (lbs.): 3.2
  • Material of Construction: Aluminum
  • Form Factors Supported: Vertical
  • PDU Form Factor: Vertical (0U)
  • Certifications: Tested to UL60950-1 (USA), UL/CSA60950-1 (Canada), NOM (Mexico), FCC Class A (Emissions), RoHS Compliant
  • Product Warranty Period (Worldwide): 2-year limited warranty

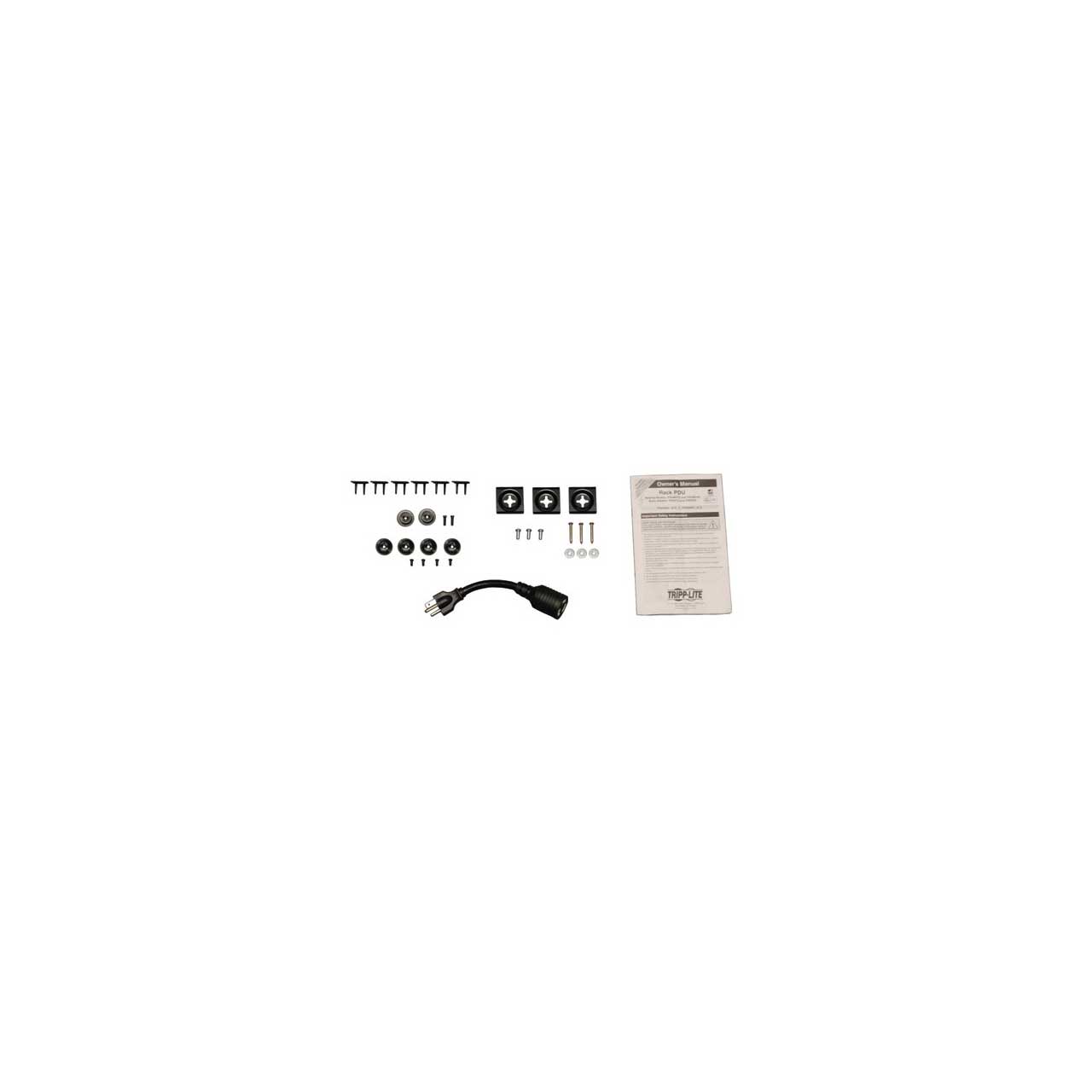

• Item Includes:

  • PDUMV20-24 Metered Vertical PDU
  • (1) L5-20P to 5-20P plug adapter
  • Mounting hardware and spare mounting buttons
  • Instruction manual with warranty information


• Warranty:

  • 2 Year


• GTIN:

  0037332182845
