Tripp Lite PDUMV20HV PDU Metered 208V - 240V 20A 6 C19; 32 C13 C20 Vertical 0URM

ITEM #: TRL-PDUMV20HV MFG #: PDUMV20HV

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Tripp Lite
Free Shipping with $49 Minimum Order

List Price:

$422.60

Our Price:

$261.00

Add to Wish ListLeasing Options
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
  • Shipment of this item is subject to a separate oversized-package carrier surcharge.
Report Lower PriceLarge Quantity Quote

PDUMV20HV - Overview

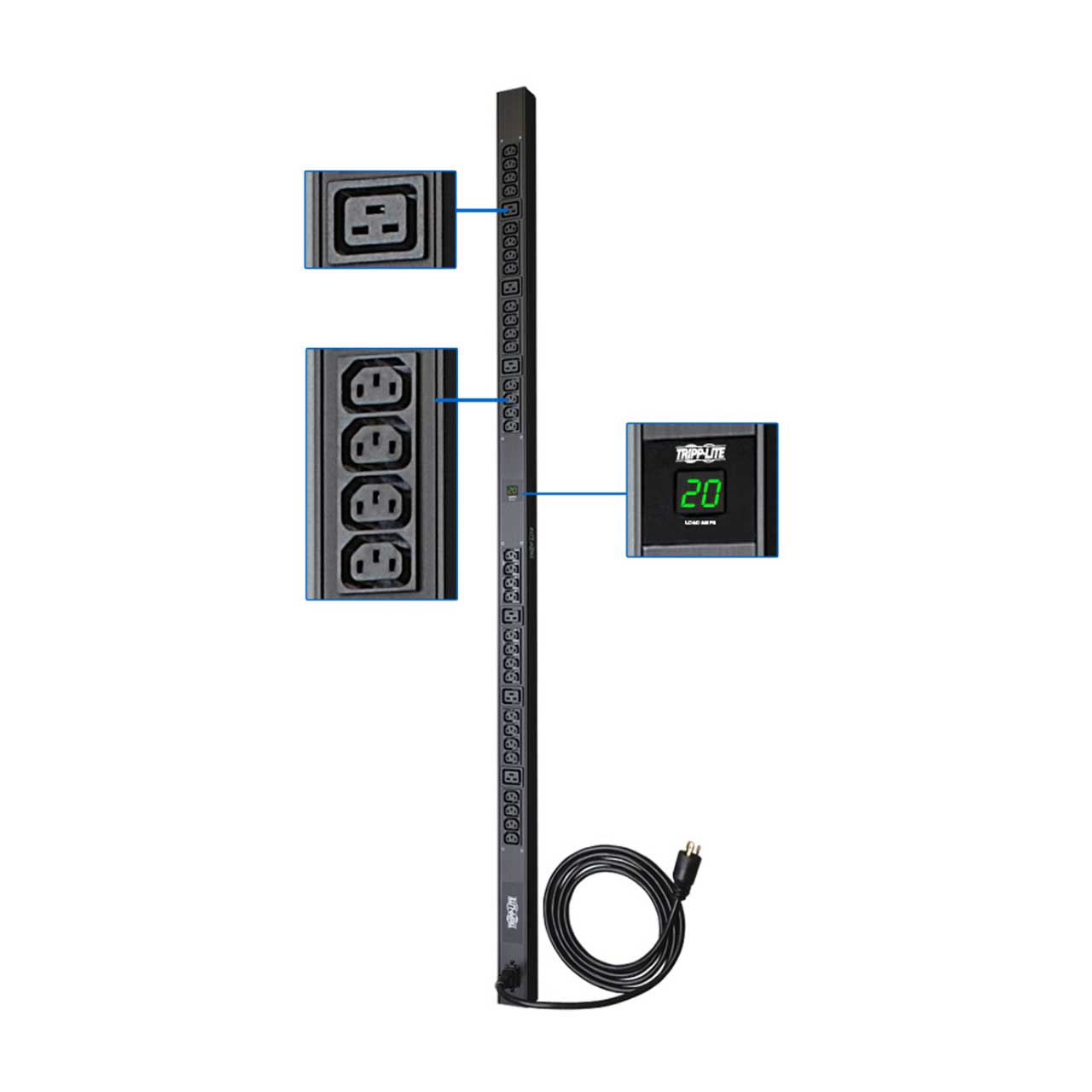

Tripp Lite single phase Metered PDU / Power Distribution Units offer real-time local reporting of load level in amps via built-in digital display. Enables visual monitoring of PDU load levels to prevent overloads as additional equipment is added. Offers reliable rackmount multi-outlet power distribution from any protected UPS, generator or mains input power source. High quality design includes rugged all-metal housing and secure rackmount installation with included mounting accessories.

  • Features:

    • 16/20A single phase 200-240V Metered Power Distribution Unit / PDU (Agency derated to 16A continuous)
    • Two-digit lighted meter reports combined total output current in amps
    • 10ft / 3m detachable input cable with NEMA L6-20P plug
    • C20 inlet accepts a variety of 16A international cordsets
    • 0U 63.75in / 162cm vertical rackmount format installs using no rack spaces


  • Specifications:

    • Style Vertical Rackmount, Wallmount, Raceway, Workbench
    • PDU Type Metered
    • Output Capacity Details 3.3kW (208V input), 3.5kW (220V input), 3.7kW (230V input), 3.8kW (240V input), 3.2kW (200V input); 20A maximum (agency de-rated to 16A continuous)
    • Frequency Compatibility 50 / 60 Hz
    • Output Receptacles (32) C13; (6) C19
    • Output Nominal Voltage 200-240V nominal, single phase
    • Overload Protection Outlets are arranged in a single unbreakered load bank
    • Outlet Type IEC-C13, IEC-C19
    • PDU Input Voltage 200; 208; 220; 230; 240
    • Maximum Input Amps 20
    • Maximum Input Amps Details Agency de-rated to 16A continuous
    • Input Connection Type L6-20P detachable cordset, C20 inlet available
    • PDU Plug Type NEMA L6-20P; IEC-320 C20
    • Input Cord Length (ft.) 10
    • Input Cord Length (m) 3.05
    • Input Phase Single-Phase
    • Front Panel LEDs Includes built-in 2-character LED meter to display whole PDU power consumption
    • Switches n/a
    • Shipping Dimensions (hwd / in.) 64.5 x 3.5 x 4.75
    • Shipping Dimensions (hwd / cm) 163.8 x 8.9 x 12.1
    • Shipping Weight (lbs.) 6
    • Shipping Weight (kg) 2.8
    • Unit Dimensions (hwd / in.) 63.75 x 2.25 x 3.75
    • Unit Dimensions (hwd / cm) 162 x 5.7 x 9.5
    • Unit Weight (lbs.) 5.2
    • Unit Weight (kg) 2.4
    • Material of Construction Aluminum
    • Form Factors Supported 0u vertical installation in equipment racks, plus under-counter and wallmount
    • PDU Form Factor Vertical (0U)
    • Relative Humidity 0-95% non-condensing
    • Certifications Tested to UL60950-1 (USA, Canada), NOM (Mexico), CE (IEC 60950)
    • Product Warranty Period (Worldwide) 2-year limited warranty


  • GTIN:

    0037332139344
