Tripp Lite PDUMVR20NETLX 1.9kW Single-Phase Switched PDU LX Platform Outlet Monitoring 120V Outlets 24 NEMA 5-15/20R

ITEM #: TRL-PDUMVR20NTLX MFG #: PDUMVR20NETLX

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:

$1,791.50

Our Price:

$1,171.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
  • Shipped truck freight.


PDUMVR20NETLX - Overview

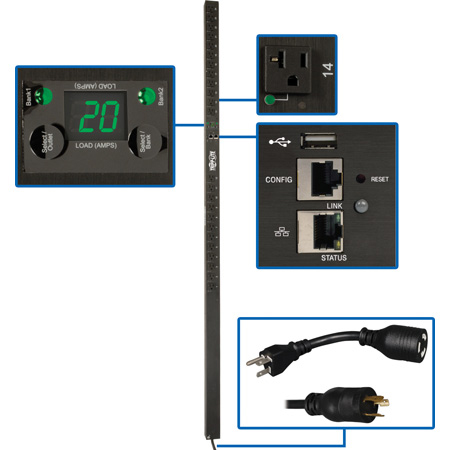

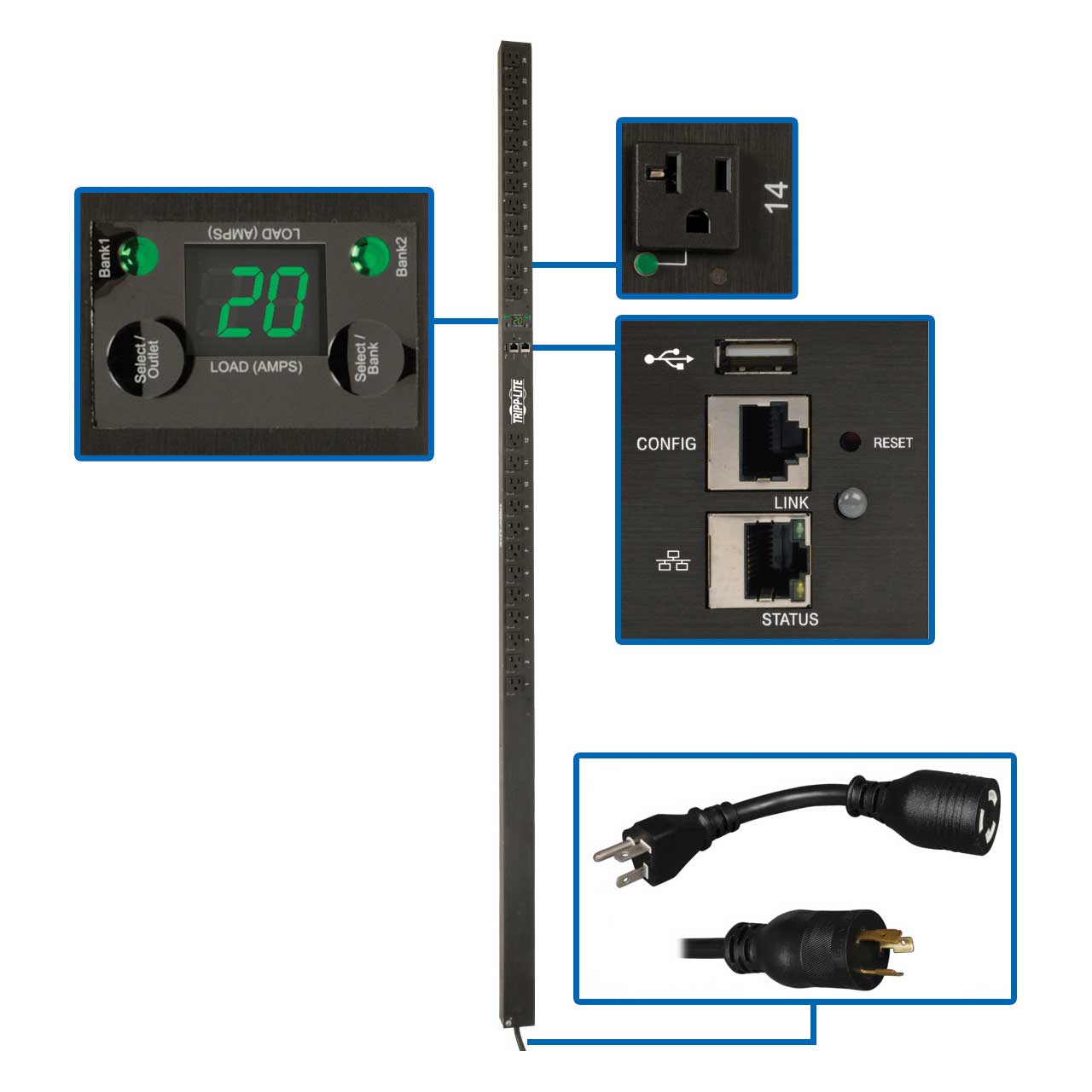

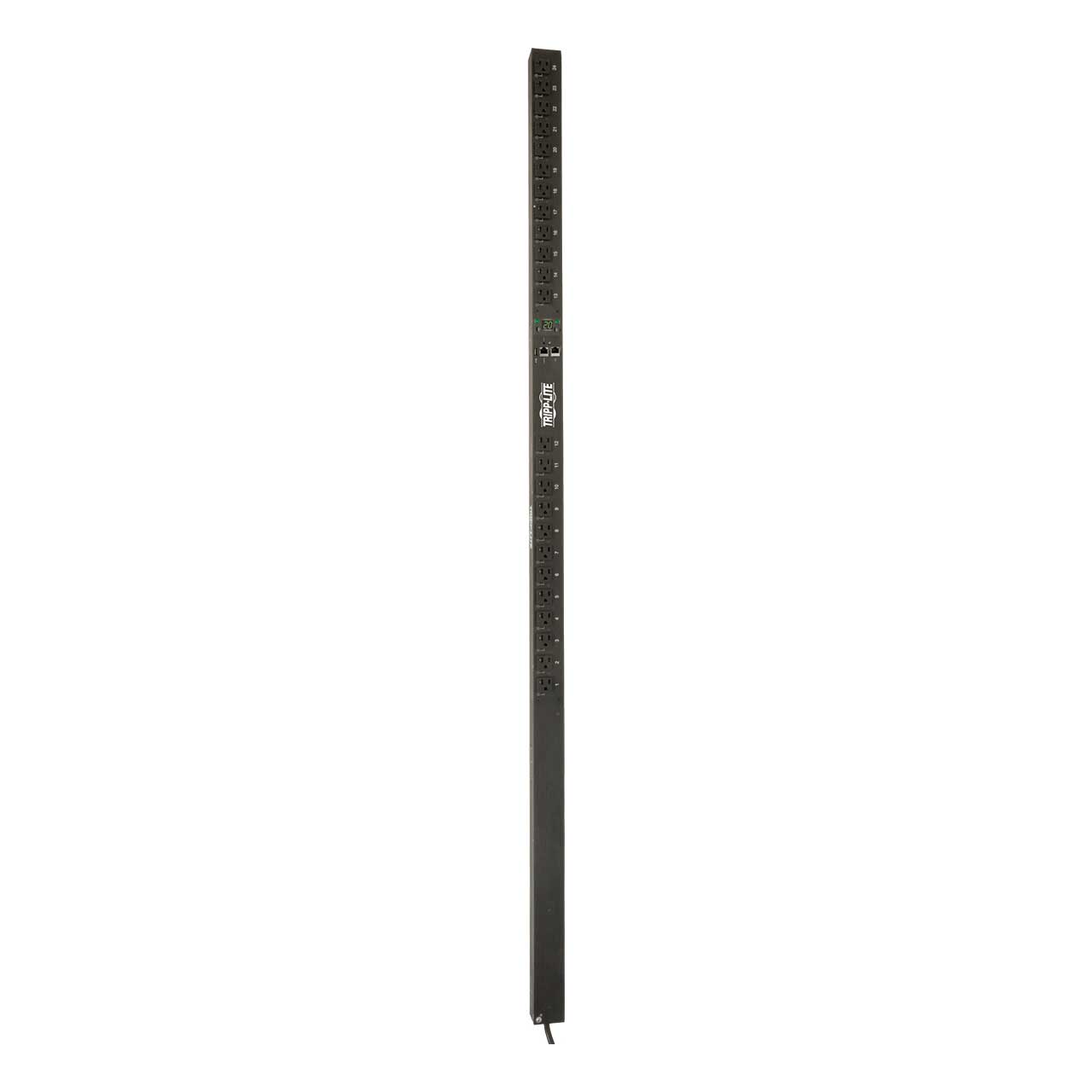

The Tripplite PDUMVR20NETLX 1.9kW Single-Phase Switched PDU with individual outlet metering provides advanced network control and remote power monitoring with the ability to turn on, turn off, reboot or lock out power to each outlet. By reducing the frequency of on-site visits, these advanced remote capabilities can save you money and reduce downtime.

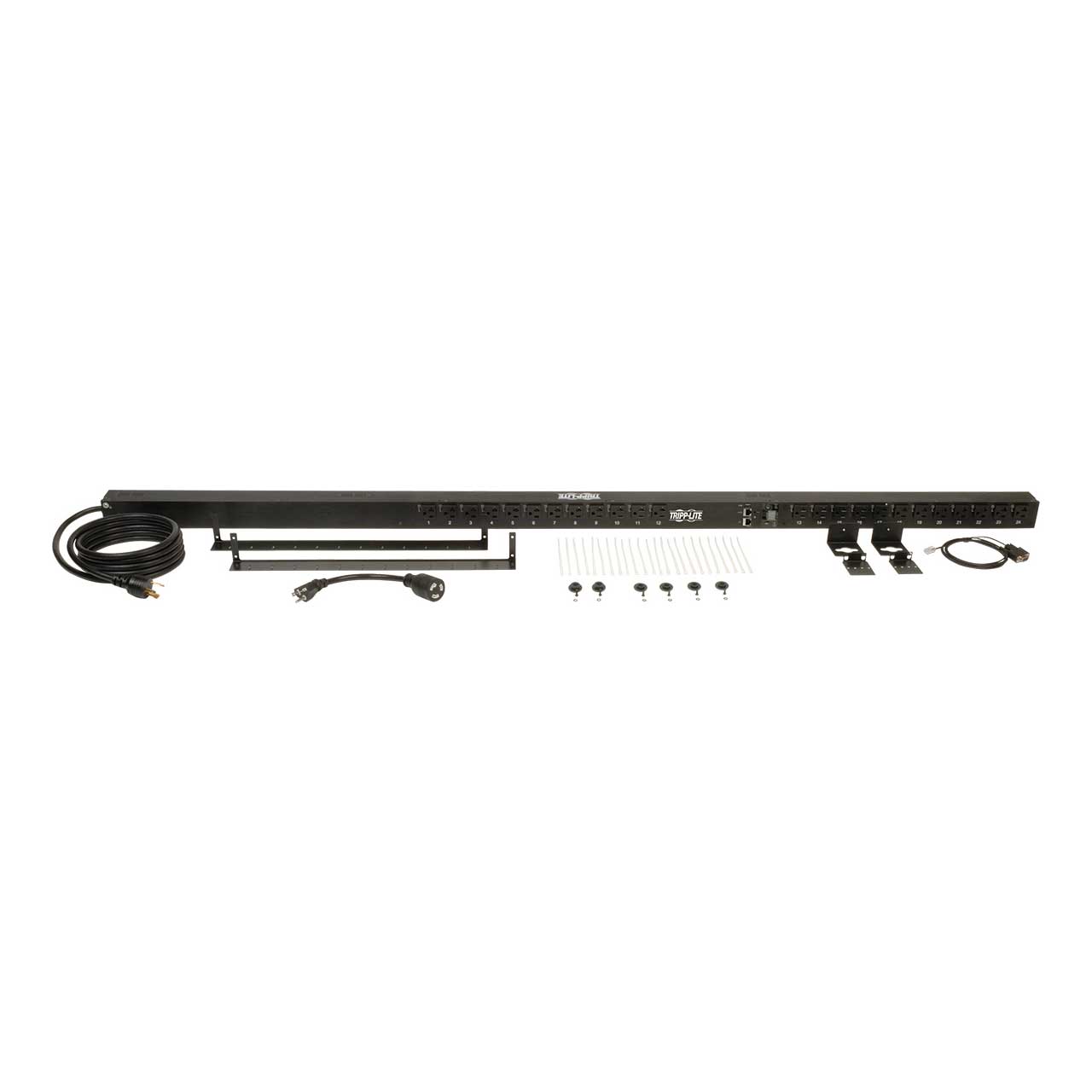

The switched PDU features 24 individually controllable NEMA 5-15/20R outlets with cord retention brackets to prevent cables from becoming accidentally disconnected. A 10-foot power cord with NEMA L5-20P plug and optional 5-20P adapter connects the PDU to an AC source, generator or protected UPS.

The built-in Java-free HTML5-based LX Platform network interface enables full remote access for PDU status monitoring and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Protocols supported include IPv4, IPv6, HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP.

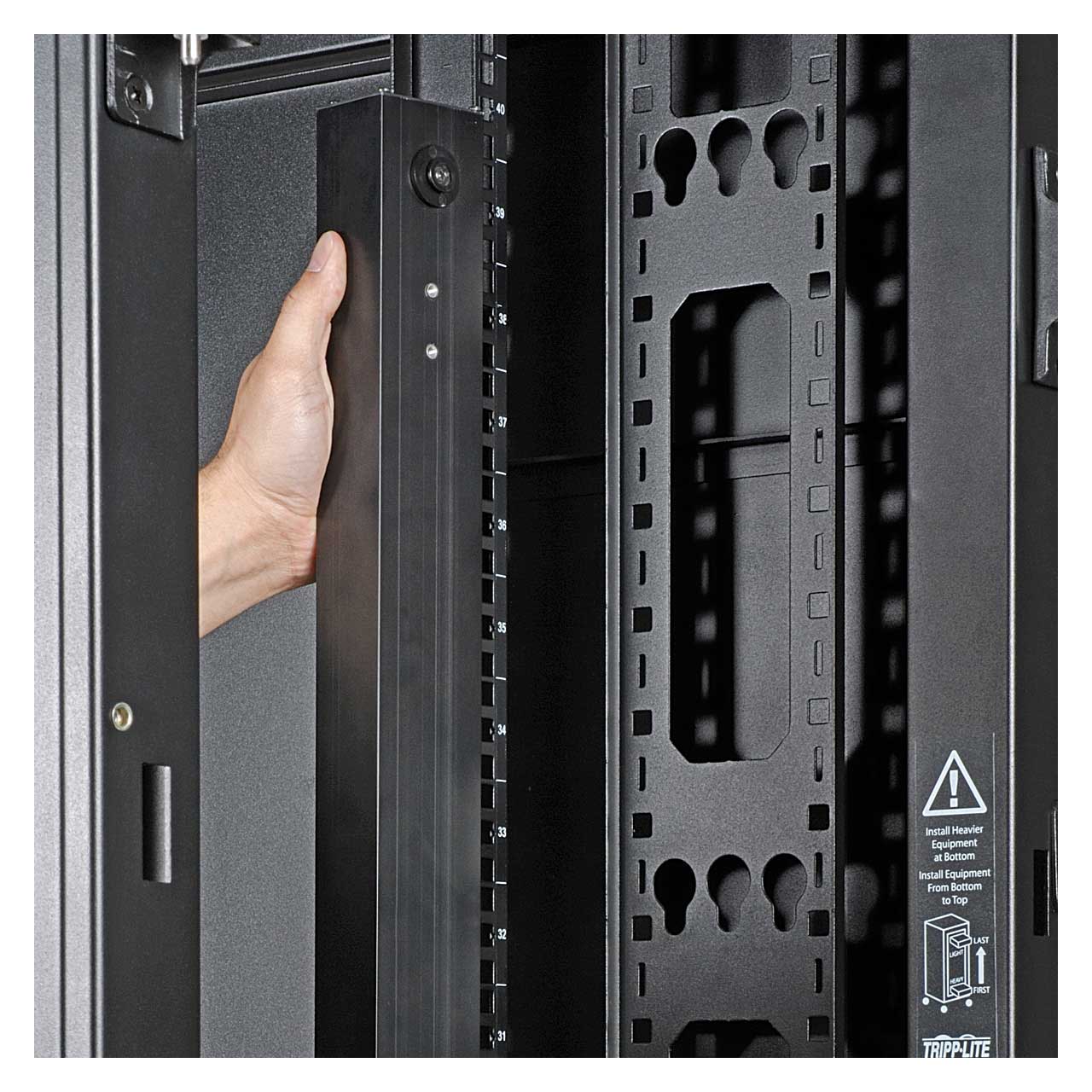

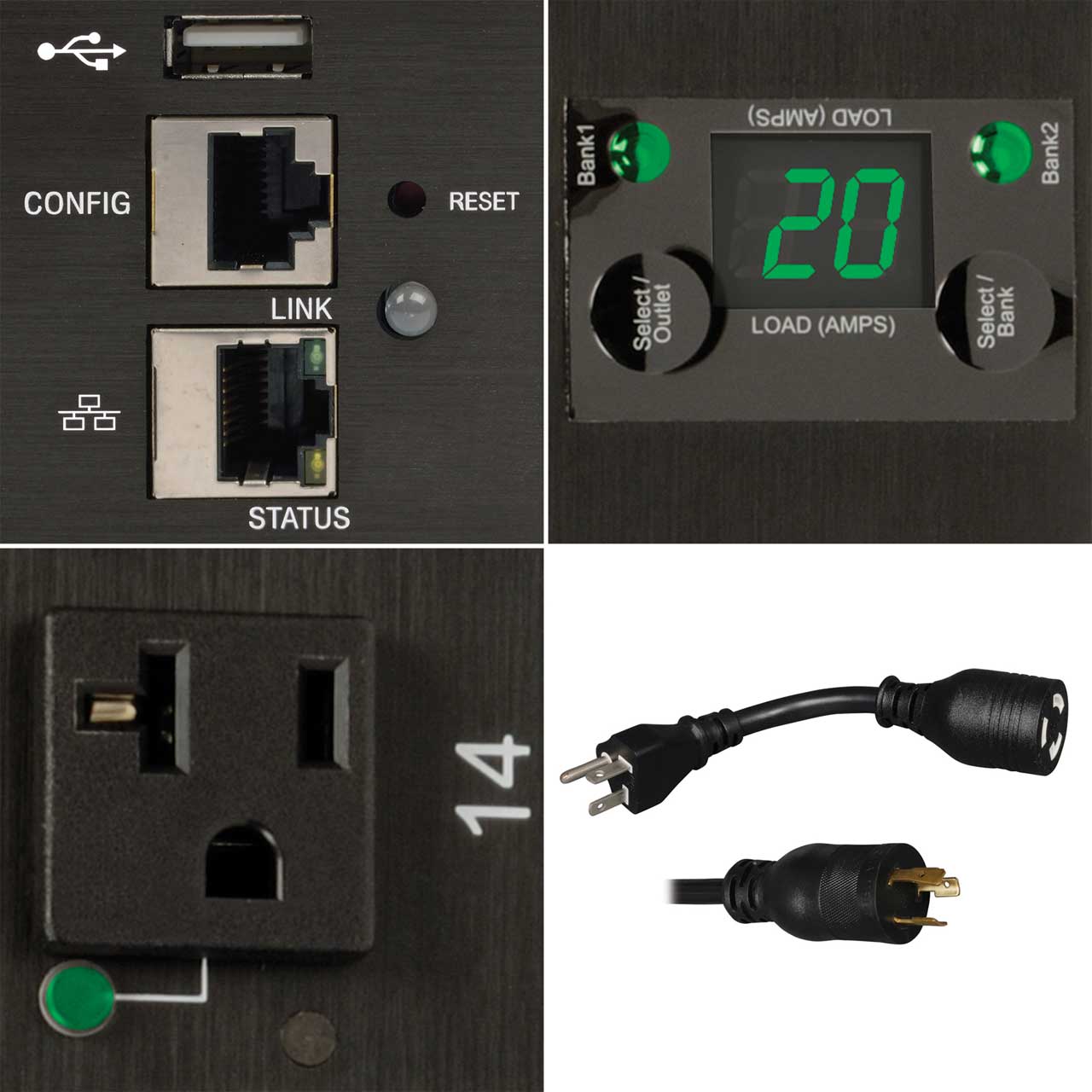

A digital ammeter allows you to monitor each load bank’s current, each outlet’s current and the total connected PDU load in real time to ensure they remain well below maximum capacity with no danger of overload. The switched PDU mounts in 0U of space in EIA-standard 19-inch racks using the included toolless mounting buttons or the included rack-mounting brackets.

  • Features:

    • 1.9kW 120V 20A switched PDU with single-phase input
    • 10 ft. power cord with NEMA L5-20P plug and 5-20P adapter
    • Firmware upgrades support future product enhancements
    • Individual outlets can be remotely controlled to power up, power down, reboot or lock out devices
    • Included cord retention brackets prevent cables from becoming accidentally disconnected
    • Reports current for each load bank, each individual outlet, and total PDU load
    • Supports IP-address self-ID
    • Digits flip 180° for easy reading at either angle
    • Allows full remote access for power monitoring with email notifications via secure web browser, SNMP, telnet or SSH
    • Supports 10/100 Mbps auto-sensing for communication with an Ethernet network
    • Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities
    • No Java required

  • Specifications:

    • Ouput
    • Output Capacity Details: 2.03kW (127V), 1.92kW (120V), 1.6kW (100V) / 20A total capacity (Agency de-rated to 16A); 16A max per outlet
    • Frequency Compatibility: 50 / 60 Hz
    • Output Receptacles (24): 5-15/20R
    • Output Nominal Voltage: 100; 120; 127
    • Customized Load Management Receptacles: Each outlet is individually controllable via remote interface

    • Input
    • PDU Input Voltage: 100; 120; 127
    • Recommended Electrical Service: 20A 120V
    • Maximum Input Amps: 20
    • Maximum Input Amps Details: Agency de-rated to 16A continuous
    • PDU Plug Type: NEMA 5-20P; NEMA L5-20P
    • Input Cord Length (ft.): 10
    • Input Cord Length (m): 3.05
    • Input Phase: Single-Phase

      Physical
    • Shipping Dimensions (hwd / in.) 75.78 x 6.10 x 4.53
    • Shipping Dimensions (hwd / cm) 192.48 x 15.49 x 11.51
    • Shipping Weight (lbs.) 14.93
    • Shipping Weight (kg) 6.77
    • Unit Dimensions (hwd / in.) 70 x 2.2 x 2.04
    • Unit Dimensions (hwd / cm) 178 x 5.6 x 5.2
    • Unit Weight (lbs.) 9.6
    • Unit Weight (kg) 4.35
    • Form Factors Supported 0U vertical rackmount; includes rackmount brackets. Supports toolless mounting in button-mount compatible racks
    • PDU Form Factor Vertical (0U)

      Environmental
    • Storage Temperature Range 5 to 140F (-15 to 60C)
    • Relative Humidity 5 to 95% non-condensing
    • Operating Elevation (ft.) 0-10,000
    • Operating Elevation (m) 0-3000

  • GTIN:

    0037332204141
