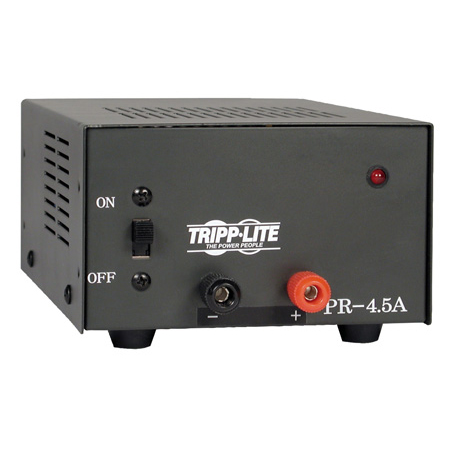

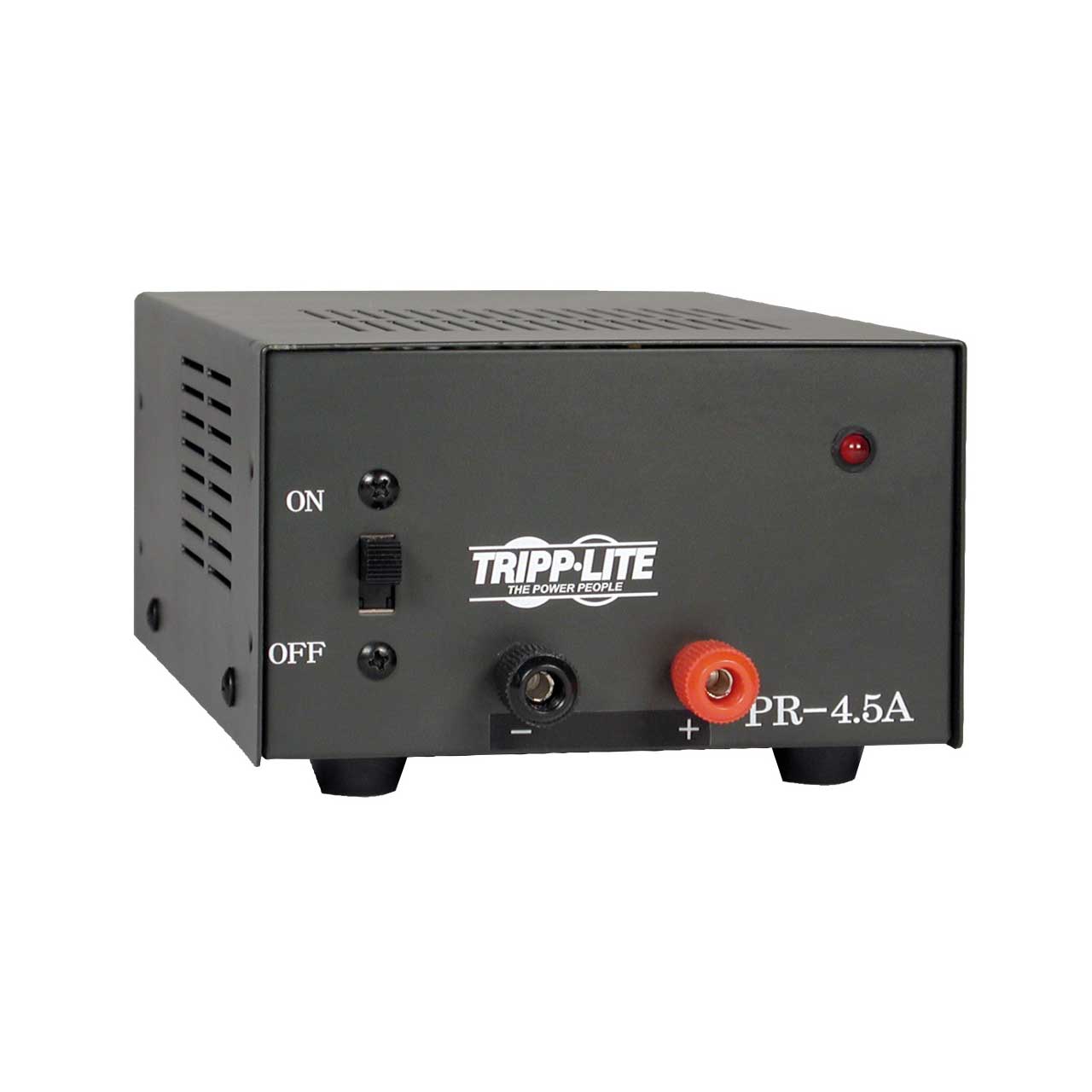

Tripp Lite PR4.5 DC Power Supply Low Profile 4.5A 120V AC Input to 13.8 DC Output

PR4.5 - Overview

• Features:

  • Smaller footprint maximizes operating space
  • Current-limiting electronic foldback enables automatic overcurrent protection in case of overload
  • Solid state, integrated circuit maintains excellent regulation of output voltage
  • Regulated output voltage maintains up to 95% of no load value
  • High quality filtering creates very low ripple/low noise operation
  • Heavy-duty power transformer provides complete isolation from noise on incoming AC power
  • Large heat sinks and vented cabinets supply cool operation for continuous use and long life of the unit
  • Illuminated on/off switch
  • Connectors: Hardwire terminals / Red positive (+), Black negative (-)
  • Working Temperature Range: 0° C to 40° C (32° F to 104° F), 0 to 95% humidity, non-condensing
  • Storage Temperature Range: -15° C to 50° C (5° F to 122° F)
  • LED Indicators: Red LED indicates that DC output is being provided


• Specifications:

  • Output
  • Intermittent (Peak) Amps: 4.5

    Physical
  • Shipping Dimensions (hwd / in.): 3.60 x 5.80 x 9.10
  • Shipping Weight (lbs.): 5.30
  • Unit Dimensions (hwd / in.): 3 x 4.5 x 7.5
  • Unit Weight (lbs.): 5

    Warranty
  • Product Warranty Period (Worldwide): 1-year limited warranty


• GTIN:

  0037332060068
