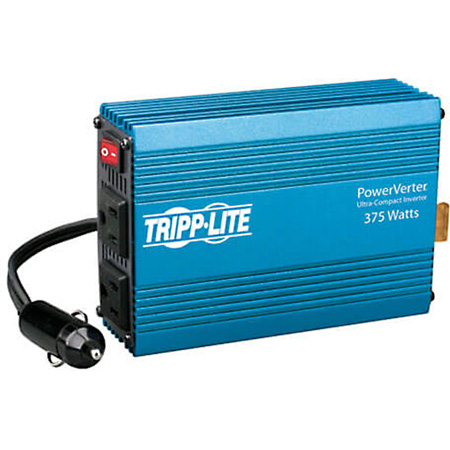

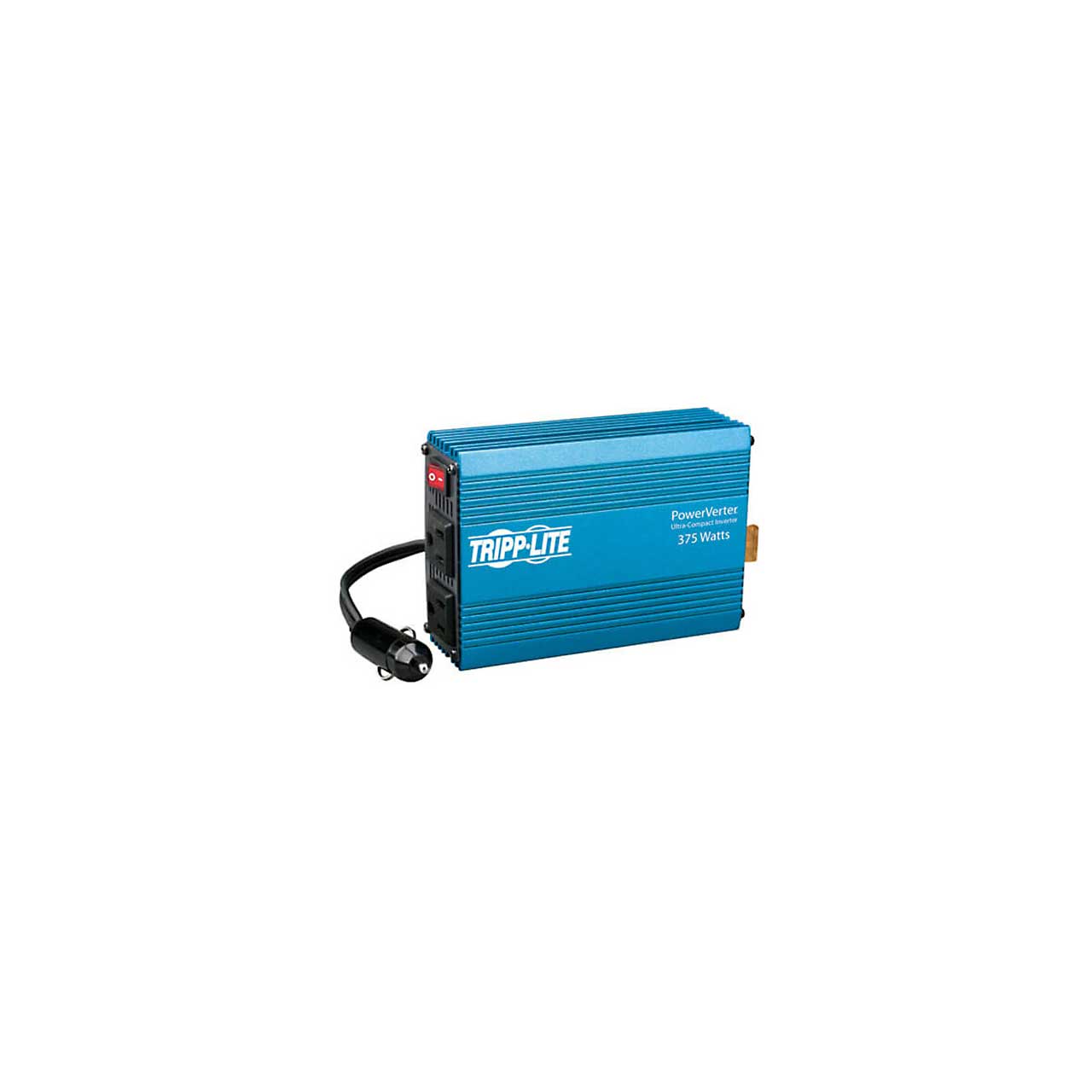

Tripp Lite PV-375 Portable Auto Inverter 375W 12V DC to AC 120V 5-15R 2 Outlet

PV375 - Overview

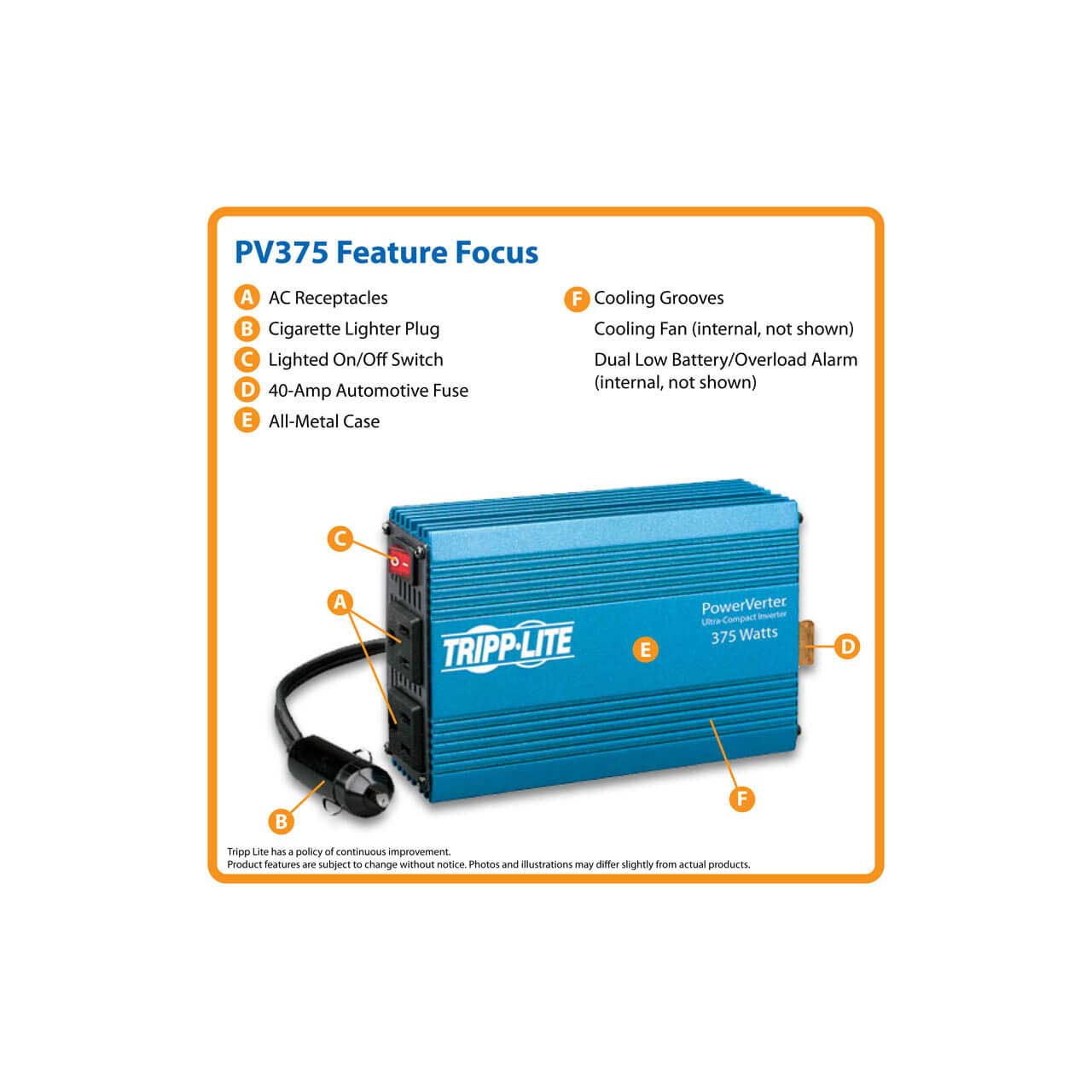

• Features:

  • Allows users to run AC devices from any 12V cigarette lighter socket
  • Converts 12V DC battery power to 120V AC power
  • 375 watts continuous output power; 600 watts peak output power (instantaneous)

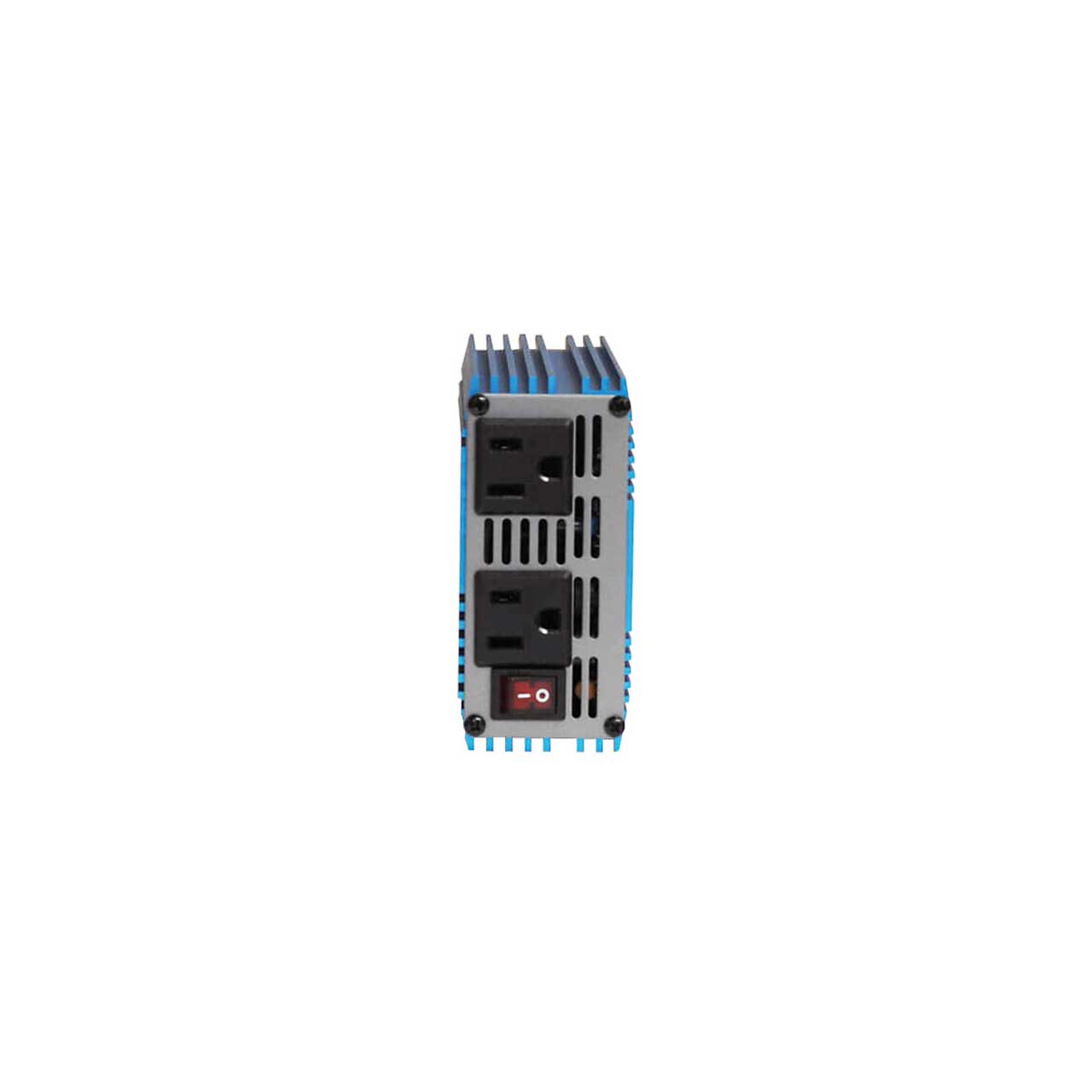

  • 2 outlets
  • 3-ft. cord with cigarette lighter plug
  • Ultra compact, lightweight design with all-metal housing
  • Low battery alarm with auto-shutoff preserves vehicle battery
  • Overload alarm with auto-shutoff prevents wattage overload
  • Replaceable 40amp fuse protects inverter from overload
  • Lighted power switch


• Specifications:

  • Output
  • Nominal Output Voltage(s) Supported: 120V
  • Frequency Compatibility: 60 Hz
  • Output Receptacles: (2) 5-15R
  • Output (Watts): 375
  • Continuous Output Capacity (Watts): 375
  • Peak Output Capacity (Watts): 600
  • Output Voltage Regulation: Maintains PWM sine wave output voltage of 115 V AC (+/- 8 V AC)
  • Output Frequency Regulation: 60 Hz (+/- 3 Hz)
  • Overload Protection: 40A automotive input fuse

    Input
  • Maximum Input Amps / Watts: Full continuous load - 40A at 12V DC, No load - 0.65A at 12V DC
  • Input Connection Type: 12V DC cigarette lighter input plug connection
  • Input Cord Length Details: 3 ft. hardwire input cable, 16 gauge, 2 wire
  • Voltage Compatibility (VDC): 12

    Physical
  • Switches: Lighted on/off power switch
  • Audible Alarm: Dual function alarm indicates overload conditions or low DC input voltage of 10.5V or less.
  • Unit Dimensions (H x W x D): 2" x 4.25" x 7"
  • Unit Weight (lbs.): 2.3

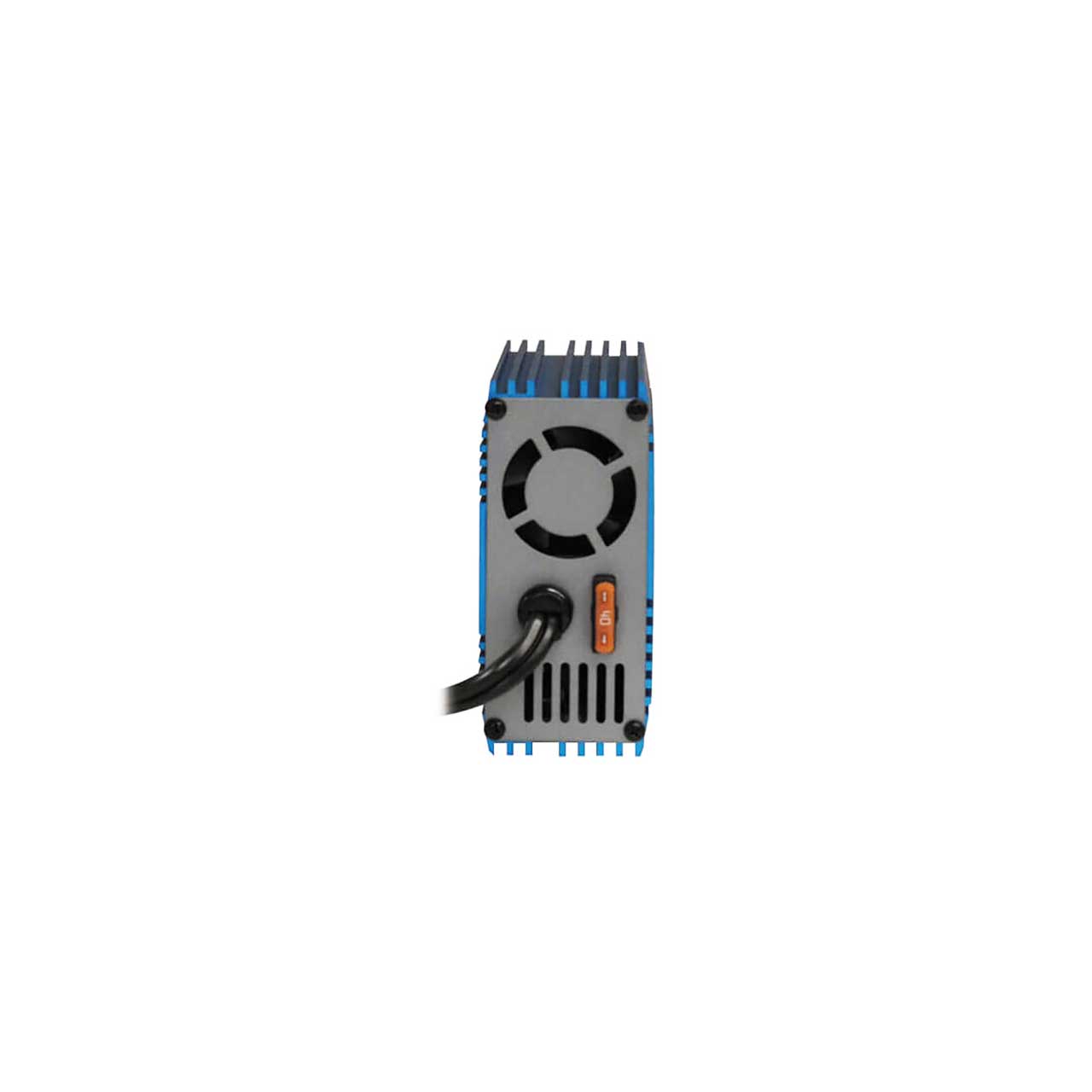

  • Cooling Method: Fan
  • Material of Construction: Aluminum / sheet metal
  • Relative Humidity: 0-95% non-condensing
  • DC System Voltage (VDC): 12
  • Product Warranty Period (Worldwide): 1-year limited warranty
  • Remote Control Capability: No


• Item Includes:

  • PV375 Inverter
  • Warranty information
  • Instruction manual


• Warranty:

  • 1 Year


• GTIN:

  0037332119841
