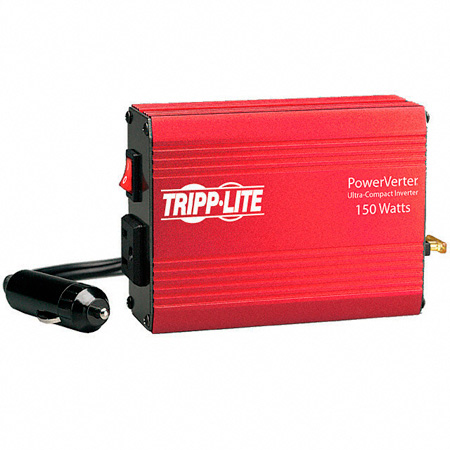

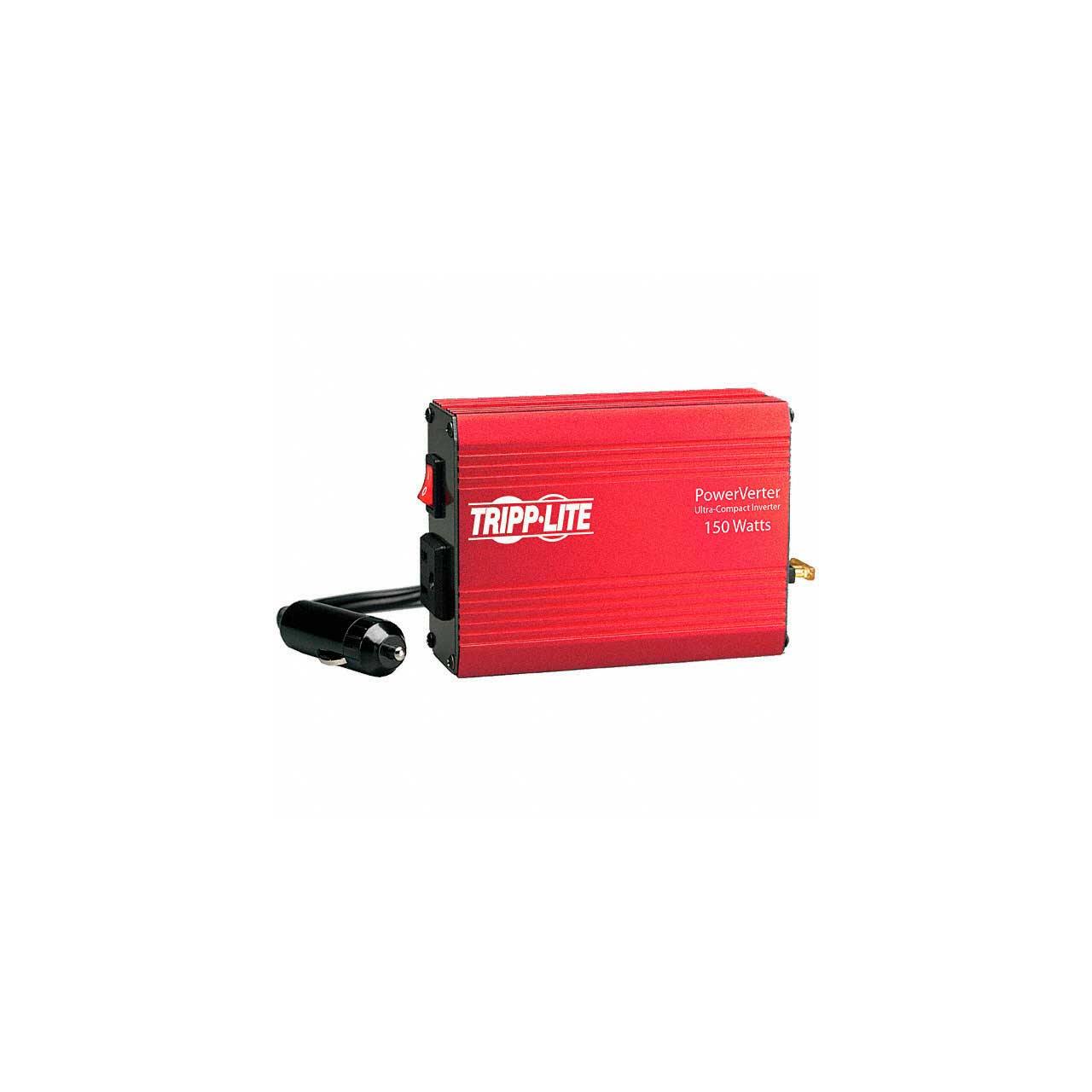

Tripp Lite PV-150 Ultra Compact PowerVerter 150W Inverter

PV-150 - Overview

• Features:

  • Allows users to run smaller AC devices from any 12V cigarette lighter socket
  • Converts 12V DC battery power to 120V AC power
  • 150 watts continuous output; 300 watts peak output power (instantaneous)
  • 1 outlet
  • 3ft cord with cigarette-lighter plug
  • Ultra compact, lightweight design with all-metal housing
  • Low battery alarm with auto-shutoff prevents deep battery discharge
  • 20 Amp fuse protects inverter from overload
  • Lighted power switch


• Specifications:

  • Input
  • Maximum Input Amps/Watts: Full continuous load - 14A at 12VDC, No load - 0.4A at 12VDC
  • Input Connection Type: 12VDC cigarette lighter input plug connection
  • Voltage Compatibility (VDC): 12
  • Input Cord Length: 3ft

    Output
  • Frequency Compatibility: 60 Hz
  • Pure Sine Wave Output: No
  • Output (Watts): 150
  • Nominal Output Voltage(s) Supported: 120V
  • Output Receptacles: (1) 5-15R
  • Continuous Output Capacity (Watts): 150
  • Peak Output Capacity (Watts): 300
  • Output Voltage Regulation: Maintains PWM sine wave output voltage of 115 VAC (+/- 8 VAC)
  • Output Frequency Regulation: 60 Hz (+/- 3 Hz)
  • Overload Protection: 20A automotive input fuse

    Battery
  • DC System Voltage (VDC): 12

    User Interface, Alerts & Controls
  • Switches: Lighted on/off power switch
  • Audible Alarm: Dual function alarm indicates overload conditions or low DC input voltage of 10.5V or less.

    Physical
  • Cooling Method: Convection
  • Material of Construction: Aluminum/sheet metal
  • Shipping Dimensions (HxWxD): 6.20" x 2.25" x 6.60"
  • Shipping Weight: 1.30lbs
  • Unit Dimensions (HxWxD): 1.75" x 3.75" x 5.75"
  • Unit Weight: 1.3lbs

    Environmental
  • Relative Humidity: 0% - 95% non-condensing


• Item Includes:

  • 1x PV150 Inverter
  • 1x Warranty information
  • 1x Instruction manual


• GTIN:

  0037332117465
