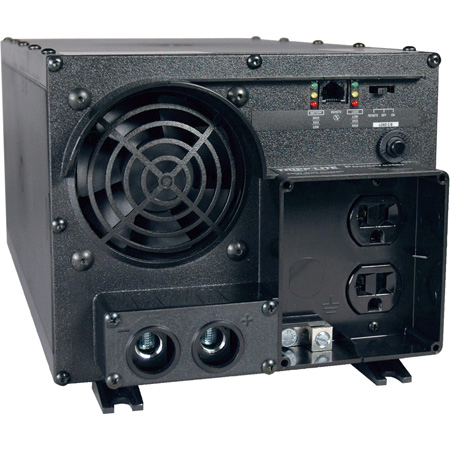

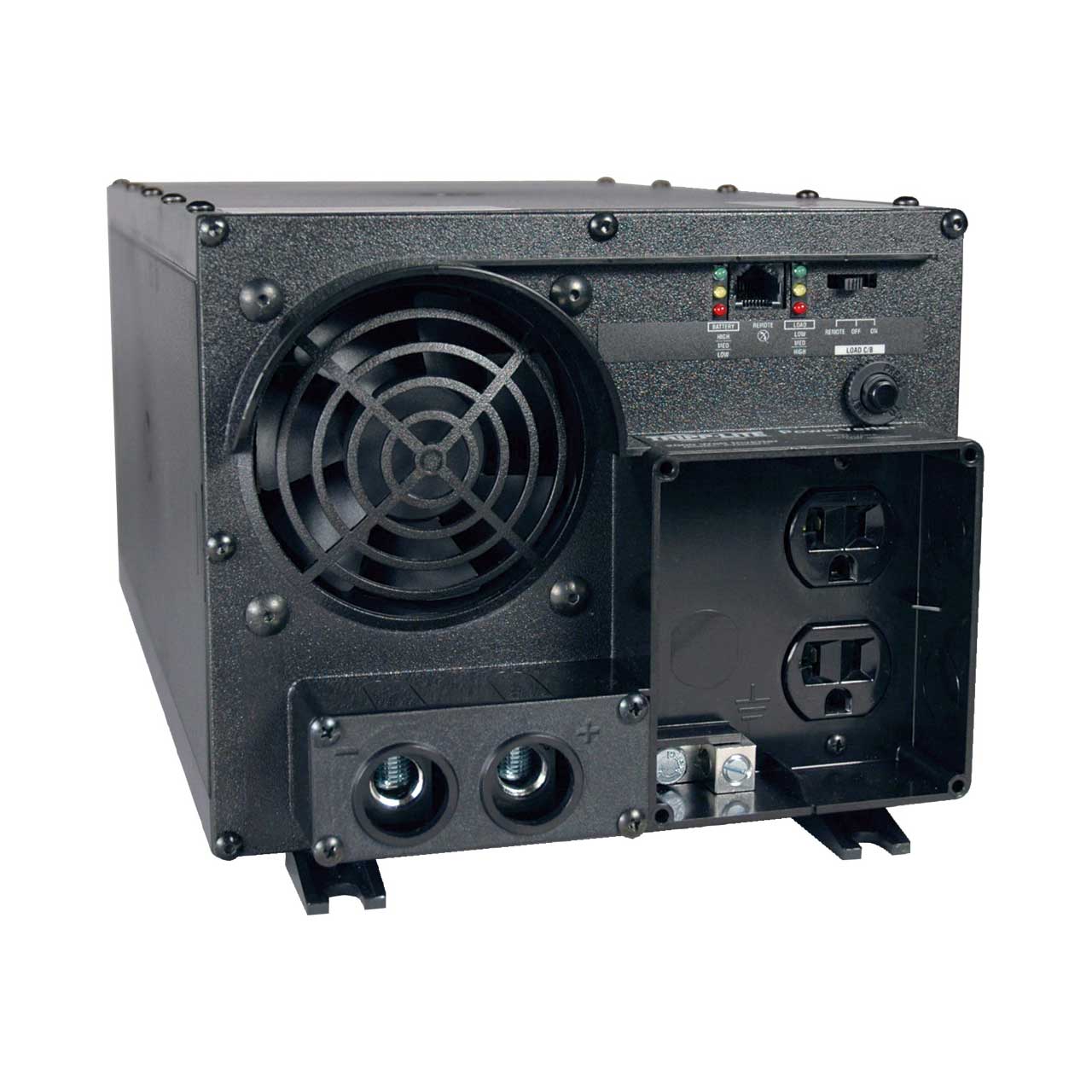

Tripplite PV2400FC 2400W PowerVerter Plus Industrial-Strength Inverter with 2 Outlets

ITEM #: PV-2400FC MFG #: PV-2400FC

Primary Image
Tripp Lite
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$1,168.96

Our Price:

$817.00

Add to Wish ListLeasing Options
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

PV-2400FC - Overview

The Tripp Lite PV2400FC continuously supplies up to 2400W of 120V AC power to 2 AC outlets from any 24V battery or automotive DC source. Frequency control locks AC output at 60Hz for operating stability of motor loads. Includes a set of high current DC input terminals for simple, permanent installation. Highly reliable large transformer design specializes in powering motors and other inductive loads with high-current startup needs.

Please Note: To protect against high current draw that may occur during inverter failure, a fuse link rated at 250a should be positioned no more than 18" from the PV2400FC's battery in the positive line.

  • Features:

    • Converts 24V DC battery power to 120V AC power
    • 2400W continuous output power
    • Peak surge output: OverPower (up to 1 hour), 3600 watts; Double-Boost (up to 10 seconds), 4800W
    • Set of 2 bolt-down DC wiring terminals for 24V battery connection; 2x NEMA 5-15/20R outlets
    • Frequency control for operating stability
    • High-efficiency operation conserves batteries to prolong run time
    • Diagnostic LEDs indicate load level (high, medium, and low) and battery charge (high, medium, and low)
    • DC fusing protects inverter against overload
    • High-impact polycarbonate housing
    • RJ45 port allows connection of APS/PowerVerter Remote Switch (APSRM4)


  • Specifications:

    • Output
    • Nominal Output Voltage(s) Supported: 120V
    • Frequency Compatibility: 60 Hz
    • Output Receptacles (2): 5-15R
    • Pure Sine Wave Output: No
    • Output (Watts): 2400
    • Continuous Output Capacity (Watts): 2400
    • Peak Output Capacity (Watts): 4800
    • Output Voltage Regulation: Maintains PWM sine wave output voltage of 120 V AC (+/-5%)
    • Output Frequency Regulation: 60 Hz (+/- 0.3 Hz)
    • Overload Protection: Circuit breaker

      Input
    • Recommended Electrical Service: Requires 24V DC input source capable of delivering 120A for the required duration (when used at full capacity). For automotive applications, professional hardwire installation with 250A battery system fusing is recommended
    • Maximum Input Amps / Watts Full continuous load - 120A at 24V DC; No load - 2.2A at 24V DC
    • Input Connection Type: Set of 2 bolt-down DC wiring terminals
    • Input Cord Length: Details User supplies cabling; 2/0 gauge or larger recommended
    • Voltage Compatibility (VDC): 24

      Battery
    • DC System Voltage (VDC): 24

      Physical
    • Shipping Dimensions (hwd/in.): 12.90" x 14.40" x 21.30"
    • Shipping Dimensions (hwd/cm): 32.77cm x 36.58cm x 54.10cm
    • Shipping Weight (lbs.): 38.60lbs
    • Shipping Weight (kg): 17.51kg
    • Unit Dimensions (hwd/in.): 7.25" x 8.5" x 16.25"
    • Unit Dimensions (hwd/cm): 18.42cm x 21.59cm x 41.28cm
    • Unit Weight (lbs.): 39lbs
    • Unit Weight (kg): 17.69kg
    • Cooling Method: Fan
    • Material of Construction: Polycarbonate

      Environmental
    • Relative Humidity: 0% - 95% non-condensing


  • Item Includes:

    • PV2400FC Inverter
    • Instruction manual


  • Warranty:

    • 1 Year Limited Warranty


  • GTIN:

    0037332042200
