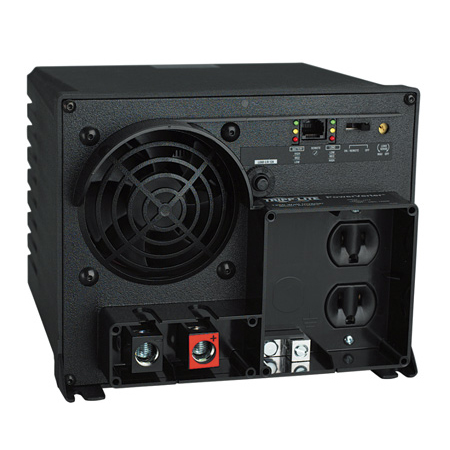

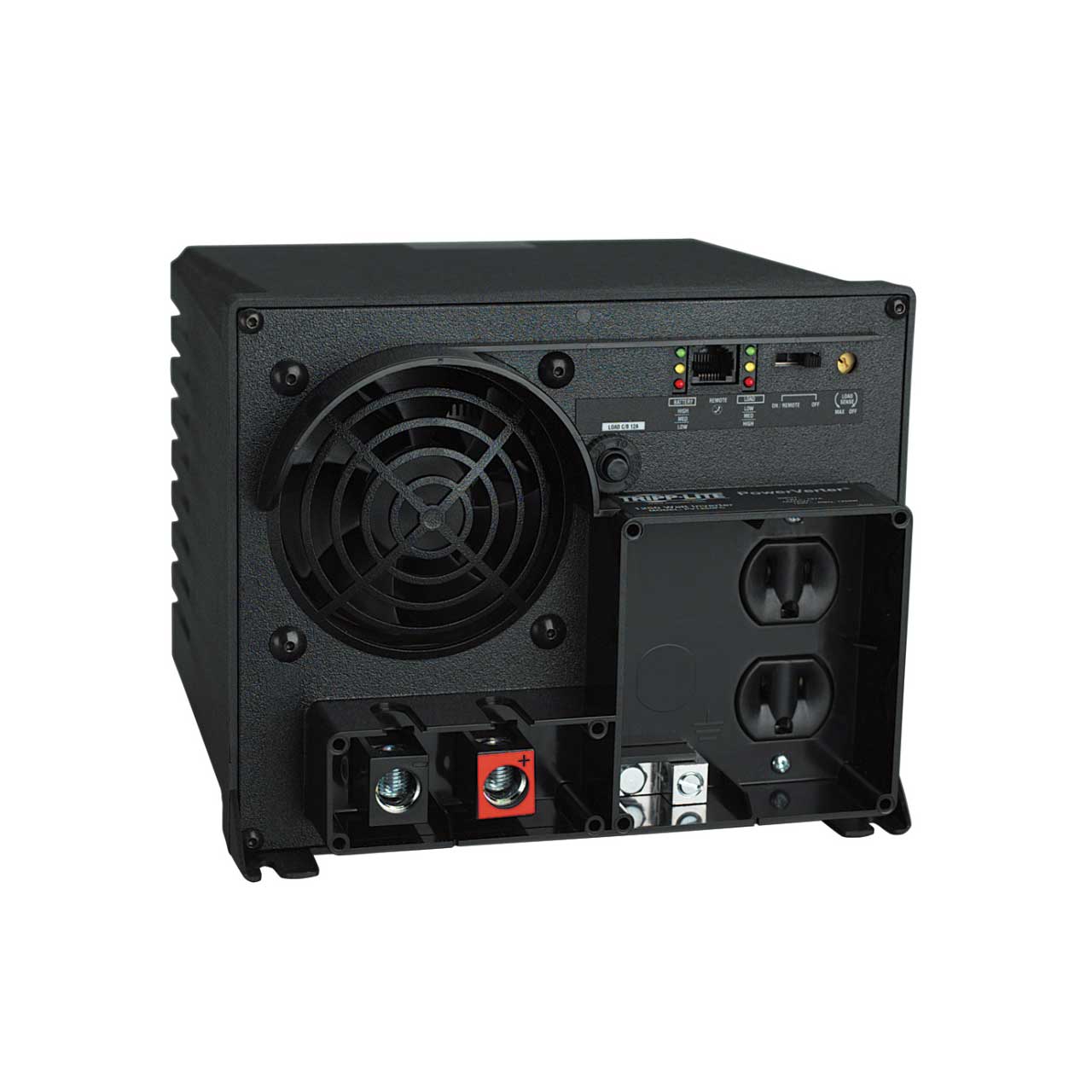

Tripp Lite PV1250FC Industrial Inverter 1250W 12V DC to AC 120V RJ45 5-15R 2 Outlet

PV1250FC - Overview

• Features:

  • Allows users to run large, motorized AC appliances from any 12V battery or automotive DC system
  • Converts 12V DC battery power to 120V AC power
  • 1,250 watts continuous output power
  • Peak output power: OverPower (up to 1 hour) - 1875 watts, Double-Boost (up to 10 seconds) - 2500 watts
  • 2 outlets; DC input terminals for 12V battery connection
  • Frequency control for operating stability
  • High-efficiency operation conserves batteries to prolong run time
  • Diagnostic LEDs indicate load level (high, medium, and low) and battery charge (high, medium, and low)
  • DC fusing protects inverter against overload
  • RJ45 port allows connection of APS/PowerVerter Remote Switch (APSRM4)
  • Automatic overload shutdown
  • Ignition interlock jack


• Specifications:

  • Input
  • Maximum Input Amps/Watts: Full continuous load - 127A at 12V DC, No load - 2.2A at 12V DC
  • Recommended Electrical Service: Requires 12V DC input source capable of delivering 127A for the required duration (when used at full capacity). For automotive applications, professional hardwire installation with 200A battery system fusing is recommended.
  • Input Connection Type: Set of 2 DC input terminals
  • Input Cord Length Details: User supplies cabling. 4 gauge or larger recommended.
  • Voltage Compatibility (VDC): 12

    Output
  • Frequency Compatibility: 60Hz
  • Pure Sine Wave Output: No
  • Nominal Output Voltage(s) Supported: 120V
  • Output Receptacles: 2x 5-15R
  • Continuous Output Capacity (Watts): 1250
  • Peak Output Capacity (Watts): 2500
  • Output Voltage Regulation: Maintains PWM sine wave output voltage of 120 VAC (±5%)
  • Output Frequency Regulation: 60Hz (±0.3Hz)
  • Overload Protection: Circuit breaker

    User Interface, Alerts & Controls
  • Front Panel LEDs: Set of 6 LEDs offer continuous status information on load percentage (6 levels reported) and battery charge level (7 levels reported). See Manual for sequences.
  • Switches: 3 position on/off/remote switch enables simple on/off power control plus "remote" setting that enables distant on/off control of the inverter system when used in conjunction with optional APRM4 remote

    Physical
  • Material of Construction: Polycarbonate
  • Cooling Method: Fan
  • DC System Voltage (VDC): 12
  • Relative Humidity: 0% - 95% Non-Condensing
  • Form Factors Supported: Mounting slots enable permanent placement of inverter on any horizontal surface (see Manual for additional mounting information)
  • Shipping Dimensions (HxWxD): 12.50" x 10.40" x 10.40"
  • Shipping Weight: 22.50lbs
  • Unit Dimensions (HxWxD): 7.00" x 8.75" x 9.00"
  • Unit Weight: 23.2lbs


• Warranty:

  • 1 Year Limited Warranty


• GTIN:

  0037332124241
