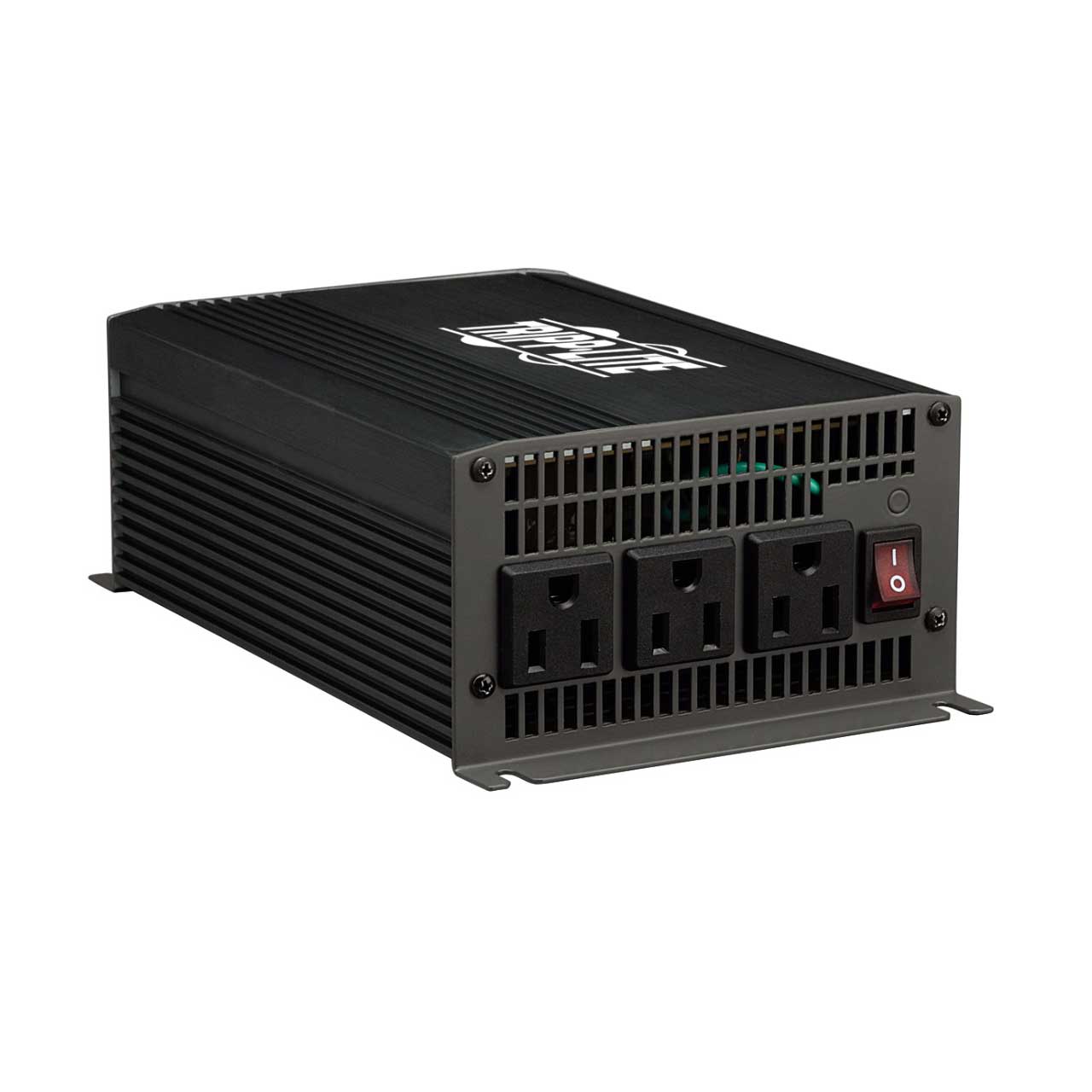

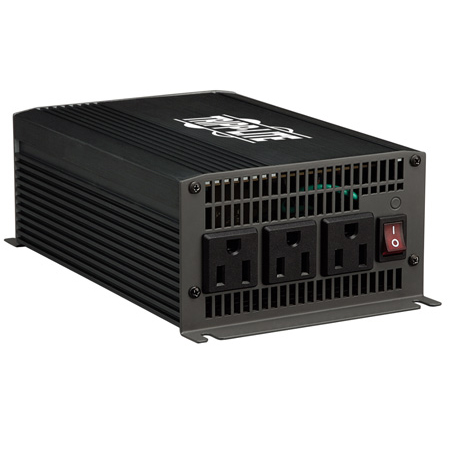

Tripp Lite PV700HF Compact Inverter 700W 12V DC to AC 120V 5-15R 3 Outlet

PV700HF - Overview

• Features:

  • Provides 120V AC power for a variety of mobile applications
  • 700W continuous output power; 1400W peak output power (instantaneous)
  • 3 AC outlets
  • Ultra-compact extruded aluminum housing stands up to the toughest environments
  • Cooling fan lengthens inverter service life & maintains cool operation
  • Integrated mounting feet assure safe fixed installation
  • Low battery alarm/shutdown detects low battery voltage and shuts down inverter
  • Overload alarm/shutdown detects wattage overload on inverter outlets and shuts down inverter as a protective measure
  • DC input terminals provide a solid connection to battery with user-supplied cables
  • Lighted on/off switch shows inverter operations in cramped or dark environments
  • Grooved surface for more efficient cooling


• Specifications:

  • Input
  • Maximum Input Amps/Watts: Full continuous load - 80A at 12V DC, No load - 0.95A at 12V DC, Shutdown - 150 micro amps
  • Recommended Electrical Service: Requires 12V DC input source capable of delivering 80A for the required duration (when used at full capacity). For automotive applications, hardwire installation with 125A battery system fusing is recommended
  • Input Connection Type: Set of 2 DC bolt-down wiring terminals
  • Input Cord Length Details: User supplies cabling. Minimum gauges for full load operation: 6 gauge or larger (see instruction manual)
  • Voltage Compatibility (VDC): 12

    Output
  • Frequency Compatibility: 60 Hz
  • Pure Sine Wave Output: No
  • Nominal Output Voltage(s) Supported: 120V
  • Output Receptacles: 3x 5-15R
  • Continuous Output Capacity (Watts): 700
  • Peak Output Capacity (Watts): 1400
  • Output Voltage Regulation: Maintains PWM sine wave output voltage of 115 VAC (±8V AC)
  • Output Frequency Regulation: 60Hz (±3Hz)

    User Interface, Alerts & Controls
  • Switches: Lighted on/off power switch
  • Audible Alarm: Dual-function alarm indicates overload conditions or low DC input voltage of 10.5V or less

    Physical
  • Material of Construction: Aluminum, Steel
  • Cooling Method: Fan
  • DC System Voltage (VDC): 12
  • Relative Humidity: 0% - 95% Non-Condensing
  • Shipping Dimensions (HxWxD): 3.70" x 10.10" x 6.30"
  • Shipping Weight: 3.50lbs
  • Unit Dimensions (HxWxD): 2.76" x 8.17" x 4.96"
  • Unit Weight: 2.8lbs


• Warranty:

  • 1 Year Limited Warranty


• GTIN:

  0037332137999
