Tripp Lite APS2424 Inverter / Charger 2400W 24V DC to 120V AC 14A / 55A Hardwire

ITEM #: TRL-APS2424 MFG #: APS2424

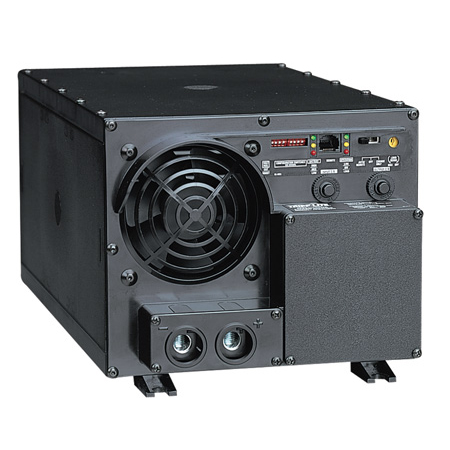

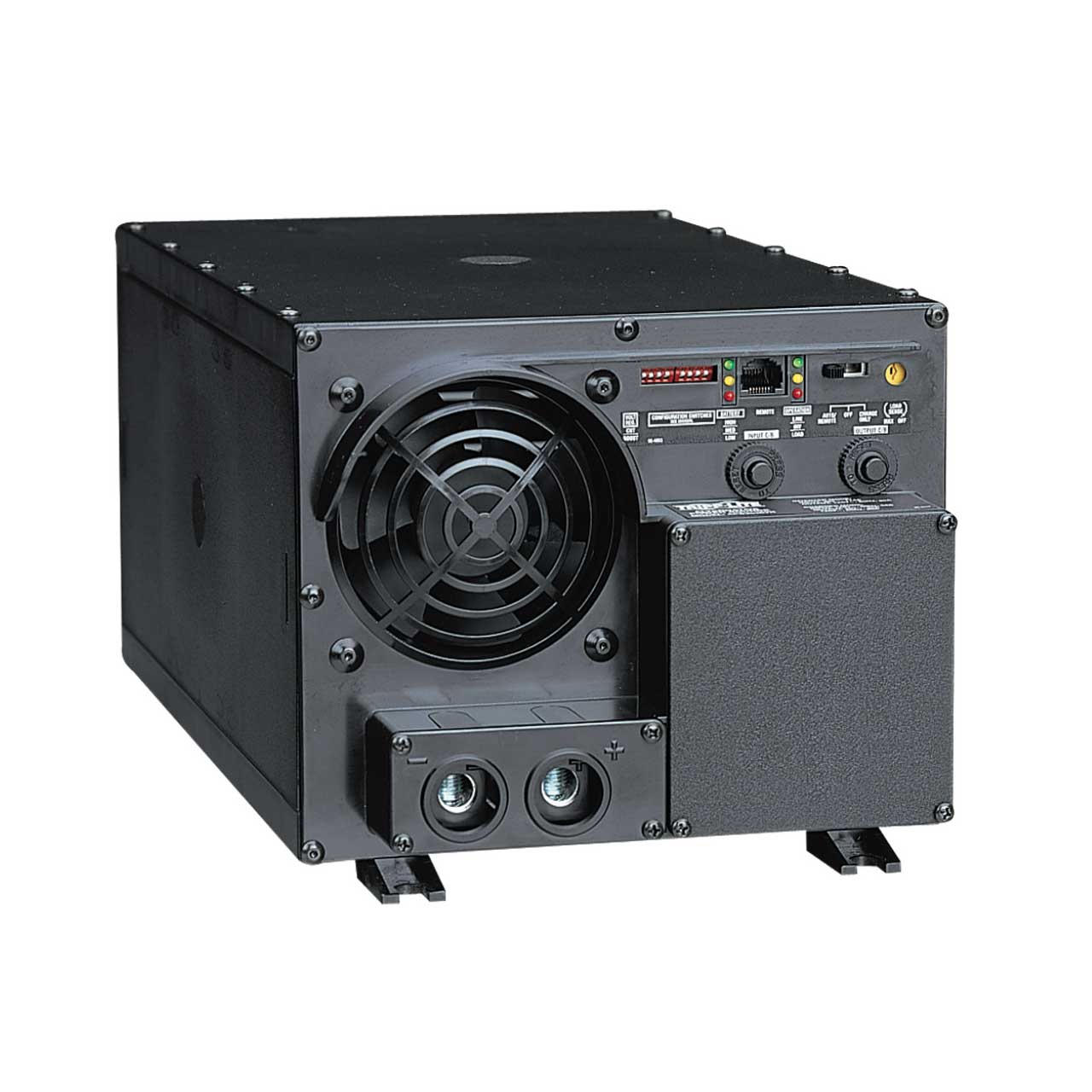

Primary Image
Tripp Lite
Free Shipping with $49 Minimum Order

List Price:

$1,821.46

Our Price:

$1,208.00

Add to Wish ListLeasing Options
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

APS2424 - Overview

Tripp Lite's APS2424 DC-to-AC inverter with automatic line-to-battery transfer and integrated charging system serves as an extended run UPS, a standalone power source or an automotive inverter. Supplies up to 2400 watts of continuous 120V AC power from any 24V battery or automotive DC source. OverPower inverter output feature temporarily provides up to 150% of the continuous output for 1-60 minutes, and DoubleBoost inverter output feature delivers up to 200% of the continuous output for up to 10 seconds, providing the extra power needed to cold start heavy-duty tools and motorized equipment. When hardwire AC input is energized, commercial power passes through to connected equipment and the battery set is recharged via 3 stage, 14/55 amp charging system. In UPS mode, the APS system responds to blackouts and voltage fluctuations with a near instantaneous automatic transfer to battery-derived AC output. Includes a set of high current DC input terminals for simple installation (user supplies batteries and cabling - see owner's manual for recommendations). Passes sine wave utilty or generator power during battery charging and UPS line power operation, plus efficient PWM sine wave AC output in inverter and UPS backup modes. Reliable large transformer design, with frequency control powers resistive electronic loads or large inductive motors, compressors and other items with high current needs on startup. Optional APSRM4 wired remote power switch with full status LEDs provides remote power inverter on/off switching and continuous status information (APSRM4 sold separate). Supports an unlimited amount of runtime with any number of user-supplied batteries connected. Highly adaptable to a variety of applications and site conditions with adjustable charger settings for wet/gel/SLA battery types and selectable line to battery power transfer voltages. NOTE: To protect against high current draw that may occur during inverter failure, a fuse link rated at 300a should be positioned no more than 18" from the APS2424's battery in the positive line.

  • Features:

    • 24V DC or 120V AC input; 120V AC output (hardwired)
    • 2400 watts continuous, 3600 watts OverPower and 4800 watts DoubleBoost inverter output
    • 3 stage, 14/55 amp selectable wet/dry cell battery charger
    • Auto Transfer Switching option for battery backup / UPS operation
    • Reliability enhanced large-transformer design with protected DC and AC wiring terminals
    • Rated over 90% efficient
    • APS2424 serves as an automotive or stationary DC-to-AC inverter with automatic line-to-battery transfer and integrated battery charger
    • Supports 120V AC output from a 120V AC line power source or 24V DC battery source
    • 16.6 millisecond automatic transfer between line and battery power supports UPS protection during blackouts and voltage fluctuations for equipment compatible with a one cycle transfer time
    • 2400 watts continuous AC output in inverter mode, 2400 watts continuous AC output in AC mode
    • Double Boost inverter output supports momentary startup loads up to 200% of the continuous rating for up to 10 seconds
    • OverPower inverter output supports longer duration overloads to 150% for 1-60 minutes under ideal battery and temperature conditions. (For best results, utilize OverPower usage for as short of a duration as possible, ensure battery bank and cabling is able to provide full nominal DC voltage under load and allow inverter/charger to fully cool before and after OverPower usage.)
    • 3 stage, 14/55 amp battery charger with adjustable settings for wet/gel battery types offers fast, reliable battery recharging
    • Protected hardwire bolt-down input lugs safely accept heavy gauge input wiring from attached battery bank
    • Protected hardwire output passes 120V line power or inverter output through to connected equipment
    • Reliability enhanced large-transformer design with secure mounting flanges and protected DC wiring terminals
    • Moisture-resistant construction enables vehicular or marine operation in high humidity environments
    • 3 position operating mode switch supports "AUTO" mode to enable automatic transfer between DC and AC modes, CHARGE-ONLY to maintain a full battery charge when AC is present without auto transfer and SYSTEM OFF settings.
    • Set of six front panel LEDs display AC/DC operational modes, overload status, DC voltage level, shutdown status and system fault status
    • Set of 4 configuration dipswitches support wet/gel battery charging profiles, adjustable 135/145V high voltage auto transfer during overvoltages and selectable 75/85/95/105V AC low voltage auto transfer during brownouts
    • Set of 4 additional configuration dipswitches support 4 levels of charger limiting relative to output load size, a battery equalization program and battery charger low/high settings
    • Resettable 30A charger AC input breaker and resettable 20A AC output breaker and automatic 2 speed cooling fan protect the inverter from load and temperature related failures
    • Grounding lug properly connects the inverter/charger system to earth ground or vehicle grounding system
    • Automatic overload and thermal shutoff safely turns off inverter as excessive loads or overheating conditions develop
    • Front panel remote control connector enables remote off/on switching (requires APSRM4 switch accessory). Optional APSRM4 accessory also includes user configurable jacks to support inverter shutoff or startup as a vehicle ignition is engaged
    • Load sensing control dial enables adjustable load threshold required to automatically turn the inverter on and off in DC mode as load conditions change


  • Specifications:

    • OUTPUT
    • Frequency Compatibility 60 Hz
    • Output Receptacles Hardwire
    • Output (Watts) 2400
    • Continuous Output Capacity (Watts) 2400
    • Peak Output Capacity (Watts) 4800
    • Output Nominal Voltage 120V
    • Output Voltage Regulation LINE POWER (AC): Maintains 120V nominal sine wave output from line power source. INVERTER POWER (AC): Maintains PWM sine wave output voltage of 120 V AC (+/-5%).
    • Output Frequency Regulation 60 Hz (+/- 0.3 Hz)
    • Overload Protection Includes 30A input breaker dedicated to the charging system and 20A output breaker for AC output loads
    • Pure Sine Wave Output No

    • INPUT
    • Nominal Input Voltage(s) Supported 120V AC
    • Recommended Electrical Service DC INPUT: Requires 24VDC input source capable of delivering 112A for the required duration (when used at full continuous capacity - DC requirements increase during Over-Power and Double-Boost operation).
    • Maximum Input Amps / Watts DC INPUT: Full continuous load - 112A at 24VDC. AC INPUT: 44 amps at 120VAC with full inverter and charger load (24A max charger-only / combined input load to support charger and AC output is automatically controllable to 66%-33%-0% based on AC output load
    • Input Connection Type DC INPUT: Set of 2 DC bolt-down terminals. AC INPUT: Hardwire via built in junction box with cover plate
    • Voltage Compatibility (VAC) 120
    • Voltage Compatibility (VDC) 24


  • GTIN:

    0037332090256
