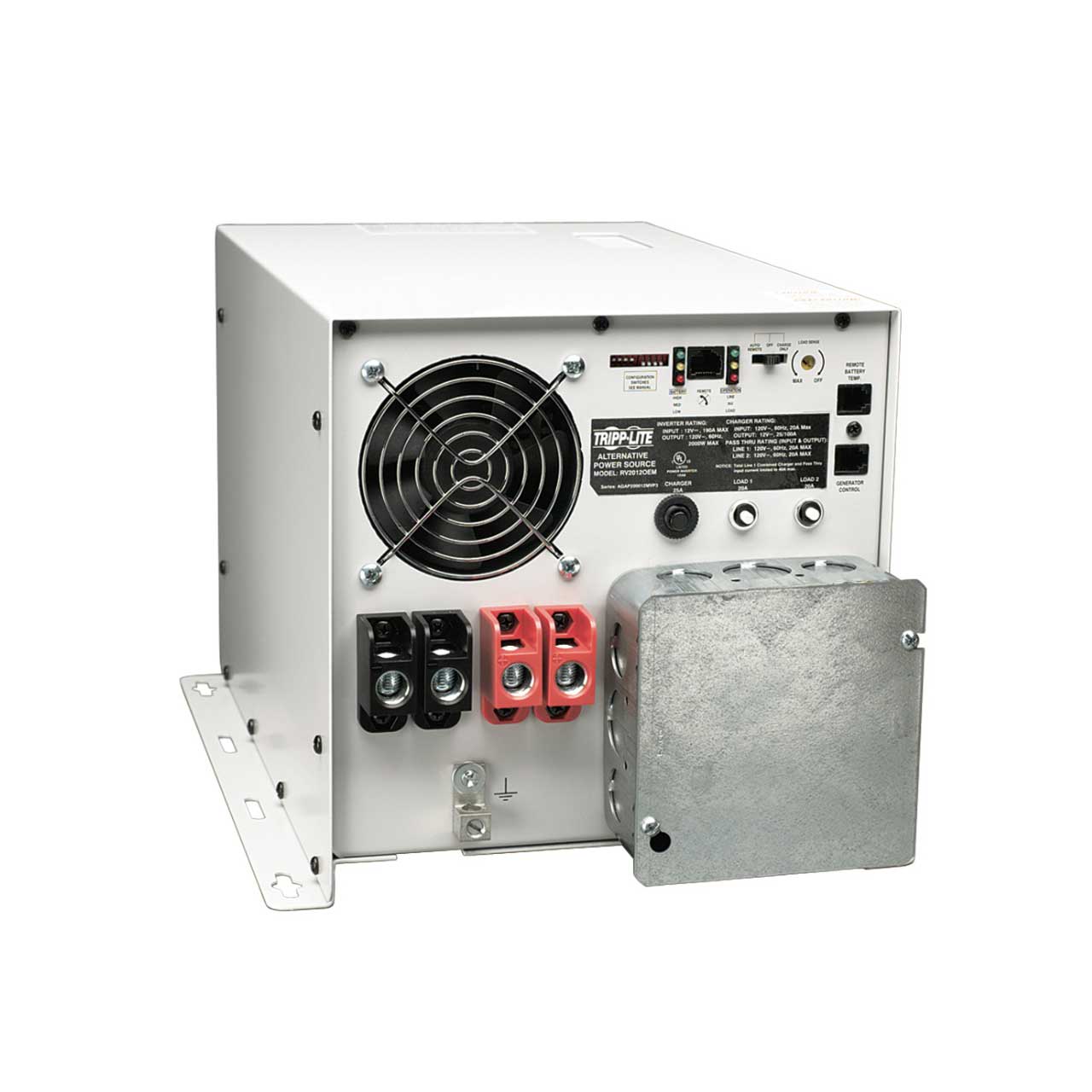

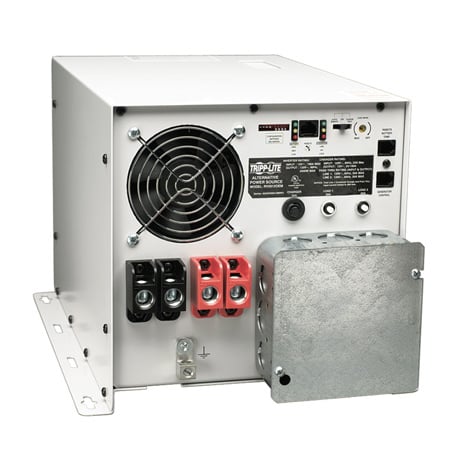

Tripp Lite RV3012OEM 3000W RV Interter / Charger 35/140A 12V DC 120V AC Hardwire

RV3012OEM - Overview

• Features:

  • 16.6ms automatic transfer between line and battery power supports UPS protection during blackouts and voltage fluctuations for equipment compatible with a one cycle transfer time
  • Double Boost inverter output supports momentary startup loads up to 200% of the continuous rating for up to 10 sec.
  • OverPower inverter output supports longer duration overloads to 150% for 1-60 min. under ideal battery and temperature conditions. (For best results, utilize OverPower usage for as short of a duration as possible, ensure battery bank and cabling is able to provide full nominal DC voltage under load and allow inverter/charger to fully cool before and after OverPower usage.)
  • 3-stage, selectable 35/140A battery charger with adjustable settings for wet/gel battery types offers fast, reliable battery recharging
  • Protected hardwire bolt-down input lugs safely accept heavy gauge input wiring from attached battery bank
  • Protected hardwire output passes 120V line power or inverter output through to connected equipment. Includes optional dual-circuit hardwire AC input to enable full charger output from the first 120V 20A circuit and full AC pass-through from the second 120V 20A input feed
  • Reliability enhanced large-transformer design tested to UL (USA) and CSA (Canada) standards
  • Moisture-resistant construction enables operation in high humidity environments
  • 3-position operating mode switch supports "AUTO" mode to enable auto transfer between DC and AC modes, CHARGE-ONLY to maintain a full battery charge when AC is present without auto transfer and SYSTEM OFF settings
  • Six front panel LEDs display AC/DC operational modes, overload status, DC voltage level, shutdown status and system fault status
  • Four configuration dipswitches support wet/gel battery charging profiles, adjustable 135/145V high voltage auto transfer during overvoltages and selectable 75/85/95/105V AC low voltage auto transfer during brownouts
  • Four additional configuration dipswitches support four levels of charger limiting relative to output load size, a battery equalization program and battery charger low/high settings
  • Resettable 30A charger AC input breaker and resettable dual 20A branch-rated AC output breakers and auto 2-speed cooling fan protect the inverter from load and temperature related failures
  • Auto overload and thermal shutoff safely turns off inverter as excessive loads or overheating conditions develop
  • Front panel remote control connector enables remote off/on switching (requires APSRM4 switch accessory). Optional APSRM4 accessory also includes user configurable jacks to support inverter shutoff or startup as a vehicle ignition is engaged
  • Load sensing control dial enables adjustable load threshold required to automatically turn the inverter on and off in DC mode as load conditions change
  • Includes battery temperature sensor with 20ft (6.09m) cable
  • Auto Generator Starter jack enables user configuration of auto generator startup as inverter batteries drop to 11.5VDC and generator shutoff as inverter batteries are recharged to 14.1VDC


• Specifications:

  • Input
  • Nom. Input Voltage(s) Supported: 120V AC
  • Max. Input Amps/Watts:
    - DC: Full continuous load - 282A at 12VDC
    - AC: 40A total (20A line 1/20A line 2) at 120VAC with full inverter and charger load (25A max charger-only from line 1/combined input load to support charger and AC output is automatically controlled
  • Rec. Electrical Service: DC INPUT: Requires 12VDC input source capable of delivering 290A for the required duration (when used at full continuous capacity - DC requirements increase during Over-Power and Double-Boost operation)
  • Input Connection Type:
    - DC: Set of 4 DC bolt-down terminals (2 red/2 black)
    - AC: Hardwire (2 input circuits - see Manual)
  • Input Cord Length Details:
    - DC: User supplies cabling. 0 gauge or larger (see Manual).
    - AC: Hardwire
  • Voltage Compatibility: 120VAC
  • Voltage Compatibility: 12VDC

    Output
  • Frequency Compatibility: 60Hz
  • Pure Sine Wave Output: No
  • Nom. Output Voltage(s) Supported: 120V
  • Output Receptacles: Hardwire
  • Continuous Output Capacity: 3000W
  • Peak Output Capacity: 6000W
  • Output Voltage Regulation:
    - LINE (AC): Maintains 120V nominal sine wave output from line power source
    - INVERTER (AC): Maintains PWM sine wave output voltage of 120VAC (±5%)
  • Output Frequency Regulation: 60Hz (±0.3Hz)
  • Overload Protection: Includes 30A input breaker dedicated to the charging system and 2 branch rated 20A output load breakers

    Battery
  • Expandable Runtime: Yes
  • Expandable Battery Runtime: Runtime is expandable with any number of user supplied wet or gel type batteries
  • Expandable Runtime Description: Runtime is expandable with any number of user supplied wet or gel type batteries
  • DC System Voltage: 12VDC
  • Battery Pack Accessory (Optional): 98 - 121 sealed lead acid battery (optional)
  • Battery Charge: 35A/140A (selectable)
  • Low Voltage Cut-Off: 10VDC ±3%

    Line/Battery Transfer
  • Transfer Time (Line Power to Battery Mode): 16.6 milliseconds (typical - compatible with many computers - verify transfer time compatibility of loads for UPS applications)
  • Low Voltage Transfer to Battery Power: In AC "auto" mode, inverter/charger switches to battery mode as line voltage drops to 75V (user adjustable to 85, 95, 105V - see Manual)
  • High Voltage Transfer to Battery Power: In AC "auto" mode, inverter/charger switches to battery mode as line voltage increases to 135V (user adjustable to 145 - see Manual)

    User Interface, Alerts & Controls
  • Front Panel LEDs: Six LEDs offer continuous status info on load percentage (6 levels reported) and battery charge level (7 levels reported). See Manual for sequences.
  • Switches: 3-position on/off/remote switch enables simple on/off power control plus auto/remote setting that enables distant on/off control of the inverter system when used in conjunction with APSRM4 accessory (sold separately) in inverter mode. In AC uninterruptible power mode, "auto/remote" setting enables automatic transfer from line power to battery power - to maintain continuous AC power to connected loads.

    Physical
  • Construction: Steel
  • Cooling Method: Multi-speed fan
  • Relative Humidity: 0% - 95% Non-Condensing
  • AC Suppression Joule Rating: 450
  • Form Factors Supported: Mounting slots enable permanent placement of inverter on any horizontal surface (see Manual for additional mounting info)
  • Shipping Dimensions (HxWxD): 23.20 x 14.90 x 15.40
  • Shipping Weight: 70.00lbs
  • Unit Dimensions (HxWxD): 9.750 x 11.500 x 16.750
  • Unit Weight: 62.6lbs


• GTIN:

  0037332117427
