Tripp Lite SM5000RT3UTAA 5000VA 4000W UPS Smart Rackmount AVR 120V-208V 5kVA 6URM TAA GSA

Name: Tripp Lite SM5000RT3UTAA 5000VA 4000W UPS Smart Rackmount AVR 120V-208V 5kVA 6URM TAA GSA
Brand: Tripp Lite
SKU: TRL-SM5000RT3UTA
Price: 4375.00 USD
Availability: InStock

ITEM #: TRL-SM5000RT3UTA MFG #: SM5000RT3UTAA

Tripp Lite

List Price:

$6,969.46

Our Price:

$4,375.00

Add to Wish List Leasing Options

Availability: Ships Factory Direct, Typically in 3-10 Business Days

Shipped truck freight.

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

SM5000RT3UTAA - Overview

Tripp Lite's line-interactive SM5000RT3UTAA UPS System is compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases. This UPS protects server, networking or telecommunications equipment from blackouts, voltage fluctuations and surges in a compact tower/rackmount housing. In rack configuration, the power module and battery pack occupy only 3 rack spaces (3U) each. Large capacity 5000VA/4000W power module converts raw 208V AC input to fully regulated dual output 208/120 voltage for simultaneous protection of both high- and low-voltage equipment loads. True sine wave output at all times offers guaranteed compatibility with all equipment types. Includes 14 outlets, 8 of which can be individually reset via software interface to selectively reboot remote equipment or shed less critical loads to extend battery runtime for more critical equipment. Battery support can be extended indefinitely with additional external 3U rackmount battery packs. Network management interfaces support communications via USB, RS-232 and optional slot for network management card options.

Features:
- Federal Trade Agreements Act / TAA Compliant for GSA Schedule purchases
- 5kVA / 5000VA / 4000W line interactive 6U rack/tower UPS, Sine wave output
- 208 & 120V output during brownouts to 151V and overvoltages to 260V
- USB, RS232, EPO and slot for network communication card options
- Expandable runtime, 8 single-outlet switched output load banks
- NEMA L6-30P input, 10 5-15R, 2 5-15/20R, 1 L6-30R & 1 L14-30R outlets
Specifications:
- Output
- Output Volt Amp Capacity (VA): 5000
- Output kVA Capacity (kVA): 5
- Output Watt Capacity (Watts): 4000
- Output kW Capacity (kW): 4
- Output Capacity Details: Maximum output increases to 4800W when hardwire or user supplied 50A rated input plug is used
- Power Factor: 0.8
- Nominal Output Voltage(s) Supported: 110V; 115V; 120V; 208V
- Nominal Voltage Details: 208/120V nominal output in battery mode
- Frequency Compatibility: 60 Hz
- Output Voltage Regulation (Line Mode): 208 & 120V (-10%, +20%)
- Output Voltage Regulation (Battery Mode): +/- 5%

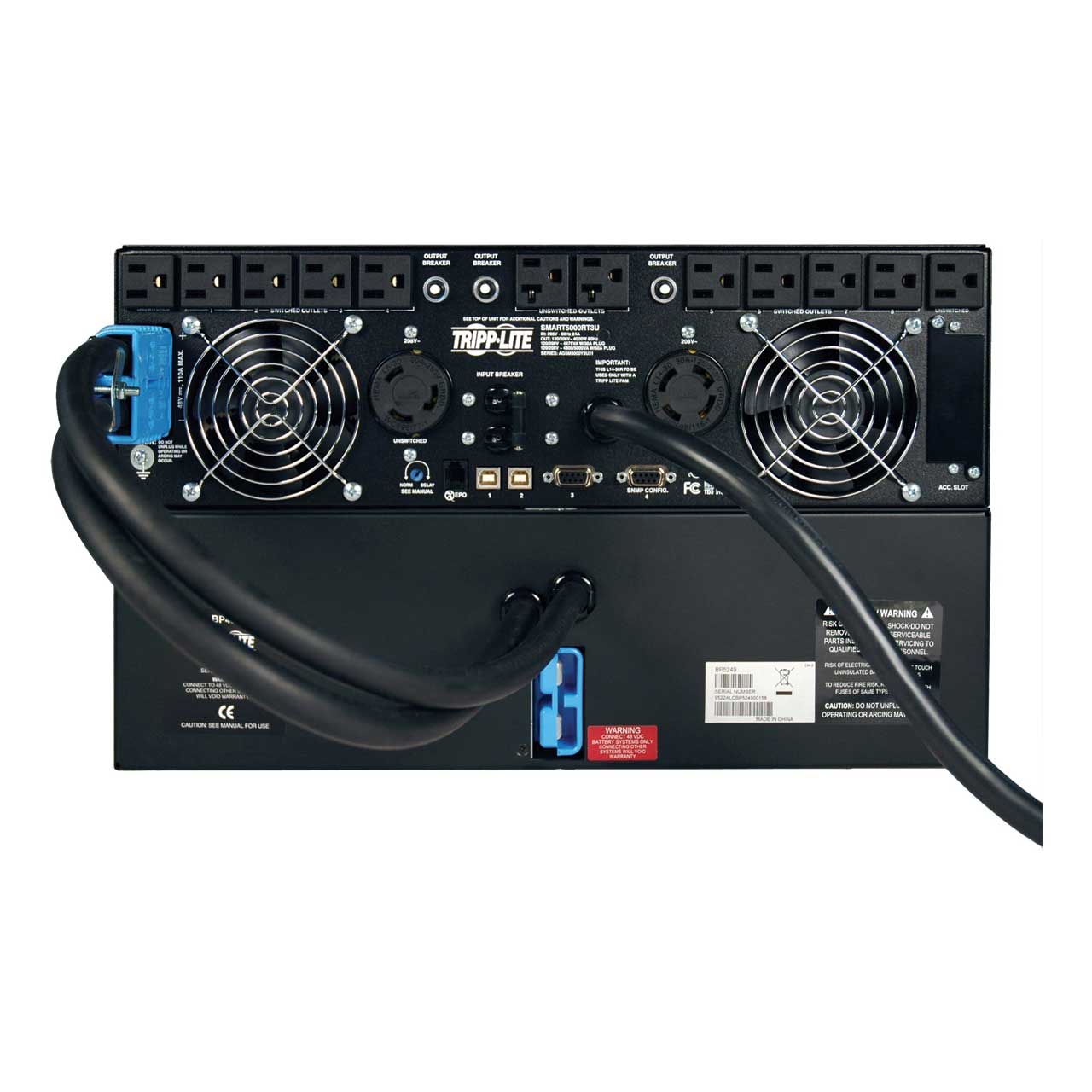

- Output Receptacles: (10) 5-15R; (2) 5-15/20R; (1) L14-30R; (1) L6-30R
- Load Management Receptacles: Eight switchable single-outlet 5-15R load banks
- Output AC Waveform (AC Mode): Sine wave
- Output AC Waveform (Battery Mode): Pure Sine wave
- Individually Controllable Load Banks: Yes

  Input
- Nominal Input Voltage(s) Supported: 208V AC
- UPS Input Connection Type: L6-30P
- Input Circuit Breakers: 30A double-pole
- UPS Input Cord Length (ft.): 10
- Recommended Electrical Service: 30A 208V
- Input Phase: Single-Phase

  Battery
- Full Load Runtime (min.): 16 min. (4000w)
- Half Load Runtime (min.): 38 min. (2000w)
- Expandable Battery Runtime: Extended runtime supported via optional external battery packs
- DC System Voltage (VDC): 48
- Battery Recharge Rate (Included Batteries): 3 hours
- Battery Replacement Description: Hot-swappable, user replaceable batteries

  Voltage Regulation
- Voltage Regulation Description: Automatic voltage regulation (AVR) maintains line power operation with an input voltage range of 151 to 282
- Overvoltage Correction: Input voltages between 240V and 282 are reduced by 12%
- Undervoltage Correction: Input voltages between 180V and 199 are boosted by 12%
- Severe Undervoltage Correction: Input voltages between 151V and 179 are boosted by 24%

  Surge / Noise Suppression
- UPS AC Suppression Joule Rating: 1020
- UPS AC Suppression Response Time: Instantaneous
- EMI / RFI AC Noise Suppression: Yes

  Physical
- Optional Mounting Accessory Notes: 2 sets of 2POSTRMKITHD required for 2 post rackmount installation of separate power module and battery pack
- Primary Form Factor: Rackmount
- UPS Power Module Dimensions (hwd, in.): 5.2 x 17.5 x 22.5
- Rack Height: 6U
- Minimum Required Rack Depth without External Battery Pack (cm): 72
- Minimum Required Rack Depth with External Battery Pack (cm): 75
- Minimum Required Rack Depth without External Battery Pack (in.): 28.25
- Minimum Required Rack Depth with External Battery Pack (in.): 29.5
- UPS Dimensions Details: Includes 3U UPS/power module and 3U external battery pack
- Included Battery Pack Dimensions (hwd / in.): 5.2 x 17.5 x 22.8
- Included Battery Pack Weight (lbs.): 135
- Shipping Dimensions (hwd / in.): 24.50 x 35.00 x 24.00
- Shipping Weight (lbs.): 321.62
- Cooling Method: Fans
- UPS Housing Material: Steel
- Primary UPS Height (mm): 132
- Primary UPS Width (mm): 445
- Primary UPS Depth (mm): 572

  Environmental
- Operating Temperature Range: +32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius
- Storage Temperature Range: +5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius
- Relative Humidity: 0 to 95%, non-condensing
- Battery Mode BTU / Hr. (Full Load): 1518
- AC Mode Efficiency Rating (100% Load): 94%

  Communications
- Communications Interface: Contact closure; DB9 Serial; Slot for SNMP/Web interface; USB
- Network Management Cards: SNMPWEBCARD; WEBCARDLX
- Network Monitoring Port Description: Supports detailed monitoring of UPS and site power conditions; 2 USB ports, 1 DB9 serial and 1 DB9 contact closure port (4 total)
- PowerAlert Software: For local monitoring via the UPS’s built-in communication ports, download PowerAlert Local software Tripp Lites website.
- Communications Cable: USB and DB9 cabling included
- WatchDog Compatibility: Supports Watchdog application, OS and hard-reboot restart options for remote applications

  Line / Battery Transfer
- Transfer Time: 2-4 milliseconds
- Low Voltage Transfer to Battery Power (Setpoint): 151
- High Voltage Transfer to Battery Power (Setpoint): 282

  Special Features
- Gro
Item Includes:
- SM5000RT3UTAA UPS System
- BP48V60RT3U battery pack
- USB, DB9 and EPO Cabling
- Mounting hardware
- Instruction manual with warranty information
Warranty:
- 2-year
GTIN:
0037332161475
