Tripplite SR1UPNLTEMP SmartRack Digital Temperature Sensor - 1U - Blanking Panel w/LCD Display

ITEM #: TRL-SR1UPNLTEMP MFG #: SR1UPNLTEMP

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:

$181.22

Our Price:

$129.00

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    SR1UPNLTEMP - Overview

    Monitor rack temperature at a glance in either Fahrenheit or Celsius!

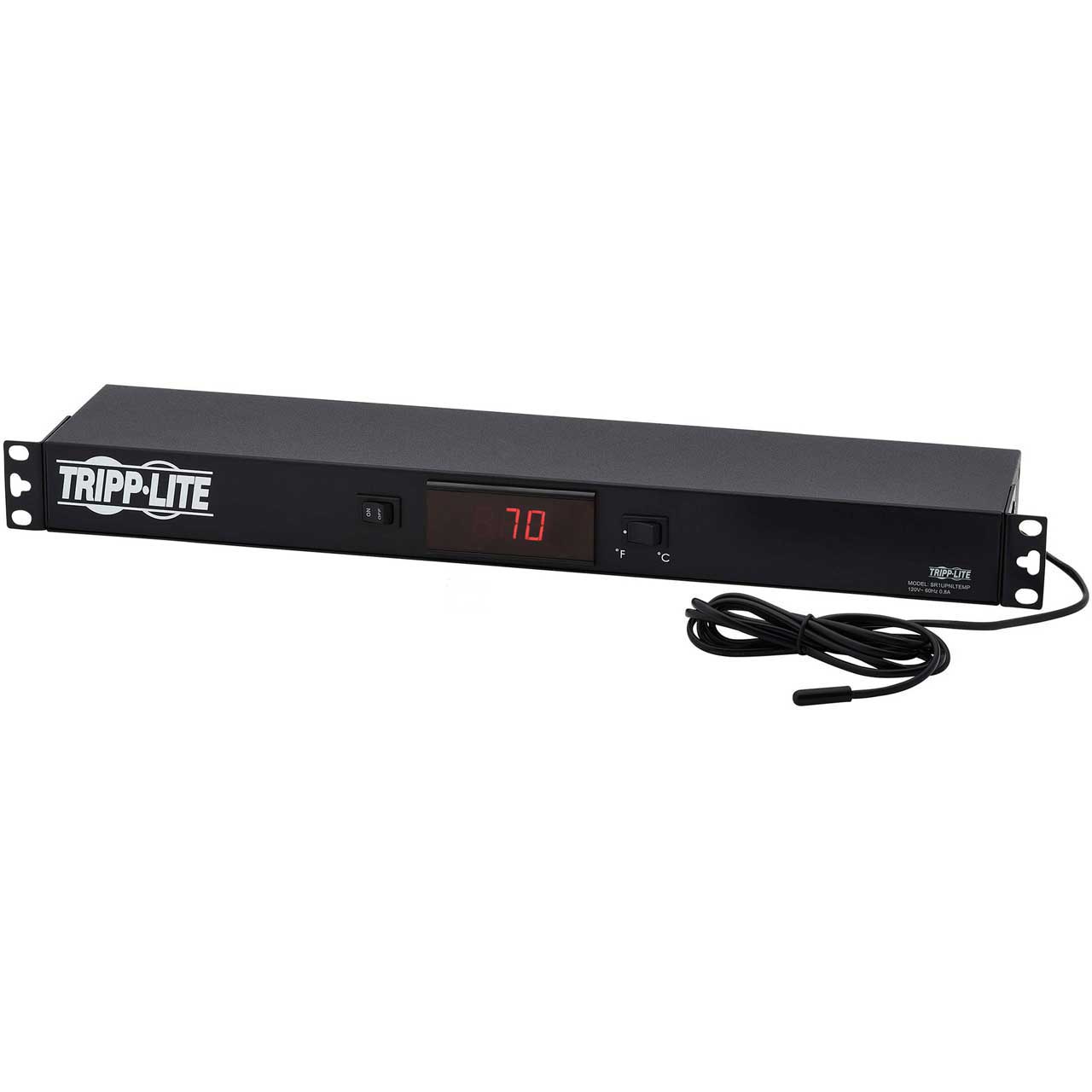

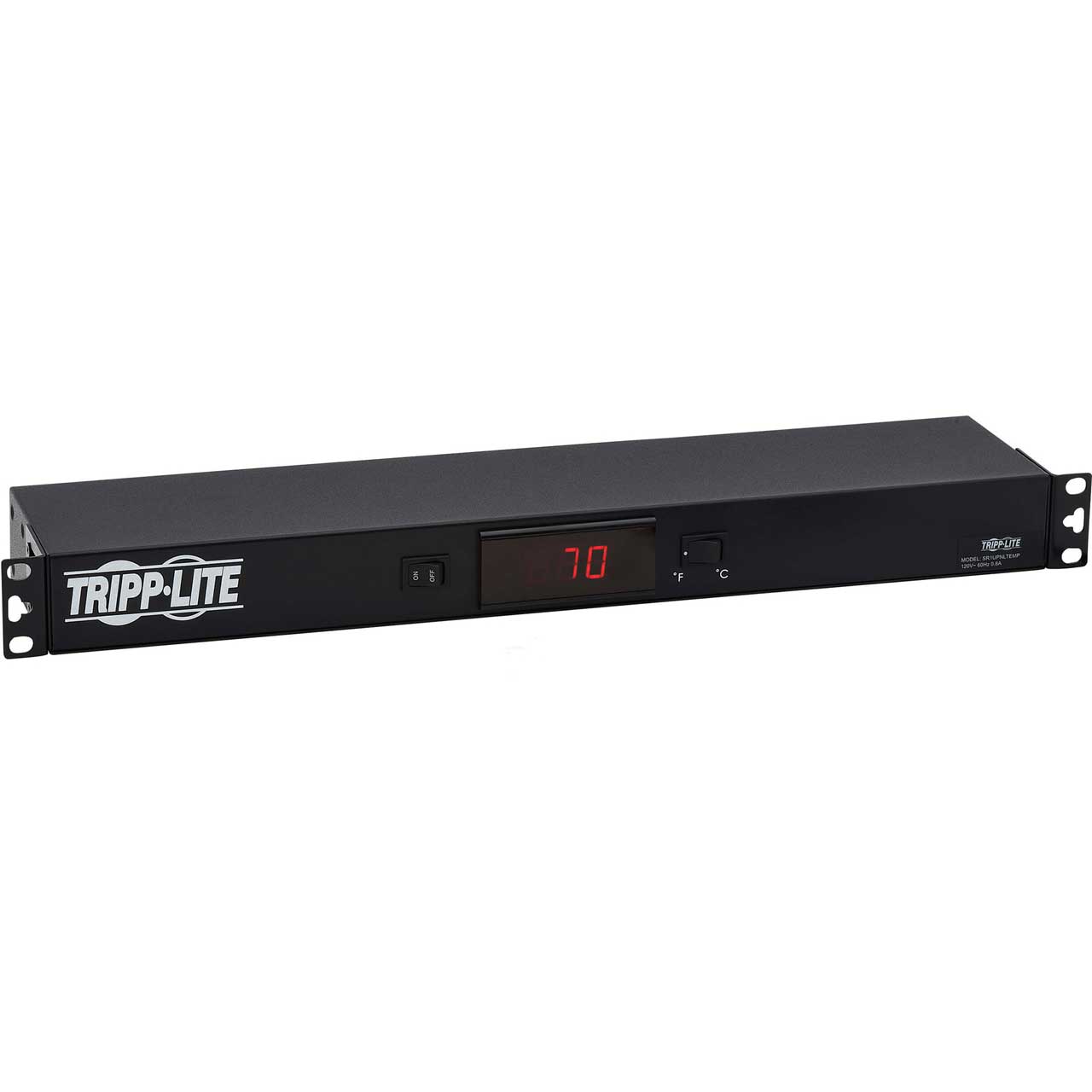

    The Tripplite SR1UPNLTEMP is a 1U blanking panel with a built-in temperature sensor that measures environmental conditions within your rack and clearly displays it in degrees in F° and C°.

    1U Blanking Panel with Temperature Sensor Helps Improve Rack Cooling Efficiency - This cold-rolled steel SmartRack blanking panel with a black powder-coated finish fills 1U of unused space in your EIA-standard 19-inch rack. Not only does this give your rack a sleek, clean look, but it also protects your valuable equipment by improving airflow. By closing off unused rack openings, this blanking panel prevents hot air from recirculating through open spaces. This reduces operating costs, improves performance and provides longer lifespans for your equipment

    Helps You Precisely Measure Your Rack Temperature, Even High Up - The SR1UPNLTEMP helps you notice hot spots at the top of your rack with the included temperature sensor. The 6-ft. (1.83 m) sensor reaches every crack and crevice within your rack and finds hot spots. The sensor accurately measures the rack temperature within 2°F and 1°C and a range of -58°F - 302°F and -50°C - 150°C.

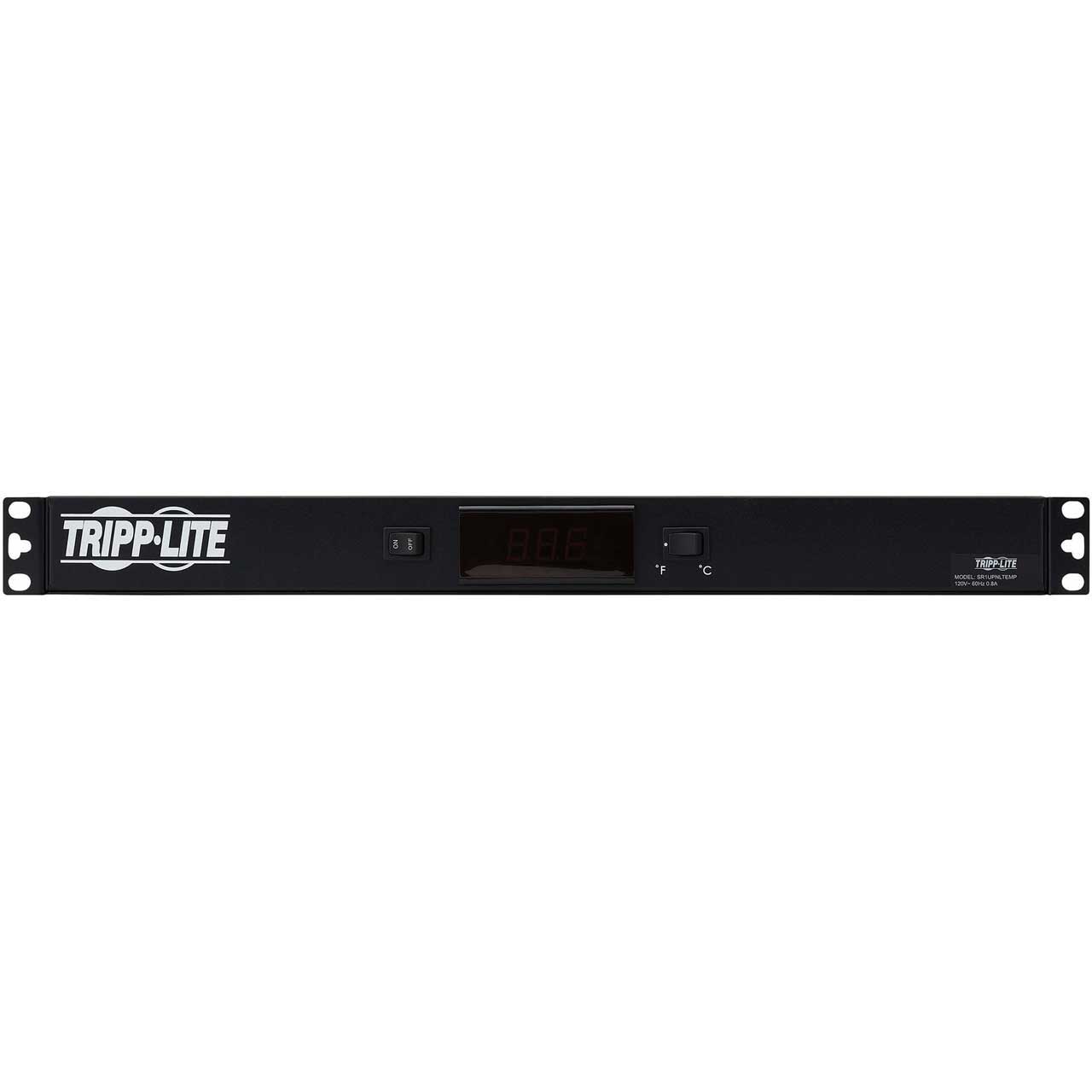

    LCD Indicator Lets You Keep a Close Watch on Environmental Changes - A front-panel LCD lets you monitor the rack temperature in either Fahrenheit or Celsius. One front rocker switch flips between °F and °C. The other turns the SR1UPNLTEMP on and off. The included 12V DC power supply features a 6-ft. (1.83 m) cord and NEMA 1-15P plug that connects to an AC wall outlet, PDU or UPS system

    • Features:

      • Cold-rolled steel panel fills unused rack space to give enclosure a clean, sleek look
      • Protects rack-mount equipment by improving airflow and cooling efficiency
      • Included temperature sensor identifies hot spots within the rack up to 6-ft. (1.83 m) away
      • Front-panel LCD displays rack temperature in Fahrenheit or Celsius
      • Mounts easily into 1U of space in your EIA-standard 19 in. rack enclosure

    • Specifications:

      • Input
      • Nominal Input Voltage(s) Supported: 120V AC
      • Nominal Input Voltage Description: 120V AC 60 Hz
      • Input Connection Type: NEMA 1-15P
      • Input Plug Features: NEMA 1-15P
      • Input Cord Length (ft.): 6

        Physical
      • Rack Height: 1U
      • Unit Dimensions (HxWxD): 1.71" x 17.3" x 3.75" (43.4mm x 439.42mm x 95.25)
      • Weight: 2.46lbs (1.11 kg)

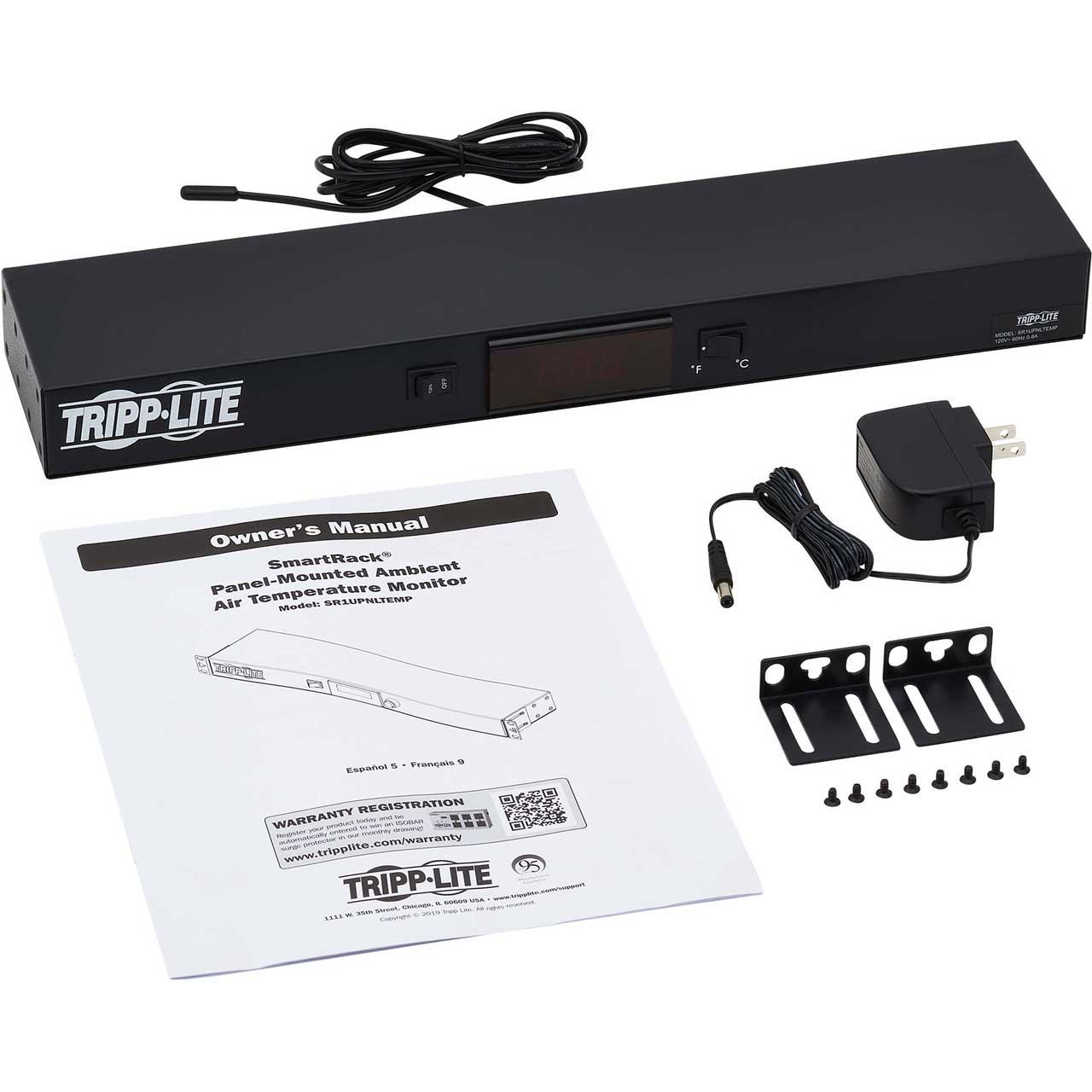

    • Item Includes:

      • 1x Tripplite SR1UPNLTEMP 1U Blanking Panel
      • 1x Temperature sensor
      • 1x 12V DC power supply with 6-ft. (1.83 m) cord and NEMA 1-15P plug
      • 1x Owner's manual

    • Warranty:

      • 2-Year Limited Warranty

    • GTIN:

      0037332240613
