Tripp Lite SR2POST13 13U 2-Post Open Frame Rack Server Cabinet Threaded Holes

ITEM #: TRL-SR2POST13 MFG #: SR2POST13

Primary Image
Free Shipping with $49 Minimum Order

List Price:

$247.10

Our Price:

$160.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


SR2POST13 - Overview

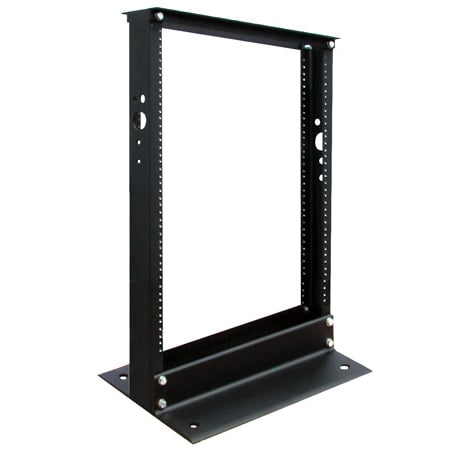

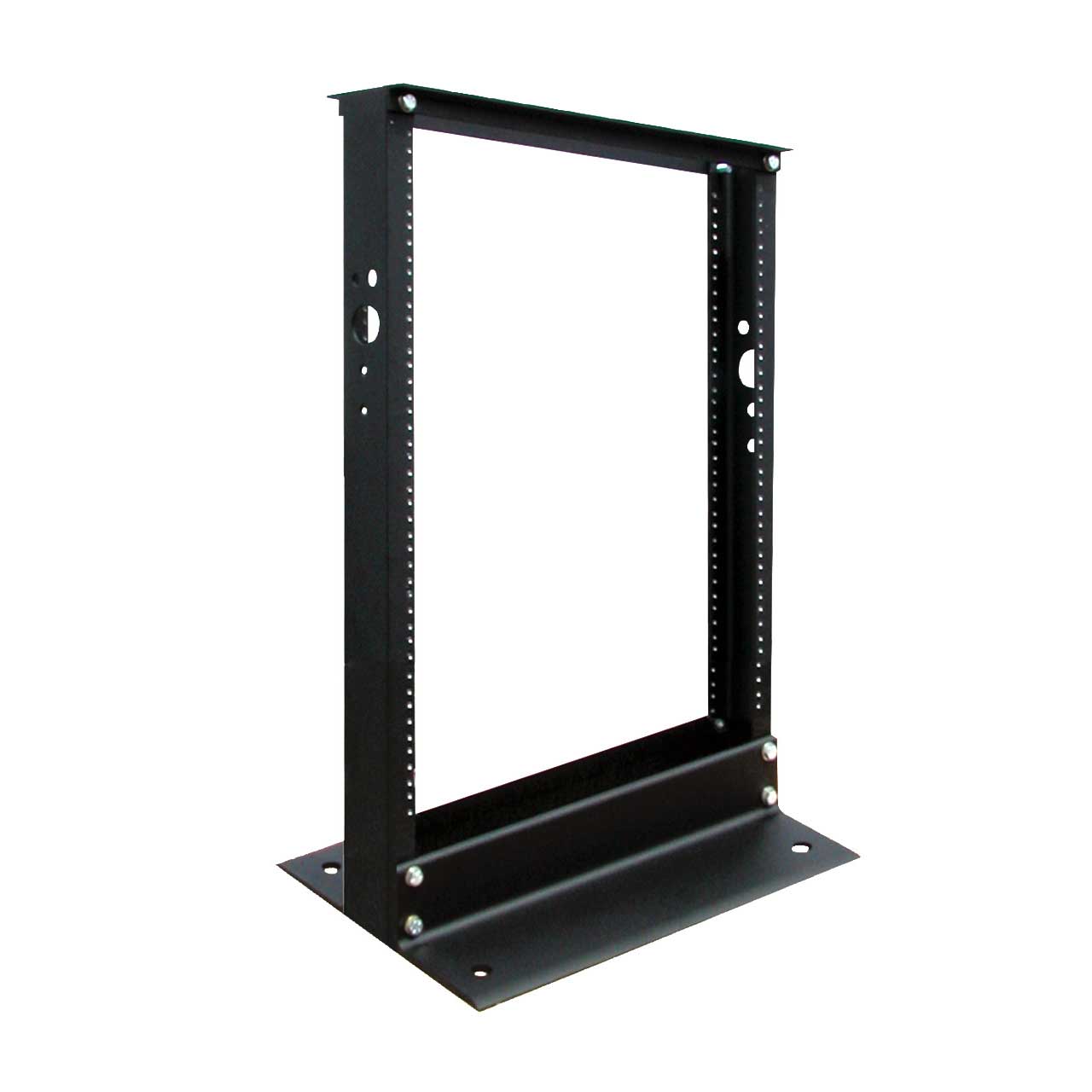

Tripp Lite’s SR2POST13 2-Post SmartRack Open Frame Rack is an economical way to accommodate 13U of rack space for 19-inch rackmount applications in limited spaces. Its heavy-duty, aluminum construction can safely support 800 lbs. of rackmount equipment. The black, textured powder coat finish makes it resistant to scratching while giving it a "classic," attractive appearance. The SR2POST13 is easy to install due to a self-squaring design combined with numbered mounting positions and bolt down provisions. Only standard hand tools are required for installation (9/16" wrench and 9/16" socket/ratchet). Multiple units can be bolted together side by side for easy expansion or customization as needed. The SR2POST13 2-Post SmartRack Open Frame Rack has been approved by EIA-310-D, IEC 60297-3-100, DIN 41494 and RoHS, and is backed by a 5-year warranty.

  • Features:

    • Supports 800lbs of rackmount equipment
    • Textured powder coat finish
    • Heavy Duty Aluminum construction
    • 12-24 threaded and numbered mounting positions

  • Specifications:

    • Style 2-Post
    • Installed Whole System Maximum Rack Depth (in.) 4.8
    • Installed Whole System Maximum Rack Depth (cm) 12.19
    • Rack Height (U Spaces) 13
    • Shipping Dimensions (hwd / in.) 4.5 x 6.1 x 28
    • Shipping Dimensions (hwd / cm) 11.4 x 15.5 x 71.1
    • Shipping Weight (lbs.) 22.1
    • Shipping Weight (kg) 10.02
    • Unit Dimensions (hwd / in.) 28 x 20.3 x 4.75
    • Unit Weight (lbs.) 20
    • Unit Weight (kg) 9.07
    • Unit Dimensions (cm) 71 x 51.6 x 12.1
    • Color Black
    • Weight Capacity - Stationary (lbs.) 800
    • Weight Capacity - Stationary (kg) 362.9
    • Hinged (Swings Away from Wall Bracket) No
    • NOM (Mexico) Tested to NOM (Mexico)
    • Approvals EIA-310-D, IEC 60297-3-100, DIN 41494, RoHS
    • Product Warranty Period (Worldwide) 5-year limited warranty

  • GTIN:

    0037332183644
