Tripp Lite SR42UBKD 42U Rack Enclosure Server Cabinet Knock-Down w/ Doors & Sides

ITEM #: TRL-SR42UBKD MFG #: SR42UBKD

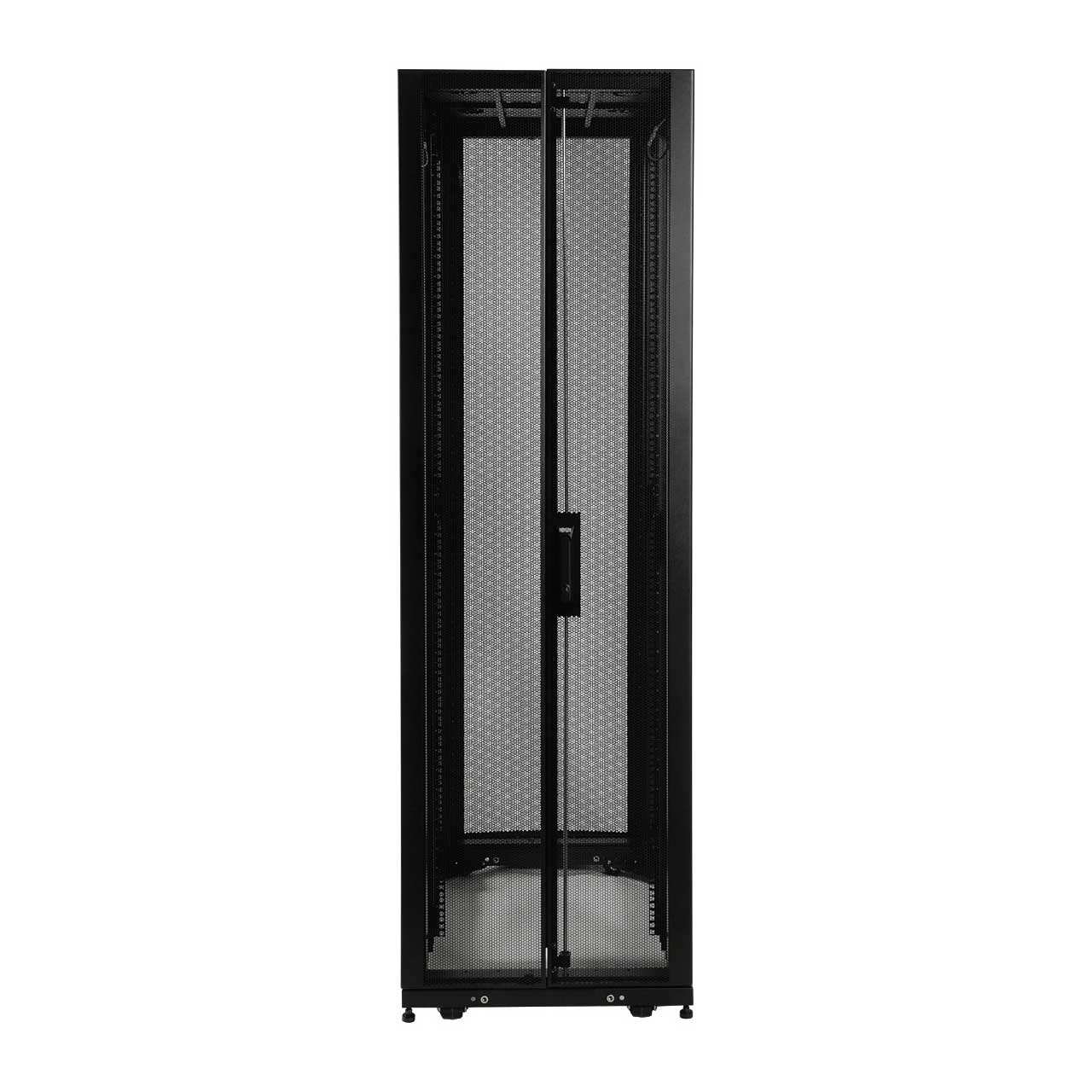

Primary Image

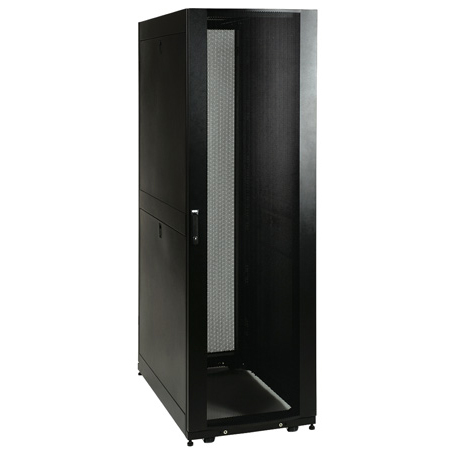

  • Product Image Thumbnail 1 of 3

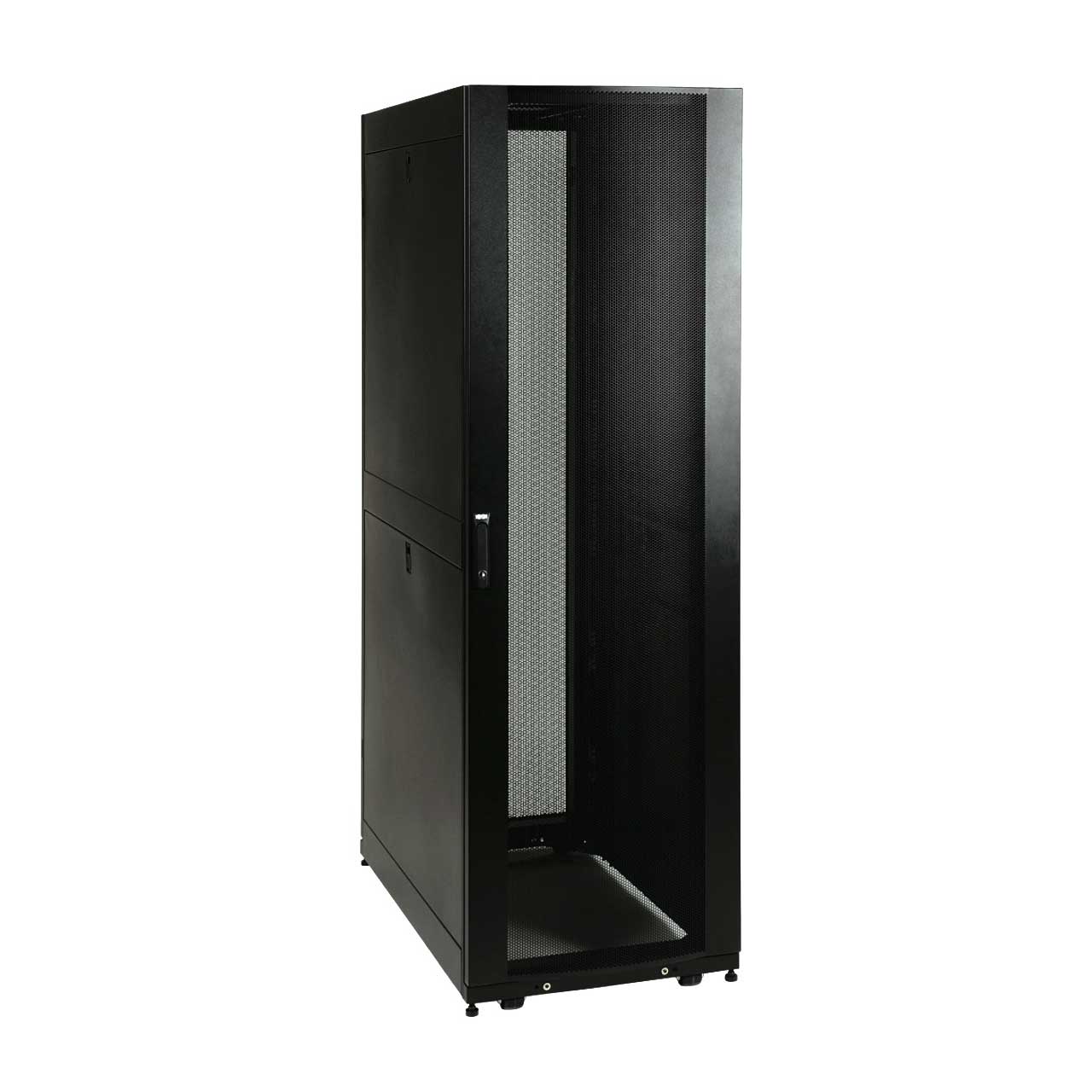

  • Product Image Thumbnail 2 of 3

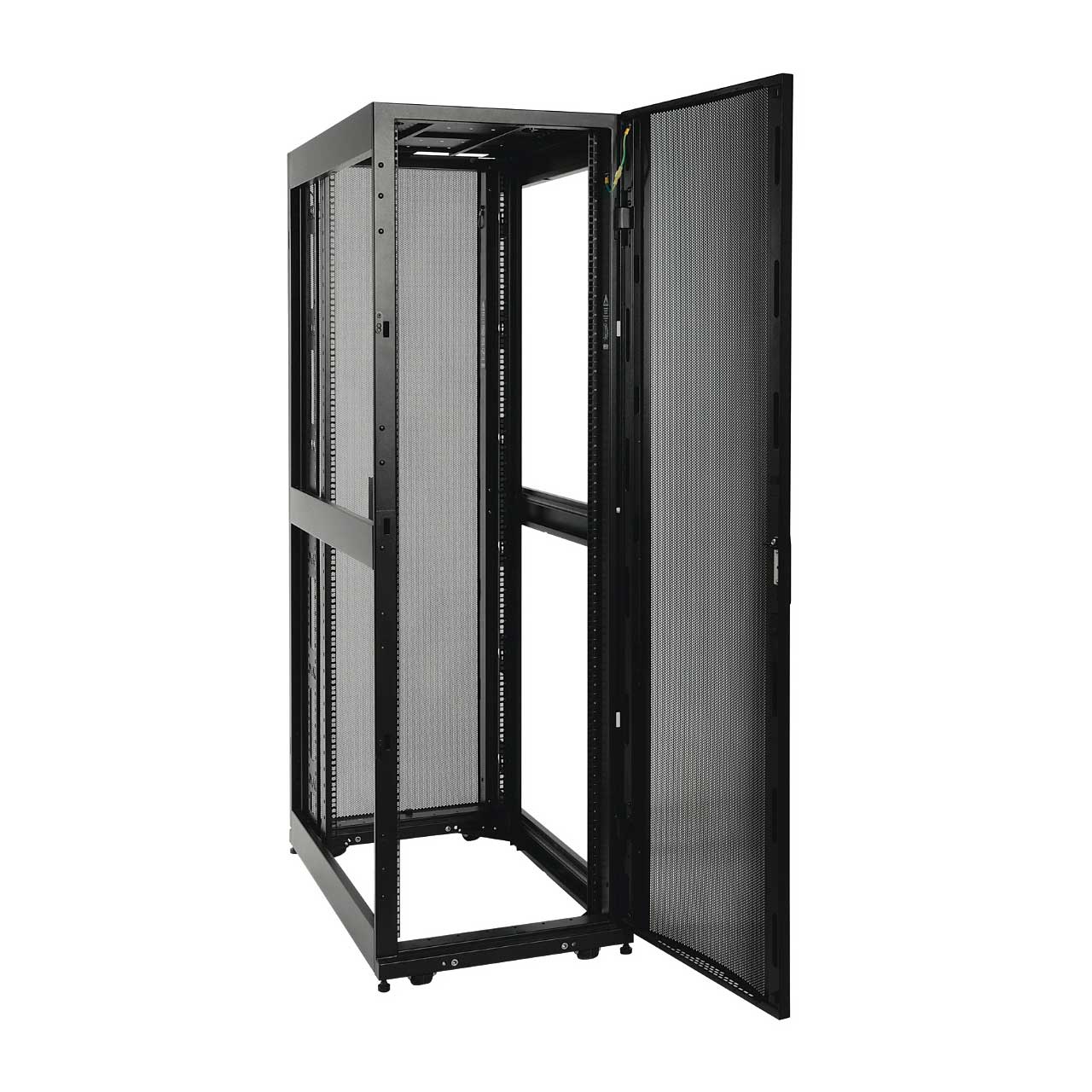

  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

List Price:

$2,156.00

Our Price:

$1,394.00

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup
  • Shipped truck freight.


SR42UBKD - Overview

SmartRack enclosures are designed for secure, high density server and networking applications in IT environments. Designed with provisions to integrate cooling, power distribution and cable management, SmartRack enclosures make ideal homes for mission-critical equipment. Vendor-neutral square hole/cage nut mounting for guaranteed compatibility with all EIA-310-D compliant 19" equipment. Tool-less mounting slots allow quick installation of PDUs and vertical cable managers. Adjustable mounting rails include an easy-view depth index to eliminate time-consuming measurements. Lightweight modular doors and side panels provide safe, convenient service access. Integrated baying tabs facilitate combining enclosures in rows for standard data center baying applications. SmartRack enclosures hold up to 3000 lbs and support cooling, cable management, power distribution and monitoring features that keep critical servers and network equipment operating nonstop. Perforated doors permit massive front to rear airflow that exceeds servers manufacturer requirements. Enclosures are fully compatible with hot-aisle / cold-aisle data center configurations.

  • Features:

    • Ships unassembled for easy transport and assembly in confined spaces.
    • Front and rear sets of equipment mounting rails adjust in 1/4" increments. Adjustment is quick and convenient. The easy-view depth index ensures consistent rail placement without requiring time-consuming measurements.
    • Tool-less accessory mounting rails (2 rails per enclosure) include slots for quick installation of compatible PDUs and vertical cable managers. Mounting slots are arranged in an industry-standard pattern compatible with a wide variety of accessories. Each rail can accommodate two vertical PDUs or cable managers side-by-side (four items per enclosure).
    • Enclosure includes mounting hardware of 50 pieces of M6 cage nuts and 50 pieces of M6 screws

  • Specifications:

    • Style Floor Standing
    • Installed Whole System Maximum Rack Depth (in.) 31
    • Installed Whole System Maximum Rack Depth (cm) 78.7
    • Installed Whole System Minimum Rack Depth (in.) 4
    • Installed Whole System Minimum Rack Depth (cm) 10.16
    • Rack Height (U Spaces) 42
    • Shipping Dimensions (hwd / in.) 85 x 26 x 37.8
    • Shipping Dimensions (hwd / cm) 215.9 x 66.04 x 96
    • Shipping Weight (lbs.) 300
    • Shipping Weight (kg) 136.08
    • Unit Dimensions (hwd / in.) 78.5 x 23.63 x 36
    • Unit Dimensions (hwd / cm) 199.39 x 60.02 x 91.44
    • Unit Weight (lbs.) 250
    • Unit Weight (kg) 113.4
    • Color Black
    • Weight Capacity - Stationary (lbs.) 3000
    • Weight Capacity - Rolling (lbs.) 2250
    • Weight Capacity - Stationary (kg) 1360.8
    • Weight Capacity - Rolling (kg) 1020.6
    • Factory Preset Rack Depth (in.) 22.75
    • Factory Preset Rack Depth (cm) 57.79
    • Hinged (Swings Away from Wall Bracket) No
    • Grounding Lug Front and back door frames
    • Certifications UL60950; RoHS; CE
    • NOM (Mexico) Tested to NOM (Mexico)
    • Approvals EIA/ECA-310-E
    • Product Warranty Period (Worldwide) 5-year limited warranty

  • GTIN:

    0037332146564
