Tripp Lite SRQ24U 24U Soundproof Rack Enclosure Server Cabinet - Quiet Acoustic

ITEM #: TRL-SRQ24U MFG #: SRQ24U

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:

$4,561.20

Our Price:

$2,948.00

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup
  • Shipped truck freight.


SRQ24U - Overview

Quiet Server Rack Muffles Loud Network Equipment for a Less-Stress Work Environment
This acoustic server rack is specifically designed to minimize external acoustic levels caused by network equipment. The SRQ24U is ideal for small offices, recording studios, retail applications, classrooms and other areas where you need equipment to be secure, organized and quiet. Special foam sound-dampening baffles are built into the front and rear doors and side panels to reduce acoustic levels by as much as 28 decibels. Less noise makes for a calmer work environment that encourages productivity.

Secures and Organizes Rack Equipment in 24U of Space
This quiet rack enclosure accommodates all EIA-standard 19-inch rack-mount equipment up to 37 inches deep. It has a maximum stationary load capacity of 1,000 pounds and a rolling load capacity of 1,000 pounds. It's constructed from heavy-duty steel with a durable black powder-coated finish and a professional MDF overlay that fits into the room décor just like a regular piece of furniture.

Unique Airflow Design Cools Equipment for Maximum Performance

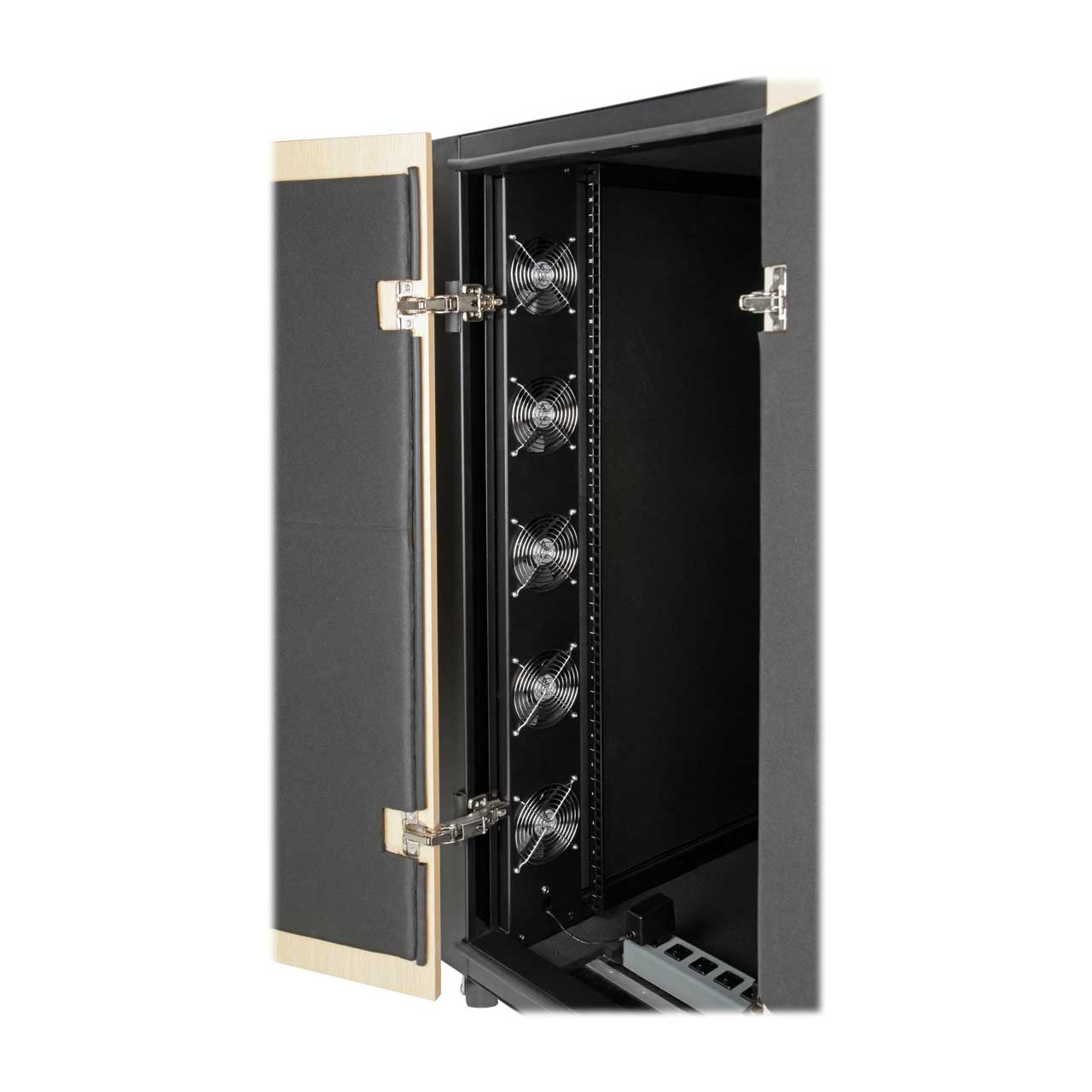

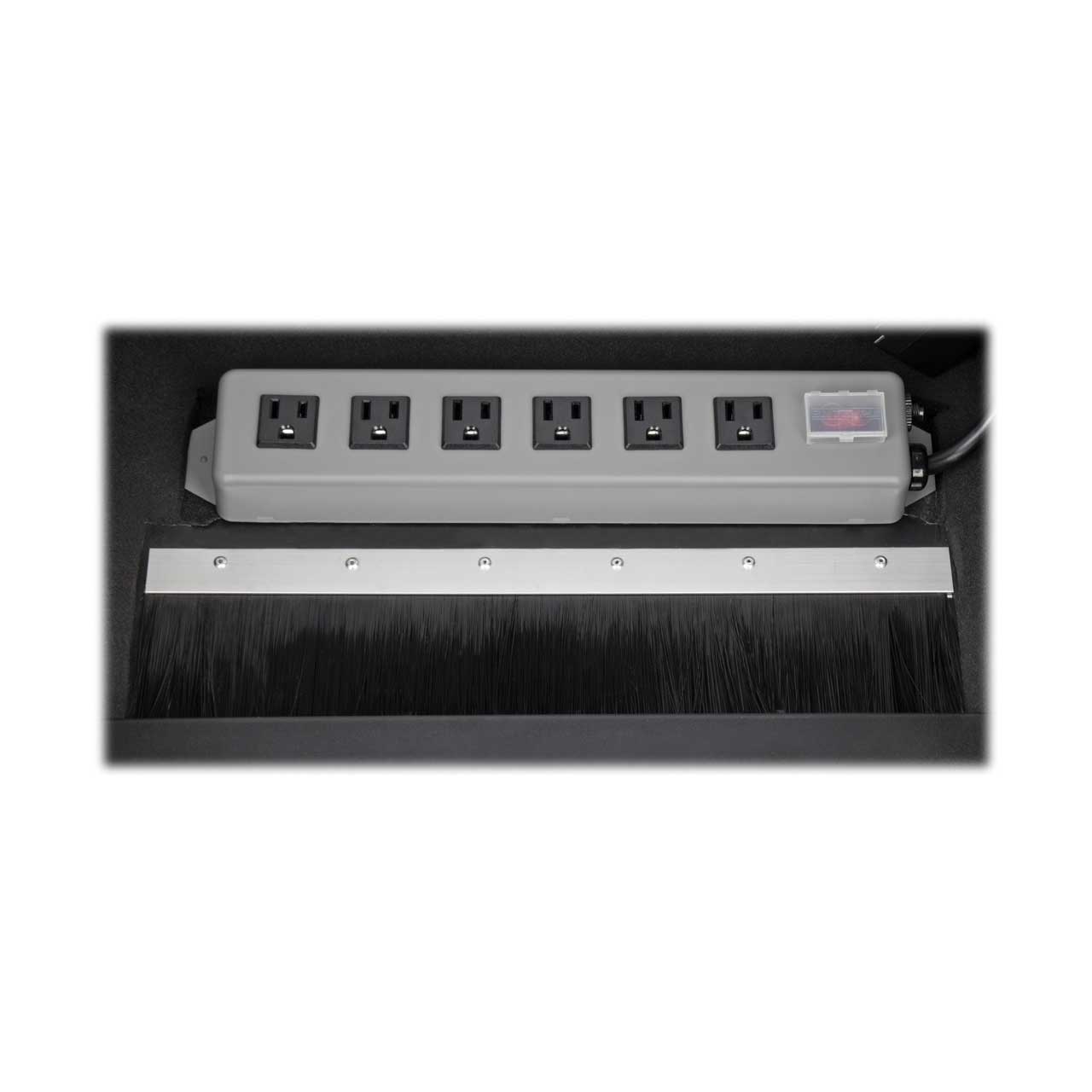

A unique airflow design maximizes cooling by drawing in cool air through the bottom panel intake, passing it horizontally through the enclosure, and using ten built-in electric fans to push warm air out through the side panels. Two vertically mounted fan banks plug into a six-outlet 15A power strip, which leaves four outlets open for connecting equipment or accessories. The power strip connects to a standard 120V AC outlet.

  • Features:

    • Secures 24U of EIA-standard 19 in. rack equipment up to 45 in. deep
    • Minimizes equipment noise by as much as 28 decibels for quieter work environment
    • Floor panel intakes and built-in fans keep equipment cool to maintain top performance
    • Steel/MDF cabinet locks securely to help prevent equipment damage or theft
    • Ships fully assembled for immediate deployment and equipment mounting

  • Specifications:

    • Physical
    • Rack Height: 24U
    • Maximum Device Depth (in.): 37
    • Minimum Device Depth (in.): 16
    • Shipping Dimensions (hwd / in.): 54.29 x 31.97 x 48.70
    • Shipping Weight (lbs.): 330.00
    • Unit Dimensions (hwd / in.): 49.06 x 30.0 x 46.7
    • Unit Weight (lbs.): 297.00
    • Color: Beige; Black
    • Weight Capacity - Stationary (lbs.): 1000
    • Weight Capacity - Rolling (lbs.): 1000
    • Factory Preset Rack Depth (in.): 29

      Special Features
    • Grounding Lug: Front and back floor panel
    • Built-in Cable Management: No

      Certifications
    • Certifications: RoHS; IP20 Protection Rating
    • Approvals: EIA/ECA-310-E

  • Item Includes:

    • SRQ24U SmartRack Sound Proof Server Rack - Quiet Acoustic Server Rack, 24U
    • Rack-mounting hardware
    • (2) Keys
    • Owner's manual

  • Warranty:

    • 5-year

  • GTIN:

    0037332187123
