Tripp Lite 6U Low-Profile Wall-Mount Rack Enclosure Cabinet White Removable Side Panels 15H x 24W x 18D

ITEM #: TRL-SRW6UW MFG #: SRW6UW

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:

$320.96

Our Price:

$208.00

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup


SRW6UW - Overview

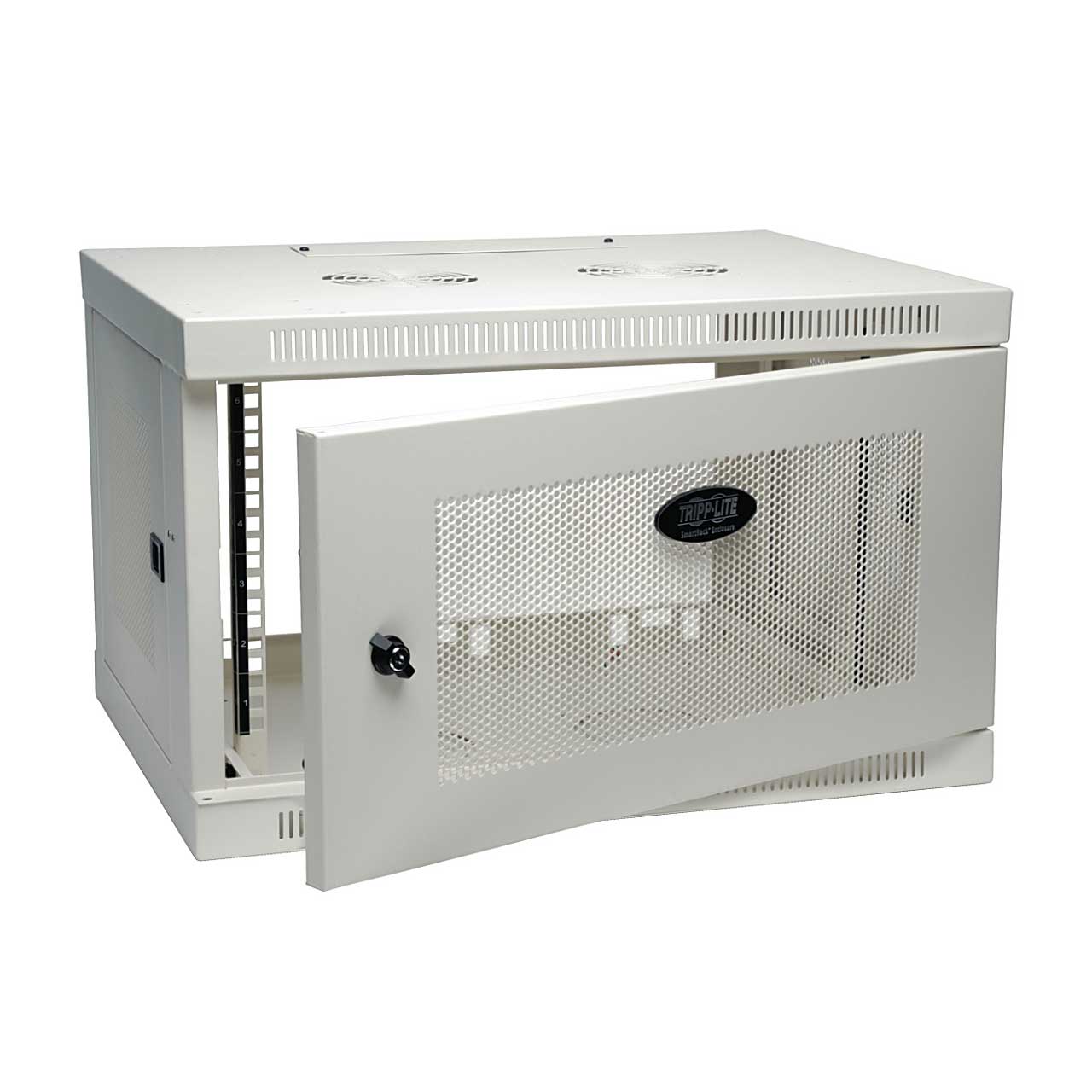

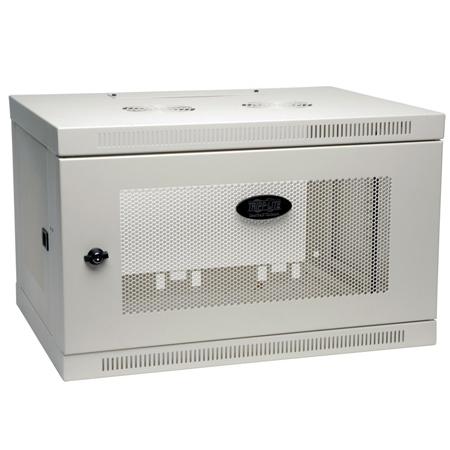

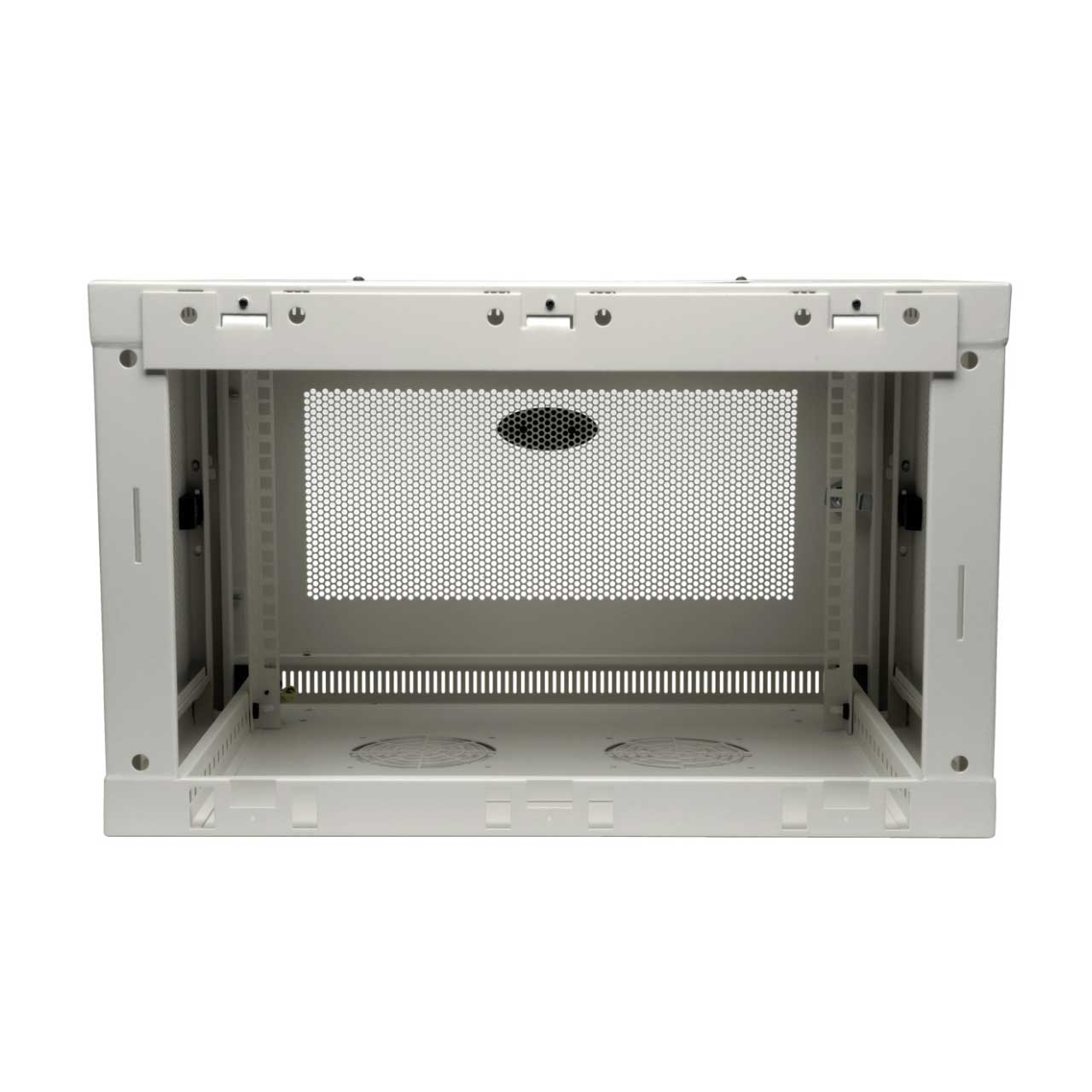

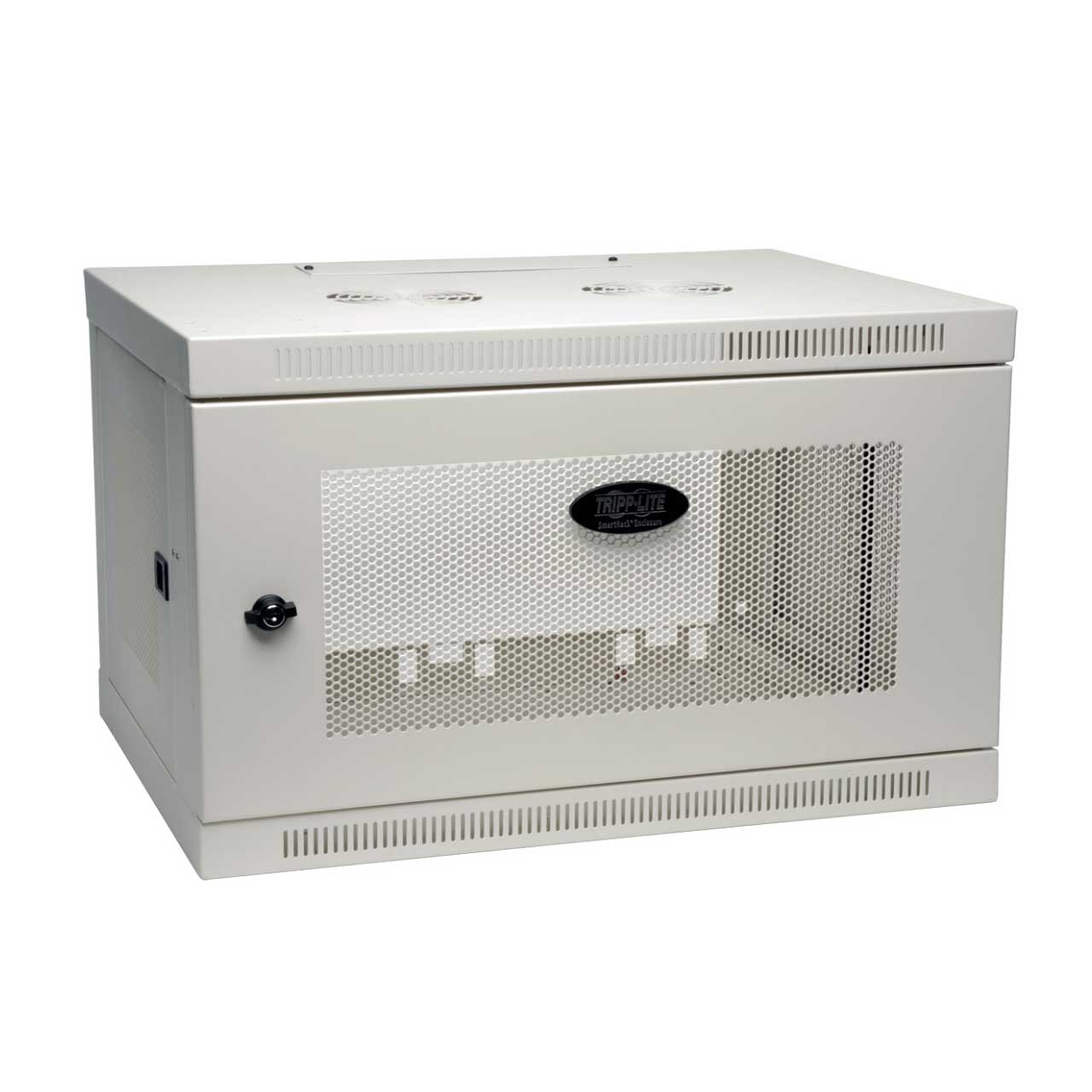

The SRW6UW is a white 6U Wall-Mount Rack Enclosure Cabinet designed to integrate wall-mounting, easy equipment access, and cable management in IT network applications with limited floor space. Ventilated front door and side panels allow generous airflow to keep equipment operating safely. Adjustable front mounting rails have both square mounting holes (default position) and tapped holes to accommodate up to 6U of standard 19" rackmount equipment. Supports up to 200 lbs of equipment. A sturdy wall-mount bracket allows the cabinet to quickly be hung on the wall. The SRW6UW comes with a 5-year product warranty.

  • Features:

    • 6U wall-mounted enclosure in white
    • Ideal for VoIP wiring closets and education venues that require security

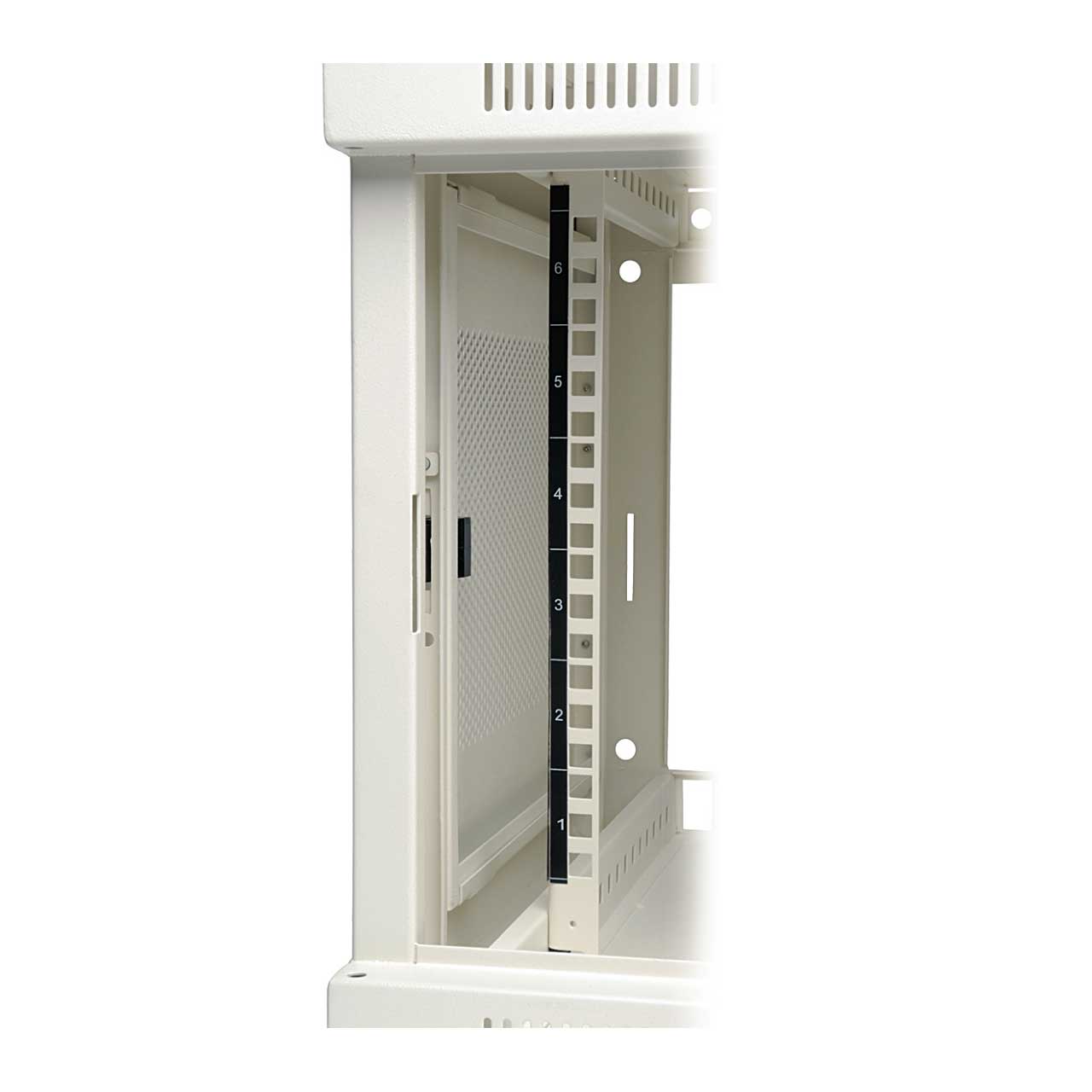

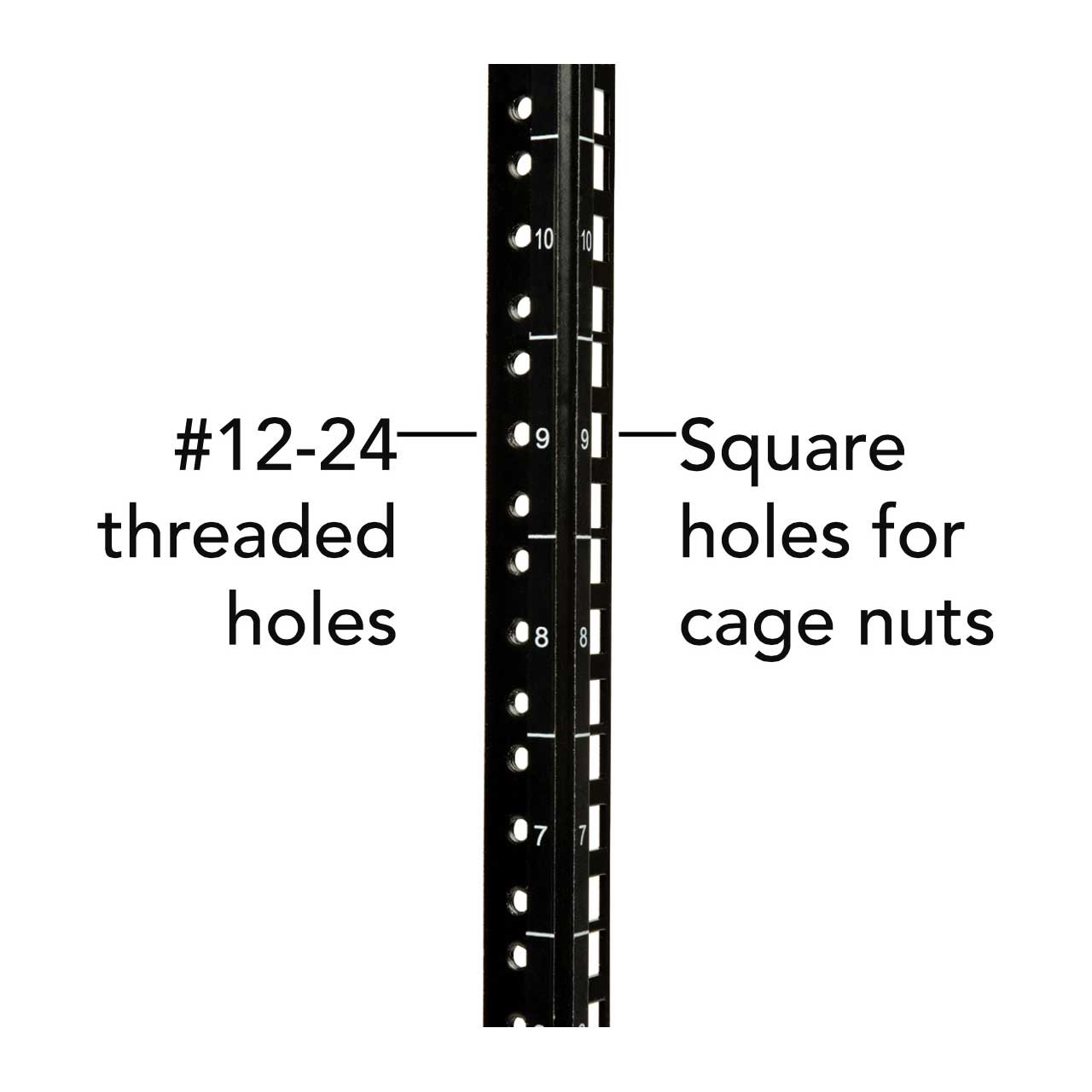

    • Adjustable mounting depths up to 17" by 2 front vertical rackmount rails
    • Dual threaded rails

  • Specifications:

    • Style Wall Mounted
    • Installed Whole System Maximum Rack Depth (in.) 16.5
    • Installed Whole System Minimum Rack Depth (in.) 3
    • Rack Height (U Spaces) 6
    • Shipping Dimensions (hwd / in.) 17.5 x 26.5 x 20.5
    • Shipping Weight (lbs.) 32
    • Unit Dimensions (hwd / in.) 14.5 x 23.5 x 17.5
    • Unit Weight (lbs.) 29
    • Color White
    • Weight Capacity - Stationary (lbs.) 200
    • Cable Access Hole Measurement (inches) 9.812 x 2.35 (l x w)
    • Hinged (Swings Away from Wall Bracket) No
    • Grounding Lug Front and Back door frames
    • Certifications EIA-310-E
    • NOM (Mexico) Tested to NOM (Mexico)
    • Approvals RoHS
    • Product Warranty Period (Worldwide) 5-year limited warranty

  • GTIN:

    0037332178930
