Tripp Lite TLP1208TEL 12 Outlet Protect It Surge Suppressor

TLP1208TEL - Overview

• Features:

  • 12 outlets with integrated child safety covers
  • 8-ft cord with space-saving right-angle plug
  • Built-in RJ11 jacks prevent surges from damaging your modem/fax equipment; 6-ft telephone cord included
  • Surge suppression rating: 2160 joules
  • EMI/RFI noise filtering
  • 15 amp resettable circuit breaker
  • Diagnostic LEDs confirm suppressor "protection present" (green) and "grounded" (red) status
  • Includes full normal mode (H-N) and common mode (N-G/H-G) line surge suppression

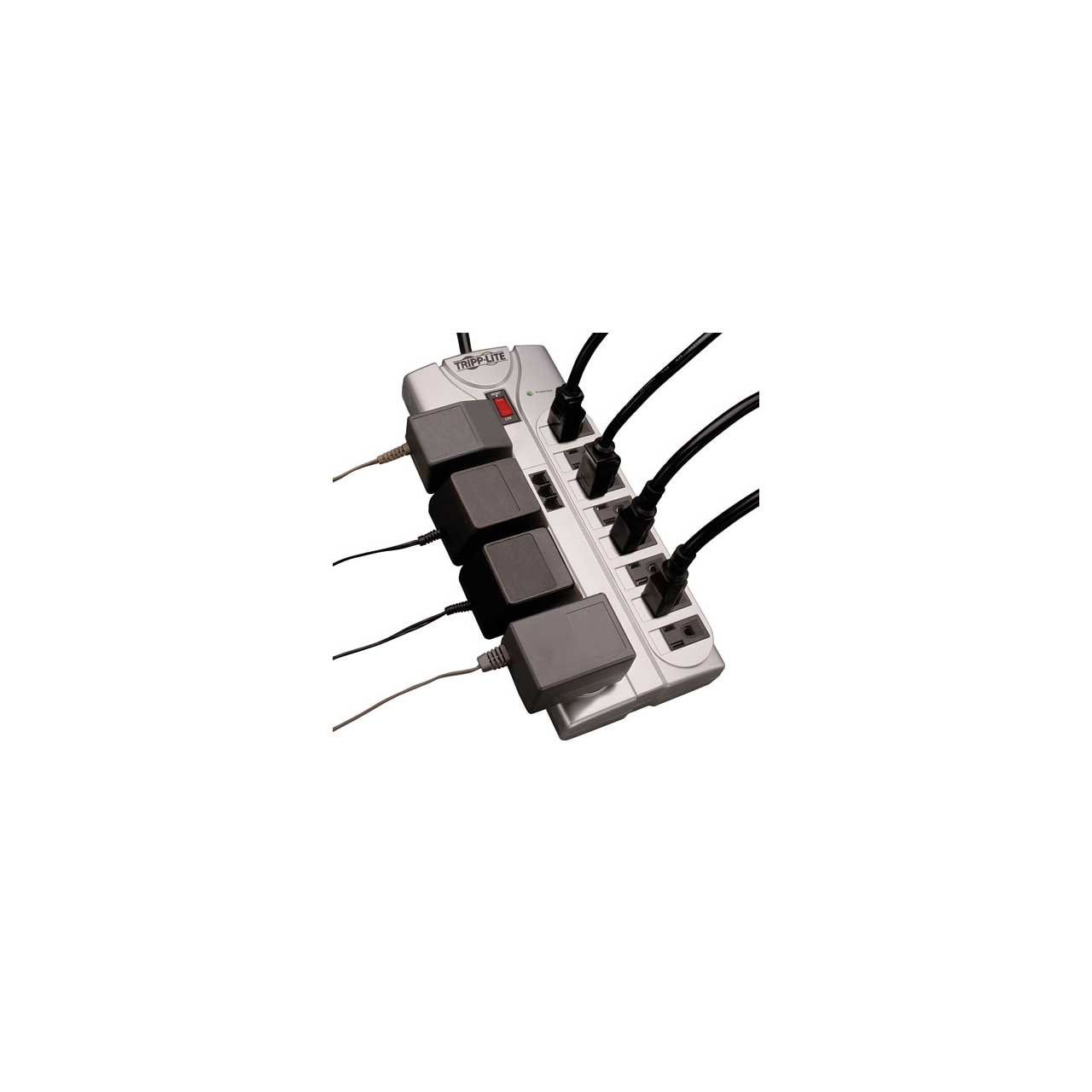

  • Can accommodate up to 4 transformers without blocking remaining outlets
  • Keyhole supports for wall mounting
  • $150,000 Ultimate Lifetime Insurance (U.S., Canada, and Puerto Rico only) covers connected equipment
  • Automatic shutoff permanently cuts power to outlets if protection circuit is incapacitated, preventing equipment damage and indicating replacement is required


• Specifications:

  • Input
  • Nominal Input Voltage(s) Supported: 120V AC
  • Recommended Electrical Service: 120V (110-125V)
  • Input Cord Gauge Type: 14 gauge; SJT
  • Voltage Compatibility (VAC): 120
  • Maximum Surge Amps: 144000
  • Input Plug Type: NEMA 5-15P
  • Input Cord Length (ft.): 8
  • Right-Angle Plug: Yes
  • Integrated Cord Clip: No

    Output
  • Output Volt Amp Capacity (VA): 15
  • Output Watt Capacity (Watts): 1875
  • Frequency Compatibility: 50 / 60 Hz
  • Output (Watts): 1800
  • Output Receptacles: (12) 5-15R
  • Overload Protection: 15A resettable circuit breaker
  • Transformer Accommodation: (8) Yes
  • Outlet Orientation: Two rows of outlets, including 4 widely spaced for transformers
  • Right-Angle Outlets: No

    User Interface, Alerts & Controls
  • Diagnostic LED(s): Yes
  • Switches: Two-position on/off power switch
  • Diagnostic LED Details: Built-in LEDs confirm suppressor "protection present" (green) and "grounded" (red) status

    Surge / Noise Suppression
  • AC Suppression Joule Rating: 2160
  • AC Suppression Response Time: < 1 ns
  • Protection Modes: Includes full normal mode (H-N) and common mode (N-G / H-G) line surge suppression
  • Clamping Voltage (RMS): 150
  • UL1449 Let Through Rating: 330V L-G, 400V L-N, 400V N-G
  • EMI / RFI Filtering: Up to 40 dB
  • Automatic Shut-Off: Yes

    Dataline Surge Suppression
  • Telephone/DSL Protection: Yes
  • Telephone/DSL Protection Details: 1 line
  • Cable (Coax) Protection: No
  • Network (Ethernet) Protection: No

    Physical
  • Anti-Microbial Protective Coating: No
  • Color: Black
  • Color (AC Line Cord): Black
  • Housing Color: Silver
  • Integrated Keyhole Mounting Slots: Yes
  • Keyhole Slot Mounting Measurement (Center to Center): Distance between horizontal tabs = 152mm; Distance between vertical tabs = 73.5mm
  • Material of Construction: Plastic
  • Outlets Measurement (Center to Center): Distance between standard outlets = 25.4mm; Distance between transformer outlets = 57mm
  • Receptacle Color: Black
  • Shipping Dimensions (hwd / in.): 13.60 x 2.40 x 8.80
  • Shipping Weight (lbs.): 2.50
  • Unit Dimensions (hwd / in.): 1.54 x 2.72 x 10.30
  • Unit Weight (lbs.): 2.09


• Item Includes:

  • TLP1208TEL surge suppressor
  • 6-ft. RJ11 telephone cord
  • Instruction manual with warranty information


• GTIN:

  0037332152503
