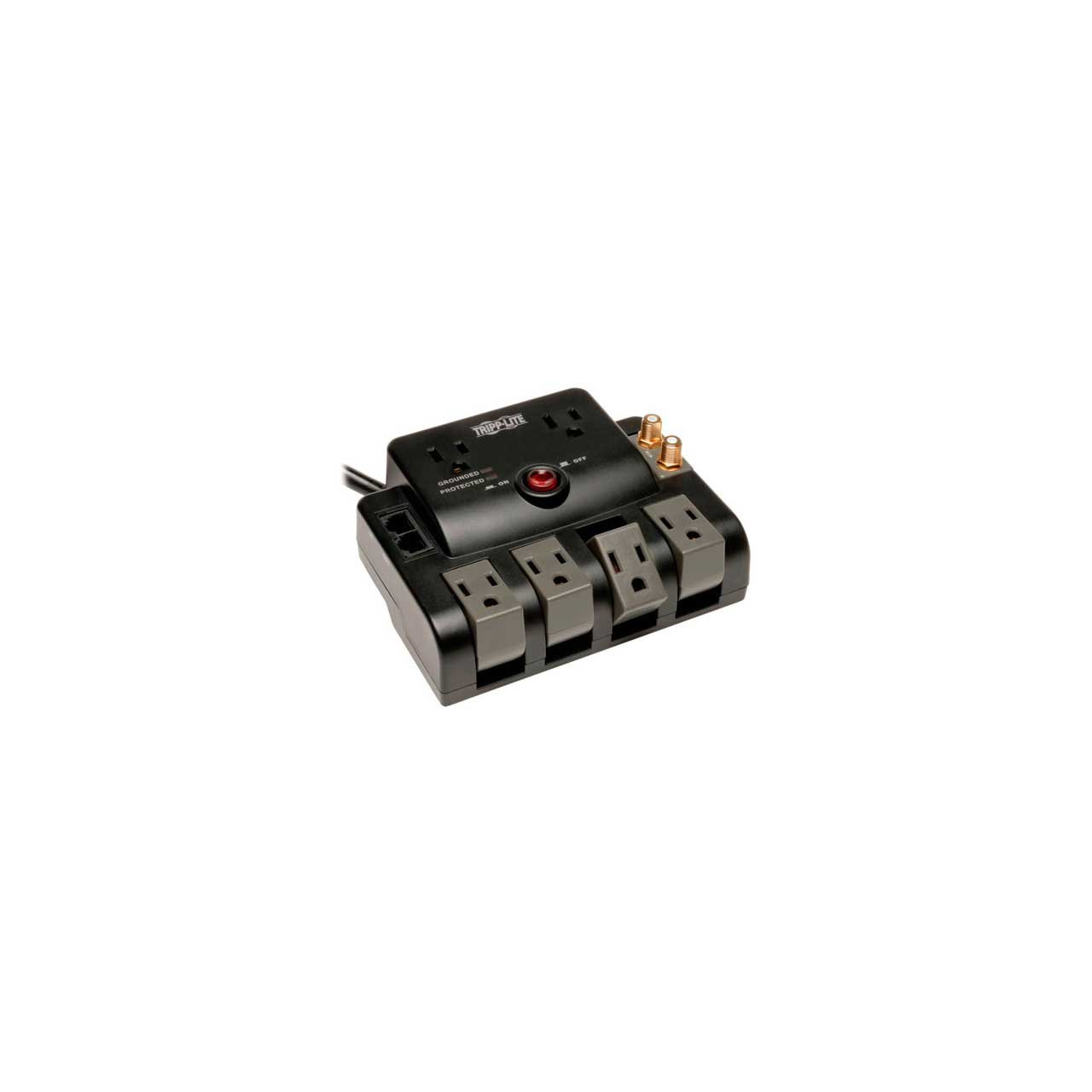

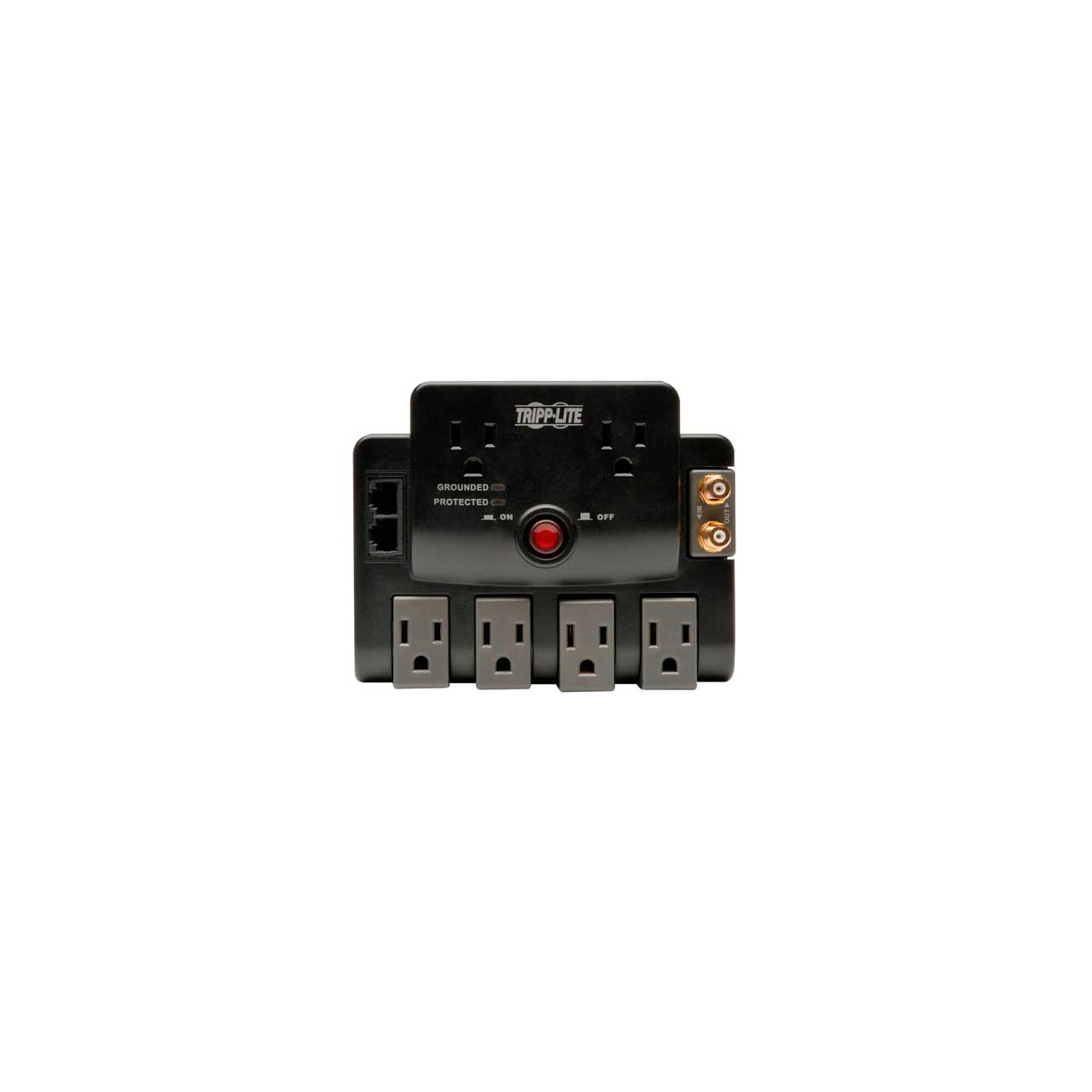

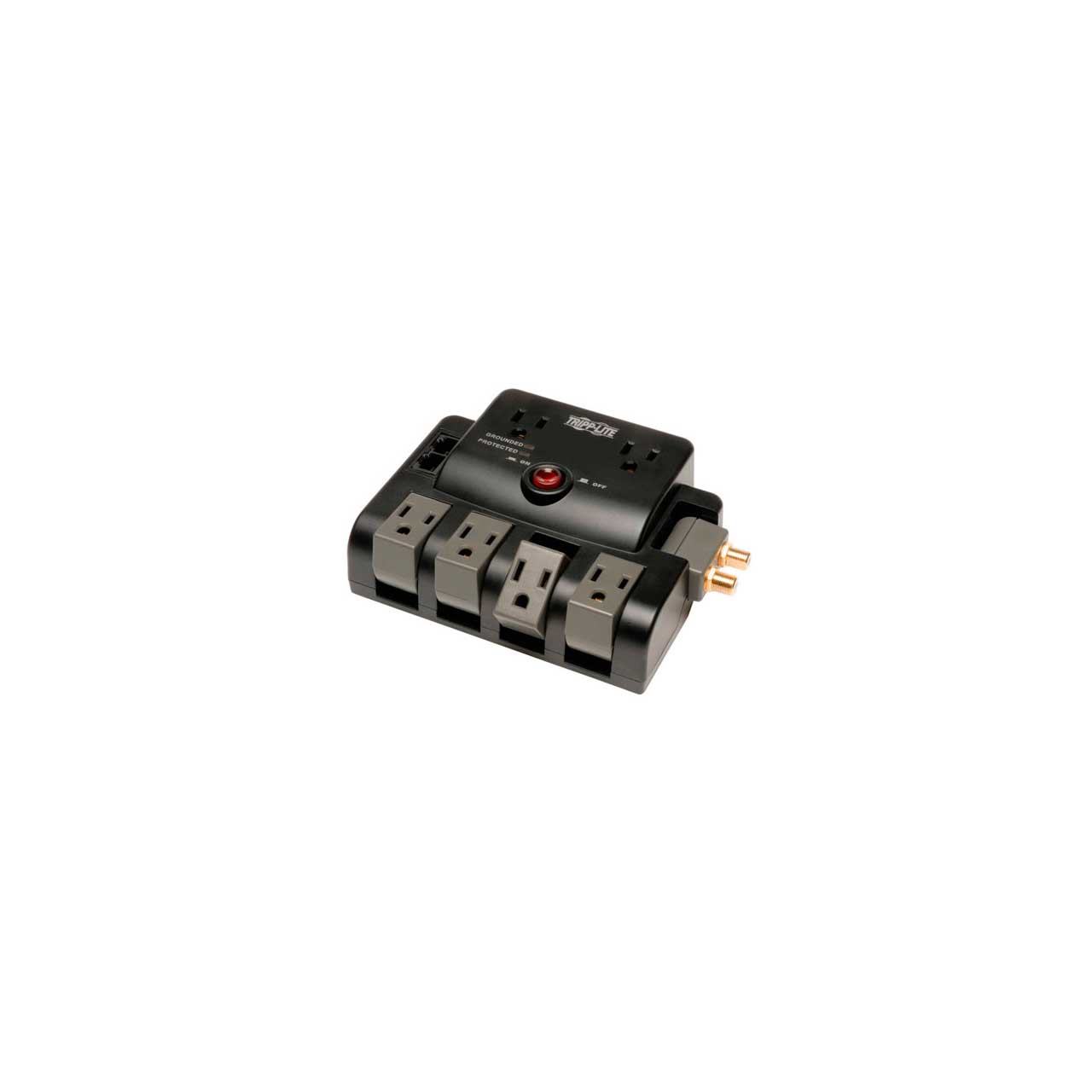

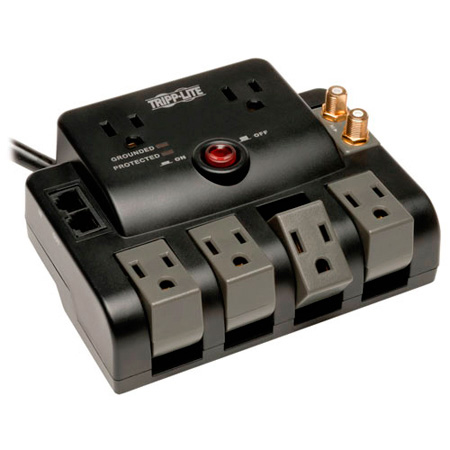

Tripp Lite TLP606RNET 6-Outlet Surge Suppressor- 6-Ft Cord & 1-Line Coaxial

TLP606RNET - Overview

• Features:

  • 6 outlets - 4 rotate, 2 standard, allow for easier plug connection and removal
  • 1440 joules surge suppression rating with EMI/RFI line noise filtering help components perform at their peak (sharper, crisper video; deeper, fuller audio and longer component life spans)
  • 6ft cord

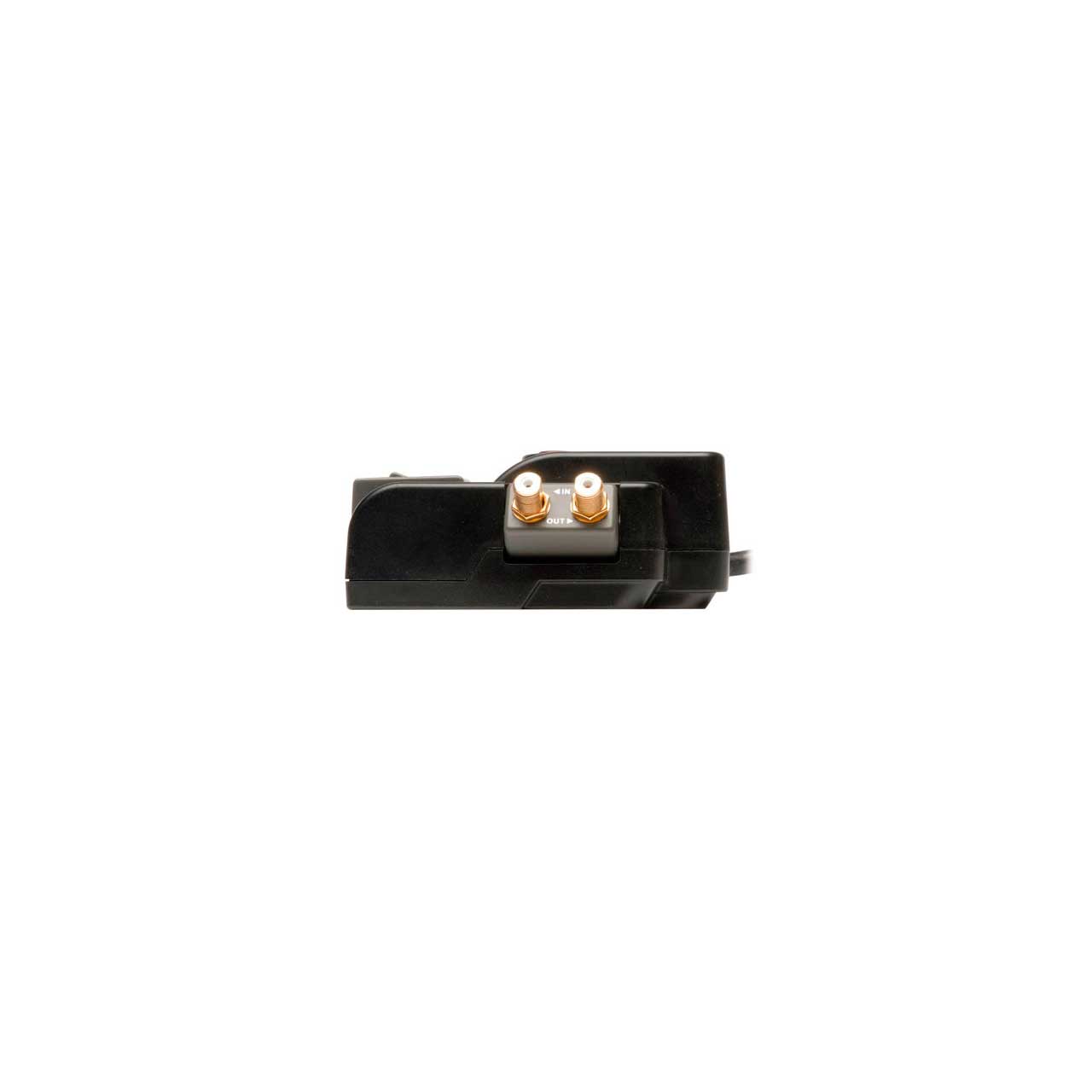

  • 1 set of surge-protected gold coaxial connectors (with included 6 ft. coaxial cable) safeguard components on cable, satellite or antenna line (2.2GHz bandwidth)
  • 1 set of surge-protected tel/modem.ethernet connectors (with included 6 ft. phone cord and 6ft Network cable)
  • 2 diagnostic LEDs alert user to protection and grounding status
  • High-impact plastic housing (black) stands up to the most demanding environments
  • $150,000 Ultimate Lifetime Insurance (U.S., Canada, and Puerto Rico only)
  • Automatic shutoff permanently cuts power to outlets if protection circuit is incapacitated, preventing equipment damage and indicating replacement is required


• Specifications:

  • Input
  • Nominal Input Voltage(s) Supported: 120V AC
  • Recommended Electrical Service: 120V (110-125V)
  • Input Cord Gauge Type: 14 gauge; SJT
  • Voltage Compatibility (VAC): 120
  • Input Plug Type: NEMA 5-15P
  • Input Cord Length (ft.): 6
  • Right-Angle Plug: Yes
  • Integrated Cord Clip: No

    Output
  • Frequency Compatibility: 60 Hz
  • Output (Watts): 1800
  • Output Receptacles: (6) 5-15R
  • Circuit Breaker (amps): 15
  • Transformer Accommodation: (4) Yes
  • Outlet Orientation: Rotatable
  • Right-Angle Outlets: No

    User Interface, Alerts & Controls
  • Diagnostic LED(s): Yes
  • Diagnostic LED Details: Built-in LEDs confirm suppressor "protected" (green) and "grounded" (red) status

    Surge / Noise Suppression
  • AC Suppression Joule Rating: 1440
  • AC Suppression Response Time: < 1 ns
  • Protection Modes: Includes full normal mode (H-N) and common mode (N-G/H-G) line surge suppression
  • Clamping Voltage (RMS): 300
  • UL1449 Let Through Rating: 400, 500, 500
  • EMI / RFI Filtering: 150 kHz to 100 mHz
  • Automatic Shut-Off: Yes

    Dataline Surge Suppression
  • Telephone/DSL Protection: Yes
  • Telephone/DSL Protection Details: 1 line
  • Cable (Coax) Protection: Yes
  • Cable (Coax) Protection Details: 1 line
  • Network (Ethernet) Protection: Yes

    Physical
  • Anti-Microbial Protective Coating: No
  • Color: Black
  • Color (AC Line Cord): Black
  • Integrated Keyhole Mounting Slots: No
  • Material of Construction: Plastic
  • Receptacle Color: Black; gray
  • Shipping Dimensions (hwd / in.): 2.00 x 6.10 x 12.90
  • Shipping Weight (lbs.): 2.30
  • Unit Dimensions (hwd / in.): 2.2 x 5.91 x 4.72
  • Unit Weight (lbs.): 2.22

    Communications
  • Network Speed: 10/100 Mbps

    Special Features
  • Rotatable Outlets: Yes

    Standards & Compliance
  • Canada: cUL
  • Approvals: RoHS
  • UL1449 3rd Edition (AC Suppression): UL1449 3rd Edition


• Item Includes:

  • TLP606RNET Surge Suppressor
  • Instruction manual with warranty information
  • 6 ft. gold coaxial cable
  • 6 ft. phone cord
  • 6 ft network cord


• GTIN:

  0037332178244
