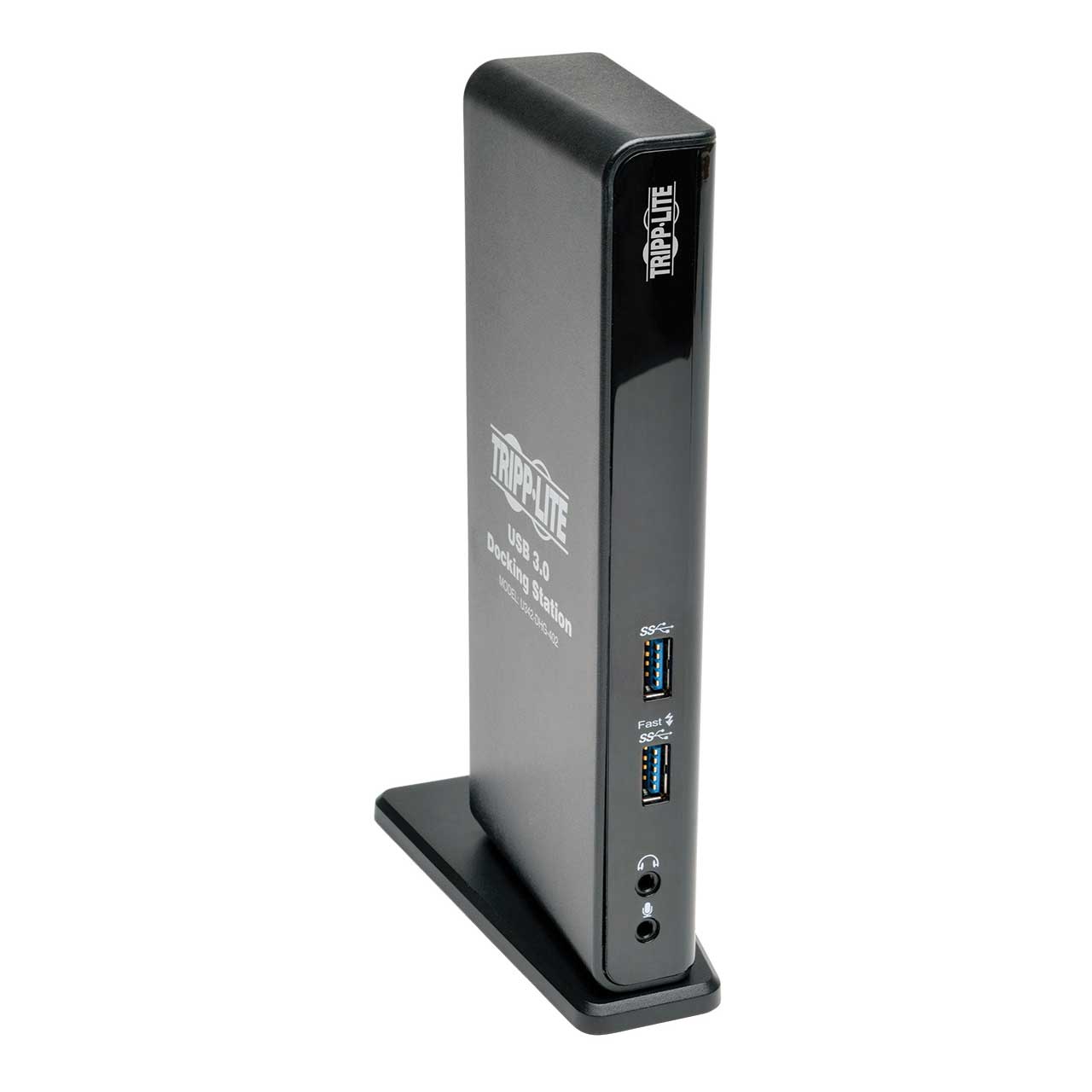

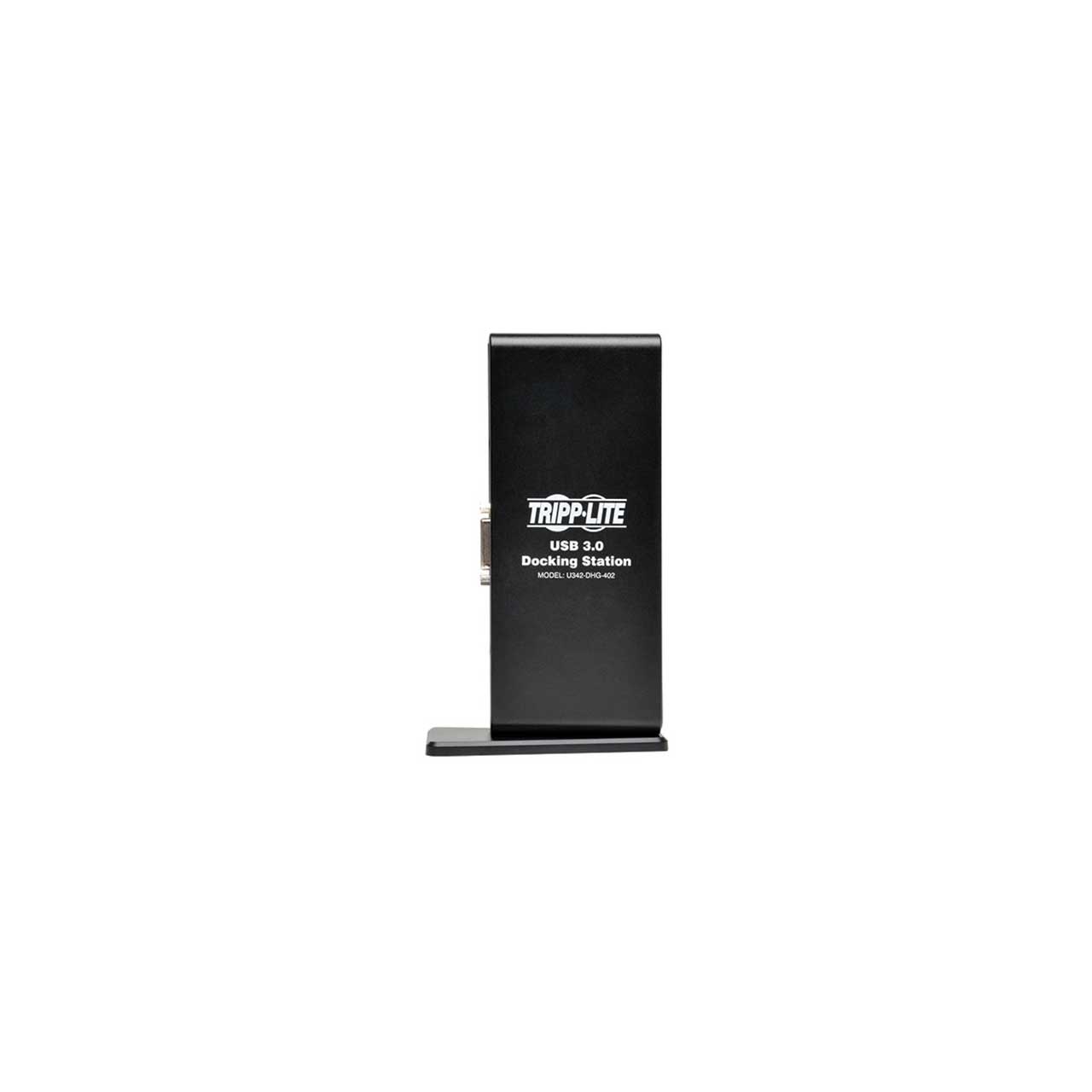

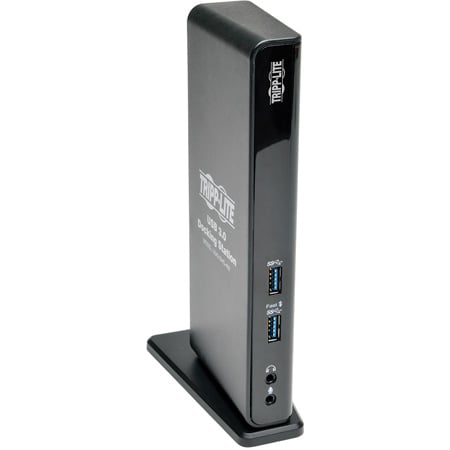

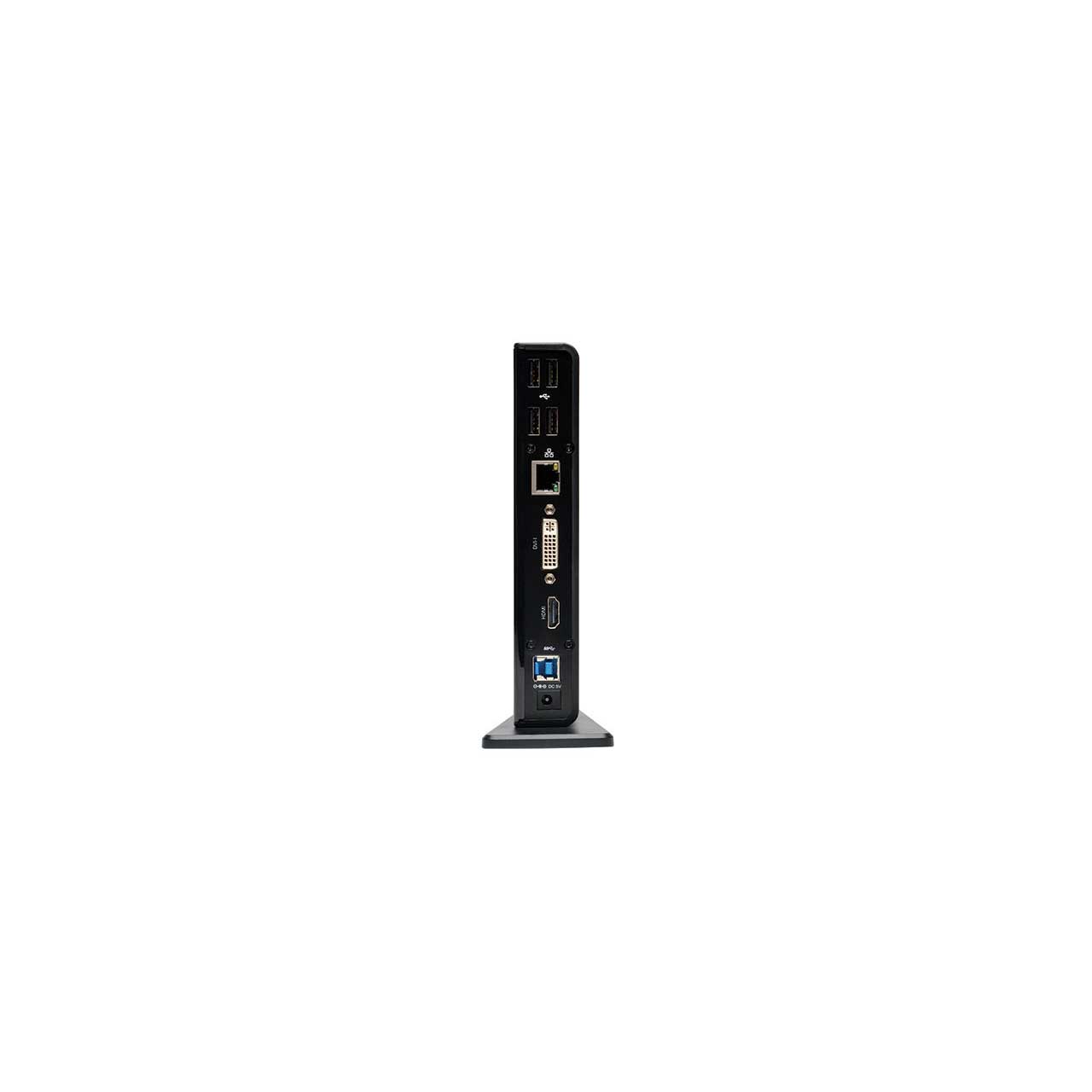

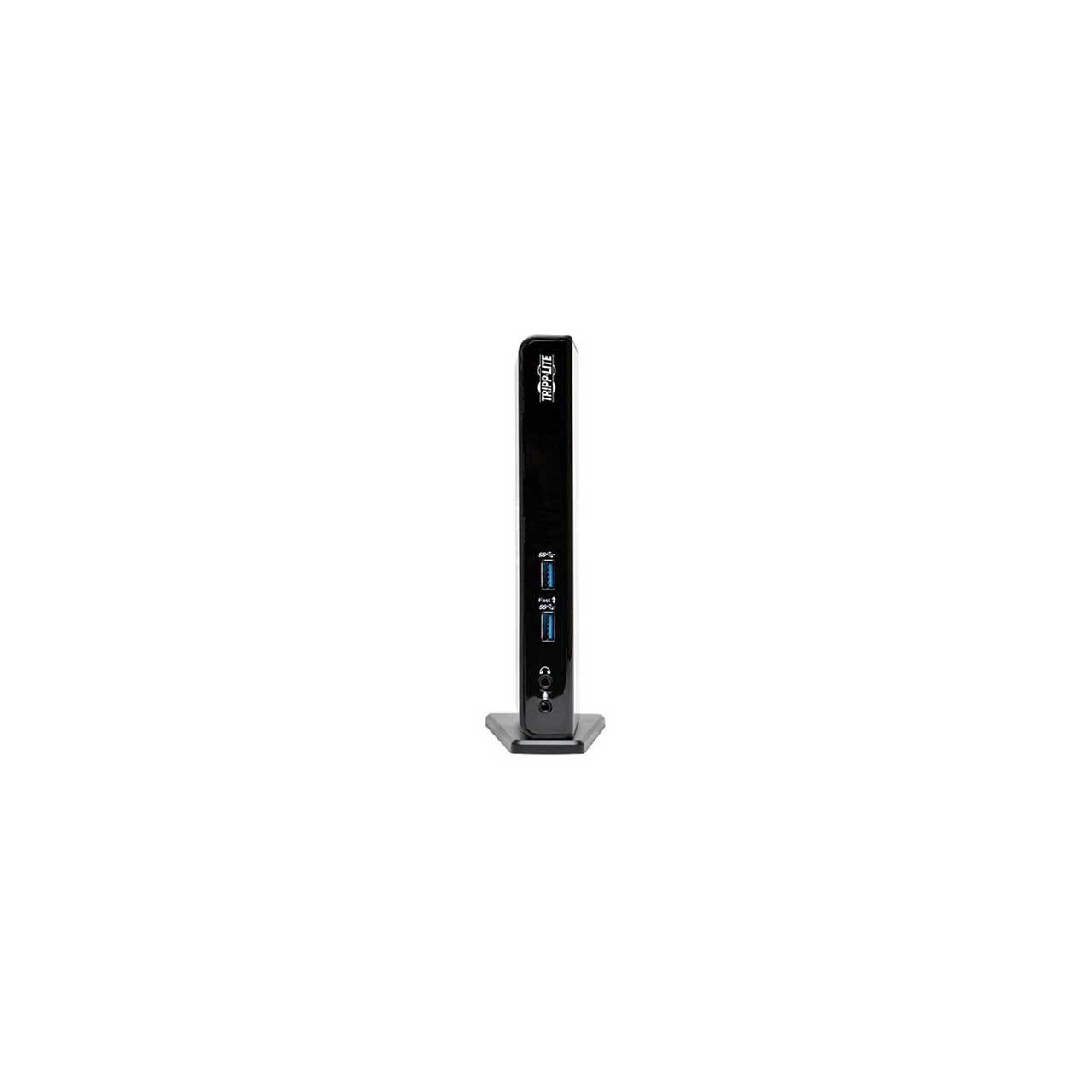

Tripp Lite U342-DHG-402 USB 3.0 SuperSpeed Laptop Dual Head Docking Station - HDMI and DVI Video Audio USB Hub Ports

ITEM #: TRL-U342-DHG-402 MFG #: U342-DHG-402

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

List Price:

$350.00

Our Price:

$125.25

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


U342-DHG-402 - Overview

Tripp Lites U342-DHG-402, Universal USB 3.0 Laptop Docking Station, adds DVI, HDMI, Audio, Ethernet, and additional USB 3.0 and USB 2.0 ports to a laptop computer, all from a single device and over a single SuperSpeed USB 3.0 connection. The universal docking station features two independent external monitor outputs (HDMI, DVI) that can be separately used to expand or mirror your computer's main desktop. Both HDMI and DVI outputs provided by the docking station supports video resolutions up to 1920x1200. An all-in-one solution, the universal laptop docking station combines USB 2.0 and USB 3.0 hubs, headphone and microphone audio connectors and a Gigabit Ethernet RJ45 port into a single docking station, making it the perfect accessory for enhancing laptop capability for users who need to connect and manage multiple devices at home or at the office.

  • Features:

    • USB 3.0 is 10 times faster than USB 2.0 and supports data transfer rates of up to 5 Gbps
    • Backward compatible with USB 2.0 and 1.1
    • DVI-I and HDMI ports for connection of external monitors
    • A VGA monitor can be connected to the DVI-I port using a DVI-to-VGA adapter, such as a Tripp Lite P556-Series ca
    • A DVI monitor can be connected to the HDMI port using an HDMI-to-DVI adapter, such as a Tripp Lite P566-Series ca
    • Supports video resolutions of up to 2048 x 1152
    • Automatically resumes operation from hibernation and suspend modes
    • Gigabit Ethernet port supports true 10/100/1000 Mbps network speeds
    • IEEE 802.3az (Energy Efficient Ethernet) compliant
    • Supports full duplex and half duplex operations
    • Supports IPv4 and IPv6 pack Checksum Offload Engine (COE) to reduce CPU loading
    • Supports Wake-on LAN, VLAN tagging and Auto-MDIX
    • Two USB 3.0 and four USB 2.0 hub ports for connection of additional USB peripherals
    • One USB 3.0 port supports USB Battery Charging (BC) specification 1.2, allowing it to provide 1.5 amps of power for faster charging of mobile devices
    • 3.5 mm Mini Stereo jacks for connection of speaker and microphone
    • Compatible with Windows 7 and later, Windows 10
    • Compatible with Mac OS 10.8.5 and later, Mac 10.11

  • Specifications:

    • AC Adapter: Input: 100-240V, 50/60Hz, 0.8A; Output: 5V, 4A, 6 ft.
    • Dock Connectors: 2 x USB3.0. 2 x 3.5mm Stereo, 4 x USB2.0, RJ45 LAN, DVI-I, HDMI
    • Shipping Dimensions (hwd / in.): 4.1 x 8.4 x 5.1
    • Shipping Weight (lbs.): 2.3
    • Unit Dimensions (hwd / in.): 7.4 x 1.2 x 3 (Base Is 2.8 x 5)
    • Unit Weight (lbs.): 1.3
    • Color: Black
    • Side A - Connector 1: USB 3.0 A (MALE)
    • Side B - Connector 1: HDMI (FEMALE)
    • Side B - Connector 2: (2) USB 3.0 A (FEMALE)
    • Side B - Connector 3: DVI-I (FEMALE)
    • Side B - Connector 4: RJ45 (FEMALE)
    • Side B - Connector 5: (4) USB A (FEMALE)
    • Side B - Connector 6: (2) 3.5MM (FEMALE)
    • Product Warranty Period (Worldwide): 1-year limited warranty

  • Item Includes:

    • U342-DHG-402
    • External Power Supply with NEMA 1-15P Plug (Input: 100-240V, 50/60 Hz, 0.8A; Output: 5V, 4A) - 6-ft
    • USB 3.0 A/B Cable - 3 ft
    • Driver CD
    • Owner's Manual

  • Warranty:

    • 1 Year

  • GTIN:

    0037332182586
