Laird Neutrik TRUE1 powerCON Male to powerCON Female 20-Amp AC Power Extension Cable - 6 Foot

Name: Laird Neutrik TRUE1 powerCON Male to powerCON Female 20-Amp AC Power Extension Cable - 6 Foot
Brand: Laird Digital Cinema
SKU: TRUE1-ACEXT-006
Price: 78.95 USD
Availability: InStock

ITEM #: TRUE1-ACEXT-006 MFG #: TRUE1-ACEXT-006

Laird Digital Cinema

Length:

Length

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$88.49

Our Price:

$78.95

Add to Wish List Leasing Options

Availability: In Stock

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

TRUE1-ACEXT-006 - Overview

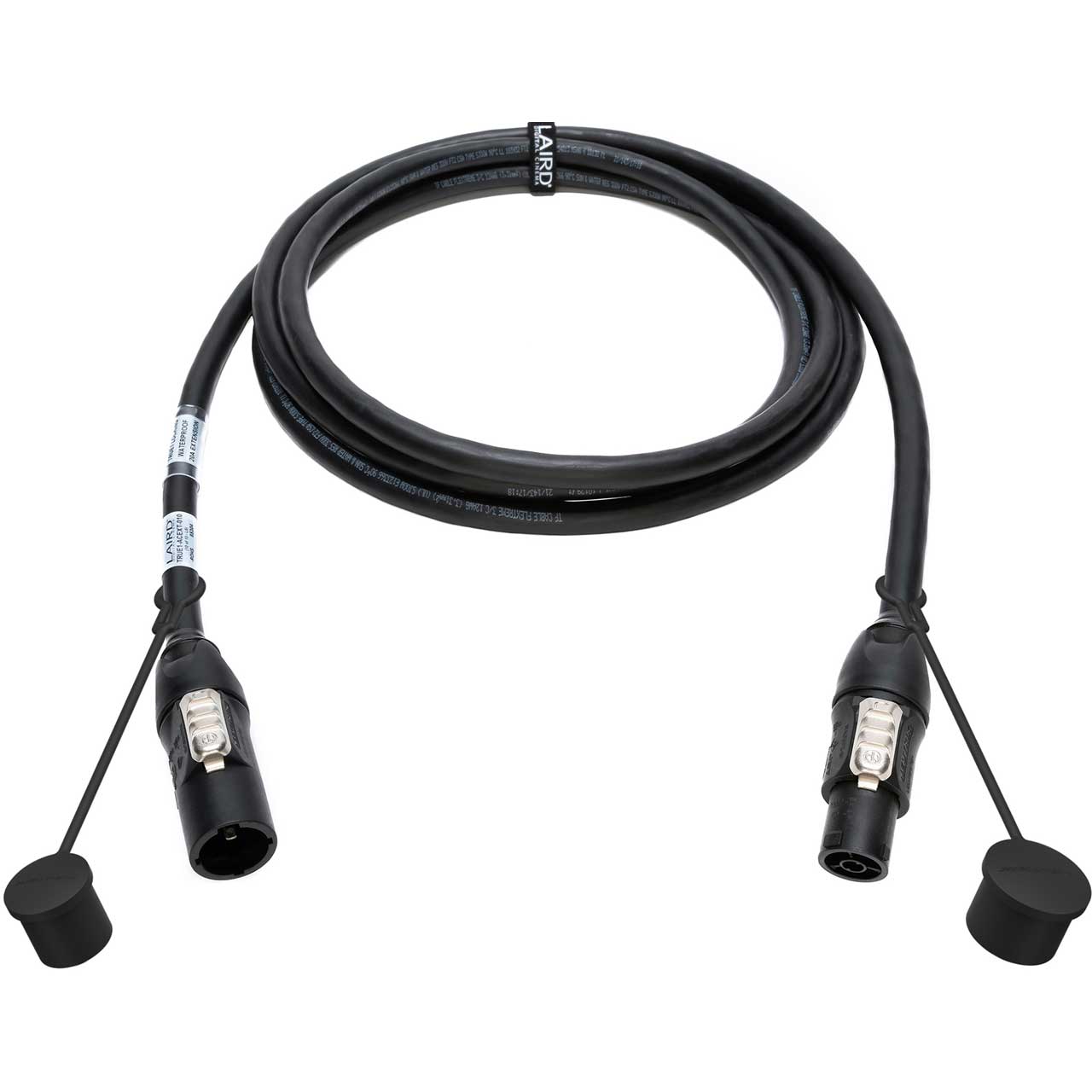

The Laird Locking Waterproof TRUE1-ACEXT Power Extension Cable assembly allows interconnection of electronic devices that utilize powerCON TRUE1 devices for live events, and motion picture and television production. The high quality UL recognized components ensure durability and long life. Waterproof for outdoor use.

Features:

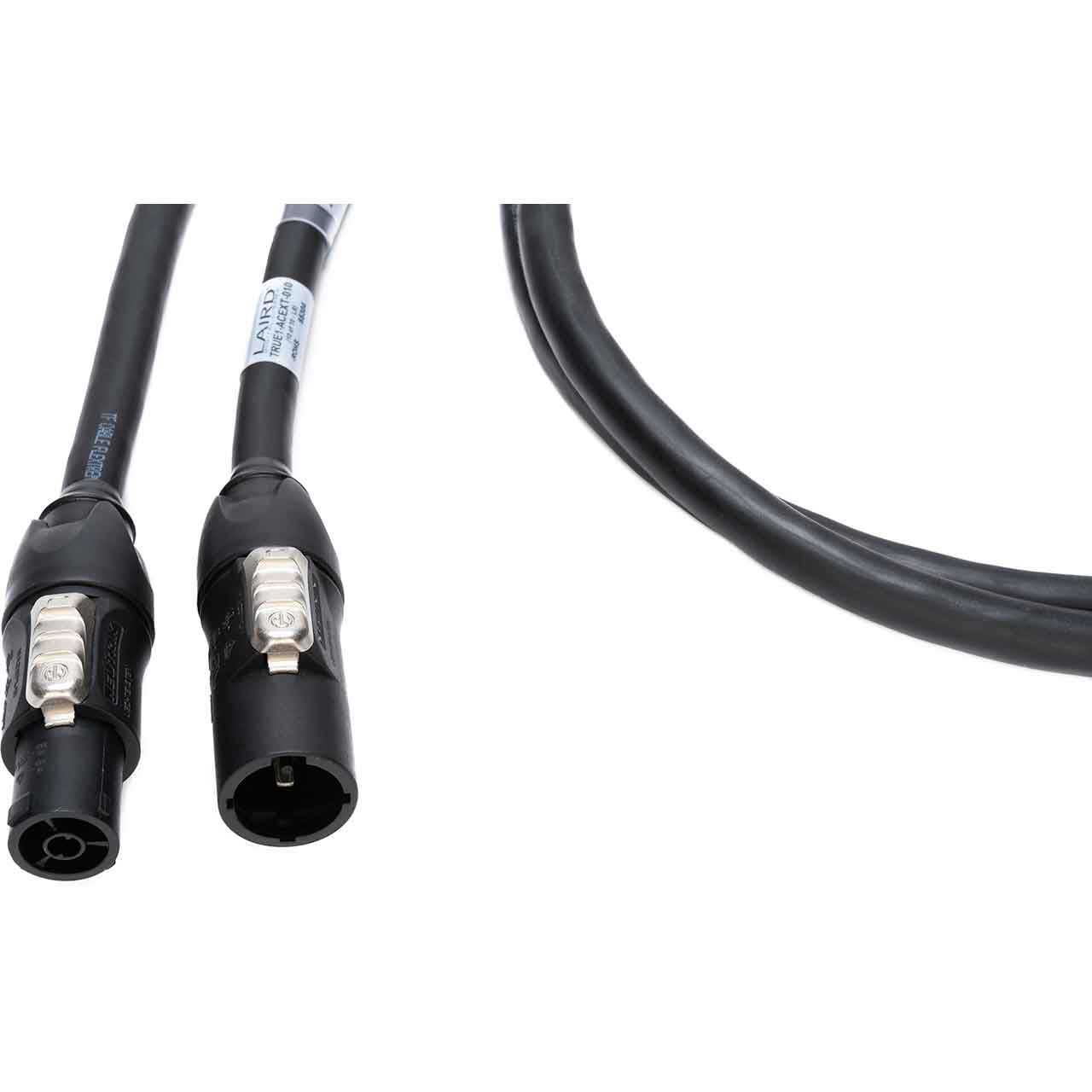

- Neutrik powerCON TRUE1 Locking Connectors
- Lanyard Style Rubber Dust Caps
- Flexibility in Low Temperatures
- Dust and Water Resistant According to IP65 Rating
- Water and Oil Resistant
- Fully Annealed Stranded Bare Copper Conductors for Strength and Abrasion Resistance
Specifications:
- PWR-12/3 - SJOOW - 300V 12 AWG Heavy Duty Power Cable
- UL Listed 3 Conductor Jacketed Heavy Duty Power Cord
- TPrene Jacket - Black
- 3 conductor Colors: Black, White and Green

  NAC3*X-W-TOP
- Contact Resistance: = 2mΩ
- Dielectric Strength: 4 kVdc/2.8 kVac
- Insulation Resistance: > 0.1GΩ (after damp heat test IEC 68-2-30)
- Number of Electrical Contacts: 2 + PE
- Lifetime: > 5000 mating cycles
- Flammability: UL 94 V-0
- Protection Class: IP65, UL50E Enclosure Type 4 (Mated)
- Temperature Range: -22°F to 176°F
- Rating Europe: EN 60320-1: 16 A 250 V AC
- Rating USA: UL 498: 20 A 250 V AC
Warranty:
- 1 Year
