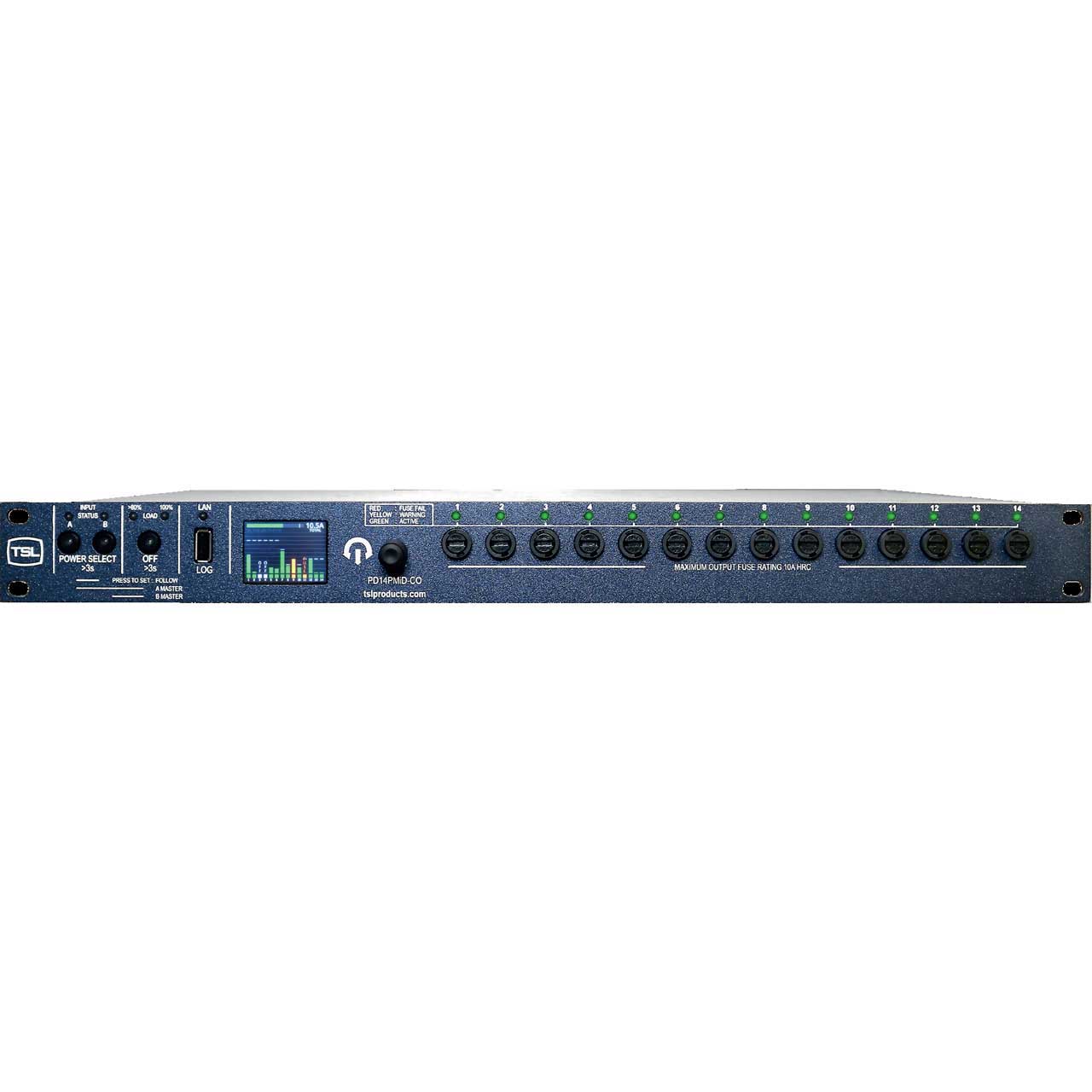

TSL Products PD14PM-iD 1RU 14x IEC C13 Power Distribution Manager with 1x powerCON 32A Input

ITEM #: TSL-PD14PM-ID32A MFG #: PDU14PMID-32A

Primary Image
Free Shipping with $49 Minimum Order


Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup


PDU14PMID-32A - Overview

Intelligent Power Management
Take control of your power with TSL's range of Power Distribution Units. Their intelligent units provide all the functionality you need to centrally control, manage and configure your rack based equipment. From multi-rack data centres, single rack installations, or both across multiple locations, the units deliver efficiency improvements by enabling the centralisation of engineering functions and early fault diagnosis.

The intelligent power distribution units offer a wide variety SNMP, email and SMS delivered alarms that act to minimise system downtime through the quick identification of problems. Additional functions also protect the downstream equipment during power up, for example, sequential start and programmable delayed start by outlet. With remote management, individual outlets can be switched off to isolate failed equipment and huge savings in energy costs can also be made by selectively turning off equipment when not required, for instance, dark studio periods.

With industry standard MIBs, the units support any DCIM monitoring software including TSL's own DCIM product Insite, offering comprehensive dashboards that deliver an intuitive view of the system status.

TSL's intelligent PDU's deliver exceptional savings in time and money through the ability to remotely manage, control and configure any infrastructure.

  • Features:

    • Secure/Encrypted web browser access (HTTPS)
    • Always-on front panel color LCD UI for monitoring and control
    • State control of each of the 14 individually fused outputs
    • Current, voltage and power factor measurement for each outlet
    • Input voltage & total current/power measurement
    • CLASS I (`billing grade') Measurement accuracy
    • Earth leakage current measurement
    • Sequential, immediate, or user configured delayed start up
    • Zero-crossing switching
    • Power loss/restore configuration (All-off/All-on/Last-state) Fast-configuration via USB, or front panel LCD
    • Data logging (Syslog or to USB)
    • SNMP monitoring & alarms (optional control)
    • Email and SMS alerts - Power input fail alarm
    • Internal temperature sensor with adjustable alarm limits
    • External environment monitoring (Temperature/Humidity via 1-wire connection)
    • Over/under current alarms (configured per outlet)
    • Fuse failure monitoring with front and rear panel LED indicators
    • Matching 20A or 32A Neutric powerCON connectors supplied

  • Specifications:

    • Inputs
    • Voltage: 110 / 240 V AC
    • Frequency: 60Hz / 50 Hz
    • Current Rating: 32A
    • Power InConnector(s): 1x Neutric powerCON 32A
    • Internal Fuse(s): 1x 32A (10x38mm hrc ceramic)
      Note: Units are expected to be protected from over-current condition by upstream circuit breaker. The internal fuses are not intended to be user replaceable.

      Outputs
    • Voltage & Frequency: As connected input when active (supply passthrough)
    • Power Out Connectors: 14x IEC Type F (C13)
    • Output Fusing: 10A 5x20mm hrc ceramic
    • Each outlet is individually fused - Front panel replaceable in bayonet holder.

      Other Connections
    • USB Data USB Type A connector: Used for writing logging and loading of firmware to/from USB storage device
    • Ethernet 10/100 Ethernet (RJ45 - Lower): network communications for WebUI, SNMP, etc.
    • Sensor Link Multi-purpose connector (RJ45-Upper): 1-Wire for External sensors, RS485 for unit-unit comms (multi-drop), 3x GPI Inputs

      Mechanical
    • Dimensions Width: 482.6mm (19.0") (main body width: 445.0mm)
    • Height: 44.4mm (1.8")
    • Depth: 364.0mm (14.3")
    • Weight: 5.51lb / 2.5kg (approx.)
    • Color: TSL Blue (custom)
    • Earth Bonding: M6 bonding stud on rear panel adjacent to inlet connector(s). M6 bonding stud on rear cable support arm (right side). All panels are bonded to primary ground point on chassis top panel (internal).

      Environmental
    • Operating Temperature: 0-45°C (ambient)
    • Humidity:0 - 95 % RH non-condensing

  • Item Includes:

    • 1x TSL Products PD14PM-iD 1RU 14x IEC C13 Power Distribution Manager with 1x powerCON 32A Input
