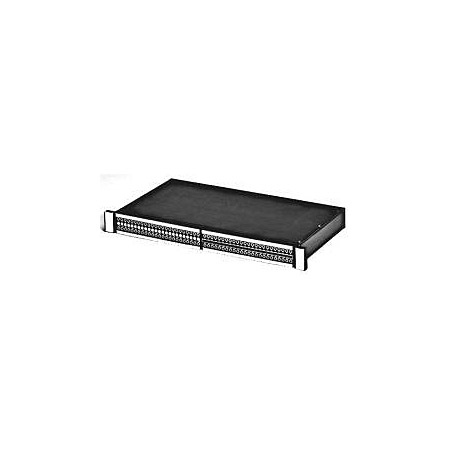

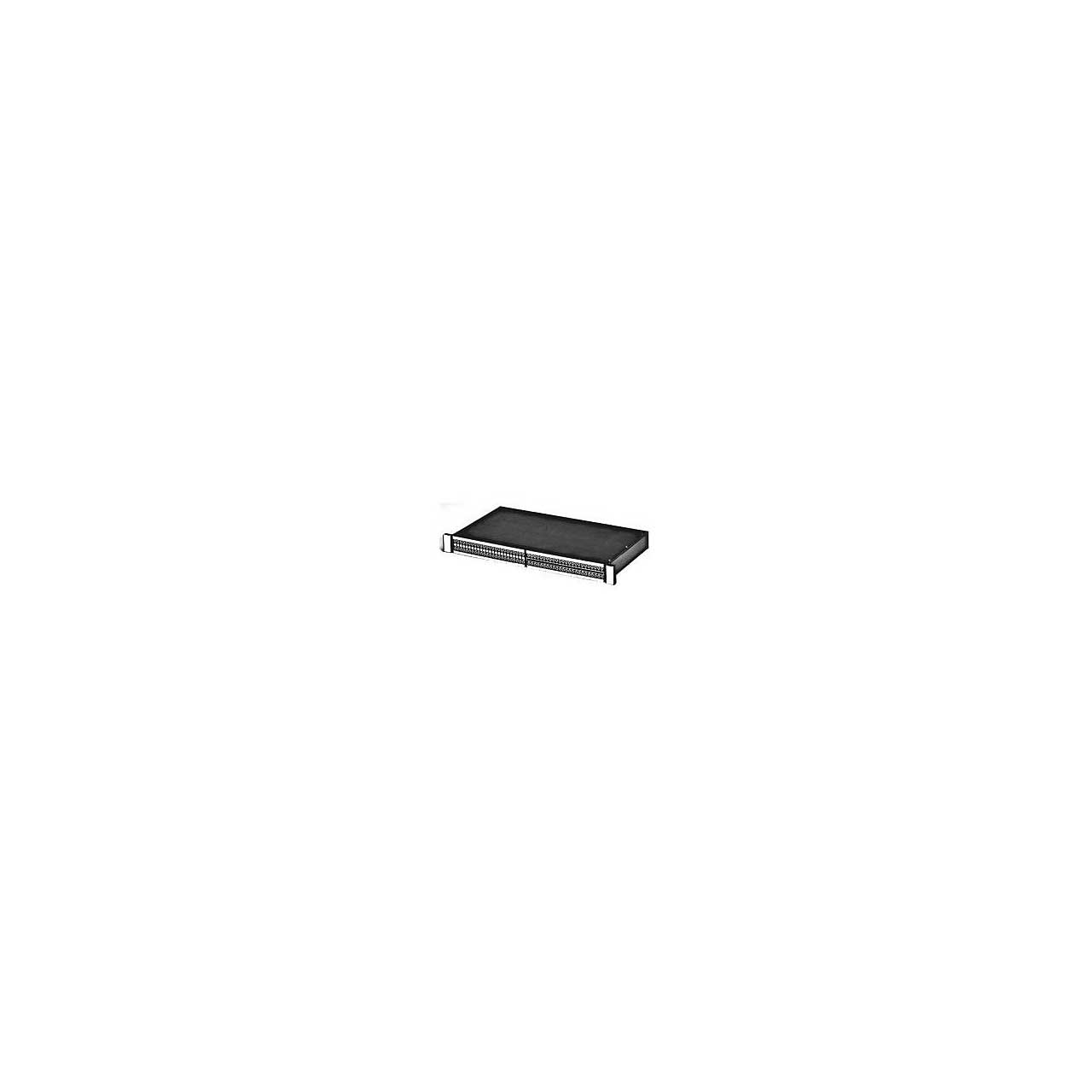

Switchcraft TTEZN10P3PIN 96 point EZ Norm with 3 pin EDAC on rear. 1RU

ITEM #: TTEZN10P3PIN MFG #: TTEZN10P3PIN

Primary Image
Free Shipping with $49 Minimum Order

List Price:

$2,141.00

Our Price:

$2,038.89

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.


TTEZN10P3PIN - Overview

The EZ Norm offers a simplified method for setting up and changing normals to a Bantam/TT patchbay. Simply remove the middle designation strip and rotate the center cam using a standard screwdriver. An audible "click" can be heard as you rotate from full normalled to no normalling to half normalled. An opaque marking strip is included to conceal the normal position, if needed.

  • Features:

    • Compact size - 96 jacks in 1U panel
    • On the fly normalling provides excellent flexibility
    • Short installation times with 40% frwer wires to solder
    • No normalling wires to prepare (all normalling done internally within the jack modules)
    • Ideal for fixed or mobile installations
    • Manufacturer's Lifetime Guarantee

  • Specifications:

    • Mechanical life: 30,000 cycles
    • Insertion / Withdrawal forces: 0.5 - 1.8 Kgs
    • Jack contact resistance: 30 milliohms maximum
    • Insulation resistance: 10k Megaohms
    • Dielectric withstand voltages: 500VAC (rms)
    • Insertion loss: better than -0.5dB up to 10Mhz
    • Contacts and switching spring material: Silver plated copper alloy
    • Welded switch contacts: Gold
    • Operating temperature; -40°C to +65°C
