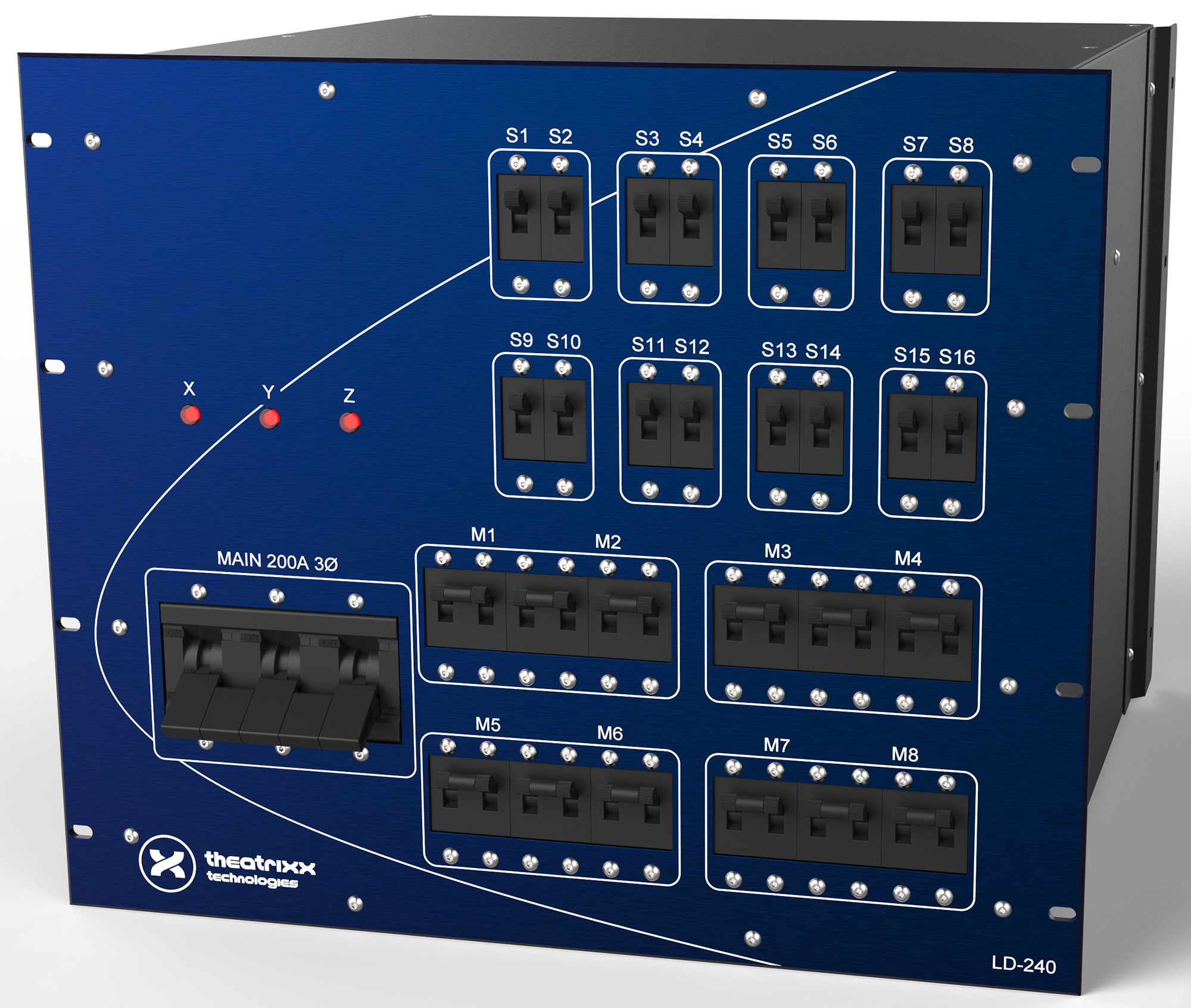

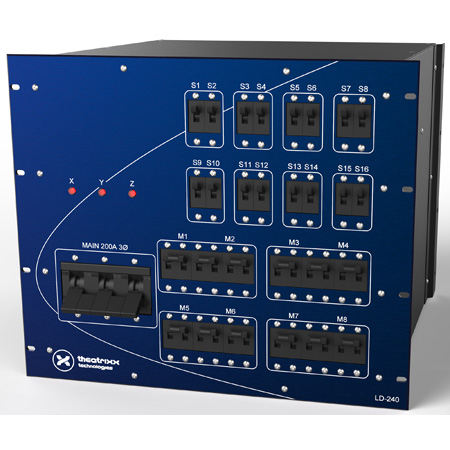

Built to withstand the daily hazards of touring, the LD-232-C Theatrixx electrical distribution system features an impressive amount of options for such a compact format (nine rackmount units). The front panel is cut from a thick 3/16" aluminum sheet and is fixed to a robust steel chassis with rear support. All breakers can be installed behind the front plate with a spacer ensuring their protection by being recessed (optional).

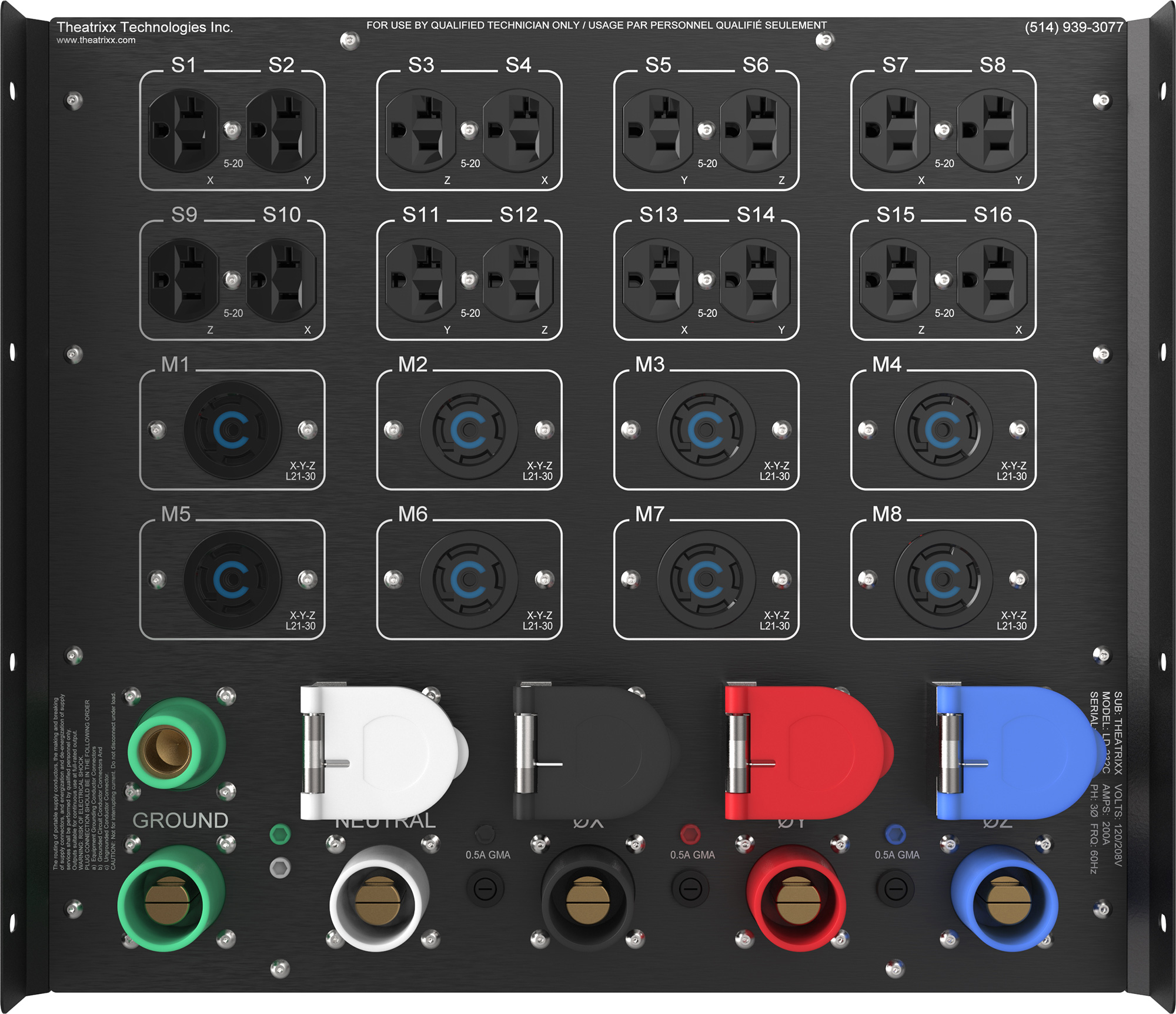

This power distribution system comes with a three phases 200A main circuit breaker on Camlock connectors input and a direct output rated up to 400A. The electricity is distributed on 24 circuits available on eight Edison duplexes (20A 125V) and eight L21-30 (TL5 30A 120/208V 3 phases) receptacles. Panel mounted test terminals with neon indicators allow quick and easy voltage checks.
This type of power distribution is designed for audio and stage power. All products are CSA (22,2 No 14) and UL (1640) certified.
All Theatrixx power and signal distribution products are configurable and can be customized to meet your project's specific needs. Please contact [email protected] for details.
