Theatrixx XVVHDMI2HDBTT1 xVision Converter - HDMI1.4 to HDBaseT1.0 - PowerCON True1 In/Thru

ITEM #: TTX-XVVHDMI2HDTT MFG #: XVVHDMI2HDBTT1

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

Our Price:

$699.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


XVVHDMI2HDBTT1 - Overview

Professional equipment in mission-critical applications is all about reliability and confidence. So Theatrixx started with a clean sheet, and built what might soon become your most trustworthy piece of equipment.

Introducing Theatrixx XVVHDMI2HDBTT1 the world's first video converters truly designed for the road. Video converters nowadays are used everywhere on profesionnal A/V events, presentations, live shows and tours and often have a critical role.

Yet, they are often the weakest link in the signal chain. Low quality connectors, weak enclosure, external consumer-grade power supply, and overall barebones design that all contribute to a generally unreliable piece of equipment. They wanted to change that, so they designed the xVision Video Converters.

  • Features:

    • Integrated power supply with locking PowerCON True 1 Connector. Never rely on a cluster of wall-warts again.
    • Built-in convenience outlet to power nearby monitor, flat-screen, laptop, video projector or any device up to 10 amps. Power bar to connect both converter and device not required anymore.

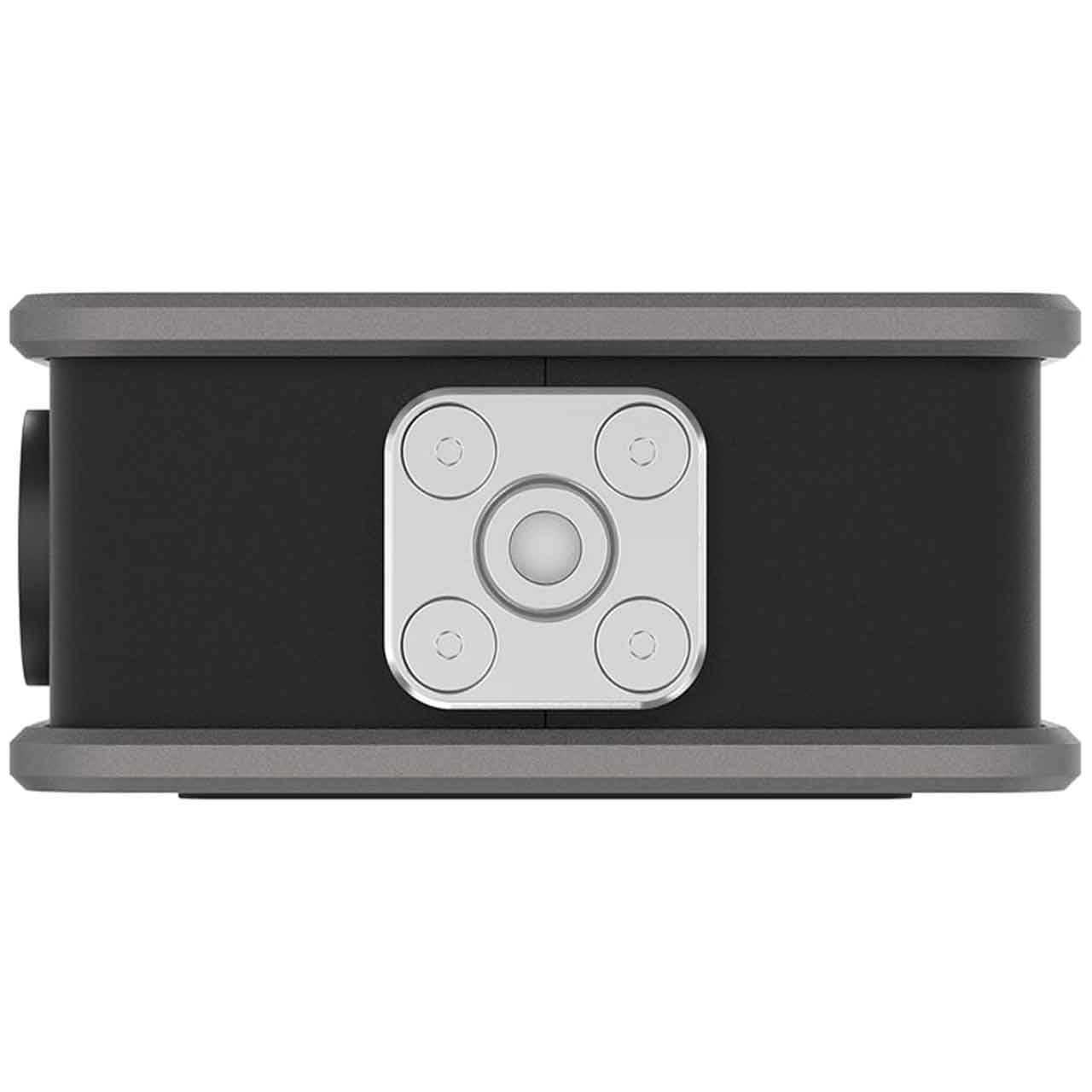

    • Magnetic stacking system and non-skid rubber pad for table top application. Saves at least 10 gaffer tape rolls a year.
    • Multiple mounting options: C-Clamp, wall-mount adapter, LCD mount adapter and belt adaptor.
    • Rugged, Tour-ready and aesthetic enclosure: The sexiest widget in your tool box, that will keep looking good for years to come.
    • Plug-n-play operation; No dipswitches, buttons or menus to fumble with : It just works.
    • Clear and ample status LED indicators for quick troubleshooting.
    • Easy on-the-field identification with unique color and alphabetic coding system.
    • Locking HDMI & EtherCON ports prevent accidental disconnection.
    • Fully compliant with HDBaseT 1.0 devices.
    • Transmits 4K30P signals over up to 100 meters of CAT6 cable with HDCP support.
    • Built-in Ethernet channel for projector control, LAN extension and more.
    • Proudly designed and assembled in Canada.

  • Specifications:

    • Connections
    • Video Input: 1 x HDMI 1.4 type A with locking system
    • Ethernet Port: 1 x 1 Gbps Ethernet on Neutrik EtherCON
    • Video Output: 1 x HDBaseT 1.0 on shielded EtherCON connector
    • Recommended cable: UTP CAT6a with EtherCON connectors

      Supported Signals
    • Video Format Support: HDMI 1.4
    • HDCP Support: HDCP 1.4
    • Ethernet Support: 100 Mpbs

      Physical Specifications
    • Height: 2.09 in
    • Depth: 7.08 in
    • Width: 4.21 in
    • Weight: 2.2 lbs

      Environnemental Specifications
    • Relative Humidity: 0% to 90% non-condensing
    • Operating Temperature: 0-40 °C

      Power Requirements
    • Power Supply: Built-in power supply, PowerCON True1 input, PowerCON True1 output (loop-thru)
    • Power Consumption: 15W
    • Voltage Range: 100-240V, 50-60Hz (100-120V, 50-60Hz available with PowerCON/Edison Nema 5-15)
    • Courtesy Outlet: Max 10A, same voltage as input

  • Item Includes:

    • 1x xVision Converter HDMI to HDBaseT True1
    • 1x Locking HDMI male to DVI male cable (1m)
    • 1x AC Mains PowerCON True1 cable (1.5m, specify plug type at ordering)
