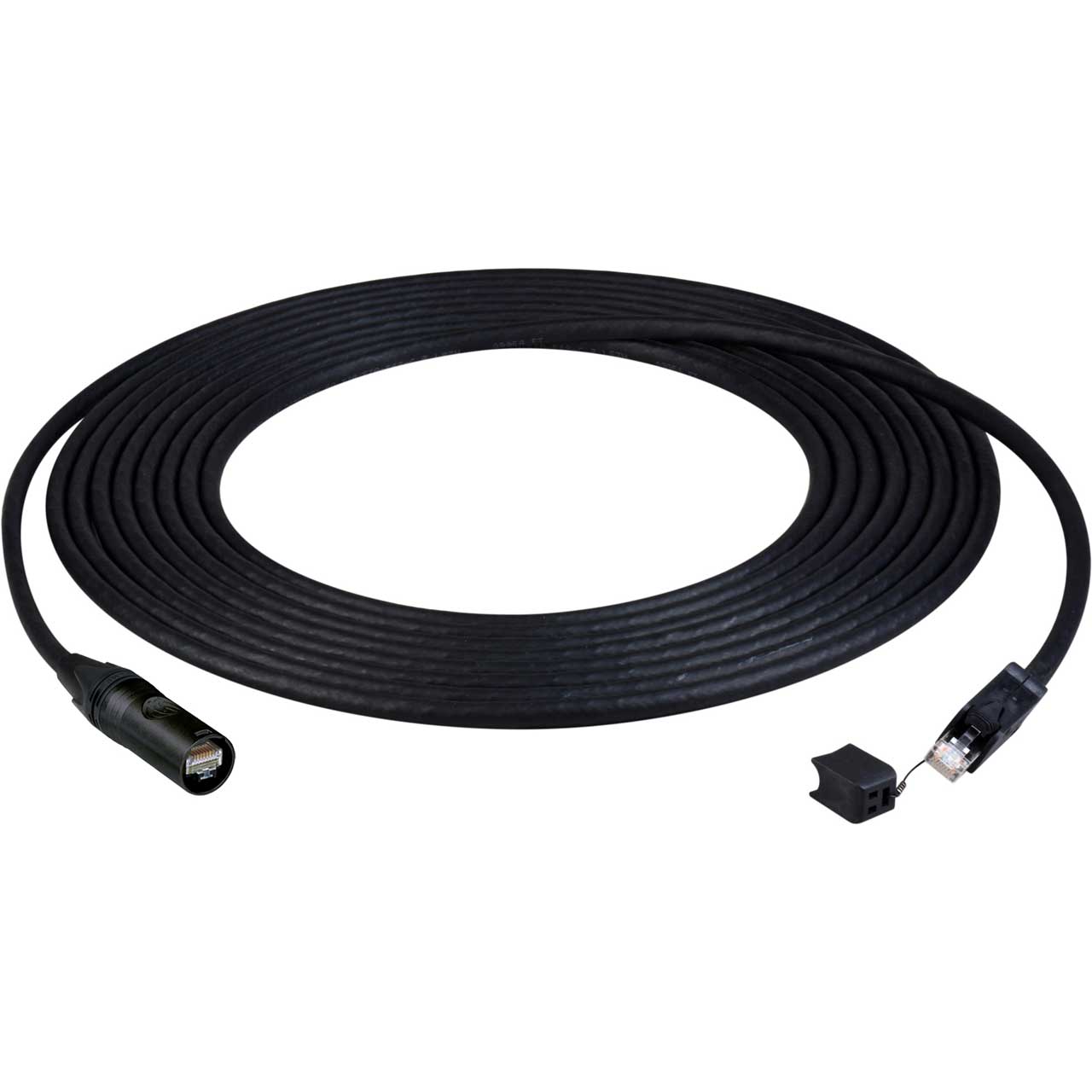

Laird Super Tough Shielded Cat6A Cable with etherCON RJ45 to ProShell RJ45 Locking Connectors - 5 Foot

ITEM #: TUFFCAT6A-EP-005 MFG #: TUFFCAT6A-EP-005

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$77.95

Our Price:

$70.49

Availability: 2+ Weeks.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


TUFFCAT6A-EP-005 - Overview

Laird, the leader in rugged 10G Ethernet RJ45 cables for 4K UHD transmission, introduces the TUFFCAT6A-EP series featuring studio & field tough Neutrik etherCON CAT6A RJ45 connectors and hostile environment tactical application cable. The cable plug carrier delivers a robust metal shell, proven Neutrik chuck-type strain relief and a CAT6A compliant RJ45 plug. The tactical cable is a shielded, extra-flexible and rugged Category 6A cable for networking and data applications constructed from four precision twisted-pairs that is tested to exceed TIA-568-C.2 specifications in 10G Cat6A applications. These cables are ideal for on location 10G Ethernet routing for both Internet service as well as video, audio and control transmission in 4K UHD productions. They are also a great fit for video over CAT6 extension systems, video over IP in location shooting or long run PTZ camera applications.

  • Features:

    • Ruggedized Cable and Connectors Designed for Repeated Connections
    • Extra-Flexible CAT6A Tactical Cable
    • RJ45 Strain Relief
    • Ergonomic Design for Easy Handling
    • Integral Latch Protection and Optimal Protective Caps
    • Intermateable with Existing etherCON CAT5

  • Specifications:

    • Tactical Category 6A Data Cable
    • 4 Twisted Pair 24AWG 7/32 Stranded Tinned Copper
    • Impedance: 100 Ω/ (+/- 15) 1 - 100MHz, 100Ω/ (+/- 25) 251 - 500MHz
    • Capacitance: 13.5 PF/FT@1MHz
    • DC Resistance: 14.0 Ω
    • Insulation: HDPE Shield: 75% TC Braid, 100% Foil UL Approved for Sunlight Resistant & Direct Burial
    • Meets IEEE 1202 Flame Test
    • Max Voltage Rating 300V TIA-568-C.2 Category 6 AND 6a
    • Applications Cable is suitable for use in Class I Division II Hazardous Locations
    • Platinum Tools RJ45 Connectors
    • UL and RoHS Compliant RJ45 Cat6A/10Gig Shielded Connector

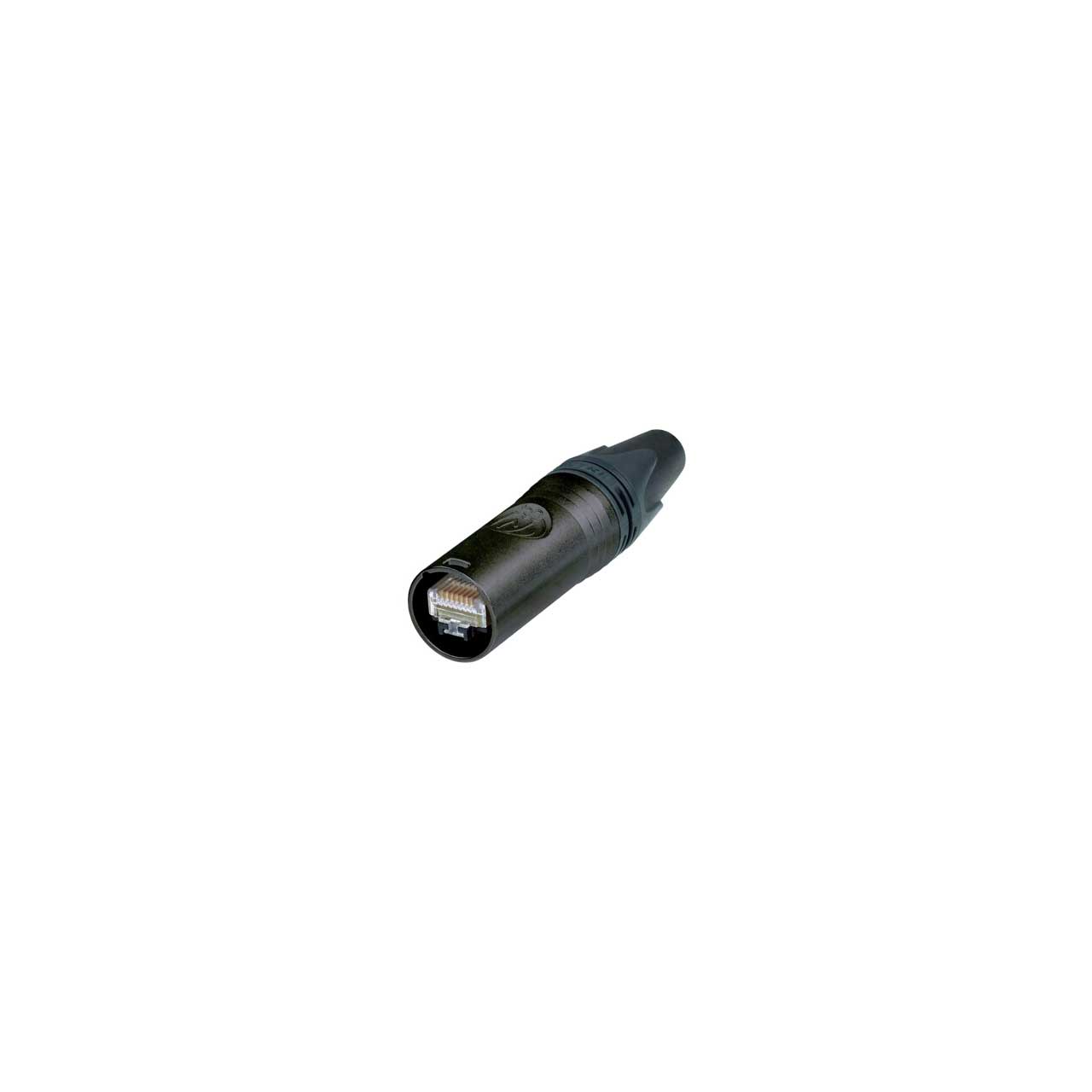

    • Neutrik NE8MC etherCON RJ45 Connector Carrier
    • Rated for 1000 Mating Cycles
    • Unique Chuck-type Strain Relief Diecast Shell

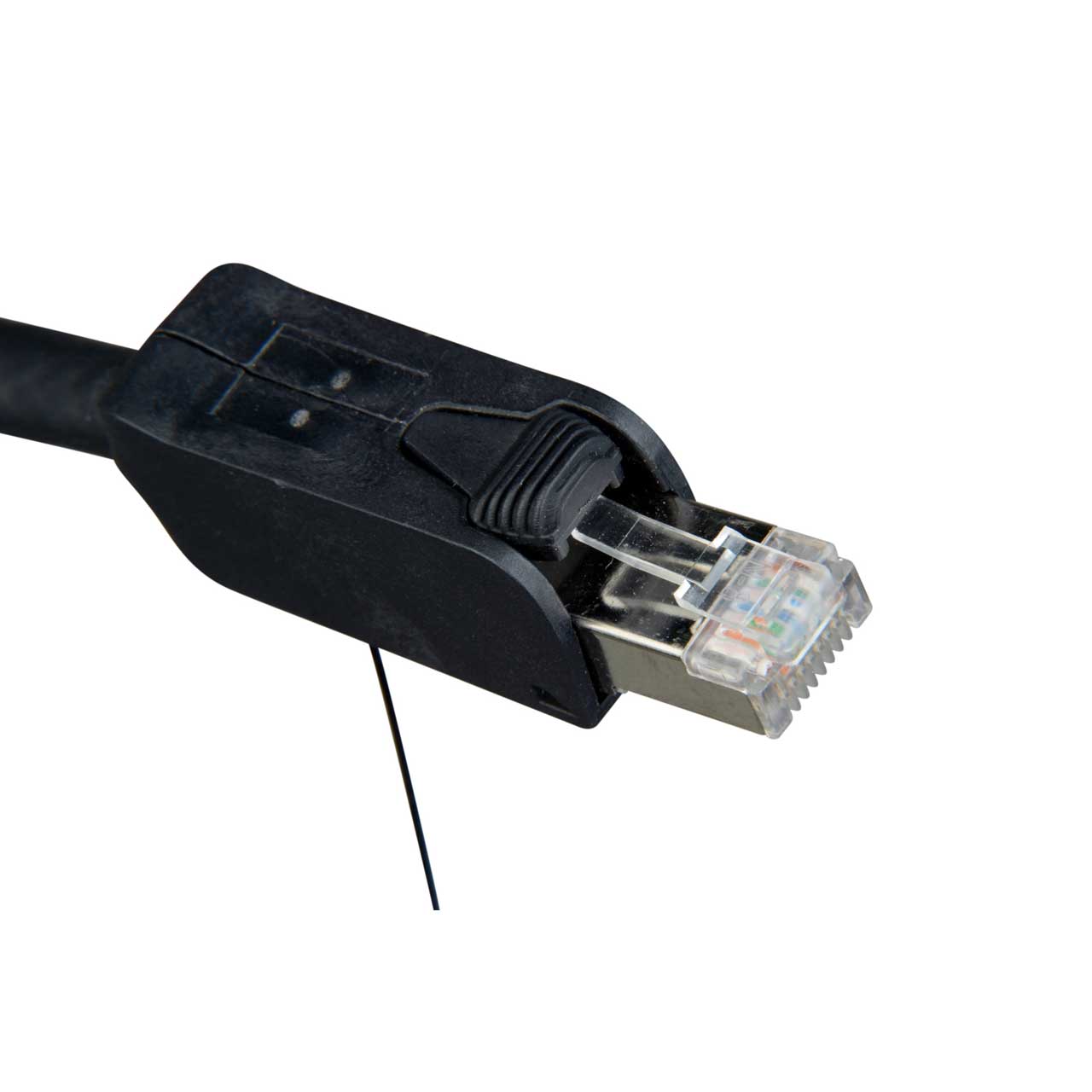

    • ProShell RJ45 Back shell
    • Ergonomic Design for Easy Handling
    • Includes Protective Cap
    • NOTE: Does not intermate with the CAT6 chassis connectors NE8FDY-C6 and NE8FDY-C6-B

  • Warranty:

    • 1 Year
