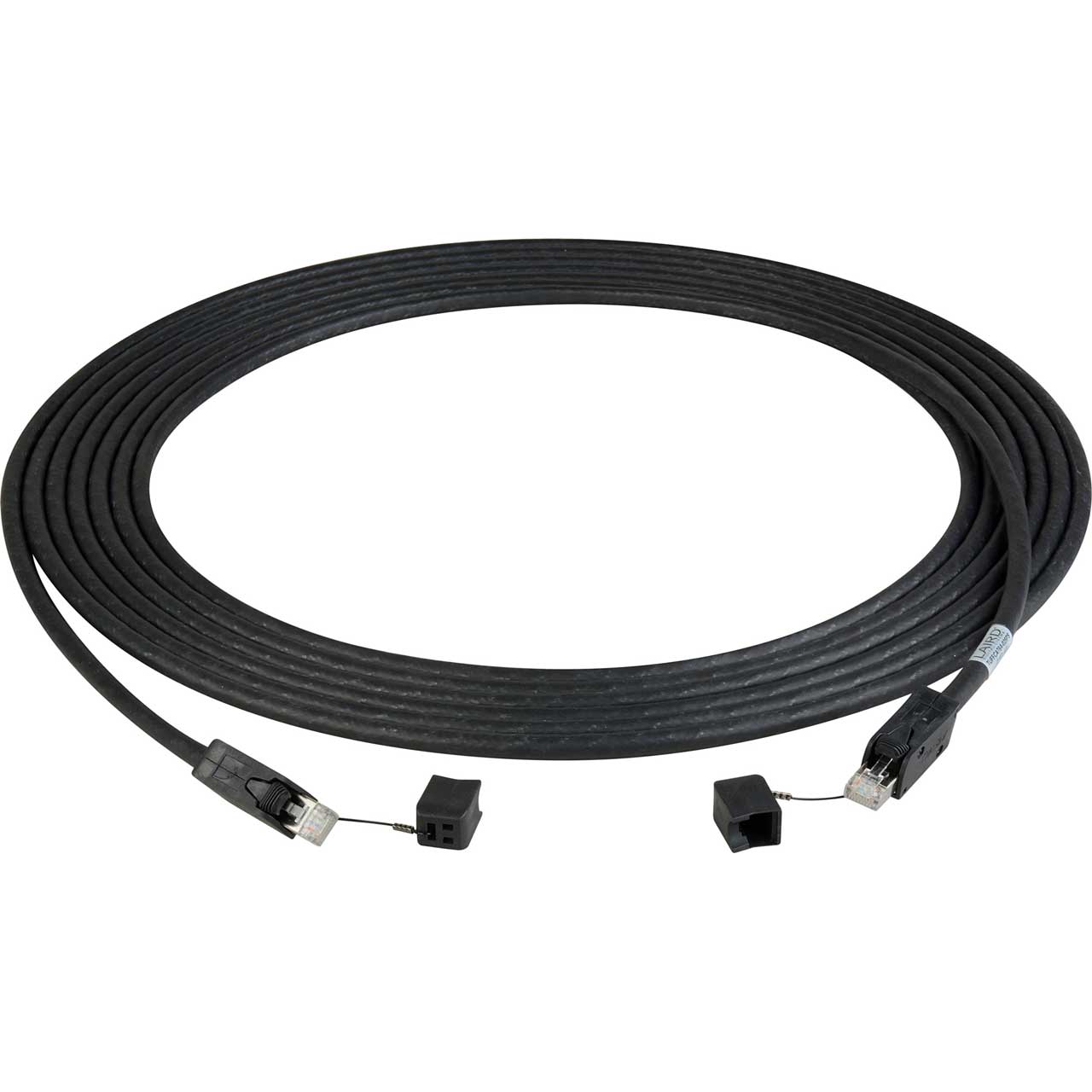

Laird Super Tough Shielded Cat6A Cable with ProShell for Long Life Field Deployment - 5 Foot

ITEM #: TUFFCAT6A-005PS MFG #: TUFFCAT6A-005PS

Primary Image
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$65.95

Our Price:

$59.49

Availability: 2+ Weeks.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


TUFFCAT6A-005PS - Overview

The Laird TUFFCAT-6A series provides 10G Ethernet RJ45 cable performance with a field and studio ruggedness you won't find anywhere else. The Laird TUFFCAT-6A features ProShell heavy-duty road-ready RJ45 connections, a patented strain relief, integral latch protection and protective dust cap to ensure contacts stay clean and dry when not in use. Cables employ a tactical Category 6A SF/UTP network cable with a TPE jacket to stand up in extreme temperatures yet still provide a flexibility and performance level in HDBase-T and UHD-4K video applications. Both the cable, with its ruggedized foil and braid shield, and the shielded RJ45 connector deliver reduced pair-to-pair crosstalk, alien crosstalk, and considerably improved immunity to noise at all frequencies.

  • Features:

    • Ruggedized Cable and Connectors Designed for Repeated Connections
    • Extra-Flexible CAT6A Tactical Cable
    • RJ45 Strain Relief
    • Ergonomic Design for Easy Handling
    • Integral Latch Protection and Optimal Protective Caps
    • Protection Will Not Block Adjacent Ports

  • Specifications:

    • Tactical Category 6A Data Cable
    • 4 Twisted Pair 24AWG 7/32 Stranded Tinned Copper
    • Impedance: 100 Ω/ (+/- 15) 1 - 100MHz, 100Ω/ (+/- 25) 251 - 500MHz
    • Capacitance: 13.5 PF/FT@1MHz
    • DC Resistance: 14.0 Ω
    • Insulation: HDPE Shield: 75% TC Braid, 100% Foil UL Approved for Sunlight Resistant & Direct Burial
    • Meets IEEE 1202 Flame Test
    • Max Voltage Rating 300V TIA-568-C.2 Category 6 AND 6a
    • Applications Cable is suitable for use in Class I Division II Hazardous Locations
    • Platinum Tools RJ45 Connectors
    • UL and RoHS Compliant RJ45 Cat6A/10Gig Shielded Connector
    • Gold Contacts
    • ProShell Protective Caps

  • Warranty:

    • 1 Year
