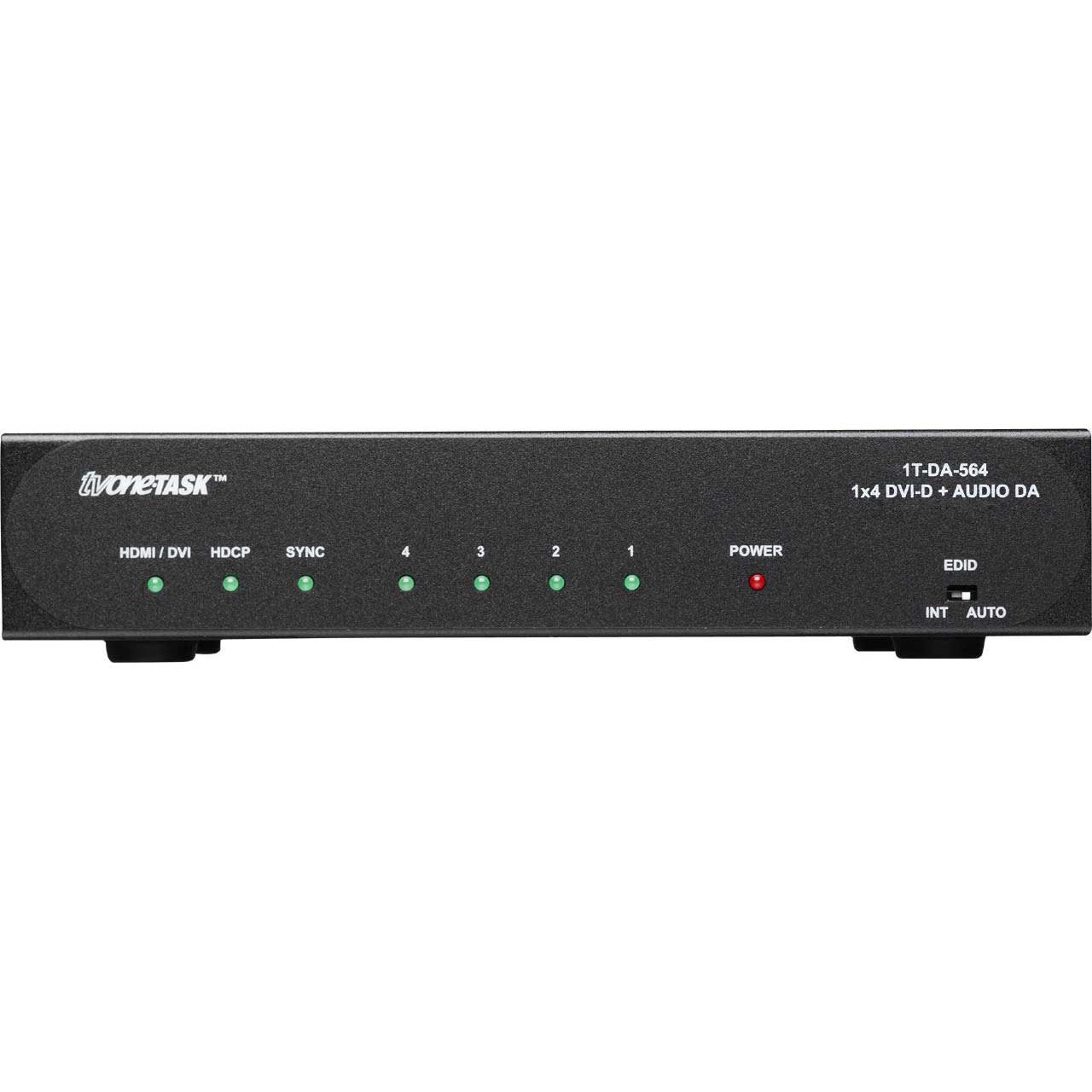

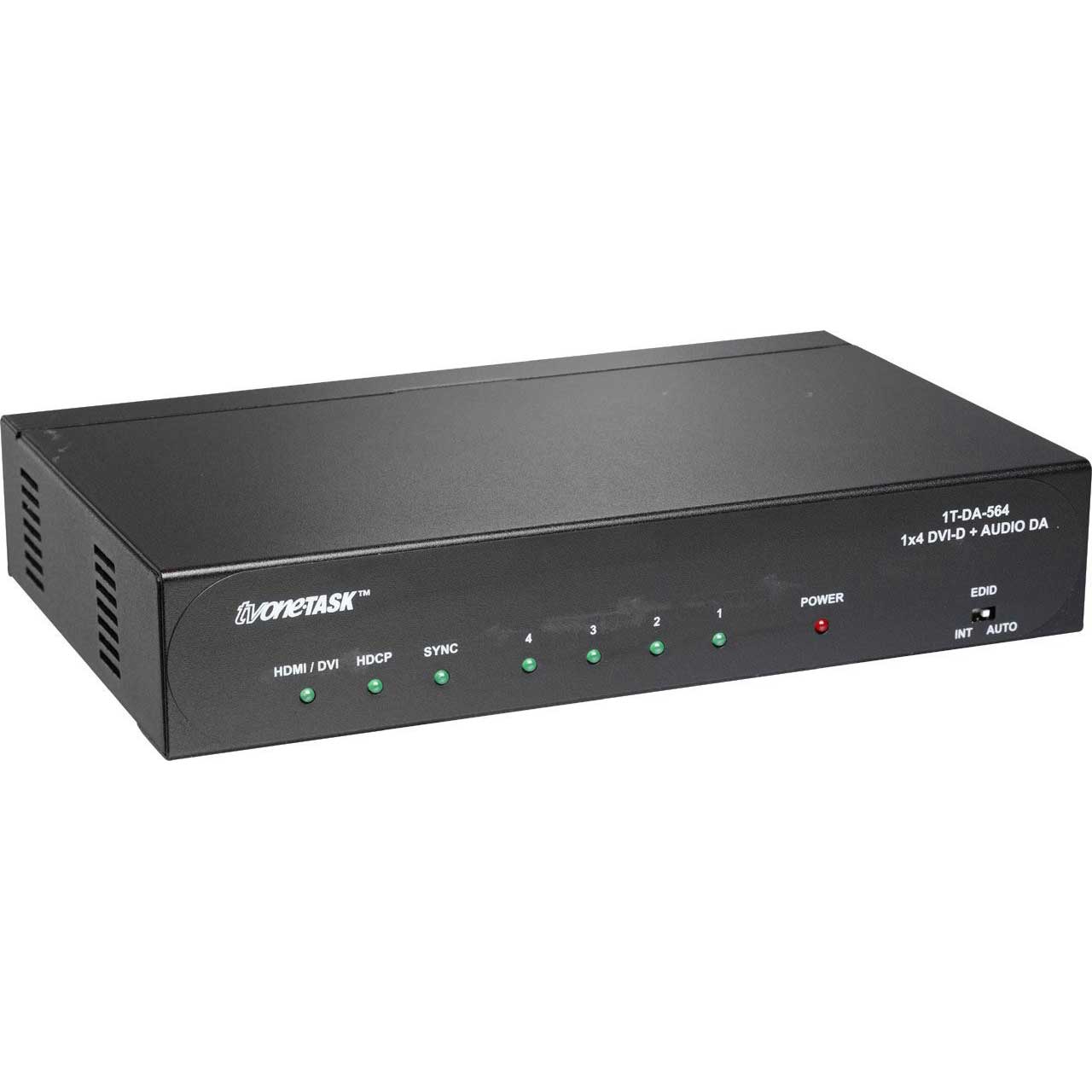

tvONE 1T-DA-564 1x4 DVI-D Distribution Amplifier (SPDIF Audio)

ITEM #: TV1-1TDA564 MFG #: 1T-DA-564

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
tvONE
Free Shipping with $49 Minimum Order

Our Price:

$630.00

Add to Wish ListLeasing Options
Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

1T-DA-564 - Overview

1T-DA-552, 1T-DA-554, 1T-DA-564 DVI-D DistributionAmplifiers provide multiple outputs from a single DVIinput for distribution to devices capable of receivingand/or displaying such signals. The 1T-DA-552 provides2x DVI outputs and the 1T-DA-554 provides 4x DVIoutputs. The 1T-DA-564 provides 4x DVI outputs plus 4xAnalog Stereo and 4x S/PDIF Coaxial Audio outputs.Each product in this series is compliant with HDMI v1.3specifications and provides a cutting-age technology thatsupports Deep Color (10-bit and12-bit) video plus new,lossless Dolby TrueHD, Dolby Digital + and DTS-HDMaster Audio digital audio. In addition, all devices exhibithigh bandwidth (up to 225MHz - 2.25Gbps) and providesignal amplification and equalization for highperformance processing of audio and video allowing thesignals to travel great distances without quality loss. A front panel switch allows the EDID reference to beselected from either a connected display on a prioritybasis or from an internal resolution look-up table. All DAscan also be cascaded for expanded functionality and allDVI Distribution Amplifiers can function as HDMIDistribution Amplifiers using cable adapters. An optionalRack Mounting kit provides for mounting either one ortwo DVI DAs in a 19" Rack.

  • Features:

    • Multiple DVI Outputs from a single source DVI-D 1.0, HDMI 1.3 and HDCP 1.1 Compliant Distribution of 2 or 4 Outputs. (1T-DA-552/554) 1x4 Stereo & 1x4 S/PDIF Audio (1T-DA-564) Dolby Digital+, Dolbyr Digital TrueHD & DTS-HD 10/12 bit Color Depth Display PC & HDTV resolutions - Up to 1920x1200, 1080p Supports HDMI with Optional DVI to HDMI Adaptors Signal Equalization feature for longer cable runs Supports Automatic Discovery of Monitor EDID Locking DC Connectors for security Optional Rackmount Kits


  • Specifications:

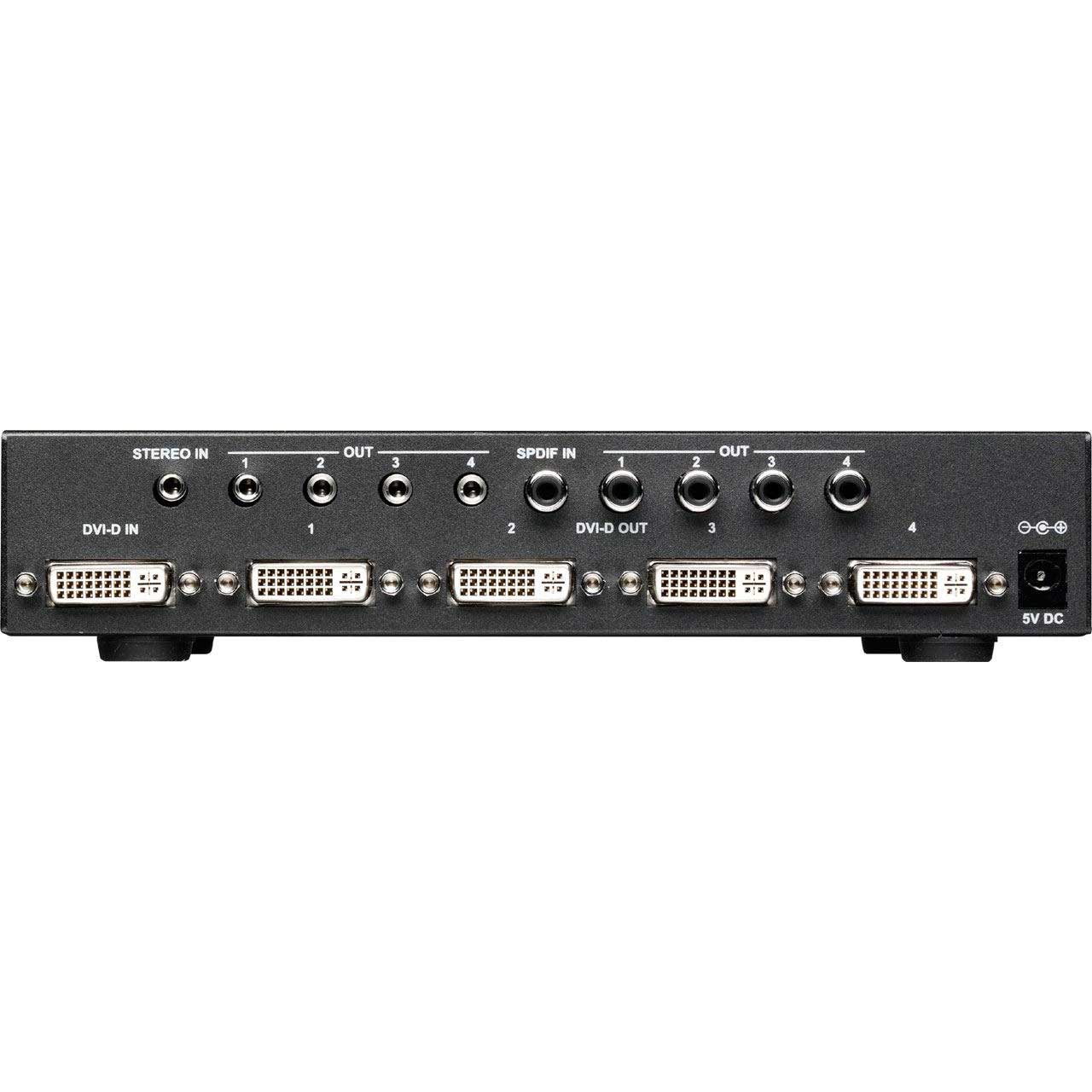

    • Video Inputs (All Models) 1x DVI-D via DVI-I Connector Video Output 1T-DA-552 2x DVI-D via DVI-I Connectors 1T-DA-554 & 564 4x DVI-D via DVI-I Connectors Audio Input/Outputs (1T-DA-564 Only) Format Analog Stereo and S/PDIF Analog Stereo In 1x via Stereo 3.5mm Mini Stereo Analog Stereo Out 4x via Stereo 3.5mm Mini Stereo S/PDIF In 1x Via RCA Coaxial S/PDIF Out 4x Via RCA Coaxial Audio Bandwidth 20Hz to 20 KHz Audio Impedance 20K Ohm Stereo, 75 Ohm S/PDIF Audio Levels Unity, Nominal, S/PDIF .5-1V p-p General Freq. Bandwidth 2.25Gbps (HDMI Single Link) Color Depth 10/12 bit Color Depth Display PC/DVI resolutions Up to 1920x1200 HDTV Formats 480p, 576p, 720p, 1080i, 1080p SDTV Formats 480i, 576i Compliance DVI 1.0, HDMI V1.3, HDCP V1.1 Signal Equalization Internal Maximum Distances Source to DA 20 meters (60') for 1080p/8-bit 15 meters (45') for 1080p/12-bit DA to Display 15 meters (45') for 1080p/8-bit 10 meters (30') for 1080p/12-bit EDID Processing Discovery Method Automatic or Internal Reference Warranty Limited Warranty 2 Years Parts and Labor Mechanical Size (H-W-D) 41.5x218x147mm (1.6x8.6x5.8") Weight (Net) 0.85kg (1.88lbs) Environmental Operating Temperature 0° to +50°C (+32° to +122°F) Operating Humidity 10% to 90%, Non-condensing Storage Temp. 0° to +50°C (+32° to +122°F) Storage Humidity 10% to 90%, Non-condensing Power Requirement Ext. Power Supply 5VDC@2A Regulatory Approvals DVI DAs FCC, CE, RoHS Power Supply UL, CUL, CE, PSE, GS, RoHS Accessories Included 1x AC Power Adapter US, UK or Euro 1x Instruction Manual Optional Accessories RM-220 Single/Dual Rackmount Kit Product Item Numbers 1T-DA-552 1x2 DVI DA 1T-DA-554 1x4 DVI DA 1T-DA-564 1x4 DVI DA with Audio
