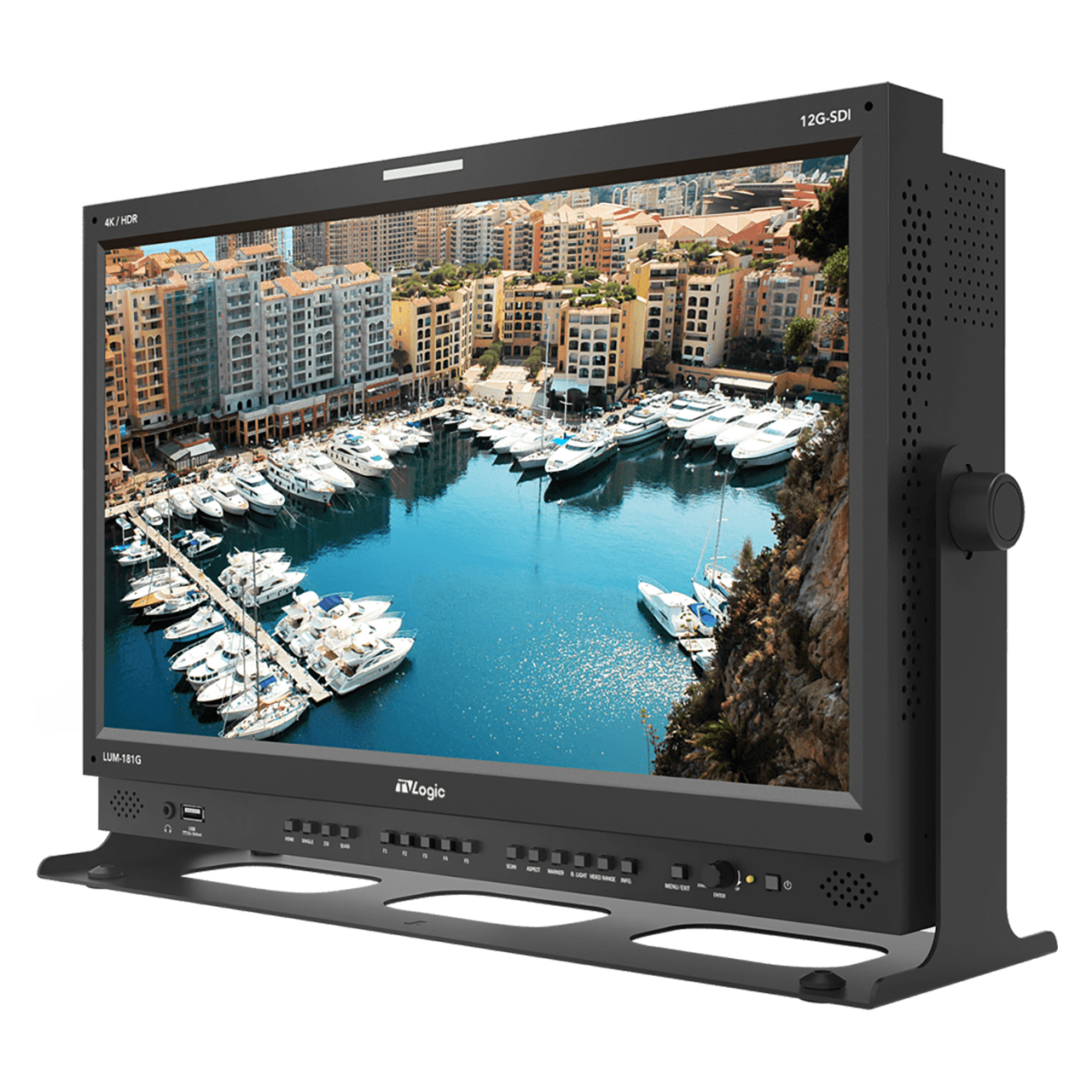

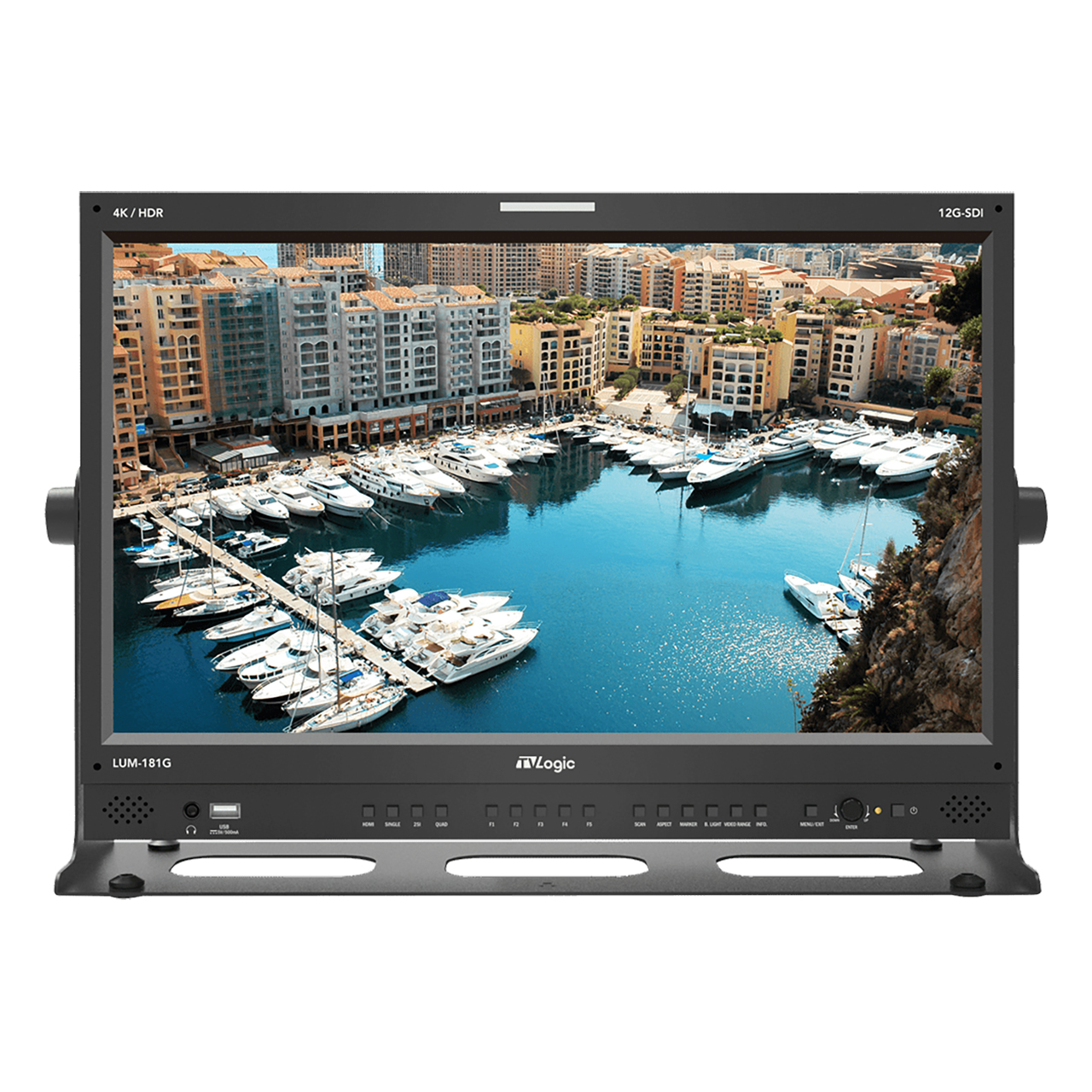

TVLogic LUM-181G 4K/UHD Input Ready HDR LCD Monitor - 18.5 Inch - 1920 x 1080 Native Resolution

Name: TVLogic LUM-181G 4K/UHD Input Ready HDR LCD Monitor - 18.5 Inch - 1920 x 1080 Native Resolution
Brand: TVLogic
SKU: TVL-LUM-181G
Price: 3766.50 USD
Availability: PreSale

ITEM #: TVL-LUM-181G MFG #: LUM-181G

TVLogic

List Price:

$4,185.00

Our Price:

$3,766.50

Add to Wish List Leasing Options

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info

Special Order Item: non-cancelable, non-returnable, non-refundable.

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

LUM-181G - Overview

The TVLogic LUM-181G monitor supports 3G/6G/12G-SDI input with a native LCD 1920x1080 resolution with SD/HD/UHD/4K input support,. This monitor can be anywhere, including field production applications. THe LUM-181G provides High Dynamic Range mode which allows for monitoring black and highlights on the screen at the same time. The pre-set values for each parameter of your choice (HD, UHD, DCI-P3, PQ, Dolby-PQ) are automatically applied to display the image in the optimum quality. EETF (Electrical-Electrical Transfer Function) fuction provides a toe and knee to gracefully roll off the highlights and shadows, providing a balance between preserving artistic intent and maintaining details.

Features:
- HDR monitoring for blacks and highlights
- Supports PQ, HLG, HDR, EOTF gamma
- Optimum color settings for each parameter of your choice
- Lume(Y') zone check function
- User controlled adjustment of aspect ratio (width and height)
- EETF gracefully rolls off highlights and shadows to preserve artistic intent
- Precise color reproduction with wide color gamut
- Waveform and vector scope
- 12G-SDI single link 4K/UHD
- 3G-SDI quad-link square division & 2-S.I. 4K/UHD
- Waveform/Vectorscope
- 16ch audio level meter
- Focus assist
- Marker
- Timecode display
- UMD display
- Blue/Mono only
- Range error indicator
- Closed Caption (CC-608, CC-708)
- H/V delay (480i)
- Tally indicator
Specifications:
- Size: 18.5"
- Resolution: 1920x1080 (16:9)
- Pixel Pitch (HxV): 0.213mm x 0.213mm
- Color Depth: 16.7M Colors (True 8 Bit)
- Viewing Angle (HxV): 178°/178°
- Luminance of White: 500cd/m2
- Contrast Ratio: 1000:1
- Display Area (HxV): 408.96mm x 230.04mm

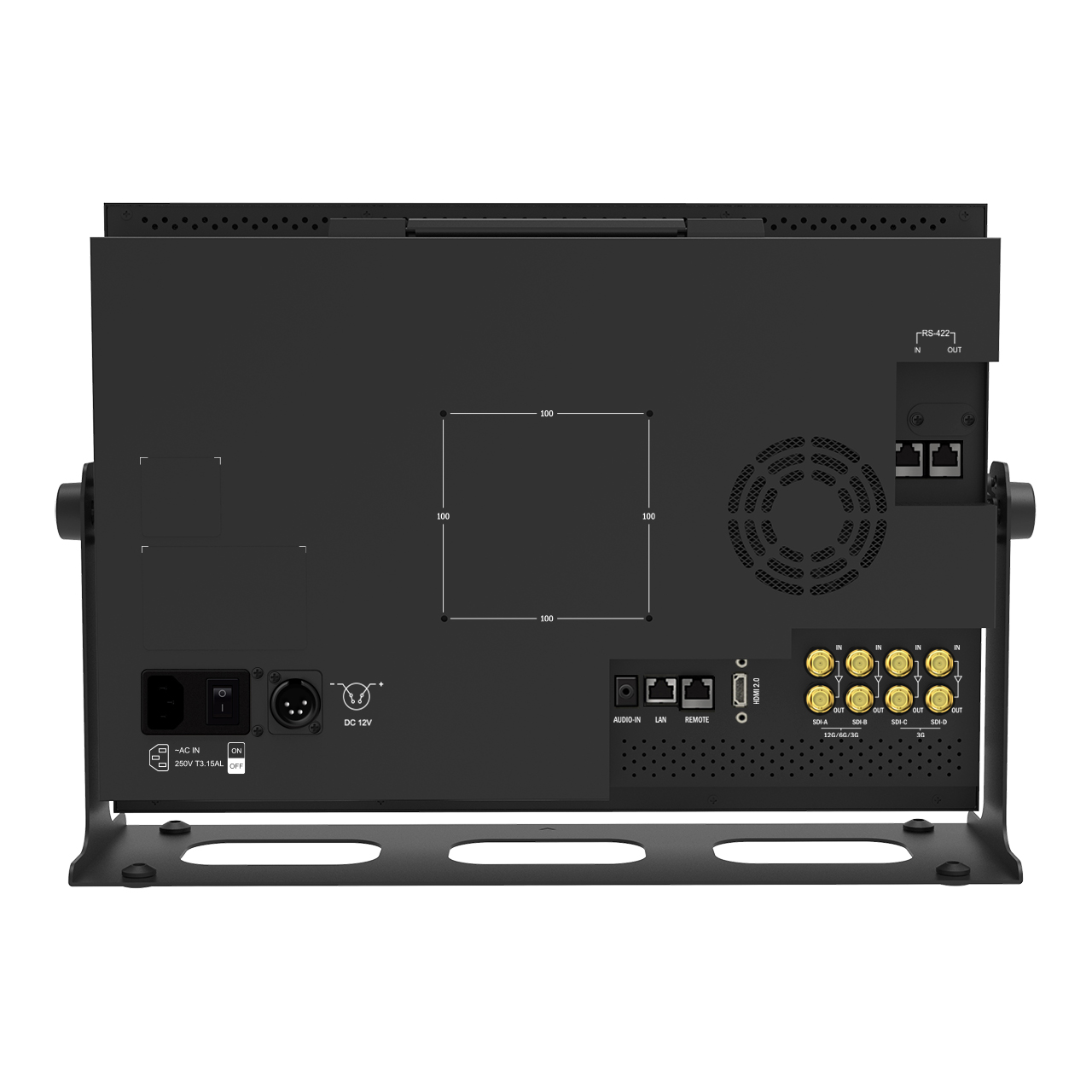

  Input/Output
- 4x BNC 12G/6G/3G/HD-SDI A/B, 3G/HD-SDI C/D Channel Input
- 1x HDMI HDMI Input
- 4x BNC 12G/6G/3G/HD-SDI A/B, 3G/HD-SDI C/D Channel (Active Through Out)
  Input Signal
- 12G-SDI: 12Gb/s
- 6G-SDI: 6Gb/s
- 3G-SDI: 2.970Gb/s
- HD-SDI: 1.485Gb/s
- HDMI: 480p/720p/1080p/2160p
  SDI Input Signal Formats
- SMPTE ST 2082: 3840x2160 (60/50/30/25/24p)
- SMPTE ST 2081: 3840x2160 (30/25/24p)
- SMPTE ST 2036-1:2009: 3840x2160(23.98/24/25/29.97/30/50/59.94/60p)
- SMPTE-425M-A/B: 1080p(60/59.94/50/30/29.97/25/24/23.98/30sF/29.97sF/25sF/24sF/23.98sF)
- SMPTE-425M-A/B: 1080i(60/59.94/50)
- SMPTE-274M: 1080i (60/59.94/50)
- SMPTE-274M: 1080p (30/29.97/25/24/24sF/23.98/23.98sF)
- SMPTE-296M: 720p (60/59.94/50)
- SMPTE-260M: 1035i (60/59.94)
- SMPTE-125M: 480i (59.94)
- ITU-R BT.656: 576i (50)
- SMPTE ST 2048-2:2011: 2048x1080(23,98/24/25/29.97/30p/psf, 47.95/48/50/59.94/60p)
  Remote Control & Update
- 1x LAN RJ-45 Input, Control by TVLogic Protocol
- 1x REMOTE RJ-45 Input, GPI Control
- 2x RS-422 RJ-45 Input & Output, Control by TVLogic Protocol
- 1x USB USB A type, Firmware Upgrade
  Audio
- Audio In:
  - Embedded Audio
  - Analog Stereo (Phone Jack)
- Audio Out:
  - Internal Speaker (Stereo)
  - Analog Stereo (Phone Jack)
  Power:
- Power: DC 12V/24V, AC100/240V(50/60Hz)
- Power Consumption (Approx.): TBD
  Enviornmental
- Operating Temperature: 32°F~95°F (0°C~35°C)
- Storage Temperature: -4°F~140°F (-20°C~60°C)
  Weight and Dimensions
- Main Body (WxHxD): 17.42" x 12.16" x 3.30" (442.5mm x 309.0mm x 84.0mm)
- With Stand (WxHxD): 19.26" x 13.10" x 5.41" (489.3mm x 332.8mm x 137.5mm)
- Shipping Box (WxHxD): 21.85" x 17.71" x 11.02" (555mm x 450mm x 280mm)
- Weight (with stand): 14.37lbs (6.52kg)
  Optional Accessories
- Acrylic Filter
- V-Mount
- G-Mount
- Carrying Case
- Rack Mount Kit
- Sun Hood
Item Includes:
- 1x TVLogic LUM-181G monitor
- 1x AC Power Cord
- 1x Stand
- 1x Control Knob Cap
- 1x Handle
Warranty:
- 2-Year Limited Warranty
