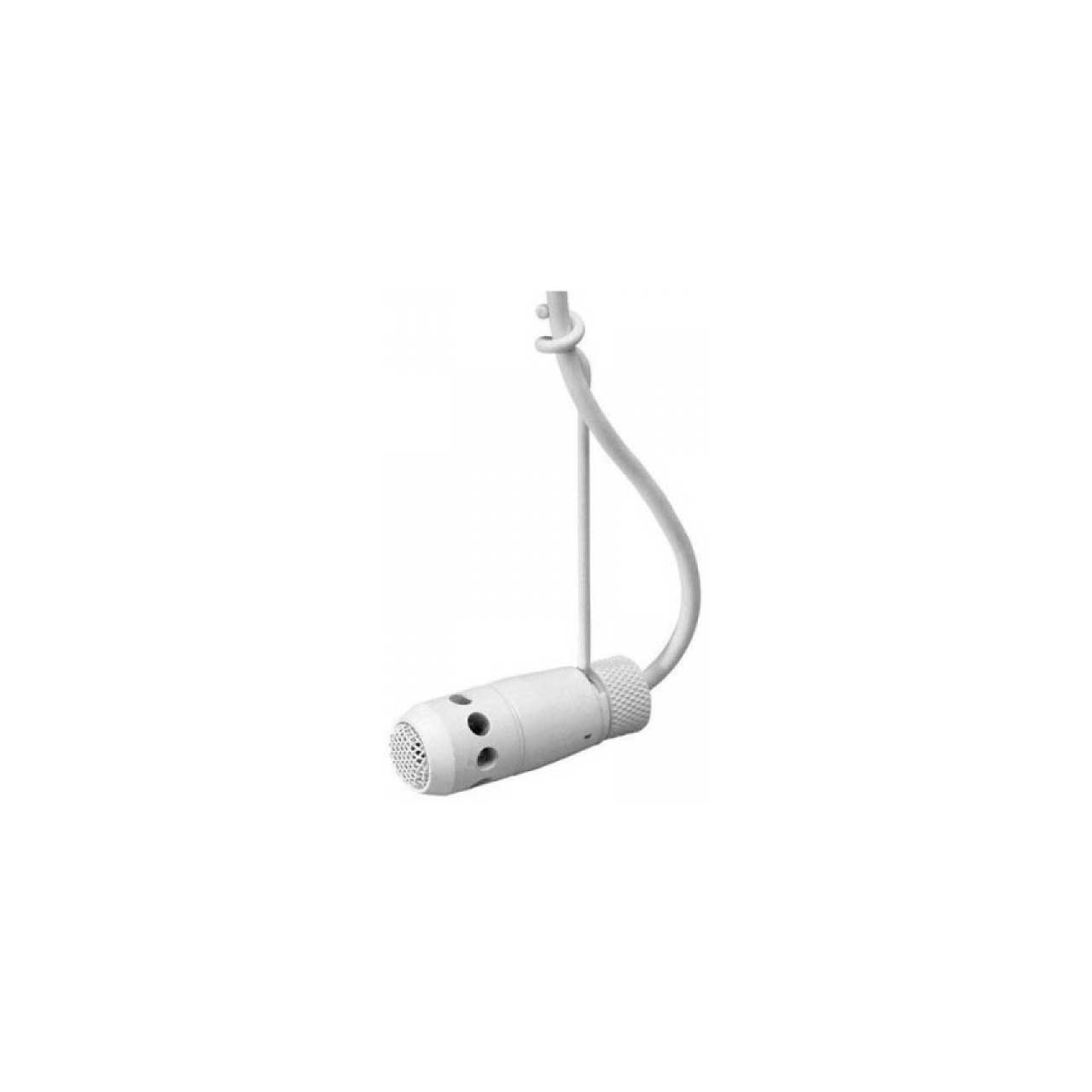

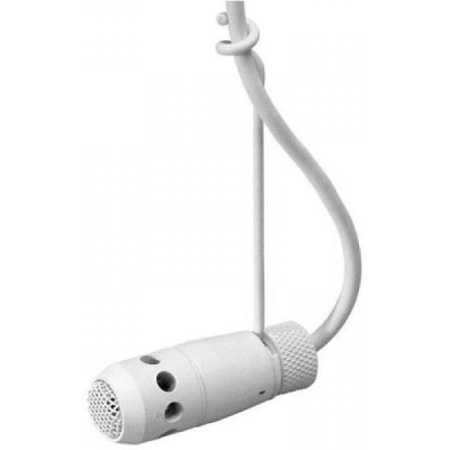

RTS RE90HW Hanging Choir Condenser w/In-Line Preamp XLR Connector 25-FT-White

17473113 - Overview

• Features:

  • Non-reflecting black (RE90H) or low-gloss white (RE90WH) with matching cable.
  • Shielded pre-amp is highly-resistant to electrical noise and radio frequency interference.
  •
    25-ft. braided, shielded cable maintains microphone's position (not rotation)
  • Cardioid polar pattern
  • Three-pin male XLR-type output connect or fits with female bulkhead XLR-type connector


• Specifications:

  • Generation Element: Condenser, back electret
  • Frequency Response (see Figure 1): 75 Hz to 15,000 Hz
  • Polar Pattern: Cardioid Sensitivity,
  • Open Circuit Voltage, 1 kHz: 27 mV/pascal
  • Power Level, 1 kHz (0 dB =1 mW/pascal): -30.4 dB
  • Clipping Level (1% THD): 120 dB SPL
  • Equivalent Noise: 25 dB SPL A weighted
  • Dynamic Range: 95 dB
  • Output Impedance, 1 kHz: 200 ohms
  • Power Requirements: 9 to 52 V dc phantom supply
  • Current Consumption: 2.0 mA
  • Polarity: Pin 2 positive, referenced to pin 3,with positive pressure on the diaphragm


• GTIN:

  0701001013777
