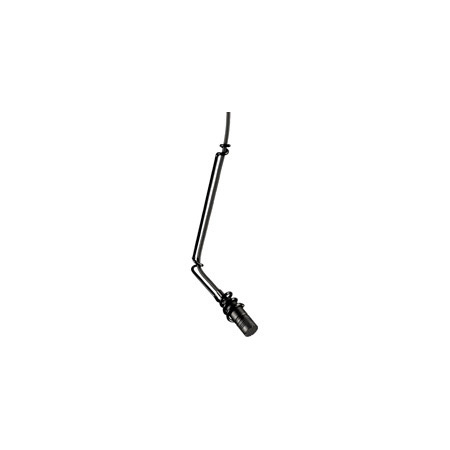

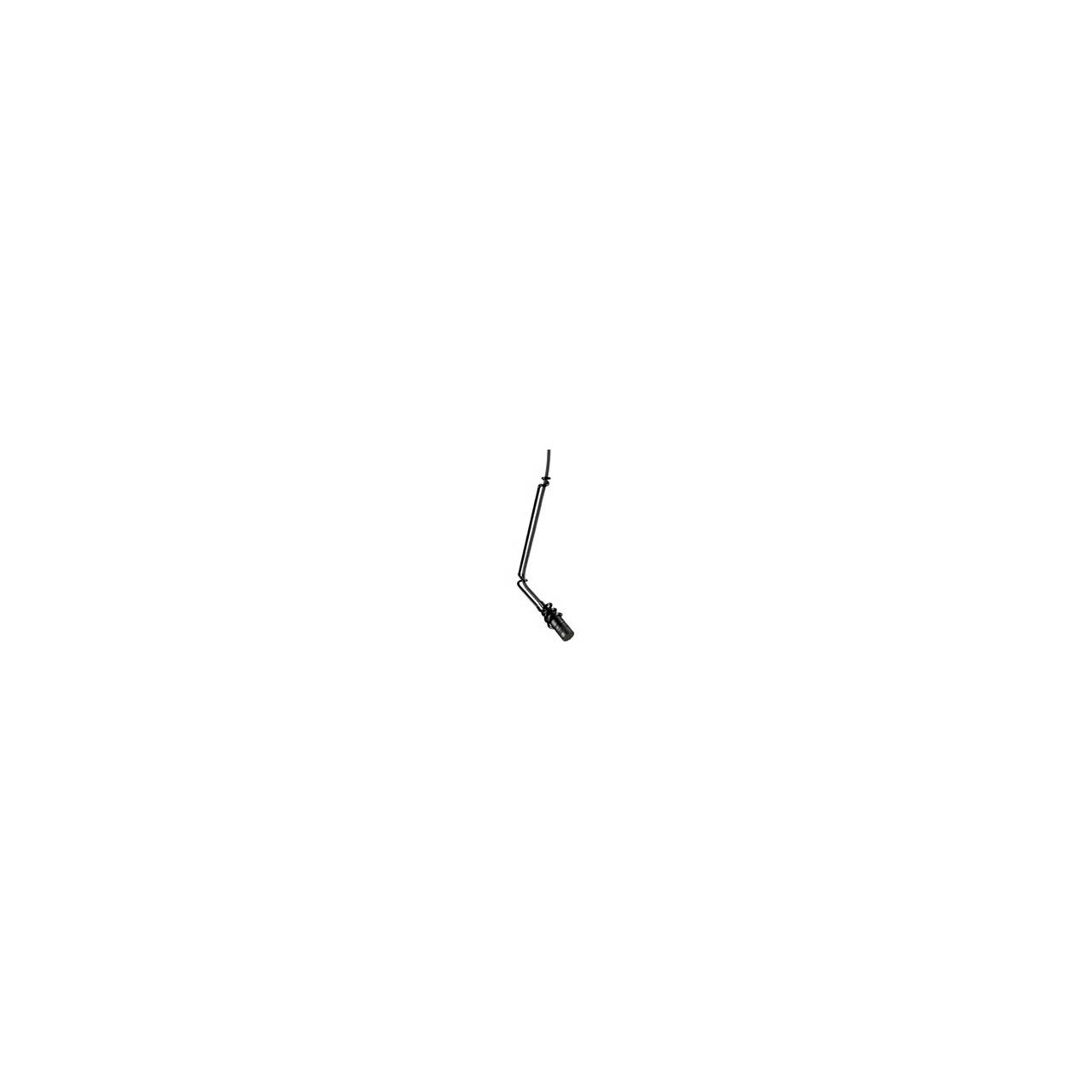

Audio-Technica U853PM Cardioid Condenser Hanging Microphone

U853PM - Overview

• Features:

  • Designed for suspension over choirs, instrumental groups and theater stages
  • Wall/ceiling plate power module permits permanent installation in standard metal U.S. single gang electrical box
  • Superior off-axis rejection for maximum gain before feedback
  • UniGuard® RFI-shielding technology offers outstanding rejection of radio frequency interference (RFI)
  • UniSteep® filter provides a steep low-frequency attenuation to improve sound pickup without affecting voice quality
  • Accepts interchangeable elements to permit angle of acceptance from 90° to 360°
  • Low-profile design with low-reflectance finish for minimum visibility
  • Available in two colors: Black (U853PM) and White (U853PMW)


• Specifications:

  • Element: Fixed-charge back plate, permanently polarized condenser
  • Polar Pattern: Cardioid
  • Frequency Response: 30 - 20,000Hz
  • Low Frequency Roll-Off: 80Hz, 18dB/octave
  • Open Circuit Sensitivity: -39dB (11.2mV) re 1V @ 1Pa
  • Impedance: 200Ω
  • Maximum Input Sound Level: 128dB SPL, 1kHz @ 1% T.H.D.
  • Dynamic Range (typical): 102dB, 1kHz @ Max SPL
  • Signal-To-Noise Ratio: 68dB, 1kHz @ 1Pa
  • Phantom Power Requirements: 11 - 52V DC, 4mA typical
  • Switches: Flat, roll-off; 0dB/+10dB gain setting
  • Weight (Microphone): 0.5oz
  • Weight (Power Module): 3.4oz
  • Dimensions (Microphone): 1.34" long, 0.48" diameter
  • Dimensions (Power Module): 2.80" W x 4.55" H x 1.42" D
  • Output Connector (Power Module): Screw terminals
  • Cable: 25.0ft long (permanently attached to microphone), 0.13" diameter, 2-conductor, shielded cable with TA3F-type connector
  • Optional Interchangeable Elements: UE-H hypercardioid (100°); UE-O omnidirectional (360°); UE-UL UniLine® (90°)
  • Audio-Technica Case Style: M12


• Item Includes:

  • AT8153 two-stage foam windscreen
  • AT8451 steel hanger
  • AT8534 wall/ceiling plate power module
  • AT8438 5/8"-27 stand adapter


• Warranty:

  • 2 Year Limited End-User


• GTIN:

  0042005140718
