RTS TR-825-F1 TR-825 Belt Pack A4M Headset Jack F1 BAND

ITEM #: TX-TR-825-F1 MFG #: F.01U.141.070

Primary Image

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the TX-TR-825-F1

F.01U.141.070 - Overview

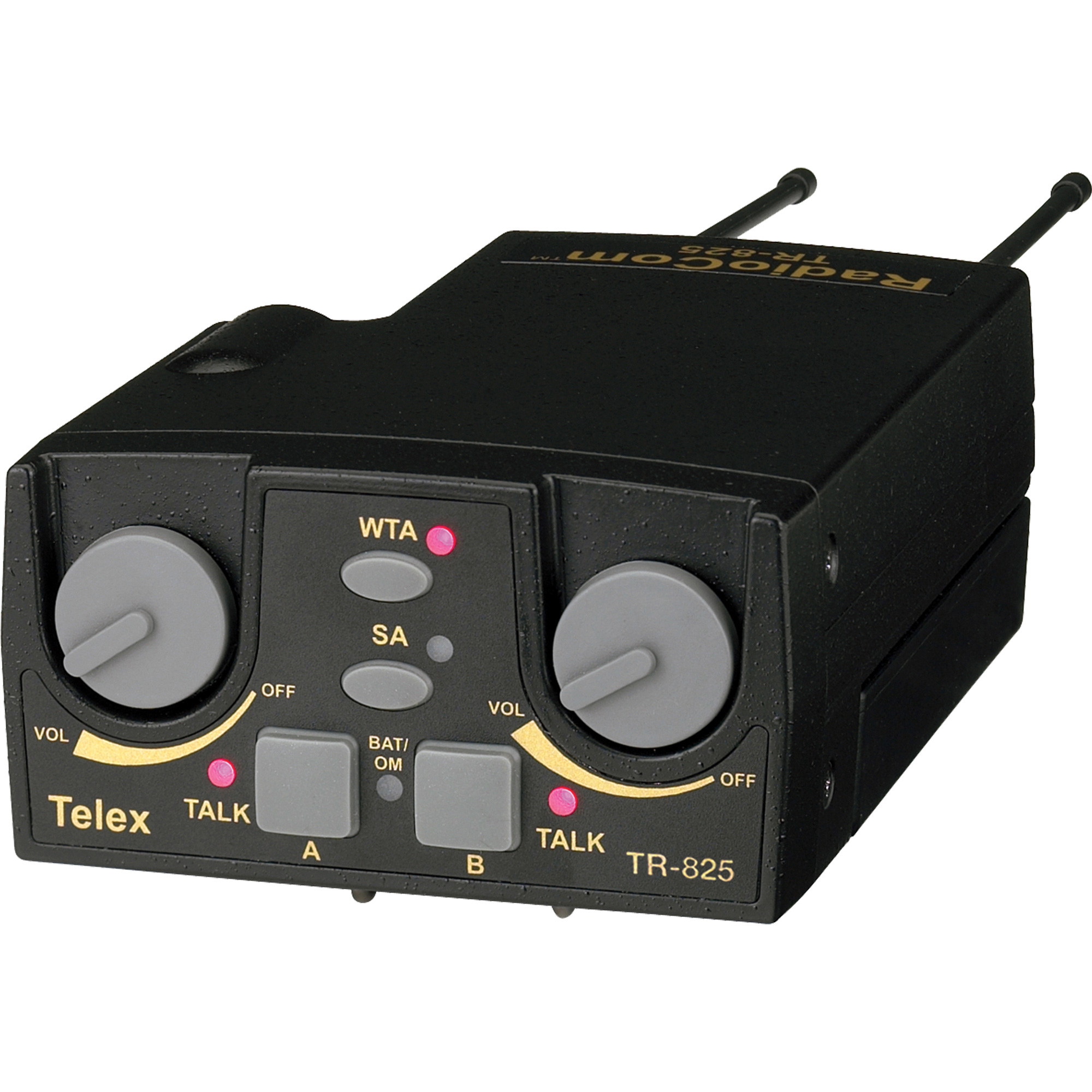

The RTS RadioCom TR-825 is a 2-audio channel UHF frequency-agile wireless beltpacks for use with the BTR-800. The TR-825 is a dual-listen beltpack, allowing you to listen to tech in one ear and production in the other. Individual volume controls also allow for easy level adjustment. The TR-825 has an all metal cast magnesium case, an LCD-based user interface, stage announce activation, WTA (Wireless Talk Around), enhanced ClearScan, detachable antennas and an auto-sensing headset connector that automatically switches between electret and dynamic headset mics.

  • Features:

    • On/Off & Volume Control
    • Wireless Talk Around (WTA)
    • Stage Announce
    • Audio Channel Select Button
    • Bat/Overmod Light (BAT/OM)
    • Talk Light
    • Talk Button


  • Specifications:

    • Antenna: 1/4 Wave (supplied), Screw type, Replaceable: TX and RX
    • Binaural: Yes
    • Color: Black
    • Current Draw: 190 mA: Push-to-Talk, A and B Talk On
    • Depth: 2.02" (51.3 mm)
    • Distortion: < 1 % at full deviation
    • FCC ID: B5DM517
    • Form Factor: Beltpack
    • Frequency Response: 300 Hz-8 kHz
    • Function: User Station
    • Height: 5.35" (135.9 mm)
    • IF Selectivity: 3 dB at 230 kHz
    • Image Rejection: 70 dB or better
    • Local Headset Output: 40 mW output into 600W: 1% distortion
    • Microphone Input Sensitivity: 7 mV
    • Power Requirements: 6 "AA" Cells Alkaline, NiMH optional
    • RF Frequency Range: 470 - 608 MHz, 614 - 740 MHz in 18 MHz TX and RX bands
    • RF Frequency Stability: 0.01 %
    • RF Sensitivity: < 0.7 µV for 12 dB SINAD
    • Squelch Quieting: 90 dB
    • Squelch Threshold: 20 dB SINAD About 1.0 µV
    • Storage Temperature -4° F to 130° F
    • Type: Dual Conversion Super heterodyne, Synthesized, FM, 712 channels
    • Weight: 1.31 lbs (0.6 kg)
    • Width: 3.75" (95.3 mm)
