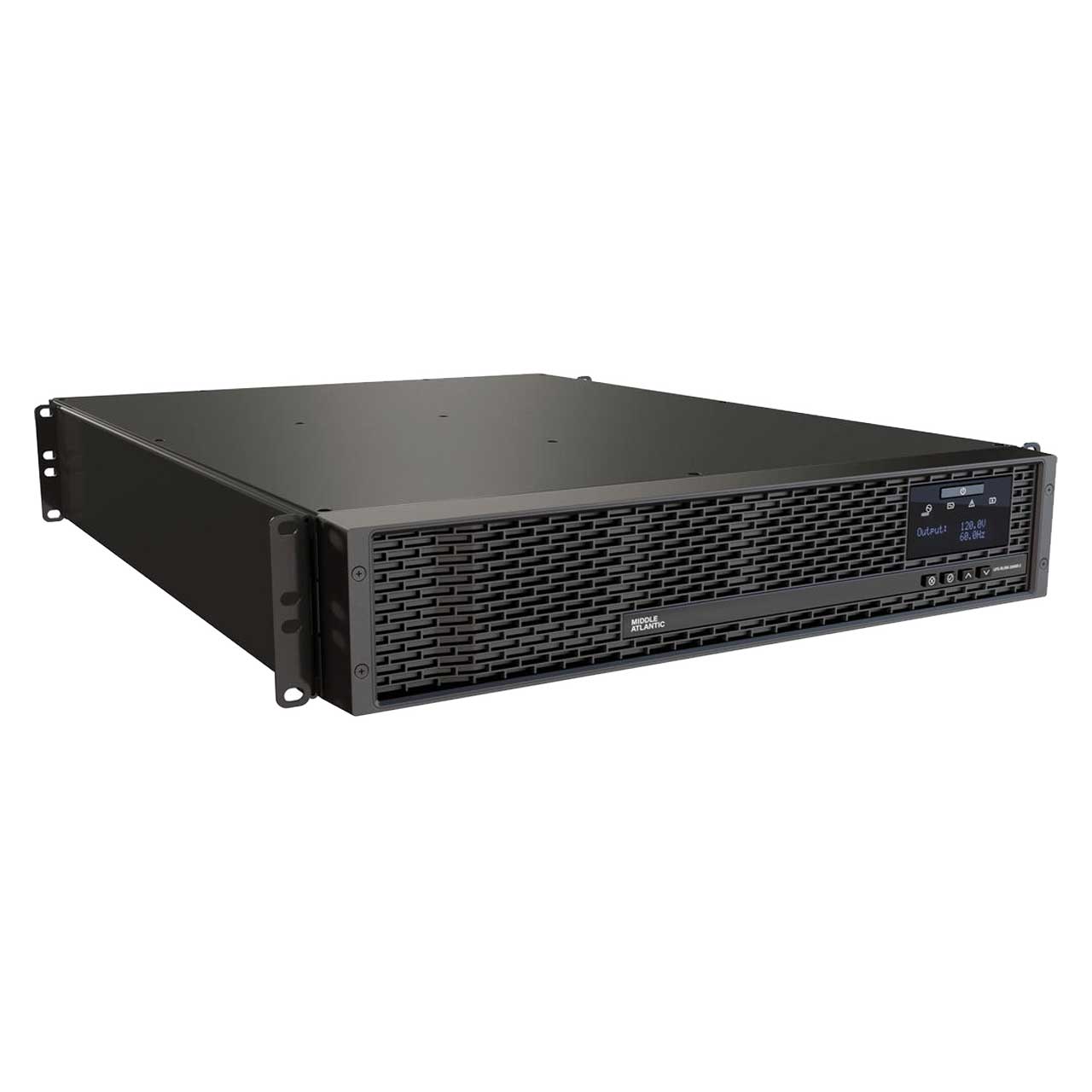

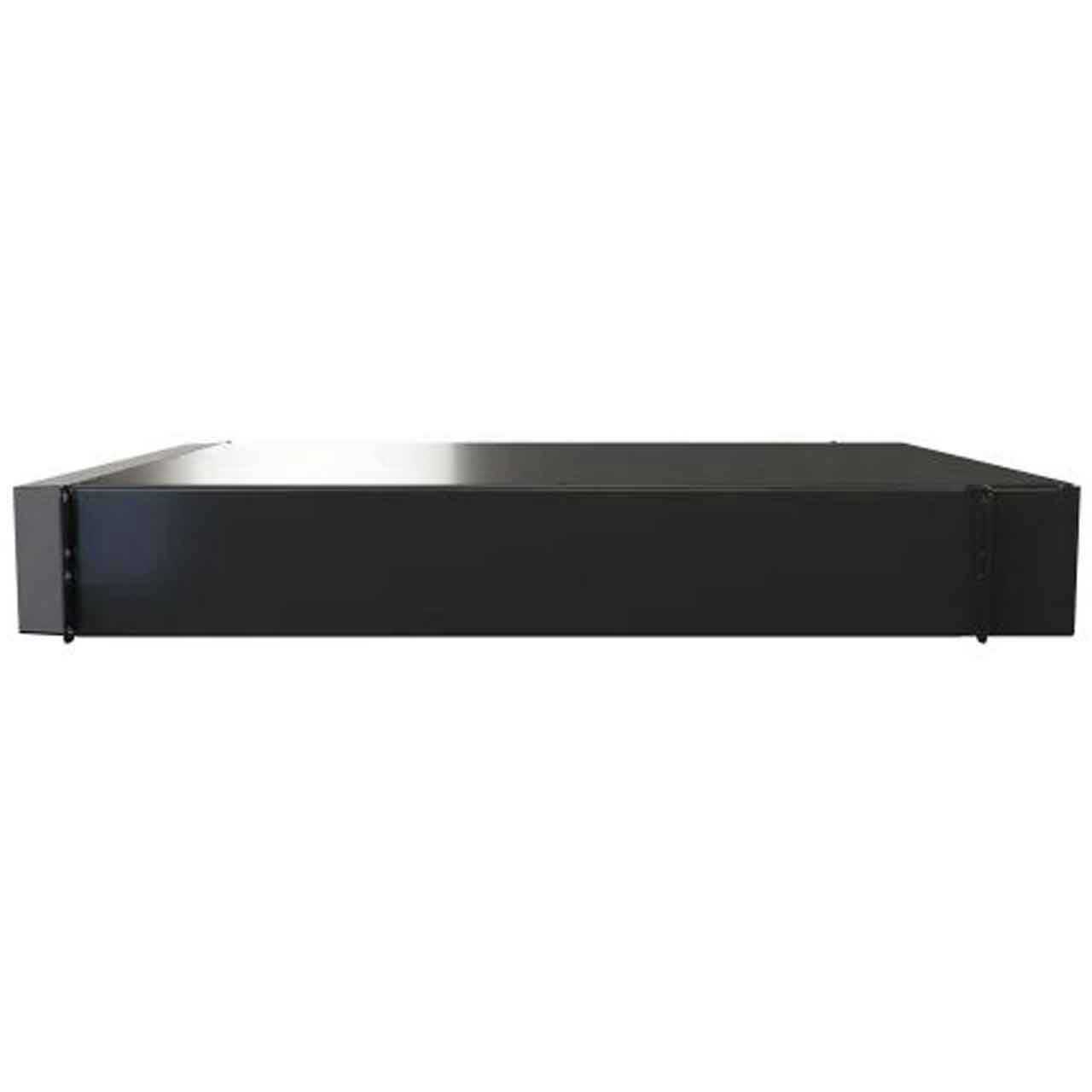

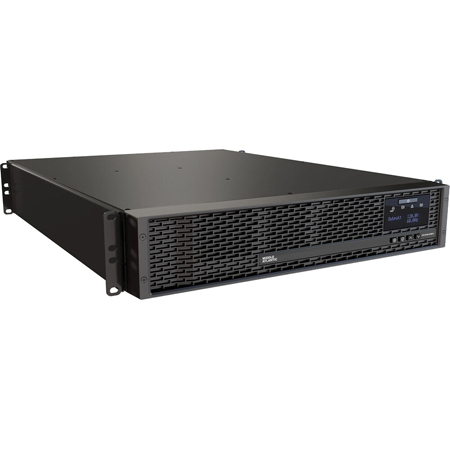

Middle Atlantic NEXSYS Series UPS Backup Power System with RackLink - 2000VA - 20 Amps - 8 Outlets

Name: Middle Atlantic NEXSYS Series UPS Backup Power System with RackLink - 2000VA - 20 Amps - 8 Outlets
Brand: Middle Atlantic Products
SKU: UPX-RLNK-2000R-2
Price: 2790.00 USD
Availability: PreSale

ITEM #: UPX-RLNK-2000R-2 MFG #: UPX-RLNK-2000R-2

Middle Atlantic Products

List Price:

$3,100.00

Our Price:

$2,790.00

Add to Wish List Leasing Options

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

UPX-RLNK-2000R-2 - Overview

Middle Atlantic UPX-RLNK-2000R-2 NEXSYS is built on a promise that they've kept for over two decades - more than half the life of the company - that Middle Atlantic's power products are designed, engineered, and built for AV. It's one thing to say it, it's another thing to prove it. And their NEXSYS Line Interactive UPSs prove it, they promise. They are built with premium components to keep your AV systems running as smoothly as you'd expect.

NEXSYS combines power distribution and power backup into a comprehensive and cohesive product platform, united by design - both internal and external.

Why are you plugging your AV equipment into anything else?

Features:
- 2000VA
- 20 Amp

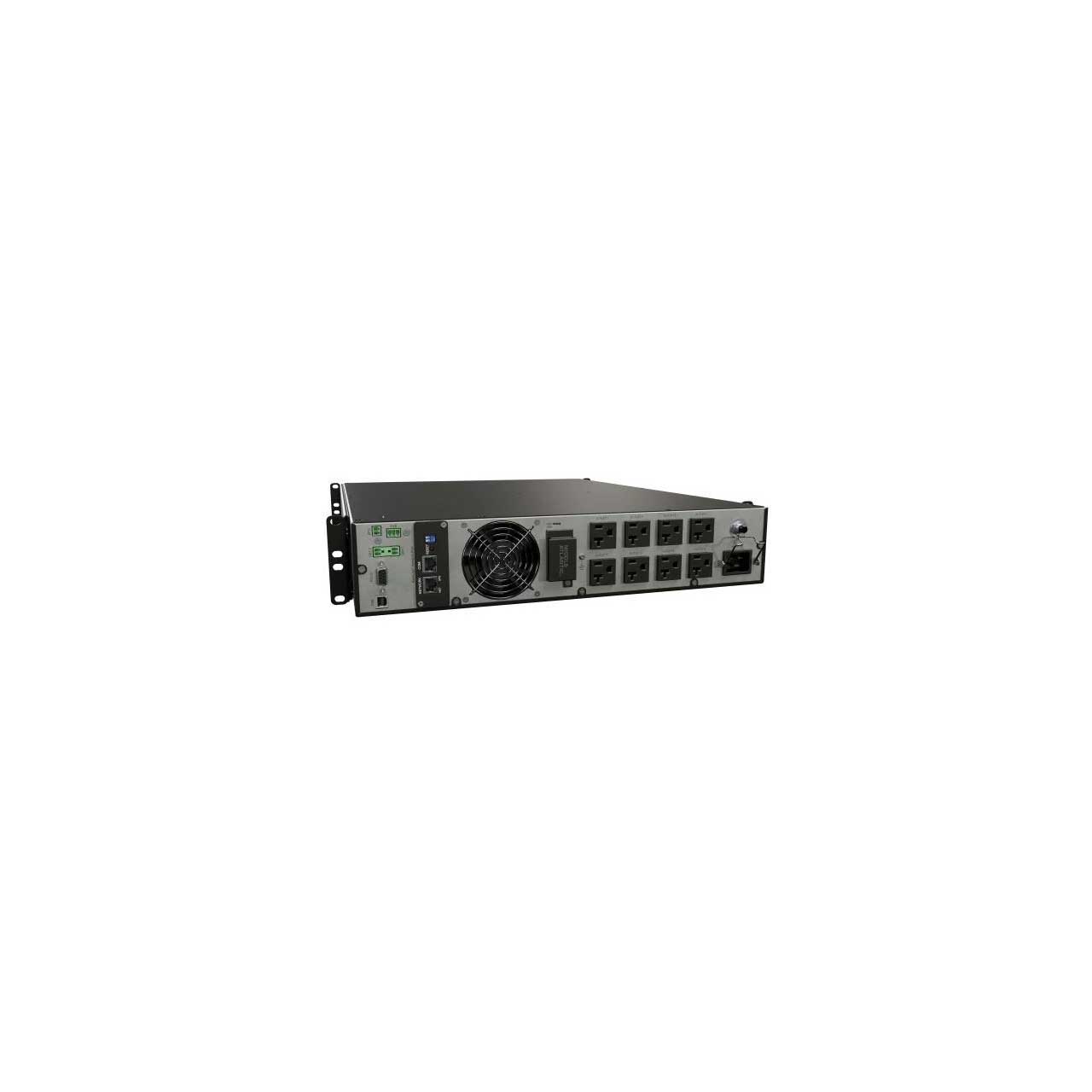

- 8 Outlets with Bank Control, (2) outlet banks with 4 outlets each
- An Out-of-Box(y) Experience. Everything is assembled and connected right from the factory saving you time during your installations. Rack ears are pre-installed with the "4-Post" mounting brackets ready to be rack mounted even if you have a 3rd pair of rackrail
- The battery is already connected so just plug it in
- Customization is a Breeze. The NEXSYS Power Management Software on your PC allows you to customize and configure various settings and notifications if you don't like our default settings - we won't be offended
- "NEXSYS, alert me when.". Set reminders or notifications for things like battery replacement, etc. via email or on the UPS
- The IEC Input allows for better cable management of the power cord if shorter or longer cords are required. All UPSs include a 6' (1.8m) IEC power cord.

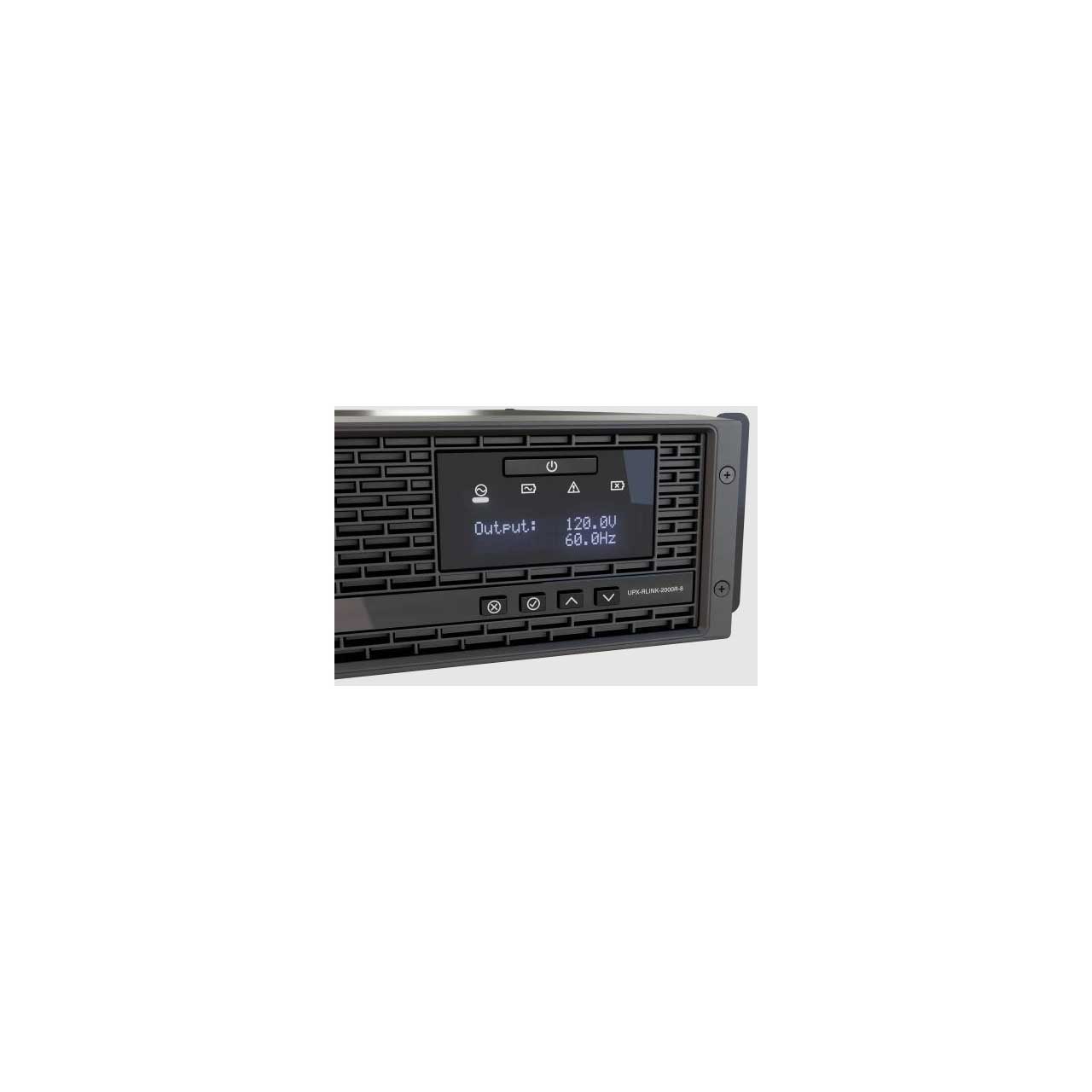

- Name, address, and date of birth, please? Easily locate the IP, MAC address and device name via the front LCD screen. You can even see the battery installation date.
- Pure Power. All NEXSYS UPSs have a Pure Sine Wave output and AVR (automatic voltage regulation) providing the cleanest power to your connected equipment, especially the most sensitive equipment
- Keep your power squeaky clean. Easily set specific thresholds to switch the unit to battery if the power quality isn't up to your standards
- Swap it like it's hot. Hot swappable battery from the front access panel for easy service without disrupting the system
- RackLinkT Remote Management Built-In. The NEXSYS UPS is RackLink enabled out of the box and discoverable on the RackLink Discovery Tool on PC, Apple or Android devices.

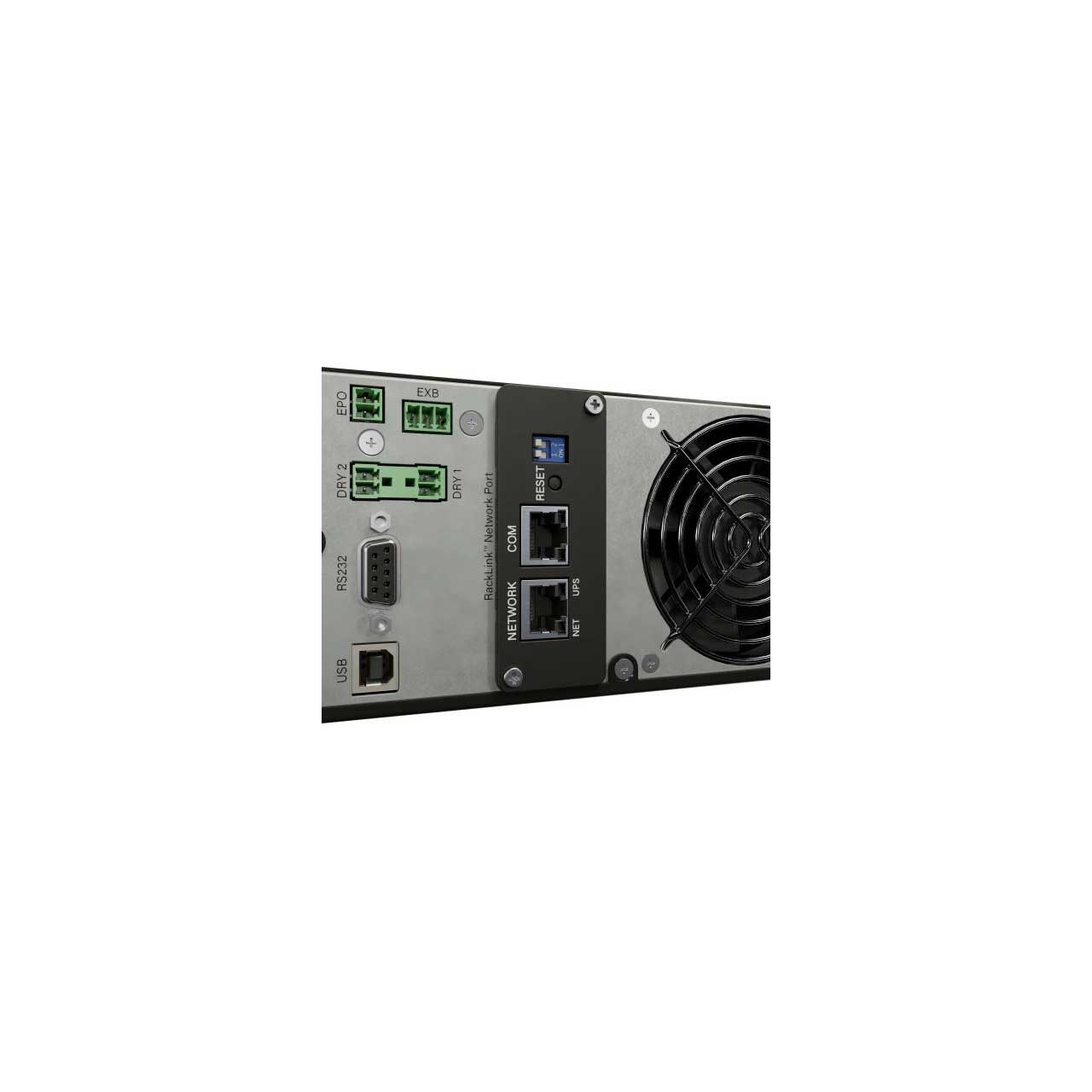

- Included RS232 port for control
- (2) dry contact ports for alerts - 1 contact is defined to alert users of a battery switch over when the UPS loses utility power or hits a set threshold, 1 contact is defined to alert users when the battery level is low based on usage with customizable thresholds
- Energy Star Certified
Specifications:
- Color: Black
- Control Type: RackLink
- Federal Ops Country of Origin: China
- Isolated Ground: No
- Mounting Points: 4
- Network Card Included: Yes
- Network Enabled: Yes
- Outlet Control Type: Individual
- Outlet Count: 8
- Plug Type: NEMA 5-20P
- Receptacle Type: NEMA 5-20R
- Special Features: NEXSYS UPS
- Surge Protection Type: MOV
- Topology: Line Interactive
- AC Voltage Input: 120 VAC
- AC Voltage Output: 110, 120V, 127
- Amps: 20 Amp
- Cord Length: 6 ft (1.8 m)
- Depth: 22 in (55.9 cm)
- Height: 3.5 in (8.8 cm)
- Mounting Depth Max: 36 in
- Mounting Depth Min: 28 in
- Operating Temperature: 32°F - 104°F
- Primary Package Weight: 71 lbs
- Product Weight: 63 lbs
- Rack Units: 2 RU
- VA: 2,000 VA
- Volts AC: 120 VAC
- Volts DC: 48 VDC
- Watts: 1,800 W
- Width: 19 in (48.3 cm)
Item Includes:
- 1x 6' (1.8m) IEC power cord
Warranty:
- 2 Years Battery, 3 years UPS
GTIN:
0656747395628
