Tripp Lite SMART2500XLHG 2200VA 1920W UPS Smart Tower Hospital Medical AVR 120V USB DB9

Name: Tripp Lite SMART2500XLHG 2200VA 1920W UPS Smart Tower Hospital Medical AVR 120V USB DB9
Brand: Tripp Lite
SKU: TRL-ST2500XLHG
Price: 2023.00 USD
Availability: PreSale

ITEM #: TRL-ST2500XLHG MFG #: SMART2500XLHG

Tripp Lite

List Price:

$3,465.28

Our Price:

$2,023.00

Add to Wish List Leasing Options

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

SMART2500XLHG - Overview

UL 60601-1 compliance is required for UPS systems within patient care areas. Get complete, compliant power protection with Tripp Lite's SMART2500XLHG SmartPro® Medical UPS System. The SMART2500XLHG provides a high load capacity 2200VA/1920W, full UL 60601-1 3rd edition compliance. Protects connected medical equipment against data loss, downtime and equipment damage due to power outages, voltage fluctuations and transient surges. It features a USB port, input locking clamp, equipotential earth bonding lug, 4 NEMA 5-15/20R outlets, and 4 IEC C13 outlets for universally adaptable outlet options.

The SMART2500XLHG offers a complete power protection solution for clinical labs, diagnostic imaging, ophthalmology, medical equipment, imaging and other devices requiring medical grade protection. With built-in Faraday shielding, the SMART2500XLHG provides full line isolation and reduces the cumulative leakage current of connected equipment to less than 100 æA for optimal safety in patient care areas. Full isolation also provides continuous noise filtering and enhanced common mode surge suppression. Featuring advanced line-interactive operation, it provides regulated 120V nominal output without using battery power during brownouts and overvoltages. Large internal batteries support connected equipment during blackouts and optional external battery packs (BP48V24-2U and BP48V60RT-3U) provide extended runtime tailored to your application.

The SMART2500XLHG features a USB communication port that works with included PowerAlert software to provide UPS and site power monitoring plus automatic file saves and safe unattended shutdown of connected equipment in the event of a prolonged power failure.

Application Usage
This UPS contains a lead acid battery designed to be connected continuously to an AC power source, except during brief power outages. It is not intended for frequent charge/discharge cycles, such as mobile cart applications where the UPS is often disconnected from the power source. Using the SMART2500XLHG in this type of application will void the battery warranty.

Features:
- Ideal UPS protection for applications in patient-care vicinities where UL 60601-1 3rd edition listed medical electrical equipment is required
- Internal low-impedance isolation transformer with Faraday shield offers 100% isolation from the input AC line
- Floating AC output prevents noise coupling from noisy hospital ground circuits
- Full line isolation prevents shock potential and operational problems in sensitive electronic equipment
- Provides connected equipment with continuous power during short and long duration loss of commercial power
- Expandable runtime is available with the addition of one or more external battery packs (BP48V24-2U and BP24V60RT-3U)
- Line-interactive voltage regulation corrects brownouts and overvoltages from 83V to 143V back to usable 120V output levels without using battery power
- Resistant to electrostatic discharge
- Supports loads up to 2200VA/1920W
- 13 min. half-load runtime (1100VA/960W), 4 min. full load runtime (2200VA/1920W)
Specifications:
- Output
- Output Volt Amp Capacity (VA): 2200
- Output kVA Capacity (kVA): 2.2
- Output Watt Capacity (Watts): 1920
- Power Factor: 0.87
- Nominal Output Voltage(s) Supported: 115V; 120V
- Frequency Compatibility: 60 Hz
- Output Voltage Regulation (Line Mode): -18%, +8%
- Output Voltage Regulation (Battery Mode): 115V (+/- 5%)

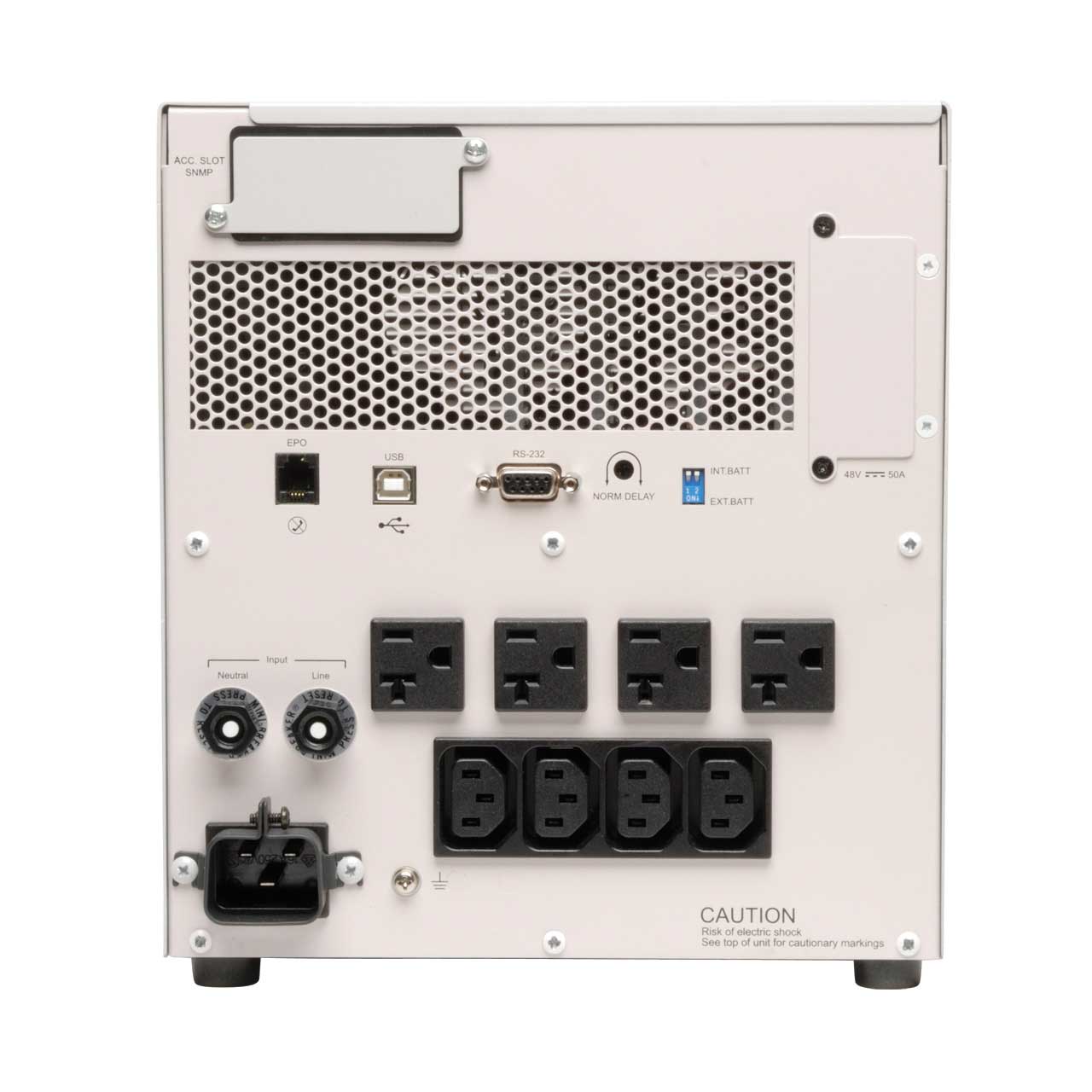

- Output Receptacles: (4) 5-15/20R; (4) C13
- Output Receptacle Details: Hospital grade output receptacles
- Output AC Waveform (AC Mode): Pure Sine wave
- Output AC Waveform (Battery Mode): Pure Sine wave
- Individually Controllable Load Banks: No

  Input
- Rated input current (Maximum Load): 16 AMP
- Nominal Input Voltage(s) Supported: 120V AC
- UPS Input Connection Type: C20 inlet
- Input Circuit Breakers: 2 x 20A
- UPS Input Cord Length (ft.): 6
- Recommended Electrical Service: 20A 120V
- Input Phase: Single-Phase

  Battery
- Full Load Runtime (min.): 4.4 minutes
- Half Load Runtime (min.): 13 minutes
- Expandable Battery Runtime: Extended runtime supported via optional external battery packs
- External Battery Pack Compatibility: BP48V24-2U (limit 1); BP48V60RT-3U (multi-pack compatible)
- DC System Voltage (VDC): 48
- Battery Recharge Rate (Included Batteries): 4.5 hours MAX (10% to 90% capacity) Internal batteries only
- Internal UPS Replacement Battery Cartridge: RBC48V-HGTWR
- Battery Access: Battery access door
- Battery Replacement Description: Hot-swappable, user replaceable batteries
- Expandable Runtime: Yes

  Voltage Regulation
- Voltage Regulation Description: Automatic voltage regulation (AVR) maintains line power operation with an input voltage range of 81 to 143
- Overvoltage Correction: Input voltages between 126 and 143 are reduced by 9%
- Undervoltage Correction: Input voltages between 96 and 106 are boosted by 10%
- Severe Undervoltage Correction: Input voltages between 81 and 95 are boosted by 21%

  Surge / Noise Suppression
- UPS AC Suppression Joule Rating: 940
- UPS AC Suppression Response Time: Instantaneous
- EMI / RFI AC Noise Suppression: Yes

  Isolation
- Output Isolation Transformer: Hospital grade load isolation transformer
- Leakage Current: Equal to 100 microamps

  Physical
- Installation Form Factors Supported with Included Accessories: Tower
- Installation Form Factors Supported with Optional Accessories: Wallmount (UPSWM - tower mounting kit)
- Primary Form Factor: Tower
- UPS Power Module Dimensions (hwd, in.): 9.72 x 8.90 x 19.09
- UPS Power Module Weight (lbs.): 81.5
- UPS Power Module Weight (kg): 36.97
- Shipping Dimensions (hwd / in.): 16.00 x 14.00 x 24.00
- Shipping Weight (lbs.): 95.40
- Cooling Method: Fan
- UPS Housing Material: PVC
- Primary UPS Height (mm): 247
- Primary UPS Width (mm): 226
- Primary UPS Depth (mm): 485
- Operating Temperature Range: +32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius
- Storage Temperature Range: +5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius
- Relative Humidity: 0 to 95%, non-condensing
- AC Mode BTU / Hr. (Full Load): 162.8
- Battery Mode BTU / Hr. (Full Load): 315.2
- AC Mode Efficiency Rating (100% Load): 94%
Item Includes:
- SMART2500XLHG Medical Grade Tower UPS System
- AC Power Cord (C19 to NEMA 5-20P)
- PowerAlert Software and cabling
- Warranty information
- Instruction manual
GTIN:
0037332168283
