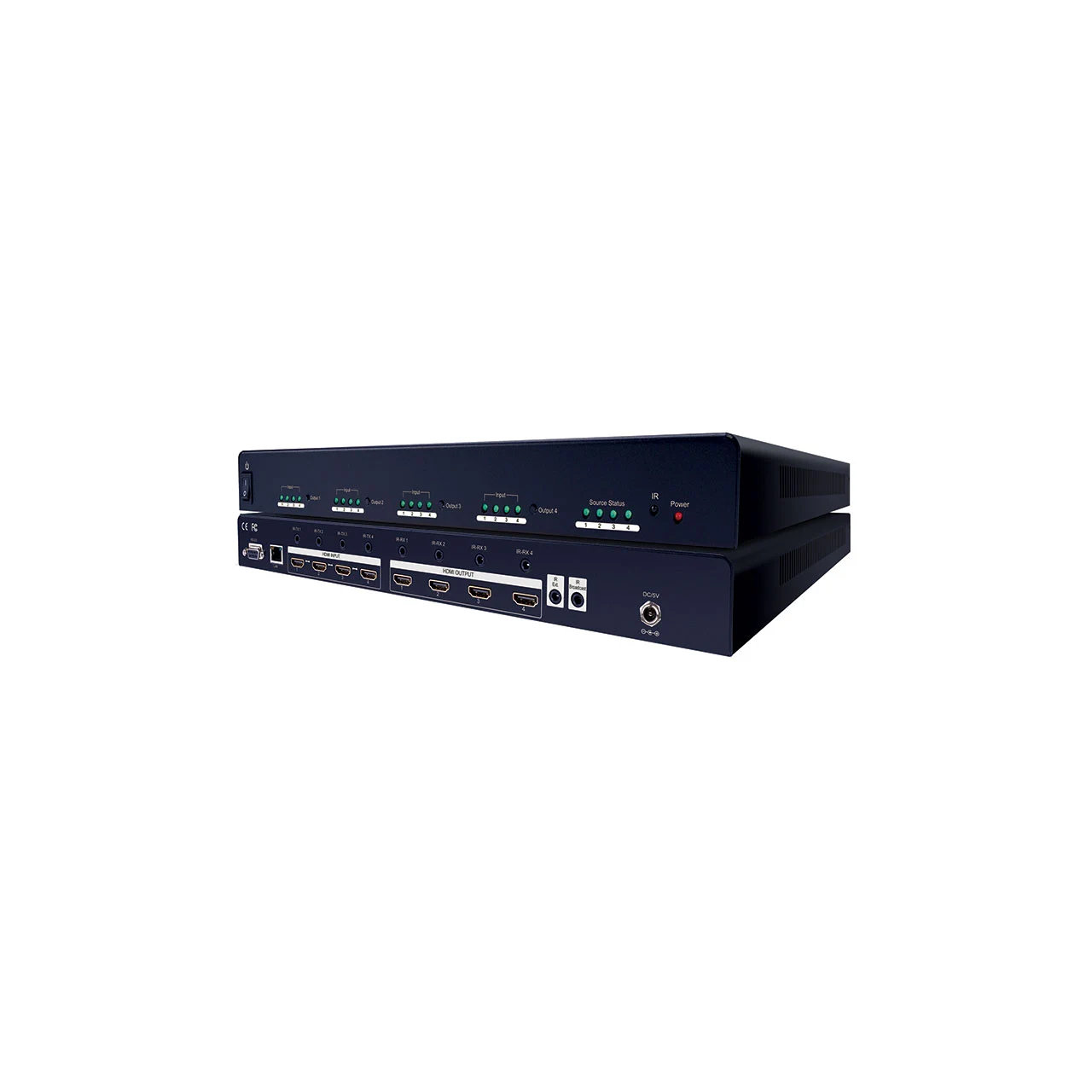

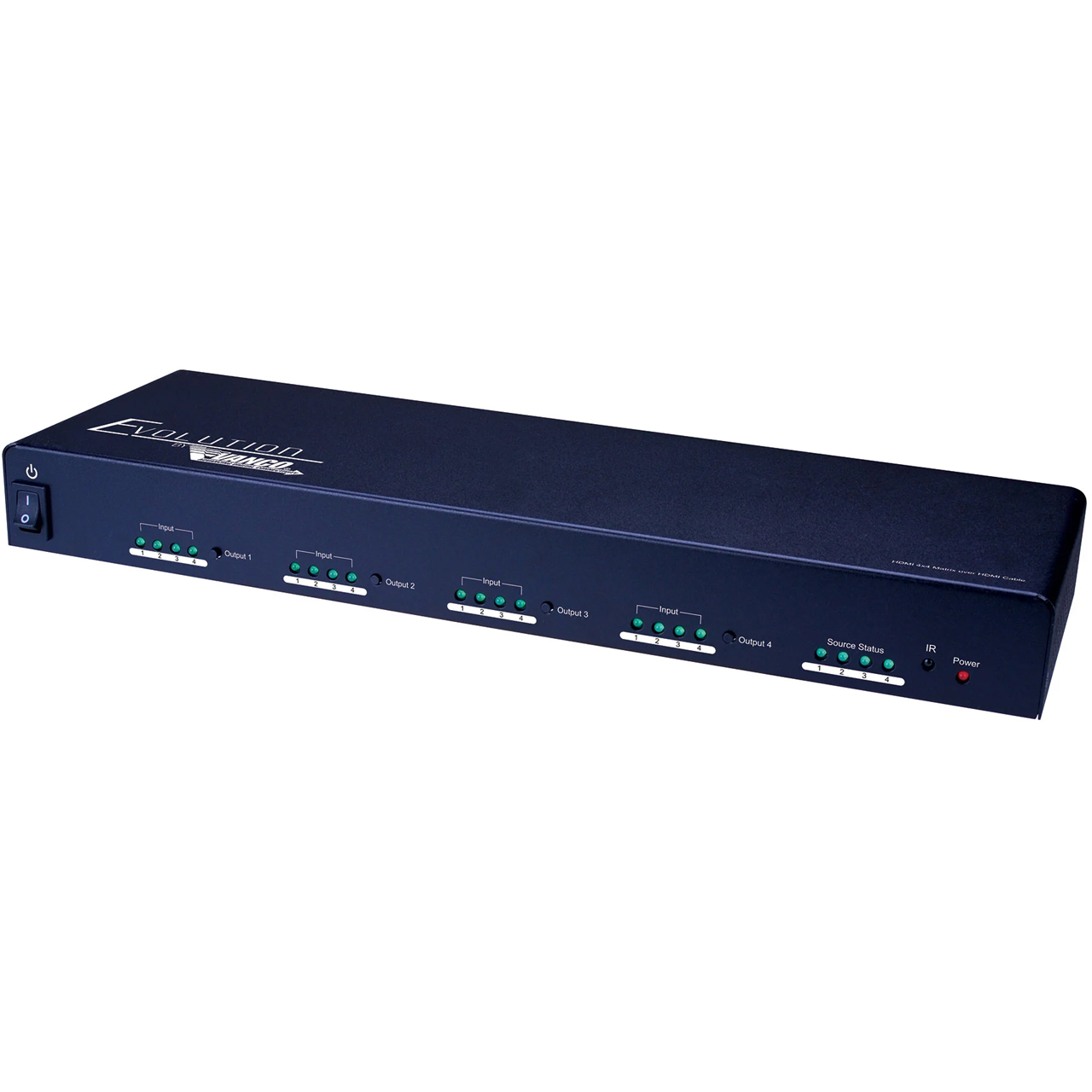

Vanco EVMX4444 Evolution HDMI 4x4 Matrix Selector Switch

EVMX4444 - Overview

• Features:

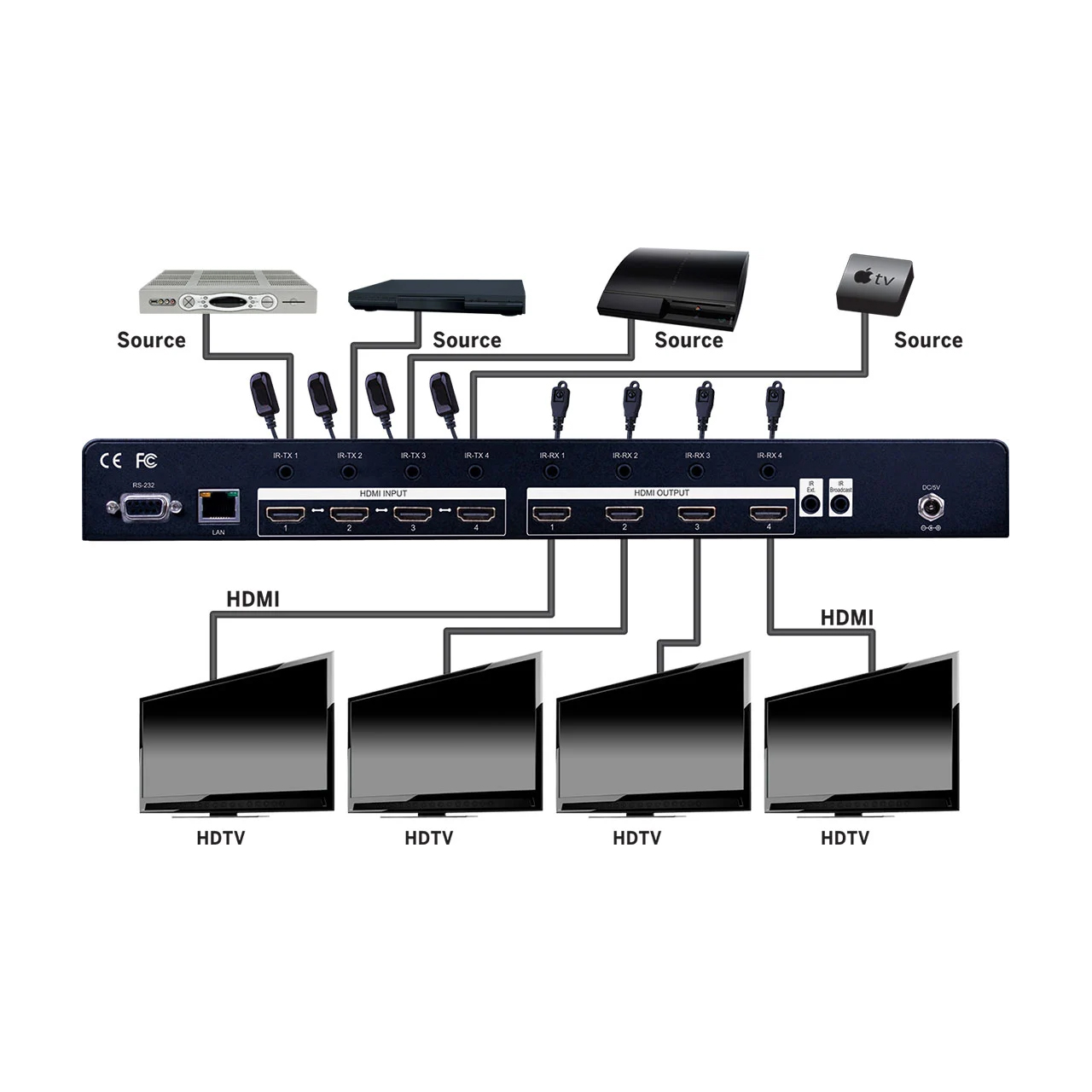

  • Allows up to 4 HDMI sources to be distributed simultaneously to up to 4 displays up to 164 feet/50 metrs
  • 1080p HD Matrix Switcher providing a perfect solution for Home or Retail AV as well as Commercial and Hospitality installations on a budget
  • Features EDID management which supports default HDMI EDID and has the ability to learn the EDID of display equipment for any "handshake" issues
  • HDCP Compliant
  • Supports HDMI Deep Color and 3D
  • Supports 7.1 channel digital audio
  • Wideband bi-directional IR pass-through (20 to 60 kHz)
  • Choose from 5 switching modes - front panel buttons- Local remote control- RS232 control- IR call-back (dedicated IR extension cable connected to IR extension port- and IR emitters on sources required)- and Ethernet control
  • Easy installation mounting ear hardware set included
  • TAA Compliant
  • Dimensions(WxHxD): 14.6"(371mm) x 1.57"(40mm) x 4.65"(118mm)


• Specifications:

  • Technical
  • HDCP Compliance: Yes
  • Video Bandwidth: Single-link 225Mhz [6.75 Gbps]
  • Video Support: 480i/480p/720p/1080i/1080p @60 36-bit color
  • Audio Support: Surround Sound (up to 7.1 ch) or stereo digital audio
  • ESD Protection: [1] Human body model - ±19kV [air-gap discharge] & ±12kV [contact discharge] [2] Core chipset - ±8kV
  • PCB Stack-up: 4-layer board [impedance control - differential 100Ω; single 50Ω]

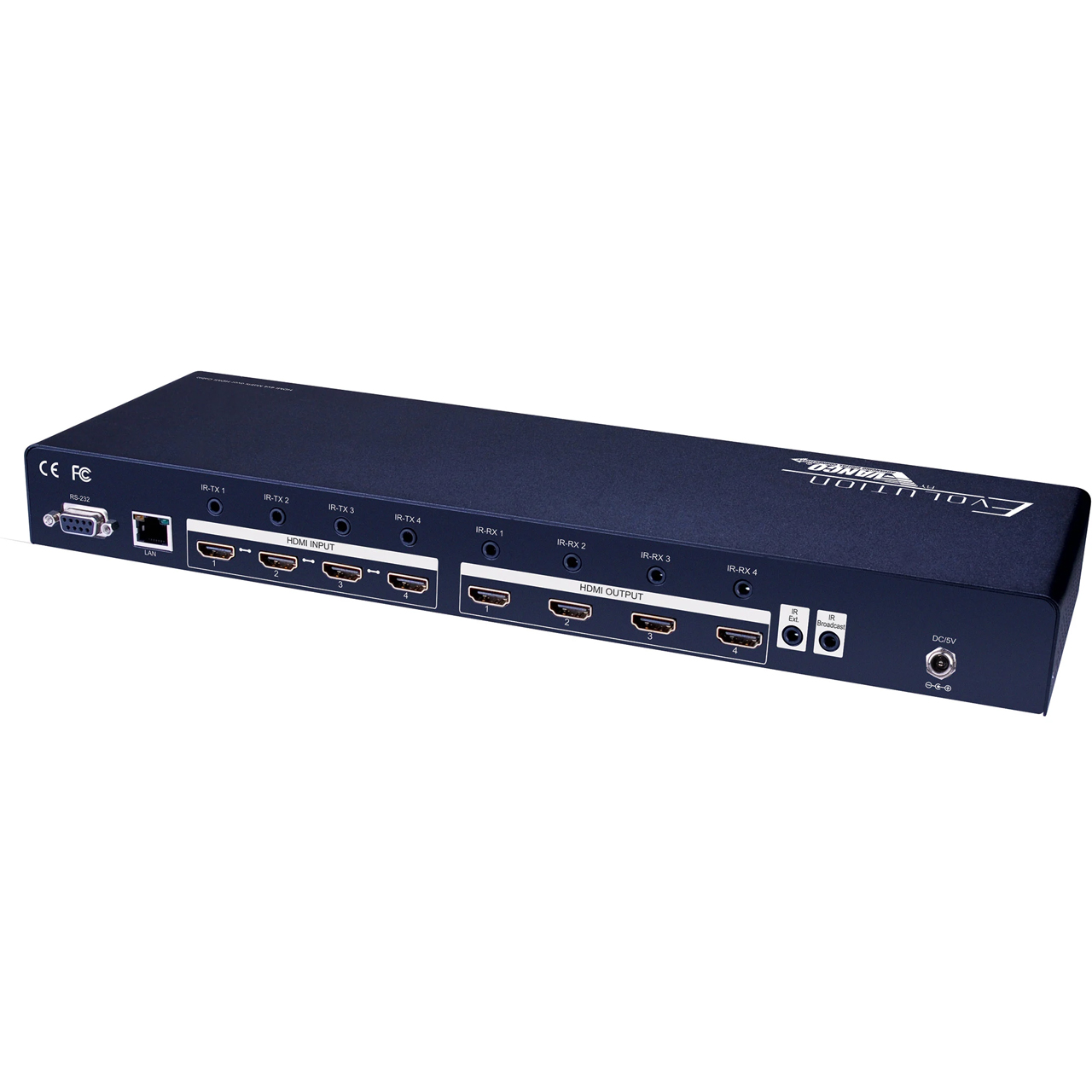

  • Input:
    - 4x HDMI
    - 1x RS-232
    - 1x Ethernet
    - 1x IR socket for IR receiver
  • Output: 4x HDMI
  • HDMI Connector: Type A 19 pin female
  • RJ-45 Connector: WE/SS 8P8C with 2 LED indicators
  • RS-232 Connector: DE-9 [9-pin D-sub female]
  • 3.5mm Connector: [System IR] Receives IR commands from remote control

    Mechanical
  • Housing: Metal enclosure
  • Fixedness: 1RU rack-mount with ears
  • Power Supply: 5V 4A DC
  • Power Consumption: 20W [max]
  • Operation Temperature: 32°F - 104°F
  • Storage Temperature: -4°F - 140°F
  • Relative Humidity: 20% - 90% RH (no condensation)


• Item Includes:

  • 1x EVMX4444 HDMI 4x4 Matrix Selector Switch
  • 1x IR Receiver (RX)
  • 1x IR Blaster (TX)
  • 1x DC 5V4A in-line with C7 power cord
  • 1x Mounting Hardware Set
  • 1x IR remote control
  • 1x Installation software CD
  • 1x User Manual


• Warranty:

  • 2 Year Warranty


• GTIN:

  0741835100458
