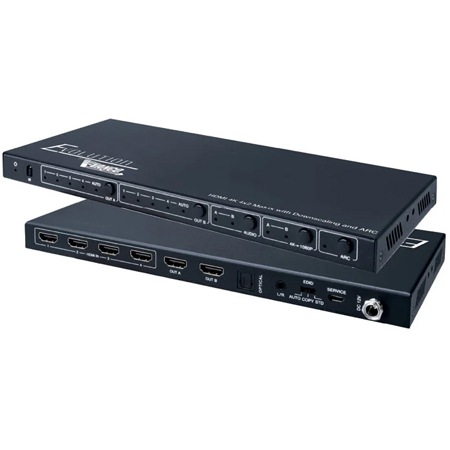

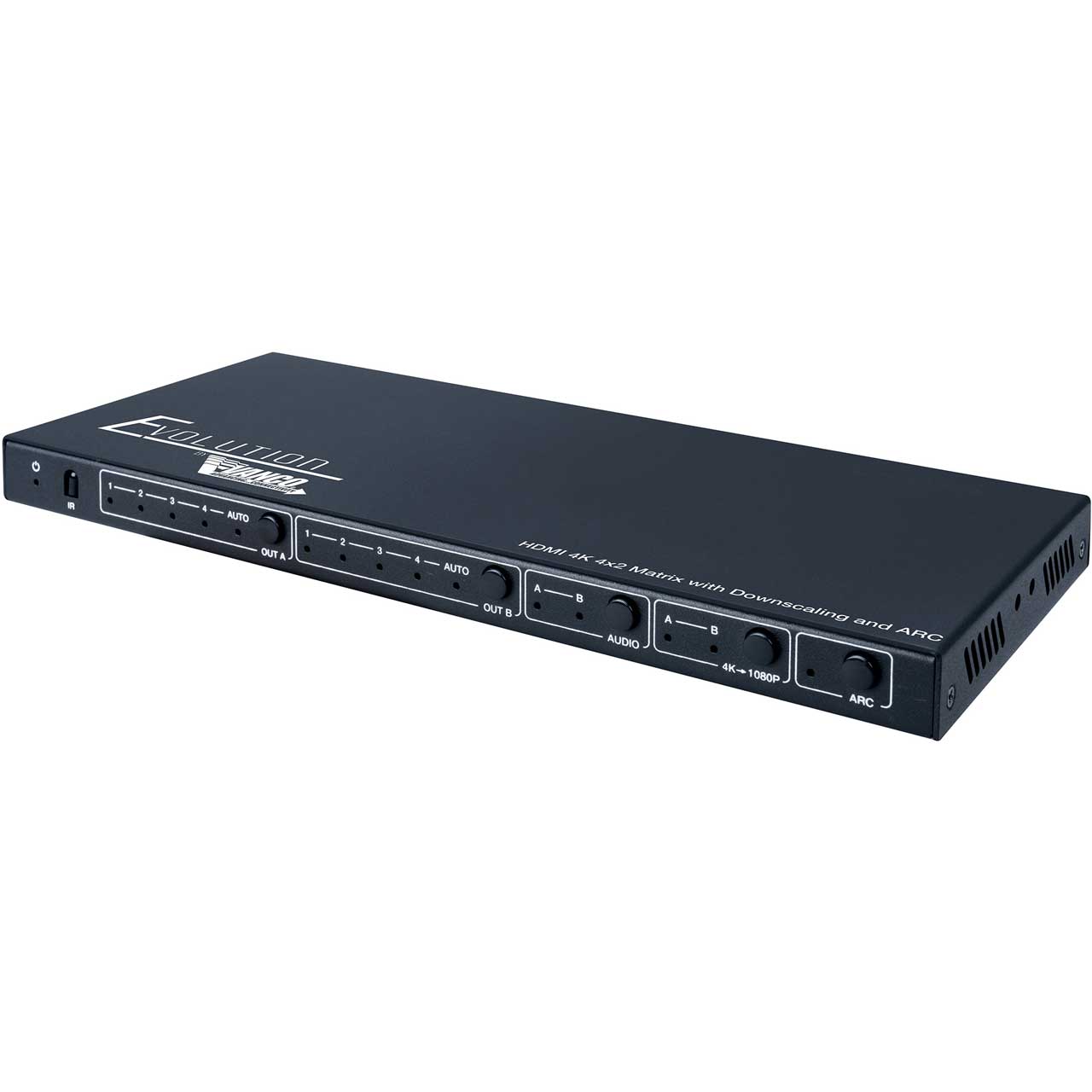

Vanco Evolution HDMI 4K 4x2 Matrix with Downscaling and ARC HDR HDCP 2.2

ITEM #: VCO-EVMX4K42 MFG #: EVMX4K42

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:

$263.99

Our Price:

$219.99

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup


EVMX4K42 - Overview

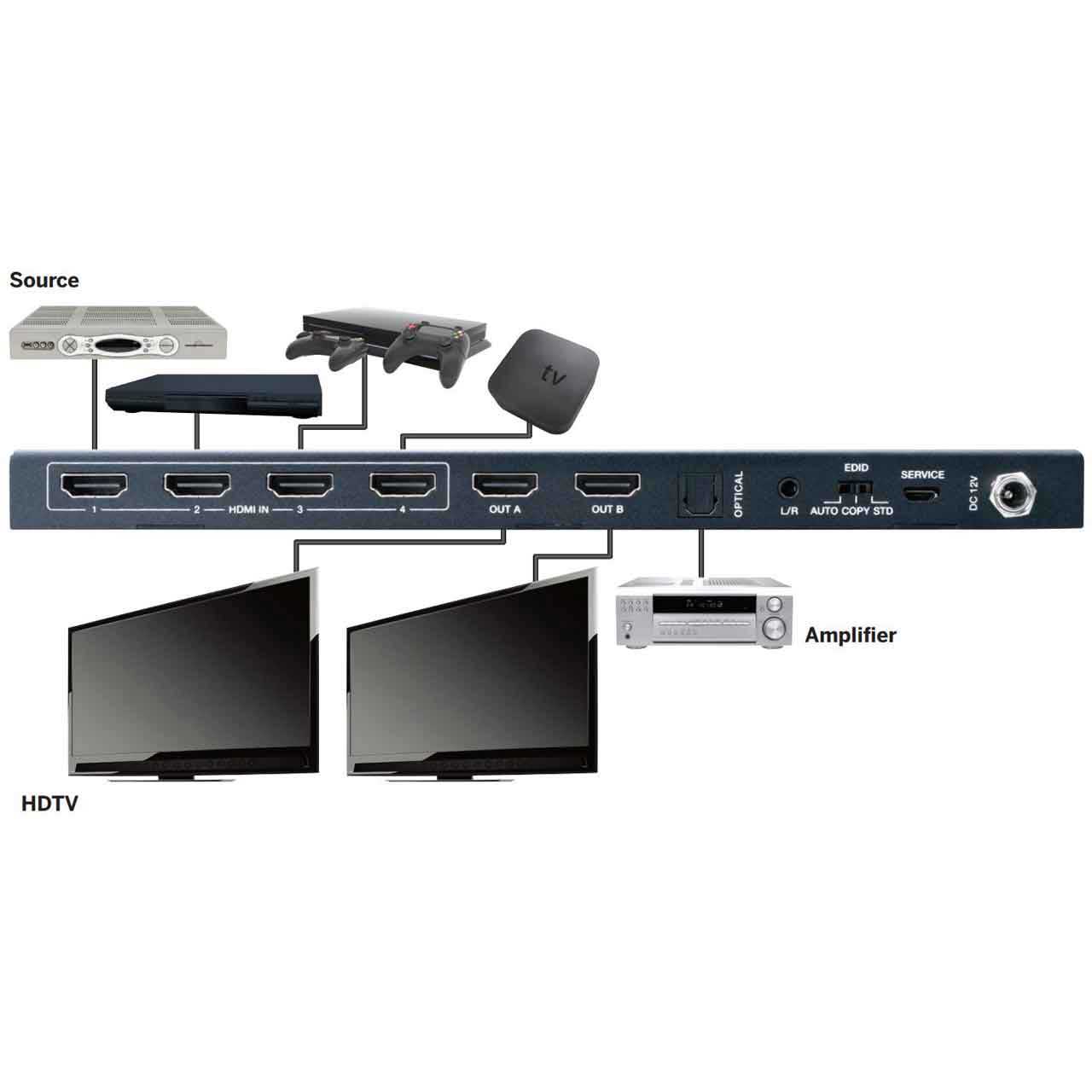

The Evolution by Vanco EVMX4K42 4x2 Matrix with IR, ARC, automatic switching, and downscaling ability, allows 4 HDMI sources to be distributed to up to 2 displays simultaneously. Have multiple sources displayed simultaneously on any display or have a single source split to multiple displays, flexibility for the perfect solution. The EVMX4K42 is capable of transmitting 4K@60Hz, 4:4:4 Chroma Subsampling, and HDR. For control, the EVMX4K42 features multiple methods including simple control using the front panel buttons and IR using the provided remote. Able to downscale either output from 4K to 1080p, a perfect solution for multiple resolution displays, without downgrading the resolution on all outputs. Audio Return Channel (ARC) capable, passing audio from the connected displays, to the connected sources. Audio extraction is also built in, with both digital optical and analog outputs to interface with third party audio systems. For reliable HDMI distribution with 4K, downscaling, and breaking out audio in mind, the EVMX4K42 is a great choice for any application.

  • Features:

    • Allows up to 4 HDMI sources to be distributed simultaneously on 2 displays
    • Supports up to 4K@60Hz and 4:4:4 chroma sampling
    • Supports HDR10+ and Dolby Vision
    • HDCP 2.2/1.4 compliant
    • Downscales 4K to 1080p resolution
    • Supports Audio Return Channel (ARC)
    • Source Audio Extraction
    • Digital and Analog audio outputs
    • Features auto and manual source switching
    • Manually adjustable EDID
    • IR remote control and/or manual front panel control for switching

  • Specifications:

    • HDMI Compliance: HDMI 2.0
    • HDCP Compliance: HDCP 2.2 and HDCP 1.4
    • Video Bandwidth: 18 Gbps
    • Video Resolution: Up to 4K2K@50/60Hz (YCbCr 4:4:4), 4Kx2K@30Hz
    • Color Space: RGB, YCbCr 4:4:4 ,YCbCr 4:2:2, YCbCr 4:2:0
    • Color Depth: 8-bit, 10-bit, 12-bit [1080P, 4K@30Hz, 4K@60Hz (YCbcr 4:2:0)]; 8-bit [4K@60Hz (YCbcr 4:4:4)]
    • HDMI Audio Formats: PCM 2.0/5.1/7.1CH, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD
    • Optical Audio Formats: PCM 2.0, Dolby Digital / Plus, DTS
    • L/R Audio Formats: PCM 2.0CH (Note: If ARC function is turned on, the audio port will be muted)
    • ESD Protection: Human-body Model: ±8kV (Air-gap discharge), ±4kV (Contact discharge)
    • Input Ports: 4xHDMI Type A [19-pin female]
    • Output Ports: 2xHDMI Type A [19-pin female]; 1xL/R audio out [3.5mm Stereo Mini-jack]; 1xOPTICAL audio out [S/PDIF]
    • Housing: Metal Enclosure
    • Color: Black
    • Dimensions: 9.9" W x 4.1" D x 0.8" H
    • Weight: 1.36 lbs
    • Power Supply: Input: AC100~240V 50/60Hz; Output: DC12V/1A
    • Power Consumption: 3.8W (max)
    • Operating Temperature: 0°C ~ 40°C / 32°F ~ 104°F
    • Storage Temperature: -20°C ~ 60°C / -4°F ~ 140°F
    • Relative Humidity: 20°C ~ 90° RH (non-condensing)

  • Item Includes:

    • 1x EVMX4K42 HDMI 4K 4x2 Matrix Selector Switch
    • 1x Mounting Hardware

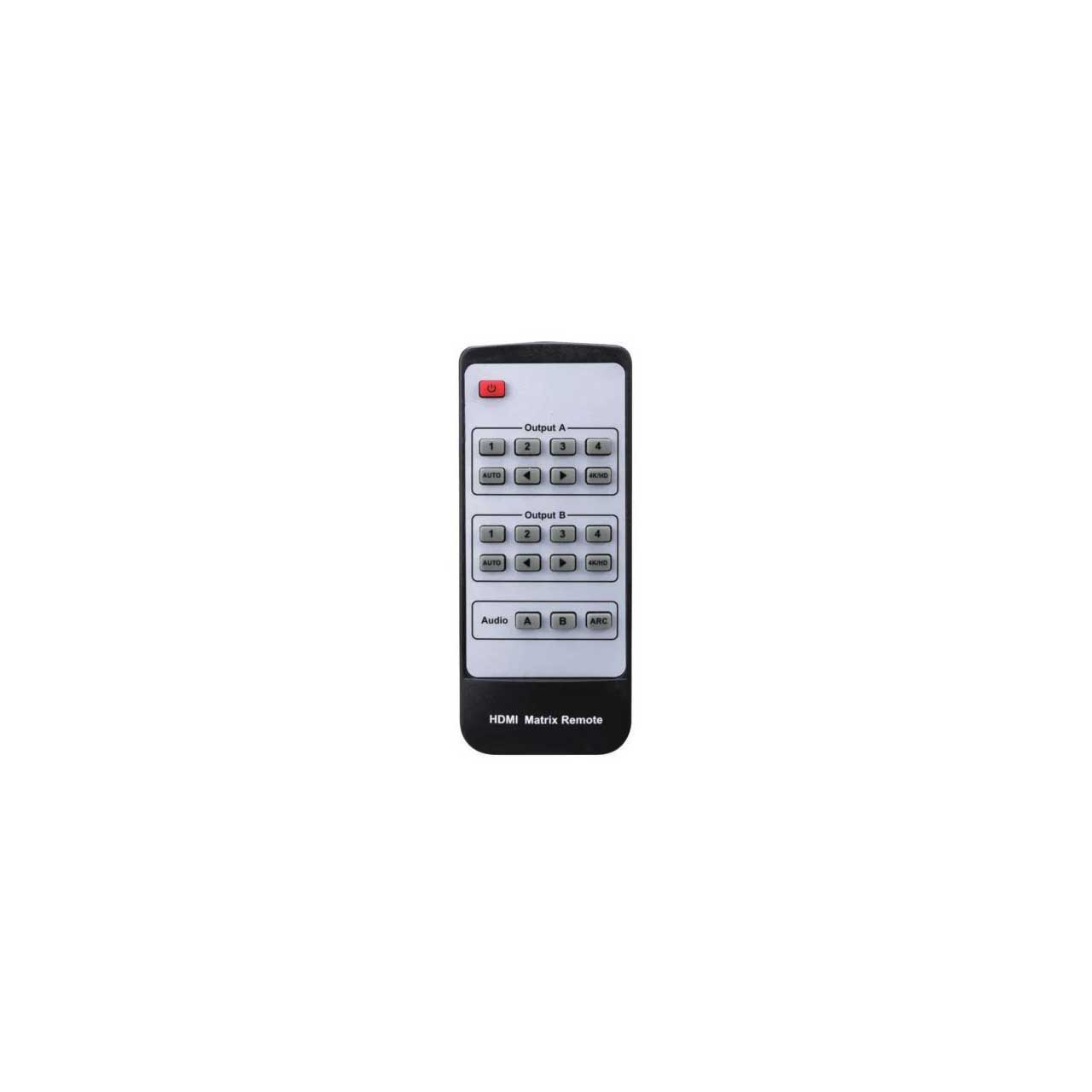

    • 1x IR Remote
    • 1x 12V/1A Power Supply
    • 1x Product Manual
